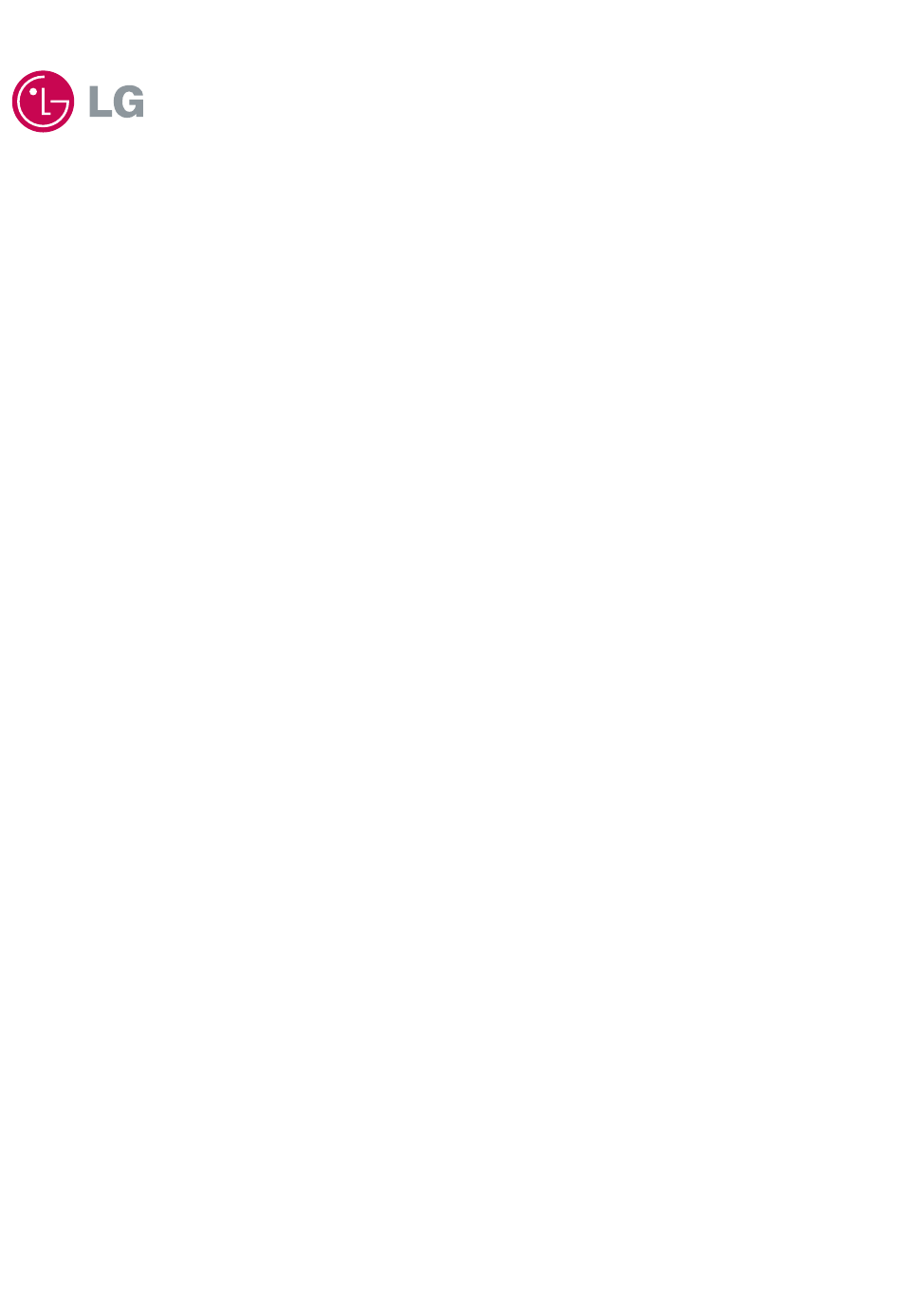

REV.04
Service Manual
Model : A310, A305 Series
2011. 03. 22
Copy Rightⓒ2010 LG Electronic inc, DigitalMate Co,.Ltd.
(LGE Internal use only)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A310 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG A310 Series

Summary of Contents for LG A310 Series

  • Page 1 REV.04 Service Manual Model : A310, A305 Series 2011. 03. 22 Copy Rightⓒ2010 LG Electronic inc, DigitalMate Co,.Ltd. (LGE Internal use only)

  • Page 2: Table Of Contents

    Contents Ch 1. Service information Ch 2. Locations Ch 3. System information · Specification · Model configuration System Block Diagram · Fn key combinations · Status indicators · BIOS Flash · BIOS Setup · Ch 4. Symptom-to-part index Power system checkout ·...

  • Page 3: Ch1. Service Information

    Ch1. Service information Chapter 1. Service information 1-1. Important service information Strategy for replacing parts (FRU-Field Replaceable Units) Before replacing parts Make sure that latest BIOS and drivers are installed before replacing any parts (FRUs) listed in this Use the following strategy to prevent unnecessary expense for replacing and servicing parts 1.

  • Page 4: Safety Notices

    Ch1. Service information 1-2. Safety notices Warning Before the computer is powered-on after part (FRU) replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

  • Page 5: Safety Information

    Ch1. Service information 1-3. Safety information General safety Follow these rules to ensure general safety · Observe good housekeeping in the area of the machines during and after maintenance. · When lifting any heavy object 1. Ensure you can stand safely without slipping. 2.

  • Page 6: Electrical Safety

    Ch1. Service information Electrical safety Observe the following rules when working on electrical equipment. Important Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges.
  • Page 7 Ch1. Service information · Stand on suitable rubber mats (obtained locally, if necessary) to insulate you from grounds such as metal floor strips and machine frames. · Observe the special safety precautions when you work with very high voltages. These instructions are in the safety sections of maintenance information.

  • Page 8: Safety Inspection Guide

    Insulation must not be frayed or worn. 4. Remove the cover. 5. Check for any obvious non-LG alterations. Use good judgment as to the safety of any non-LG alterations. 6. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage.

  • Page 9: Handling Devices That Are Sensitive To Electrostatic Discharge

    Ch1. Service information Handling devices that are sensitive to electrostatic discharge Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects.

  • Page 10: Laser Compliance Statement

    Ch1. Service information 1-4. Laser compliance statement When a CD-ROM drive, DVD drive or the other laser product is installed, note the following : Caution Use of controls or adjustments or performance of procedures other than those specified here in might result in hazardous radiation exposure.

  • Page 11: Read This First

    1-6. Read this first Before you go to the checkout guide, be sure to read this section. Important Notes Only trained personnel certified by LG should service the computer. · Read the entire FRU removal and replacement page before replacing any FRU.
  • Page 12 Ch1. Service information The followings are not covered under warranty : CD panel cracked from the application of excessive force or from being dropped · Scratched (cosmetic) parts · Distortion, deformation, or discoloration of the cosmetic parts · Cracked or broken plastic parts, broken latches, broken pins, or broken connectors caused by excessive ·...

  • Page 13: Ch2. Locations

    Ch2. Locations Chapter 2. Locations ■ Left View 1. Security Key Hole (Kensington Lock Hole) 2. LAN Port 3. Vent 4. VGA Port 5. e-SATA/USB Port 6. Headphone Port 7. Microphone port ■ Right View 8. Optical disk drive 9. HDMI port 10.

  • Page 14: Front View

    Ch2. Locations ■ Front View ④ ① 1. Smart Cam 2. SRS button 3. Power button 4. Built-in Speakers 5. Keyboard 6. Touchpad 7. Multi-card slot 8. Built-in microphone...

  • Page 15: Ch3. System Information

    Ch3. System information Chapter 3. System information Specification Available Processors • Intel® Core™ i7‐6 Series / Core™ i5 / Core™ i3 / Intel® Pentium® processors (L3 cache memory: 3 MB) are supported. ※ L3 cache memory size differs depending on the CPU, which in turn differs depending on the model. ※...
  • Page 16 • RJ 45 Jack ※ The LAN specifications may differ depending on the model. HSPA modem • LG LUM850T ※ The HSPA modem is optional and may not be provided in some models. Also, its specifications may differ depending on the model.

  • Page 17: System Block Diagram

    Chapter 3. System information ■ System Block Diagram...
  • Page 18 Chapter 3. System information ■ System Block Diagram...
  • Page 19 Chapter 3. System information ■ System Block Diagram...
  • Page 20 Chapter 3. System information ■ System Block Diagram...

  • Page 21: Fn Key Combinations

    Chapter 3. System information Fn key combinations The following table shows the function of each combination of Fn with a function key. Function of Fn keys has nothing to do with Operating System. Fn + F1 Customizable hot keys. (Configurable through OSD settings) Fn + F2 Customizable hot keys.

  • Page 22: Status Indicators

    Ch3. System information Status indicators The system status indicators show the status of the computer 1. Power Lamp: • On: The system is on and running by the AC adapter or battery. • Off: The system is turned off or in Hibernates. •...

  • Page 23: Bios Flash

    In order to boot with USB device, you have to change the USB to the highest item on the Boot menu after entering to the BIOS Setup by F2 key or push the F10 key when printing “LG logo” and then choose the next device to use on the boot menu ·...
  • Page 24 Ch3. System information 7. Turn off automatically after BIOS Flash. 8. Press F2 Key while the "LG LOGO" appears. 9. It selects the :” Load User Defaults” on the “Save & Exit” menu and it summons a BIOS settings at initial...
  • Page 25 Ch3. System information · How to update Start Easy Flash You can flash using by Flash utility of the CMOS setup without booting using DOS system file. 1. Press [F2] Key, then you can see the BIOS SETUP UTILITY screen as below. 2.
  • Page 26 Ch3. System information 4. BIOS, after selecting USB systems (FDD/USB Memory) where files are copied presses Enter. 5. Select “Yes” in the “Do you want to update BIOS?”...
  • Page 27 Ch3. System information 6. With afterwords the same screen appears. 7. After flashing is completed, The computer turn off with automatic movement.
  • Page 28 Ch3. System information 8. Press [F2] Key, then you can see the BIOS SETUP UTILITY screen as below. 9. It selects the :” Load User Defaults” and it summons a BIOS settings at initial value.

  • Page 29: Bios Setup

    2. to replace the backup battery 3. system configuration error occurs 4. to change the boot order 5. to set/change a password Press the power button. When the LG logo appears on the screen, press and enter the BIOS Setup Utility.

  • Page 30: Using The Keys

    Ch3. System information Using the keys The keys used in the BIOS Setup Utility and their functions are described at the bottom. · : General Help Display the descriptions of the keys used in the setup utility. · : Select Item Navigate and select items in the setup utility.
  • Page 31 Ch3. System information Main menu · BIOS Version · Processor Type This shows the Version of BIOS. This shows the type of CPU. · VBIOS Version · Processor speed This shows the VBIOS Version of BIOS. This shows the speed of CPU. ·...

  • Page 32: Advanced Menu

    Ch3. System information Advanced menu · Wake On LAN · Start Easy Flash Enables Wake Wake – UP On LAN. · CPU Power State · No Execute Mode Memory Protection Set CPU Power status. Set if it is used a prevention function or not Data Execution Prevention of Windows XP SP2.

  • Page 33: Security Menu

    Ch3. System information Security menu · Administrator Password This shows the system’s administrator password has been set, or not. · User Password Set User Password is for setting the password lower than the one set in Set Supervisor Password. Set User Password is active only when the supervisor password is set. ·...
  • Page 34 Ch3. System information Boot menu · Quiet Boot Set whether or not to use Quiet Boot. · PXE Boot Booting to connect with a server that supports PXE. · Set Boot Priority Select the desired device drive by using the arrow buttons and change its booting sequence by using the [+] or [-] key.

  • Page 35: Save & Exit Menu

    Ch3. System information Save & Exit menu Save Changes and Exit · Save the changes you have made and exit the utility. Discard Changes and Exit · Exit the utility without saving the changes you have made. · Discard Changes This returns to the factory default settings for each parameter in the Setup menu.
  • Page 36 Ch3. System information ■ Backup and Restore Security Platform Data Security Platform Backup includes all data required in case of emergency. After a hardware or storage media failure or a Trusted Platform Module failure, Security Platform Restoration reestablishes access to Security Platform Features for all users.
  • Page 37 Ch3. System information Personal Secure Drive Backup Contents A copy of the PSD encrypted data and configuration settings. Purpose Restoration of PSD encrypted data and configuration settings after a hardware or storage media failure. Otherwise users could not decrypt their PSD data anymore. Notes: •...
  • Page 38 Ch3. System information ■ How to Backup and Restore How to configure automatic backups ("System Software Component to use Backup") Administrative Task: Configure automatic backups If Security Platform is not yet initialized: Initialization Wizard for all users (including Security Platform Credentials If Security Platform is already initialized: Settings Tool - and Settings, Emergency Recovery and PSD Backup - Configure...
  • Page 39 Ch3. System information ■ Infineon Platform Security Backup With this page you can backup and restore Security Platform credentials, Security Platform settings and Personal Secure Drives. If Enhanced Authentication is enabled, you can also create backups of your authentication device. Availability of page: This page is only available on an initialized Security Platform, if one of the following conditions is fulfilled: •The current user has administrative rights.

  • Page 40: Ch4. Symptom-To-Part Index

    Ch4. Symptom-to-part index Chapter 4. Symptom-to-part index The symptom-to-part index in this section lists symptoms and errors and their possible causes. The most likely cause is listed first. Note If replacing a part (FRU) does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.
  • Page 41 Ch4. Symptom-to-part index To check the AC adapter, do the following : 1. Unplug the AC adapter cable from the computer. Voltage (V dc) 2. Measure the output voltage at the plug of the +18.05 ~ +19.95 AC adapter cable. See the following figure : Ground 3.
  • Page 42 Ch4. Symptom-to-part index · If the voltage is not correct, replace the AC adapter. · If the voltage is acceptable, do the following : 1. Replace the system board. 2. If the problem persists, check the AC adapter whether it is correct product or not. Note Noise from the AC adapter does not always indicate a defect.
  • Page 43 Ch4. Symptom-to-part index · The Characteristics of the battery pack 1. Self-discharge The battery gradually loses its power over time without ever being used. 2. Periodic full discharge / charge Frequent recharge of the battery pack can reduce the capacity of the battery pack. When this happens, you can perform the full discharge / charge to improve the capacity.
  • Page 44 Ch4. Symptom-to-part index · To check the battery pack, do the following : 1. Power off the computer. 2. Remove the battery pack and measure the voltage between battery terminals 1(-) and 5(+). See the following figure : Terminal Voltage (V dc) Ground(-) +0V ~ +12.6V 5(+)

  • Page 45: Numeric Error Codes

    Ch4. Symptom-to-part index Numeric error codes Symptom / Error FRU or action, in sequence 0200 1.Reset the hard-disk drive. Fixed disk failure 2.Load Setup Defaults in BIOS Setup Utility. (The hard disk is not working) 3.Hard-disk drive. 4.System board. 0210 1.Check the keyboard if it is pressed.
  • Page 46 Ch4. Symptom-to-part index Symptom / Error FRU or action, in sequence 0251 Replace the backup battery and run BIOS Setup Utility System CMOS checksum bad to reset the time and date. – System CMOS checksum is not correct. – Default configuration used. 0252 Reset the password by running BIOS Setup Utility.
  • Page 47 Ch4. Symptom-to-part index Symptom / Error FRU or action, in sequence 02F7 1. DIMM Fail – Safe timer NMI failed 2. System board 0611 1. Load Setup Defaults in BIOS Setup Utility. IDE configuration changed 2. System board. 0612 1. Load Setup Defaults in BIOS Setup Utility. IDE configuration error 2.

  • Page 48: Error Messages

    Ch4. Symptom-to-part index Error message Symptom / Error FRU or action, in sequence Device address conflict. 1. Load Setup Defaults in BIOS Setup Utility. 2. Backup battery. 3. System board. Allocation error for device. 1. Load Setup Defaults in BIOS Setup Utility. 2.

  • Page 49: Lcd-Related Symptoms

    Ch4. Symptom-to-part index LCD-related symptoms Note Before removing or disassembling LCD, power off the computer, unplug all power cords from electrical outlets, remove the battery pack also. Symptom / Error FRU or action, in sequence LCD screen becomes dark suddenly. Check out Battery Miser.

  • Page 50: Indeterminate Problems

    1. Power off the computer 2. Visually check each FRU for damage. Replace any damaged FRU. 3. Remove or disconnected all of the following devices : a. Non-LG devices. b. Printer, mouse, and other external devices. c. Battery pack. d. PC cards.

  • Page 51: Chapter 5. Removing And Replacing A Part (Fru)

    Ch5. Removing and replacing a part Chapter 5. Removing and replacing a part (FRU) Danger Before removing any FRU, power off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables. Caution Before the computer is powered on after FRU replacement, make sure that all screws, springs, and other small parts are in place and are not loose inside the computer.

  • Page 52: 1010 Battery Pack

    Ch5. Removing and replacing a part ■ 1010 Battery Pack 1. Push the battery latch in the direction shown below; then remove the battery pack out of the slot. 2. Remove the Battery Pack.
  • Page 53 Ch5. Removing and replacing a part ■ 1020 Memory Cover ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 1 screw. Specification FRU No. M2 x L4 FAB30342001 2. Remove the memory cover.
  • Page 54 Ch5. Removing and replacing a part ■ 1030 Memory ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Memory Cover(1020) 1. Remove the Hook. Hook Hook Hook Hook 2. Remove the Memory.
  • Page 55 Ch5. Removing and replacing a part ■ 1040 HSPA Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Memory Cover(1020) 1. Remove 2 antenna cables. Cable 2. Remove 2 screws. FRU No. Specification M2 x L3 FAB30278202...
  • Page 56 Ch5. Removing and replacing a part 3. Remove the HSPA module.
  • Page 57 Ch5. Removing and replacing a part ■ 1050 WLAN Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Memory Cover(1020) 1. Remove 2 antenna cable. Cable 2. Remove 2 screws. FRU No. Specification FAB30278202 M2 x L3...
  • Page 58 Ch5. Removing and replacing a part 3. Remove the WLAN module.
  • Page 59 Ch5. Removing and replacing a part ■ 1060 HDD ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 1 screw. FRU No. Specification FAB30342001 M2 x L4 2. Remove the HDD cover and 1 screw. FRU No.
  • Page 60 Ch5. Removing and replacing a part 3. Remove the HDD. FRU No. Specification FAB30342001 M2 x L4 4. Remove 4 screws. FRU No. Specification FAB30278601 M3 x L3...
  • Page 61 Ch5. Removing and replacing a part 5. Remove the HDD Shield.
  • Page 62 Ch5. Removing and replacing a part ■ 1070 ODD ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 1 screw. 2. Push to the arrow to remove it...
  • Page 63 Ch5. Removing and replacing a part 3. Remove the ODD. 4. Remove 2 screws and the ODD Bezel. Bezel FRU No. Specification FAB30278202 M2 x L3...
  • Page 64 Ch5. Removing and replacing a part ■ 1080 SD ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove the SD Card.
  • Page 65 Ch5. Removing and replacing a part ■ 1090 Keyboard ※ Remove the following parts in order before replacing this part a. Battery Pack(1010) 1. Remove 1 screw. FRU No. Specification M2 .5 x L6 FAB31219201 2. Remove from the KBD KBD hook.
  • Page 66 Ch5. Removing and replacing a part 3. Remove the keyboard cable. Cable 4. Remove the keyboard.
  • Page 67 Ch5. Removing and replacing a part ■ 1100 Keydeck ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090) 1. Remove 19 screws. Specification FRU No. M2 x L6 12EA FAB30342201 M2 x L2.5 FAB31219101 2.
  • Page 68 Ch5. Removing and replacing a part 3. Hold SD card insertion parts by the hand, remove keyborad deck. 4. Remove the keyboard deck.
  • Page 69 Ch5. Removing and replacing a part ■ 1110 Touch Pad ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100) 1. Remove 1 cable. Cable 2. Remove the touch pad cable.
  • Page 70 Ch5. Removing and replacing a part ■ 1120 Speaker ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100) 1. Remove 4 screws. FRU No. Specification FAB30278202 M2 x L3 2.
  • Page 71 Ch5. Removing and replacing a part ■ 1130 Mainboard ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100) 1. Remove 4 connector/cables. Cable 2. Remove 5 screws and MIC rubber. FRU No.
  • Page 72 Ch5. Removing and replacing a part 3. Remove the MIC rubber. 4. Remove mainboard from bottom case.
  • Page 73 Ch5. Removing and replacing a part 5. Remove the mainboard case.
  • Page 74 Ch5. Removing and replacing a part ■ 1140 CPU/GPU Fan Assembly ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130) 1. Remove 1 antenna cable and 6 screws. Cable FRU No.
  • Page 75 Ch5. Removing and replacing a part ■ 1150 CPU ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130) f. CPU/GPU Fan Assembly(1140) 1. It uses screwdriver and it removes the CPU.
  • Page 76 Ch5. Removing and replacing a part ■ 1160 USB(R) Sub Board ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130) 1. Remove the 4 screws. FRU No. Specification M2 x L3 FAB30278202...
  • Page 77 Ch5. Removing and replacing a part ■ 1170 Power Switch Board ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130) 1. Remove the power switch board.
  • Page 78 Ch5. Removing and replacing a part ■ 1180 AC Connector ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130) 1. Remove 1 screw. FRU No. Specification M2 x L3 FAB30278202...
  • Page 79 Ch5. Removing and replacing a part ■ 1190 Display Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130), f. USB(R) Sub Board(1160) 1. Remove 6 screws. FRU No.
  • Page 80 Ch5. Removing and replacing a part ■ 1200 LCD Front Case ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), a. Battery Pack(1010), b. ODD(1070), c. Keyboard (1090), d. Keydeck(1100), e. Mainboard(1130), f. Display Module(1190) 1.
  • Page 81 Ch5. Removing and replacing a part 2. Remove the LCD Front Case.
  • Page 82 Ch5. Removing and replacing a part ■ 1210 LCD Assembly ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Display Module(1190), c. LCD Front Case(1200) 1. Remove the 6 screws. FRU No. Specification FAB31239201 M2.5 x L4 FAB31239201 M2.5 x L4...
  • Page 83 Ch5. Removing and replacing a part ■ 1220 LCD Panel Bracket ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Display Module(1190), c. LCD Front Case(1200), d. LCD Assembly(1210) 1. Remove the 6 screws. FRU No.
  • Page 84 Ch5. Removing and replacing a part ■ 1230 LCD Cable ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Display Module(1190), c. LCD Front Case(1200), d. LCD Assembly(1210), e. LCD Panel Bracket(1220) 1. Remove the LCD Cable. Cable...
  • Page 85 Ch5. Removing and replacing a part ■ 1240 Web Cam Module ※ Remove the following parts in order before replacing this part a. Battery Pack(1010), b. Display Module(1190), c. LCD Front Case(1200), d. LCD Assembly(1210), e. LCD Panel Bracket(1220), f. LCD Cable(1230) 1.
  • Page 86 Ch5. Removing and replacing a part 2. Remove the web cam module.

  • Page 87: Ch 6. Part List

    Ch6. Part lists Chapter 6. Part lists REV.04 Category Loc. No. LG P/N Description Remark NMLB01 EBR72923401 APOLLO PM MAIN B/D Mainboard NMLB01 EBR72923402 APOLLO GM MAIN B/D NSUB01 EBR73113301 APOLLO Power Switch Sub Board (with cable) SUB B/D NSUB02...
  • Page 88 DC-Jack Cable - 10 Pin (GM) It is same model with NBOTM03 MCQ66285901 Bottom Rubber (4ea) C500. NLCD01 ABQ73504601 Rear case assy Black LG-WL (Non-3G) NLCD01 ABQ73504602 Rear case assy Red LG-WL (Non-3G) NLCD01 ABQ73504603 Rear case assy Black LG -3G NLCD01...
  • Page 89 Ch6. Part lists Category Loc. No. LG P/N Description Remark NCPU01 EAN60916613 i5-580M (2.66G) NCPU01 EAN60916612 i5-560M (2.66G) 12/27 (10') add NCPU01 EAN60916619 i5-480M (2.66G) 12/27 (10') add NCPU01 EAN60916610 i3-380M (2.53G) NCPU01 EAN60916615 P6200 (2.13G) NPWCD01 EAD55264001 Turkey, Algeria, Tunisia, Libya, Iran, Levant...
  • Page 90 Ch6. Part lists Category Loc. No. LG P/N Description Remark NLAB06 MEZ63797902 ID Label Global GM / 65W NLAB06 MEZ63797903 ID Label Global PM / 90W LABEL NLAB06 MEZ63797904 ID Label Mexico GM / 65W NLAB06 MEZ63797905 ID Label Mexico PM / 90W...
  • Page 91 NLCD08 NLCD08 NLCD02 NLCD08 NLCD09 NLCD05 NLCD08 NLCD03 NLCD04 NLCD06 NLCD07 NWEBC01 NLCD01...
  • Page 92 LG P/N Description Remark Webcam NWEBC01 EBP61322301 FS13FF-183-2 NONE FOXLINK 1.3M CMOS NLCD01 ABQ73504601 Rear case assy Black LG-WL (Non-3G) NLCD01 ABQ73504602 Rear case assy Red LG-WL (Non-3G) NLCD01 ABQ73504603 Rear case assy Black LG -3G NLCD01 ABQ73504604 Rear case assy Red LG -3G...
  • Page 93 NMINI04 NMINI03 NKDECK02 NKDECK01 NKDECK04 NKBD01...
  • Page 94 Key deck Category Loc. No. LG P/N Description Remark NKBD01 AEW73049801 KEYBOARD H46Y (KOR) BLACK NKBD01 AEW73049802 KEYBOARD H46Y (US) BLACK common use Keyboard NKBD01 AEW73049803 KEYBOARD H46Y (HEBREW) BLACK with C500, C400 model NKBD01 AEW73049806 KEYBOARD H46Y (TURKISH) BLACK...
  • Page 95 NHDD02 NHDD01 NFAN02 NFAN01 NMRY01 NCPU01 NMRY01 NDSO01 NMLB01 NKDECK03...
  • Page 96 Main Category Loc. No. LG P/N Description Remark NMLB01 EBR72923401 APOLLO PM MAIN B/D Mainboard NMLB01 EBR72923402 APOLLO GM MAIN B/D NHDD01 EAZ60841902 250GB(Toshiba), MK2565GSX NHDD01 EAZ61021503 320GB(WD), WD3200BPVT-22 NHDD01 EAZ61021504 500GB(WD), WD5000BPVT-22 NHDD01 EAZ61021505 640GB(WD), WD6400BPVT-22 NHDD01 EAZ60841905 640GB(Toshiba), MK6465GSX...
  • Page 97 NCVR02 NCVR01 NBOTM03 NBOTM03 NBOTM01 NBOTM03 NODD03 NODD01 NBATT01 NBOTM02 NODD02 NMINI01 NMINI02 NSUB02 NSUB01...
  • Page 98 Etc. Category Loc. No. LG P/N Description Remark NSUB01 EBR73113301 APOLLO Power Switch Sub Board (with cable) SUB B/D Video GM and NSUB02 EBR72923451 APOLLO PM SUB B/D PM circuitry be incorrect NSUB02 EBR72923452 APOLLO GM SUB B/D NCVR01 ABQ73504401...
