multicomp pro MP701126 User Manual

Non-contact phase detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF
MP701126
ELECTRICAL & ELECTRONIC EQUIPMENT.
When this product has reached the end of its life it must be treated as Waste
Non-Contact Phase Detector
Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be
mixed with general household waste, but kept separate for the treatment, recovery
and recycling of the materials used. Contact your local authority for details of
recycling schemes in your area.
Made in China
150 Armley Road, Leeds, LS12 2QQ (UK)
Riverside One, Sir John Rogerson Quay, Dublin 2 (EU)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP701126 and is the answer not in the manual?

Questions and answers

Related Manuals for multicomp pro MP701126

Summary of Contents for multicomp pro MP701126

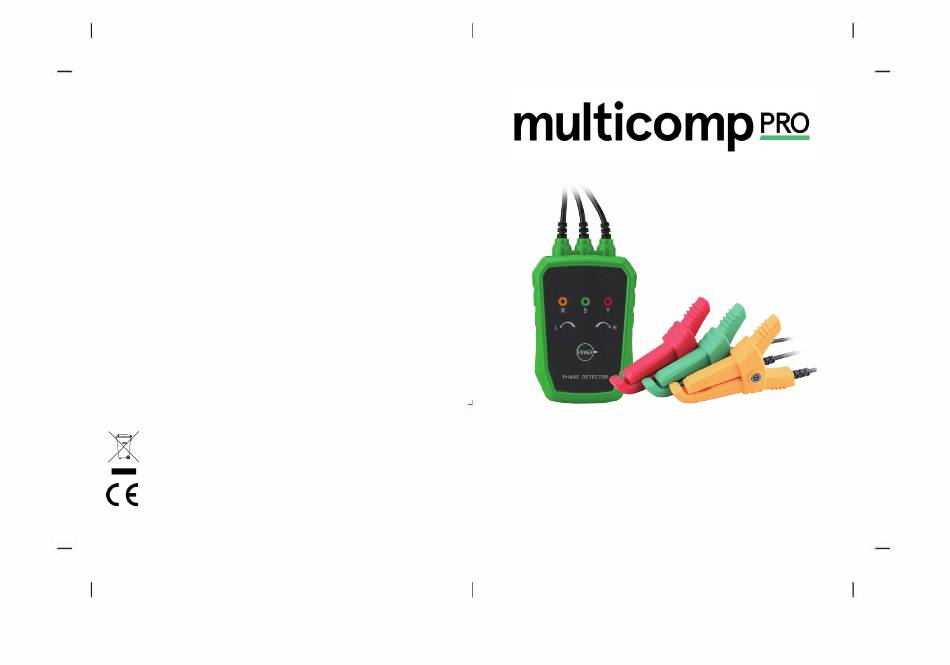

  • Page 1 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF MP701126 ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Non-Contact Phase Detector Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

  • Page 2: Table Of Contents

    & Content Safety Warnings Read this manual carefully and retain for future reference. Safety Warnings............4 Comply strictly with safety rules and precautions set out Introduction ............5 in this manual. Electrical Symbols ..........6 • Always pay attention to safety when using this instrument.

  • Page 3: Introduction

    MP701126 Non-contact Phase Detector also has the • If use the detector without following up the operating functions of live wire examination, power inspection, phase instructions, the protection provided by the detector may deficiency judgement, breakpoints finding, breakpoints be impaired or lost.

  • Page 4: Technical Specification

    Technical Specification Phase detection (positive/negative), power 88mm(L)x66mm(W)x30mm(H) Dimension inspection, phase deficiency judgement, Function Lead Wire breakpoints finding, breakpoints positioning, 0.6m Length wire examination. Weight 238g (including batteries) Battery 2*1.5V AA (R6P) 70-1000VAC (Three phase), Operating Measurement ° ° 45Hz~66Hz (sine wave, continuously) C-50 Temperature C;...

  • Page 5: Corresponding Relation

    1 . Phase sequence detection Danger! High voltage! Please pay attention to safety! Corresponding Relation Operating Method (1 ). Clamp three phase wires with the three clamps m s ��Y' � i � Structure (2). Put the wires at the position marked with ".Ai' "T" 1.
  • Page 6 (4). If the three phase sequence indicator lamps lights up (4). Clamps and lamps corresponding table: and R indicator lamp lights up green, and the buzzer sounds intermittently and slowly, so it is positive phase LED indicator state sequence. If the three phase sequence indicator lamps Power-on Test state indication Buzzer...

  • Page 7: Battery Replacement

    Trouble Shooting Battery Replacement Pay attention to the battery polarity! Symptoms Possible Causes Remedies 1. Make sure the clamps are disconnected from wires. No batteries Set the batteries 2. Press "POWER" to turn off the instrument. 3. Loosen the screw, and then remove the battery cover. Wrong battery type Replace with right type 4.

  • Page 8: Packing List

    Packing List Instrument ---------1 pcs 1 pcs Cloth bag 2 pcs Battery User manual 1 pcs...
