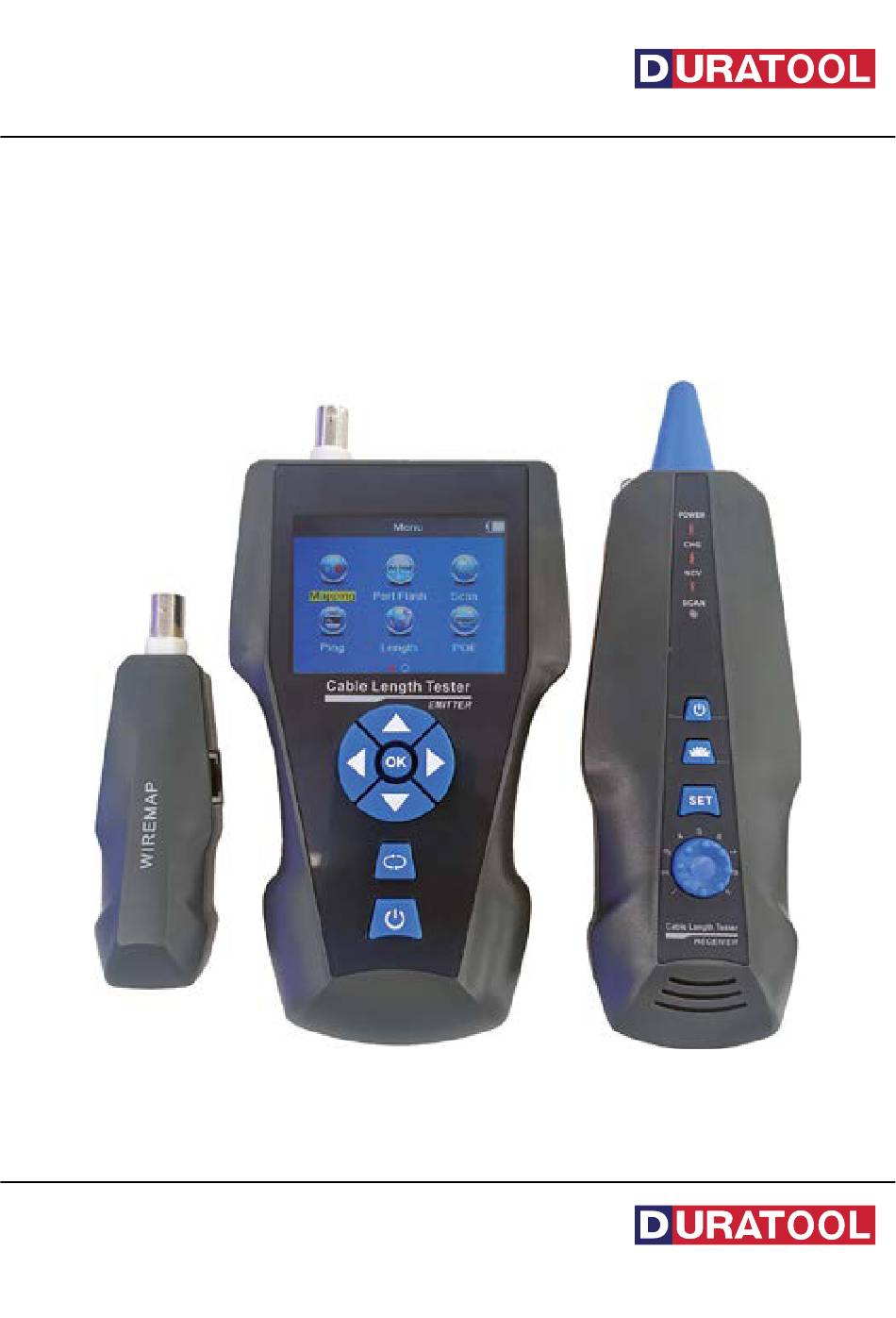

- Page 1 User Manual Cable Length Tester With TDR Part Number: D03481 Newark.com/exclusive-brands Farnell.com/exclusive-brands Element14.com/exclusive-brands Page <1> 14/02/25 V1.0...
-
Page 2: Table Of Contents
Table of Content Overview..............3 Main functions . -
Page 3: Overview
Overview D03481 new upgraded version, provides full cable testing on different category network, coax, or telephone cable. T h e intel- ligent wire map feature tests for length, shorts, split pairs, or opens and displays with an intuitive graphical interface where a fault is located. -
Page 4: Product Interface And Key Introduction
(2). Display 2.8 inch LCD Color screen:320×240 (Effective visible area 60×45mm). (3). Power supply 3. 7V rechargeable Lithium battery1800mAh (4 ). Tracing cable types STP/UTP Cat5e, cat6, cat6a, cat? network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip. (5). - Page 5 Function keys on Receiver is used to detect currency and also for lamp. “SET” can be shifted to two work modes: cable tracing and AC voltage detect- ing. Press to adjust the sensitivity. Press to turn on or turn off the device. Ports on Remote identifier (1) Port RJ45:testing cable continuity for Lan cable.
-
Page 6: Charging Function
Charging function The power supply for main tester and receiver are both 3.7V Rechargeable Lithium battery, its capacity is 1800mAh. After charging, please disconnect the charging device, otherwise it would shorten the battery life. A Micro-USB 5V DC charger is required. When the emitter low battery (<3V), it will show “Low battery, auto-off 9soon!”; when the receiver has low battery (<3V), “power”... - Page 7 (3) Open Method--- Only connect one end of cable into main tester when measuring cable length, disconnect the far end of the cable. ( Fig.3) (4) PoE/ PING Methods--- Connect one end of Ian cable with “POE/Ping” Port, the other end to PoE switcher or router. (Fig.4) a.
- Page 8 Test result 3: Short circuit If there is short circuit , it will show as below(Shorted at pin 38 & pin 45) Test result 4: open circuit ( testing with Remote unit) In the figure, it indicates there is open circuit in Pin “2” and “5”, at the distance of 97.2m from the starting end of “Remote”. Test result 5: Cross When the cable is cross , it will show you as below.
- Page 9 Test result 9: Continuity test for coax cable When you test the coax cable , you should insert into the BNC interface and the test method is the similar with network cable. Attention: The cable continuity testing is for ≥2-core cables. b.
- Page 10 Test result 1: LAN cable---good condition The normal network cable length test result show you as below: From the image you can see the total length is 105.3m, press back to the main menu and then enter the next testing. Test result 2 : LAN cable---Short circuit If there is short circuit in the cable , eg: Shorted pin1 &2, pin 4 &...
- Page 11 From the image , you can see the cable length is 166.9m . Test result 5: Telephone cable ---short circuit If there is short circuit in the cable, eg: Shorted pin 1&2. The total length is 165.8m, but it also means that here is a short location at 122.2m at pin 1 & 2. (Note: The lines for shorted pin would be red).
- Page 12 Cable scanning The advanced version D03481, it has three modes for option. (Low frequency, PoE switch, High frequency) Firstly, choose icon “SCAN” on the main menu (Graph 1 ), enter to a default scan mode, which is “low frequency” mode (Graph 2).
- Page 13 a) Short press “SET” one time, the” SCAN” indicator will turn red, in this situation, it is available for two scan modes: Low frequency / PoE switch. It means, when the “scan” indicator is red, users must choose” Low frequency” or “PoE switch” mode in the transmitter.
- Page 14 f. PoE test After enter the main menu , press this cursor to move ▼ ▲ ◄ ►, and point to PoE test menu , and press OK to test PoE; Take one side insert the “PoE/Ping” PORT , the other side insert into PoE Router or Ethernet, then start testing , and press OK, the screen will show you the voltage of each pin.
-
Page 15: Accessories
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. DURATOOL is the registered trademark of Premier Farnell Limited 2019.
