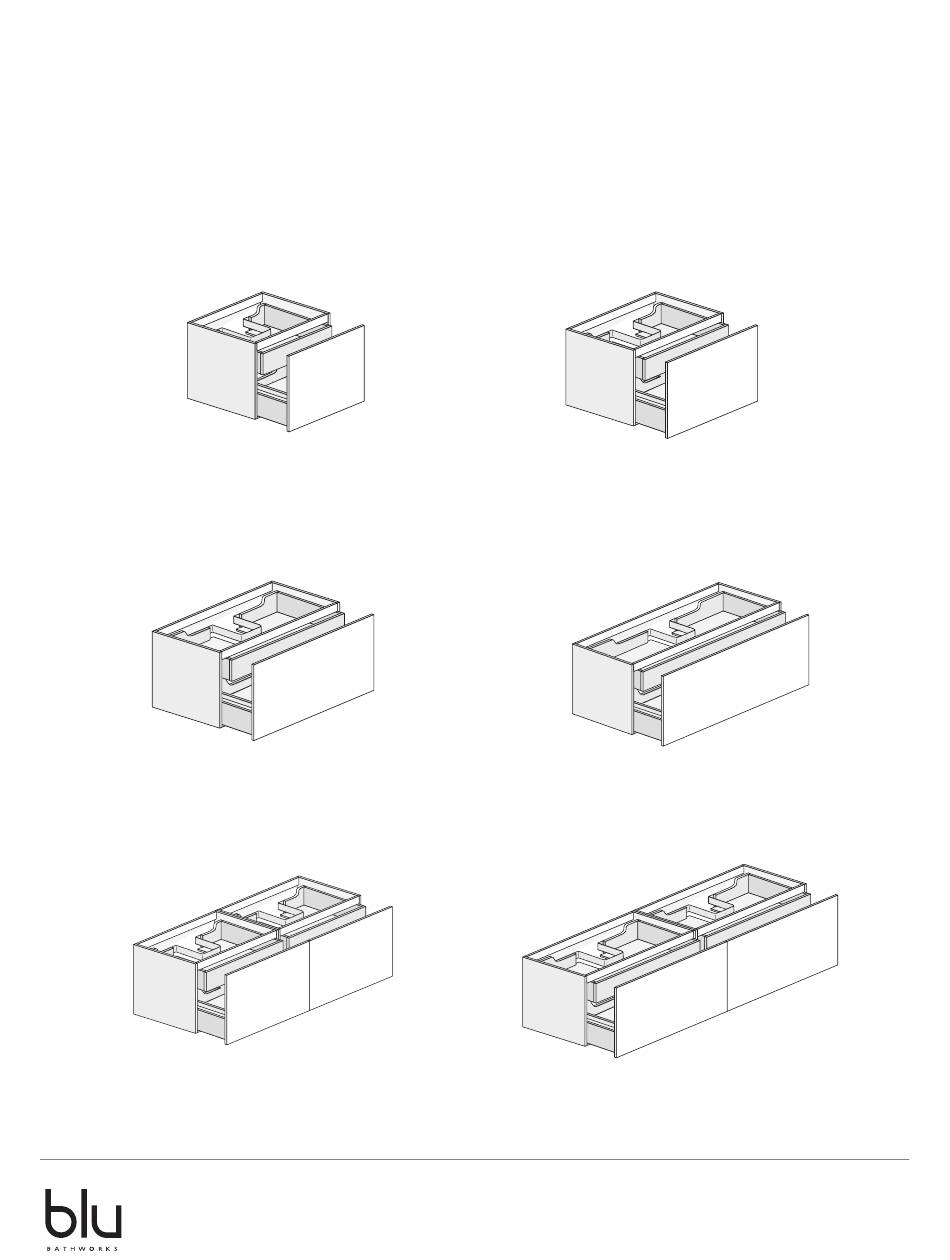

- Page 1 wall-mount vanities Installation Guide Series 600 Series 700 BCZ615C BCZ715C Series 1200 Series 900 BCZ115C BCZ915C Series 1400 Series 1800 BCZ915C X2 BCZ715C X2 2014-03 1 866 907 0122 blubathworks.com ®...
-
Page 2: Installation Requirements
Should inspection reveal any damage or defect in the finish, contact your distributor. The warranty does not cover damages or defects in the finish once it has been installed. Blu Bathworks’ responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made directly to the carrier. - Page 3 Fastening holes for wall-mount vanity FASTENING HOLES FOR HANGING SINK BASE TROUS DE FIXATION BAS LAVABO SUSPENDU Trous de fixation bas lavabo suspendu Extraction drawers Extraction tiroir ... with undercounter washbasin ... avec lavabo encastrement par dessous 7,48 ON VANITY UNIT H.
- Page 4 Fixing wall-mount vanity unit FIXING HANGING VANITY UNIT (DEEP DRAWER) MONTAGE BASE PORTE LAVABO SUSPENDUE (COFFRE) Montage base porte lavabo suspendue (coffre) Ø9mm Ø0,35in * ensure brackets are level before mounting vanity Insertion drawers Insertion tiroir Ø9mm Ø0,35in Ø9mm Ø0,35in mpris 2014-03 1 866 907 0122...
- Page 5 Front adjustment drawer & chest FRONT ADJUSTMENT DRAWER AND CHEST TIROIR ET DE RÉGLAGE AVANT DU TIROIR Tiroir et de réglage avant du tiroir 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 6 Front adjustment drawer & chest FRONT ADJUSTMENT DRAWER AND CHEST TIROIR ET DE RÉGLAGE AVANT DU TIROIR Tiroir et de réglage avant du tiroir 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 7 Opening touch adjustment OPENING ADJUSTMENT TOUCH OUVERTURE MONOTOUCHE DE RÉGLAGE TOUCH 4 mm 0,16 in 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 8 Front replacement drawer & chest FRONT REPLACEMENT DRAWER AND CHEST TIROIR ET DE REMPLACEMENT AVANT DU TIROIR Tiroir et de remplacement avant du tiroir TOUCH 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 9 Front replacement drawer & chest FRONT REPLACEMENT DRAWER AND CHEST TIROIR ET DE REMPLACEMENT AVANT DU TIROIR Tiroir et de remplacement avant du tiroir 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 10 Front replacement drawer & chest FRONT REPLACEMENT DRAWER AND CHEST TIROIR ET DE REMPLACEMENT AVANT DU TIROIR Tiroir et de remplacement avant du tiroir 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 11 Front replacement drawer & chest Tiroir et de remplacement avant du tiroir FRONT REPLACEMENT DRAWER AND CHEST TIROIR ET DE REMPLACEMENT AVANT DU TIROIR 2014-03 1 866 907 0122 blubathworks.com ®...
-
Page 12: Made In Italy
MADE IN ITALY This unit is made of "Idropan". "Idropan" ensures the best defence against humidity that may affect the unit. Extra guarantee in order to protect a high quality unit. Ce meuble est construit avec Idropan. Idropan garantit la meilleure défense contre l'humidité à laquelle le meuble peut accidentellement être exposé. -
Page 13: Warranty
Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service. Repaired or replaced products or parts are warranted only for the period remaining under the initial warranty. Blu Bathworks reserves the right to discontinue product without notice. Nominal dimensions referenced throughout this guide may vary slightly from exact dimensions. - Page 14 M2 mirror medicine cabinet Installation Guide BCA141ML BCA141MR 2014-03 1 866 907 0122 blubathworks.com ®...
- Page 15 Should inspection reveal any damage or defect in the finish, contact your distributor. The warranty does not cover damages or defects in the finish once it has been installed. Blu Bathworks’ responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made directly to the carrier.
- Page 16 IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER – To reduce the risk of electric shock: 1. Always unplug this furnishing from the electrical outlet before cleaning. WARNING –...
- Page 17 Medicine cabinet mirror fastening STORAGE UNIT MIRROR FASTENING FIXATION ARMOIRES DE TOILETTE Fixation armoires de toilette Measurements in mm / inch Dimensions en mm / inch 1,93 1,65 1,65 1,93 2,36 Ø6mm Ø0,24in * ensure brackets are level before mounting vanity 2014-03 1 866 907 0122 blubathworks.com...
-
Page 18: Power Supply
Medicine cabinet mirror fastening Fixation armoires de toilette WARNING ! Installation requires qualified personnel. ATTENTION ! L’installation exige l’intervention d’un personnel qualifié. ATTENTION POWER SUPPLY 120Vac - 60Hz Socket-switch group Groupe prise-interrupteur 2014-03 1 866 907 0122 blubathworks.com ®... - Page 19 Medicine cabinet mirror fastening STORAGE UNIT MIRROR FASTENING FIXATION ARMOIRES DE TOILETTE Fixation armoires de toilette FRONT ADJUSTMENT RÉGLAGE FRONTAL VERTICAL ADJUSTMEN RÉGLAGE VERTICAL SIDE ADJUSTMENT RÉGLAGE LATÉRAL Make heigth adjustment first Exécuter en premier le réglage en hauter UNCOUPLING DÉCOUPLAGE PUSH 30 kg...
- Page 20 Hinge adjustment for straight doors HINGES ADJUSTING FOR STRAIGHT DOORS REGOLATION CHERNIERES POUR PORTES DROIT Regulation chernieres pour portes droit FOR STRAIGHT DOORS - POUR PORTES DROIT FRONT ADJUSTMENT HINGES ADJUSTING FOR STRAIGHT DOORS RÉGLAGE FRONTAL REGOLATION CHERNIERES POUR PORTES DROIT FOR STRAIGHT DOORS - POUR PORTES DROIT FRONT ADJUSTMENT RÉGLAGE FRONTAL...
- Page 21 Inspection shelf LED backlighting INSPECTION SHELF LED BACKLIGHTING Plateau d’inspection des rétro-éclairage LED PLATEAU D’INSPECTION DES RÉTRO-ÉCLAIRAGE LED IMPORTANT SAFETY INST When using an electrical f Read all instructions befo DANGER – To reduce the r 1. Always unplug this furn WARNING –...
- Page 22 MADE IN ITALY This unit is made of"Idropan". "Idropan" ensures the best defence against humidity that may affect the unit. Extra guarantee in order to protect a high quality unit. Ce meuble est construit avec Idropan. Idropan garantit la meilleure défense contre l'humidité à laquelle le 4007328 meuble peut accidentellement être exposé.
- Page 23 Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service. Repaired or replaced products or parts are warranted only for the period remaining under the initial warranty. Blu Bathworks reserves the right to discontinue product without notice. Nominal dimensions referenced throughout this guide may vary slightly from exact dimensions.
