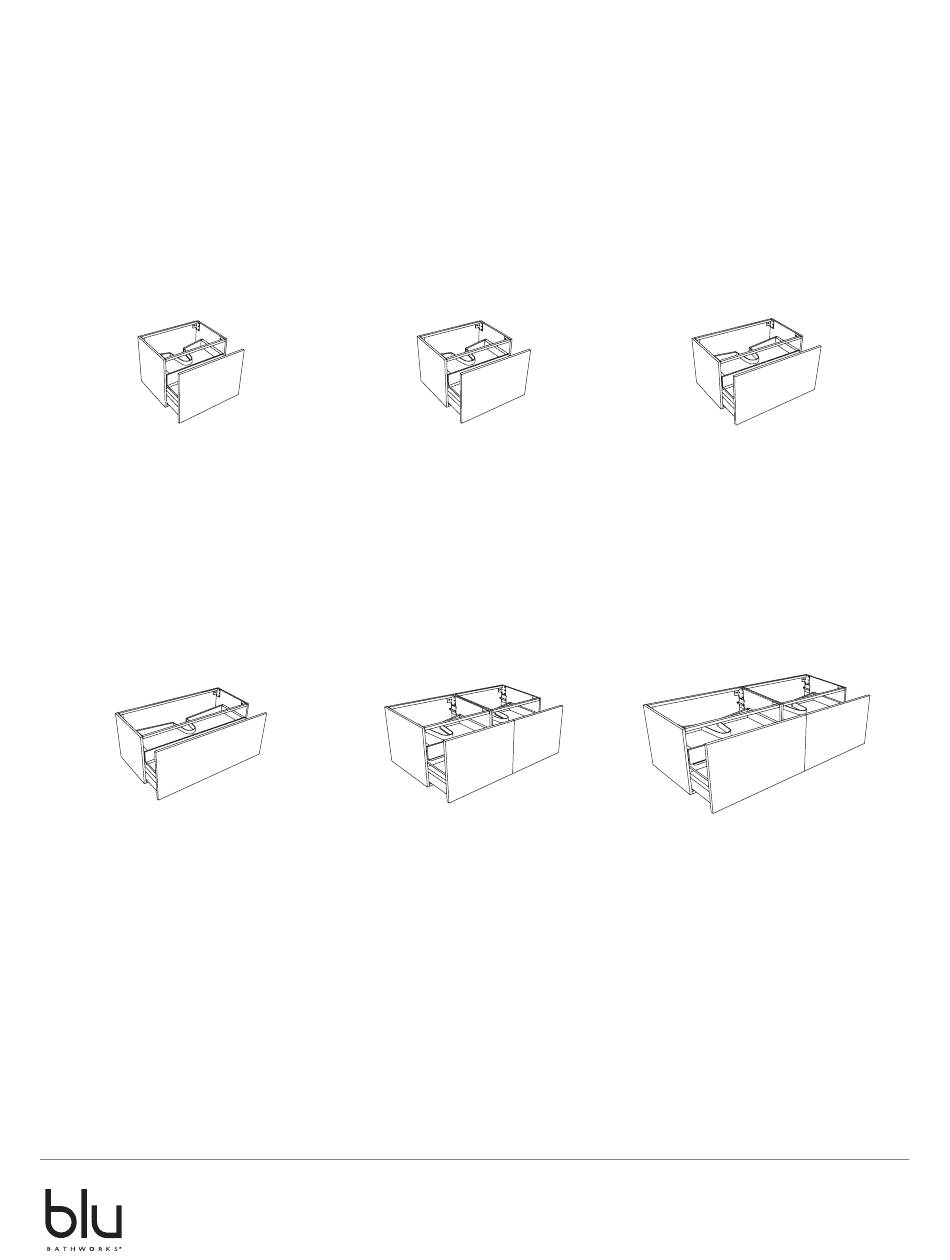

- Page 1 51 wall-mount vanities Installation Guide series 600 series 700 series 900 F51V1-0600 F51V1-0700 F51V1-0900 series 1200 series 1400 series 1800 F51V1-1200 F51V1-1400 F51V1-1800 2016-06 1 866 907 0122 blubathworks.com...
-
Page 2: Installation Requirements
The warranty does not cover damages or defects in the finish once it has been installed. Blu Bathworks’ responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made directly to the carrier. -
Page 3: Installation
Before Installation - unhook drawer(s): Push the two grey tabs on both sides beneath the drawer at the same time and lift the drawer Installation: 2016-06 1 866 907 0122 blubathworks.com... - Page 4 How to Unhook the Drawer: Push the two grey tabs on both sides beneath the drawer at the same time and lift the drawer How to Hook the Drawer: Put the drawer on the runners and pull on the white tabs on both sides beneath the drawer part until they click closed 2016-06 1 866 907 0122 blubathworks.com...
- Page 5 Regulation of the Front of the Drawer: To adjust the front of the drawer to the left or to the right, unlock the pivot under the drawer (X), turn the screw on the right side of the drawer To move the front side of the drawer higher or lower turn the metal gear on both sides of the drawer To align the front side of the drawer, turn the indicated bar as required: –...
-
Page 6: Care And Maintenance
Care and Maintenance Hard Surface Technology (HST) finish Clean with a soft cloth or humid non-abrasive sponge using neutral and non-abrasive detergents. Rinse the surface carefully after cleaning. Do not use aggressive chemical solvents, such as acetone, trichloroethylene, solvents, wax, bleach or chlorine. Accurately dry the surfaces after use. - Page 7 M3 mirror medicine cabinet Installation Guide Series 900 Series 1200 BCS90N BCS12N Series 1400 BCS14N 2014-03 1 866 907 0122 blubathworks.com ®...
-
Page 8: Tools Required
Should inspection reveal any damage or defect in the finish, contact your distributor. The warranty does not cover damages or defects in the finish once it has been installed. Blu Bathworks’ responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made directly to the carrier. - Page 9 IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using (this furnishing). DANGER – To reduce the risk of electric shock: 1. Always unplug this furnishing from the electrical outlet before cleaning. WARNING –...
- Page 10 Medicine cabinet mirror fastening STORAGE UNIT MIRROR FASTENING FIXATION ARMOIRES DE TOILETTE Fixation armoires de toilette Measurements in mm / inch Dimensions en mm / inch 1,93 1,65 1,65 1,93 2,36 Ø6mm Ø0,24in * ensure brackets are level before mounting vanity 2014-03 1 866 907 0122 blubathworks.com...
-
Page 11: Power Supply
Medicine cabinet mirror fastening STORAGE UNIT MIRROR FASTENING FIXATION ARMOIRES DE TOILETTE Fixation armoires de toilette WARNING ! Installation requires qualified personnel. ATTENTION ! L’installation exige l’intervention d’un personnel qualifié. ATTENTION POWER SUPPLY 120Vac - 60Hz Socket-switch group Groupe prise-interrupteur 2014-03 1 866 907 0122 blubathworks.com... - Page 12 Medicine cabinet mirror fastening STORAGE UNIT MIRROR FASTENING FIXATION ARMOIRES DE TOILETTE Fixation armoires de toilette Make heigth adjustment first Exécuter en premier le réglage en hauter +/-1,5 +/-1,5° 30 kg 30 kg RECOMMENDED LOAD 30kg Ø4 Ø4 Capacité de charge de 30 kg. selon din 68840 2014-03 1 866 907 0122 blubathworks.com...
- Page 13 Medicine cabinet mirror fastening STORAGE UNIT MIRROR FASTENING FIXATION ARMOIRES DE TOILETTE Fixation armoires de toilette max. max. 20 mm min. SW 4 +/-1,5 SW 8 max. 3 mm 12 mm (min. 9 mm - max. 15 mm) +/-1,5 +/-1,5° SW 19 SW 19 Ø4 / SW 4...
- Page 14 Inspection shelf LED backlighting INSPECTION SHELF LED BACKLIGHTING PLATEAU D’INSPECTION DES RÉTRO-ÉCLAIRAGE LED Plateau d’inspection des rétro-éclairage LED IMPORTANT SAF When using an e Read all instructi DANGER – To red 1. Always unplug WARNING – To re 1. Unplug from o 2.
-
Page 15: Made In Italy
MADE IN ITALY This unit is made of"Idropan". "Idropan" ensures the best defence against humidity that may affect the unit. Extra guarantee in order to protect a high quality unit. Ce meuble est construit avec Idropan. Idropan garantit la meilleure défense contre l'humidité à laquelle le 4007328 meuble peut accidentellement être exposé. -
Page 16: Warranty
Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service. Repaired or replaced products or parts are warranted only for the period remaining under the initial warranty. Blu Bathworks reserves the right to discontinue product without notice. Nominal dimensions referenced throughout this guide may vary slightly from exact dimensions.
