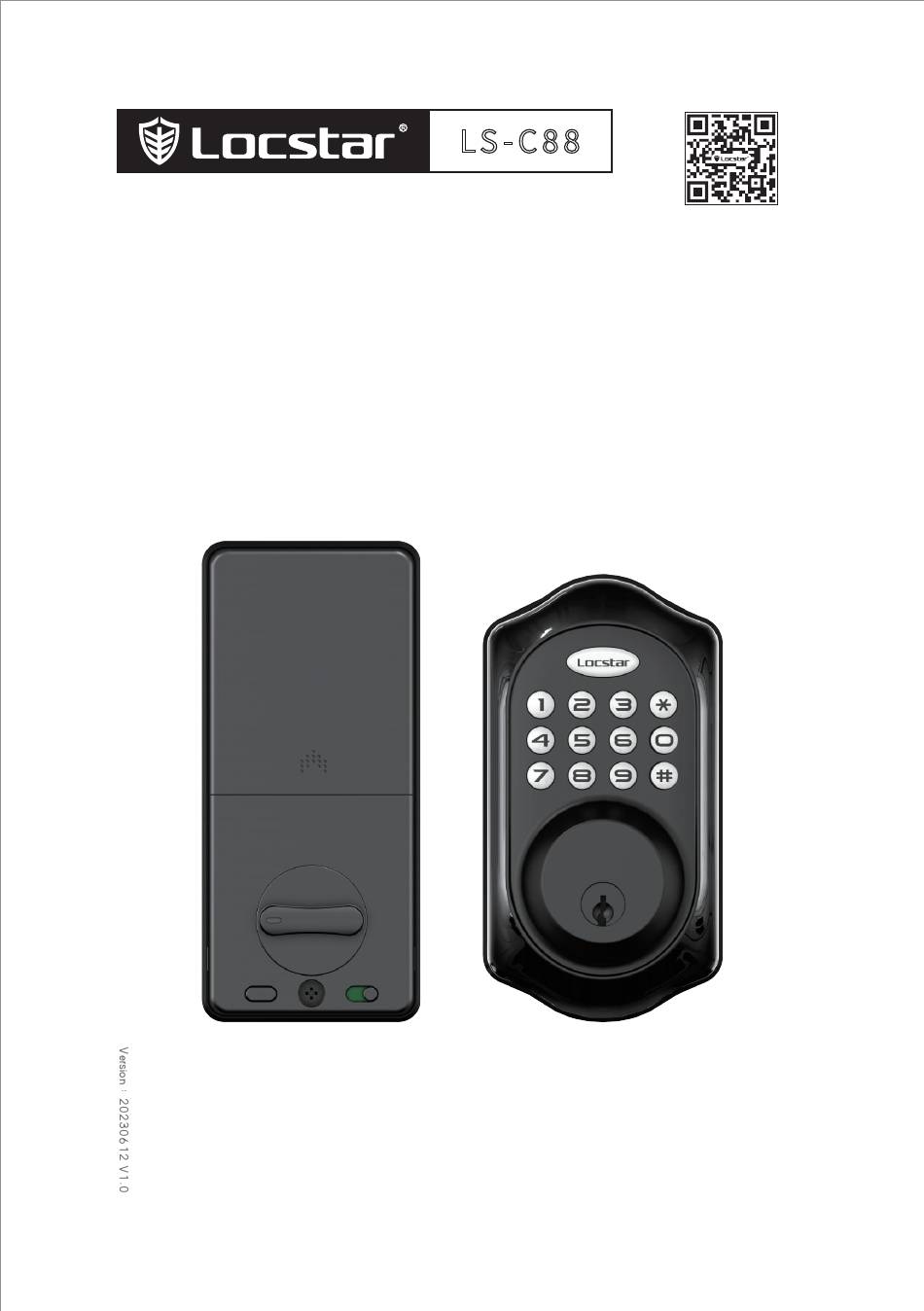

- Page 1 L S - C 8 8 Smart Lock User Manual www.locstar.com [Tuya Version] SHENZHEN LOCSTAR TECHNOLOGY CO.,LTD Reserves the right to interpret this manual...
-
Page 2: Product Parameters
(accessories in kind prevail, pictures are for reference only) L S - C 8 8 Smart Lock User Manual www.locstar.com [Tuya Version] 5.Door gusset plate SHENZHEN LOCSTAR TECHNOLOGY CO.,LTD Reserves the right to interpret this manual 1.front panel 2.Back panel 3.opening size diagram 4.User Manual 6.Tapping screw... - Page 3 4、 Installation picture 4. Tongue fastener 8. Tapping screws 4x25 4Pass 5. Tongue button box 9. Machine screw KM4x25 3 Pass 1. front panel 6. Battery cover 10.Machine screw KM4x16 3 Pass 2. Rear panel 7. Rear cover + rubber pad 11.Mechanical Key 3.
-
Page 4: Installation Tool
2、 Installation tool (for reference only) 1.manual electric drill 2.pencil 3.tape ruler 4.hammer 5.bit 6.hacksaw 7.angle ruler 8.screwdriver 9.Cutter 10.chisel 3、 Opening size diagram (for reference only) 26.5 5、 Installation Notes ① ② ③ ④ I n o r d e r t o e n s u r e s u c c e s s f u l Select correct screw tool Wearing eye protection devices In order to prevent unnecessary damage to the door,... -
Page 5: Installation Steps
6、 Installation steps 1、Remove the old lock from the door。 60mm(2-3/8) 70mm(2-3/4) Rotate and pull the telescopic latch Note: 2、 Adjust the length of The deadbolt has TWO backset the deadbolt if it is options:70mm or 60mm,please required。 adjust buyourself. 3、... - Page 6 8、 Rotate knob by hand. 7、 Fix the rear panel with three M4x16 screws. Make sure the twist is vertical. Note: Make sure the knob is upright Unlock condition Locked condition 9、 Install the battery, pay attention to the positive 10、...
-
Page 7: Restore Factory Settings
3.6 Restore factory settings 3.6.1.Press and hold the reset and clear button on the 10s rear panel, the door lock will return to the factory default, and the voice and light will be restored successfully. 3.6.2.The factory default password is 123456, all fingerprint password card registration are cleared, and the operation record remains Reset key... - Page 8 Note: ◆The factory default password is "123456". After adding an administrator, the default password will become invalid. ◆ If no user is entered, the default password is equivalent to the administrator's permission password. ◆The password has 6-10 digits, and the virtual password has 40 digits. The password cannot be continuous or the same. ◆"*"...
- Page 12 5.Dynamic password The dynamic password is valid within 5 minutes, the local time of the lock must be kept accurate. andit does notneed to be connected to the lnternet. 6.Set various password combinations Various passwords can be setas needed...
- Page 13 7.Set temporary password 1.One-time password 2.Recurring password...
- Page 14 8.Automatic lock setting 9.Left and right reversing...
- Page 15 10.Gateway and accessories 11.Restore factory settings...
-
Page 16: Warranty Card
Warranty Card 1. The manual and warranty card are included in the factory default packaging for each product. After installation, please fill in the warranty card and keep it properly as the warranty certificate. 2. Full grantee: 1 year 3. The following are not covered by the warranty: A.
