HOOKER FURNISHINGS Tucker EC841-078 Assembly Instruction

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process.
G
ASSEMBLY INSTRUCTION
ITEM: EC841-078 Executive Chair
Carefully unpack all parts and identify them with parts list before attempting to assemble the chair.
IMPORTANT: DO NOT TIGHTEN BOLTS AND SCREWS FULLY UNTIL YOU HAVE COMPLETED THE FINAL ASSEMBLY.

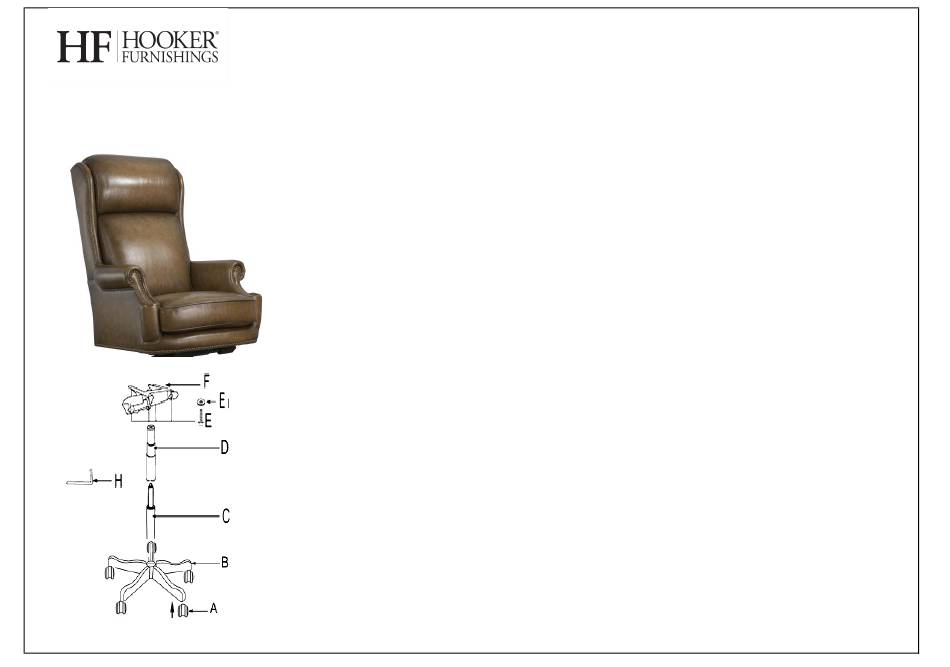

1.Carefully remove the 5 STAR BASE (B) from the carton.
The base is located behind the fiberboard that is behind the chair UNIT SEATING(G).
2.Put 5 CASTERS (A) into the holes of 5 STAR BASE (B).
3.Insert GAS LIFT (C) to the center hole top of 5 STAR BASE (B), and put the BELLOWS (D) onto
the GAS LIFT(C).
4.Attach SEAT PLATE (F) to the Unit Seating (G) by using 4 SCREWS (E) with 4 FLAT WASHERS (E1).
5. Insert the pre-assembled seat unit onto the gas lift to finish the final assembly.
6. Be sure that all the screws are fully tightened before using.
A. CASTERS
B. 5 STAR BASE
C. GAS LIFT
(only available on wood cap base, not available on metal base
D. BELLOWS
E. SCREWS (5/16"x1-1/4")
E1. FLAT WASHERS
F. SEAT PLATE
G. UNIT SEATING
H. ALLEN KEY
EC841-088 Executive Chair
Parts List
)
5
1
1
1
4
4
1
1
1
Page 1/2
