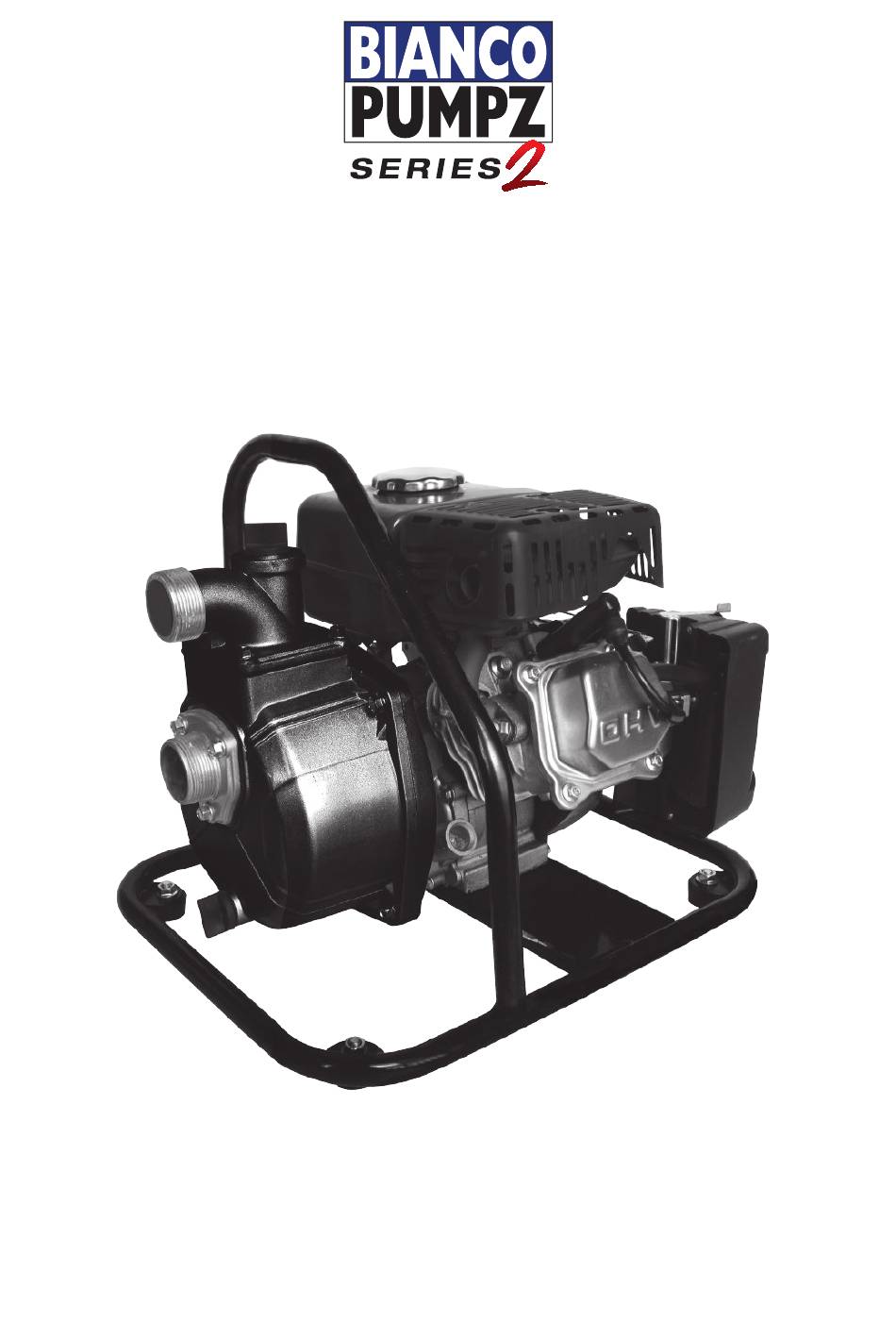

- Page 1 Petrol Engine Powered Pump Instruction Manual BIA-WP15A - 804449...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Information 2. Location Of Warning Labels 3. Components 4. Pre-Starting Operation. 5. Starting The Engine 6. Stopping The Engine 7. Maintenance 8. Troubleshooting 9. Storage. 10. Speci cations 11. Spare Parts 22-23... - Page 3 Thank you for purchasing this Bianco petrol water pump. This instruction manual describes the installation, usage and maintenance of the water pump and provides important safety information. Keep your manual in a convenient place for quick reference. This manual should be considered as a permanent part of this water pump and should remain with the pump if it is sold.
-
Page 4: Safety Information
WARNING SAFETY INFORMATION User’s responsibility • Before using this product, carefully read and fully understand this instruction manual for proper operation and safety procedures. Failure to follow all instructions may result in personal injury or product damage. • Be sure that you are familiar with quick stop procedures and control operation of the water pump. -
Page 5: Location Of Warning Labels
LOCATION OF WARNING LABELS These warning labels indicate potentially hazardous situations which could result in serious injury. Please carefully read and understand the symbols, safety information and precautions. petrol refuelling... -
Page 6: Components
COMPONENTS 3.1 BIA-WP15A Water Priming Plug Carburetor Spark Plug Fig 3.1 Fig 3.2... -
Page 7: Pre-Starting Operation
PRE-STARTING OPERATION IMPORTANT: Install the strainer on the end of the suction hose before operation. The strainer prevents foreign materials from entering the water pump and protects the pump from blocking and component damage. - Page 8 CAUTION To start this water pump, please check the following before each use: • Con rm that engine oil has been properly added. • Con rm that petrol has been properly added. • Con rm that water has been added to the pump housing. Dry running will damage the mechanical seal very quickly.
- Page 9 Oil Dipstick Upper oil level (H level) Lower oil level (L level) Recommended oil type SAE 10W-30 • 4-stroke engine oil. • Use a high quality detergent oil classi ed “For Service SE” or higher. • Choose a viscosity according to the table in di erent areas and di erent seasons.
- Page 10 Checking fuel level Uncap the fuel tank and check the fuel level while the machine is not in operation. Add petrol if the fuel level is found too low. NOTE: Do not allow the fuel to over ow the fuel tank. The maximum fuel level is shown as below.
- Page 11 Checking and lling the pump with water The pump must be primed by lling with water before it is put into operation.
-
Page 12: Starting The Engine
STARTING THE ENGINE CAUTION: Con rm that fresh engine oil has been properly added. CAUTION: Con rm that petrol has been properly added to the fuel tank. CAUTION: Con rm that water has been properly added in the pump. Turn the fuel valve ON. (Clockwise) Fuel Cock Turn the choke on (push to right) Close the choke lever. - Page 13 Move the throttle lever from right (low speed) to left (high speed) Keep about 1/3 distance from the right (low speed) Turn the engine switch to the ON position. Pull the starter handle lightly until resistance is felt, and then pull it briskly. CAUTION: Return the starter handle gently to the starter.
- Page 14 Move the choke lever gradually to the OFF position (left) after the engine warms up. Move the throttle lever fully to the left (high speed).
-
Page 15: Stopping The Engine
STOPPING THE ENGINE Please follow the steps below to stop the engine: Move the throttle lever to the right side (low speed) Turn the engine switch to the OFF position. NOTE: Turn the engine switch to the OFF position immediately to shut down the engine in an emergency. - Page 16 Turn the fuel valve OFF. (anti-clockwise) Fuel Cock...
-
Page 17: Maintenance
MAINTENANCE Maintenance Schedule • *: Change foam lter element only. • (1): Service more frequently when used in dusty areas. • (2): These items should be serviced by an authorized dealer, unless the owner has the proper tools and is mechanically pro cient. NOTE: Maintenance time depends on the frequency of use. - Page 18 Changing engine oil Warm-up the engine to assure rapid and complete draining of the oil. Remove the oil dipstick and the drain screw, then drain the oil. Reinstall the drain screw and tighten it. NOTE: Be sure to keep the environment clean when disposing used engine oil. We suggest you collect the waste oil in a container to be sent to a waste disposal site or a recycling service centre instead of spilling it in the garbage or on the ground.
- Page 19 Unscrew the wing nuts and remove the air cleaner cover. Remove foam lter. Separate foam elements. Replace the elements if damaged. Replace the foam lter element in accordance with maintenance schedule. Clean the lplastic cover and housing. Reinstall the air cleaner element and the cover. Cleaning foam lter element: Wash the element in hot water with detergent or in a non ammable or high ash point solvent.
- Page 20 Maintaining the spark plug The recommended type of spark plug is E7RTC (TORCH) or equivalent Take care not to touch the mu er due to high temperature on it’s surface when removing or reinstalling the sparkplug. Remove the plug cap. Remove the spark with the wrench supplied.
-
Page 21: Troubleshooting
TROUBLESHOOTING The engine will not start: Is there enough fuel? Is the fuel valve ON? Has the fuel reached the carburettor? To check, remove the fuel cap to inspect and turn the fuel valve on. DANGER: Should there be a spill of fuel, be sure to clean it before checking the spark plug or starting the engine. -
Page 22: Storage
STORAGE Let the pump cool down. Wait at least 30 minutes after it stops. Clean the pump and coat with rust-proof grease if necessary. Before storing the pump for over 14 days: Make sure the storage area is free of moisture and dust. Drain the fuel. -
Page 23: Speci Cations
SPECIFICATIONS Model BIA-WP15A Inlet/Outlet Diameter 38mm (1 1/2” BS{M) Max Flow 300 l/min Max Head 25 m Engine Model Single Cylinder, 4-Stroke, Engine Type Air-Cooled OHV Rated Power 3.0 hp Displacement 87 cc (54mm x 38mm) Ignition System Idle Speed 1400 +/- 150 rpm Fuel Consumption <... - Page 26 NOTES...
- Page 27 NOTES...
- Page 28 ™ 2 YEAR WARRANTY White International Pty Ltd Limited Product Warranties TERMS & CONDITIONS This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand: 1) White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this document.
