Summary of Contents for BIANCO PUMPZ HS Series

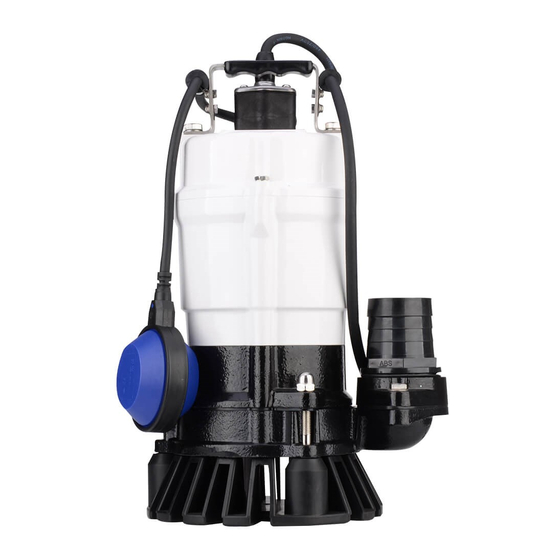

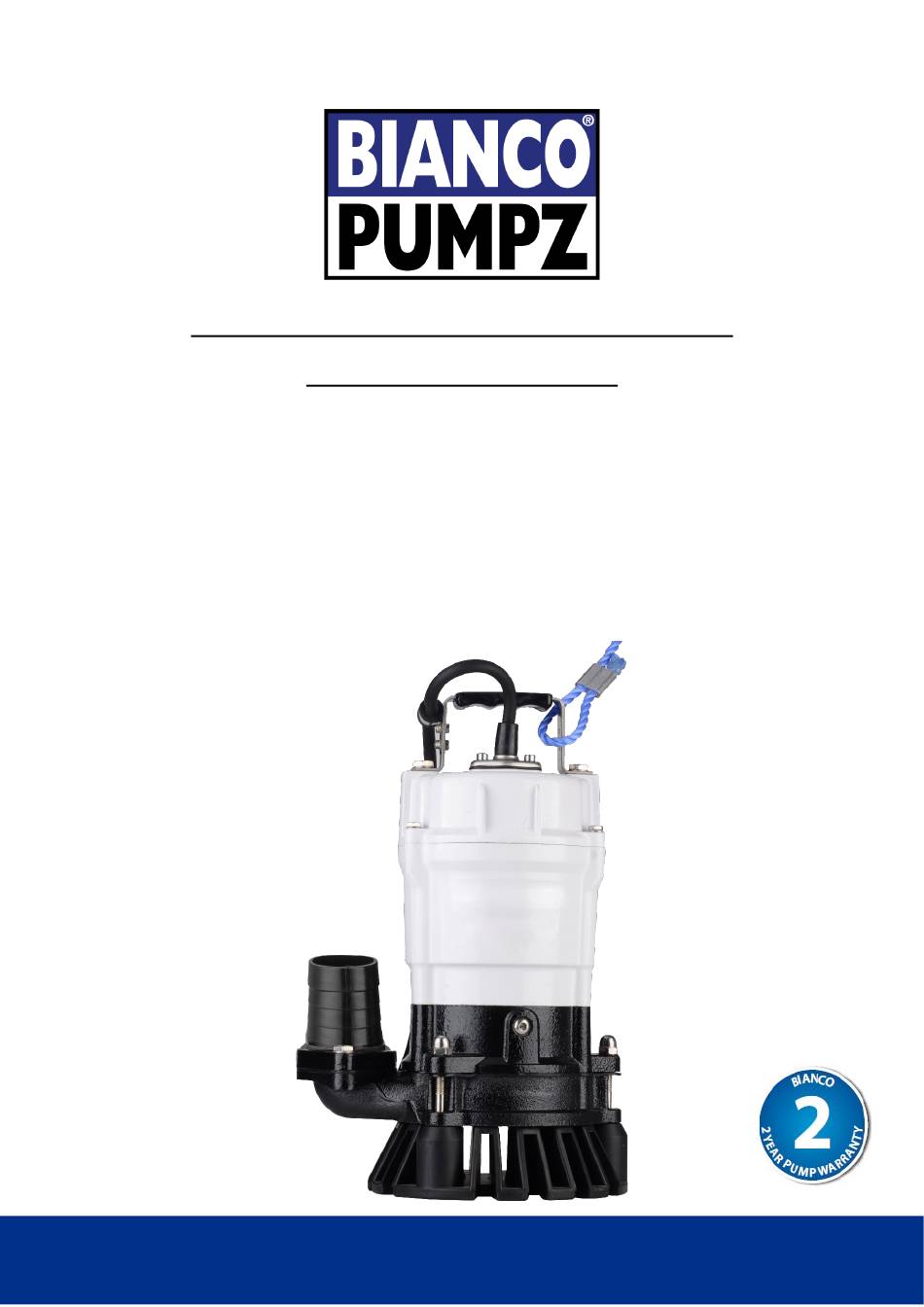

- Page 1 HS Series Submersible Commercial Construction Pumps BIA-HSA500 808479 BIA-HSM500 808480 BIA-HSA750 808481 BIA-HSM750 808482 Pump image is for illustration purposes only...
-
Page 2: Table Of Contents
1. Introduction Congratulations on your purchase of a Bianco HS Series pump. The Bianco Pumpz brand is synonymous with performance, dependability and reliability. Bianco HS range is a new range of commercial construction submersible pumps suitable for de- watering of construction sites and pumping ground or storm water from residential, commercial and building sites. -
Page 3: Iso 7010 Symbols Used In This Manual
4. ISO 7010 Symbols used in this manual Warning - Electrical safety Warning – Potential consequences of use outside of intended application(s). Includes environmental condition warnings. Mandatory warning Warning to disconnect power Read carefully 5. Warnings Read the manual carefully before starting and retain for future reference. Prior to starting installation or any maintenance the pump must be disconnected from the power supply and pressure relieved from the system including controller, pump and associated pipework. -
Page 4: Technical Specifications
6. Technical Specifications Voltage: 240V 50Hz Single Phase HSA500 • Full load current: 2.8 amps • Capacitor 15 uF HSA750 • Full load current: 5.6 amps • Capacitor 25 uF • Designed to pump waste, sand, silt water and water containing mild pollutants at ambient temperatures., 2 - 35 degC Never use this pump with flammable or corrosive fluids... -
Page 5: General Installation Notes
Motor Cooling BIANCO HS series pumps rely on pit water for cooling of the motor. The pumps can operate partially submerged for up to 10 minutes however, operating the pump at very low flow i.e. high head or restricted pipework may cause the motor to overheat and could cause catastrophic failure. -
Page 6: Warranties - Terms And Conditions
9. Warranties – Terms and Conditions This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand: 1) White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this document. -
Page 7: 10. Trouble Shooting Guide
10. Trouble Shooting Guide Fault Cause Remedy Check that power is available at the power socket and that it is No mains supply switched on Blown fuse or tripped breaker Replace fuse or reset breaker Disconnect power and clean Pump does not Impeller jammed impeller area start... - Page 8 www.whiteint.com.au www.whiteint.co.nz Please always refer to our website for further technical information & new product innovations Disclaimer: Every effort has been made to publish the correct information in this manual. No responsibility will be taken for errors, omissions or changes in product specifications. ©...
