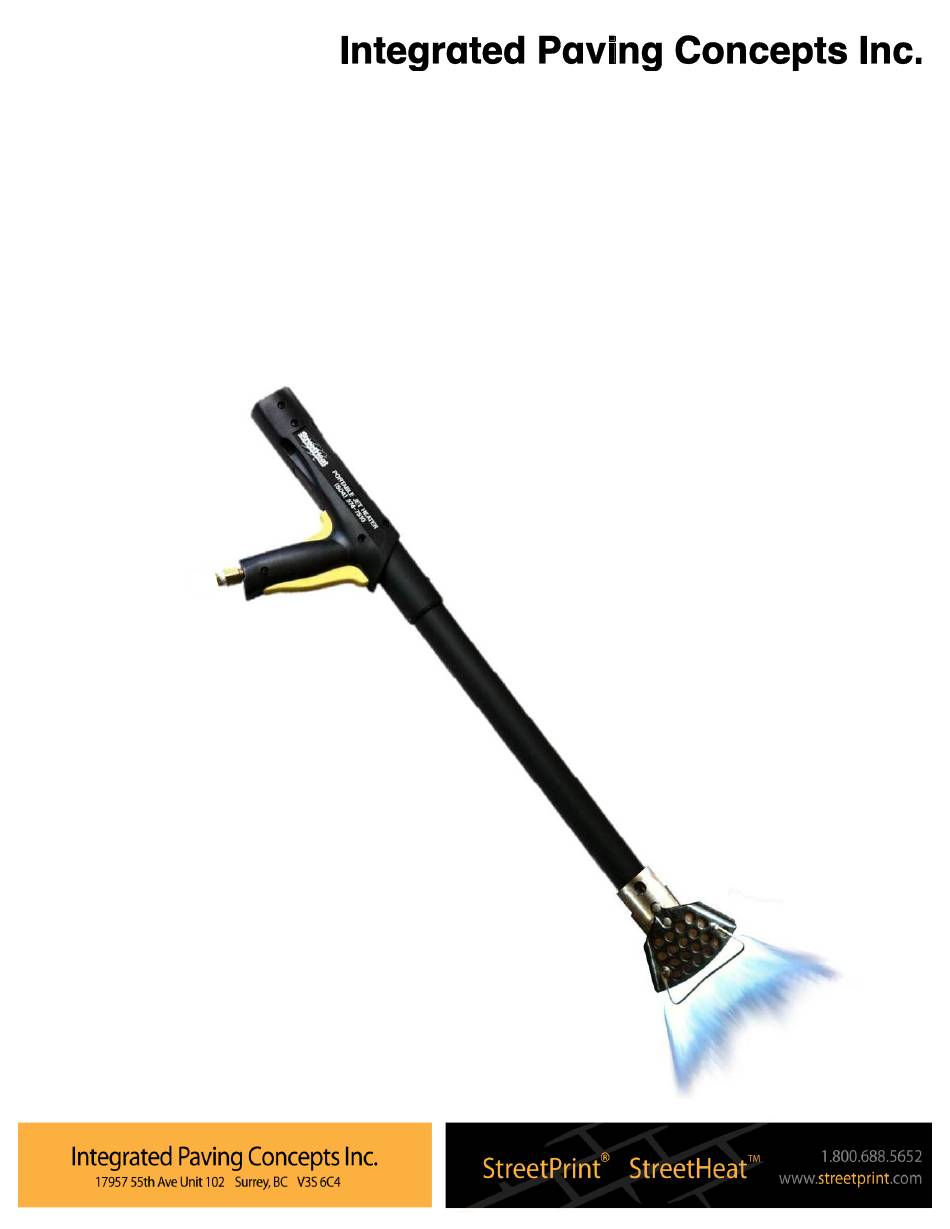

- Page 1 StreetHeat Portable Jet Heater Operations Manual International Version Updated: Jan 2013 Updated: www.integratedpaving.com 1.800.688.5652...
-
Page 2: Table Of Contents
Parts Lists Page 5 Start-Up/Operation Page 6 Troubleshooting Page 7 Assembly/Disassembly Pages 8-9 Spare Parts List Pages 10-11 Warranty Page 12 Integrated Paving Concepts Inc. #102 – 17957 55th Ave., Surrey, BC V3S 6C4 CANADA Telephone (800) 688-5652 Fax: (800) 720-1481... -
Page 3: Safety Precautions
Safety Precautions Please read the manual carefully as it will greatly enhance the operator’s skill in using the tool. In addition, every operator should be particularly aware of all the safety requirements. GENERAL SAFETY PRECAUTIONS: • Never point the StreetHeat Jet Heater at anyone. •... -
Page 4: Technical Specifications
Technical Specifications OUTPUT CHARACTERISTICS Standard Metric Heat Capacity 172,000 BTU/Hr 50 kW/Hr Propane Consumption 8.0 LBS/Hr 3.6 KG/Hr Operating Pressure 28 PSI 193 kPa Weight 3.4 LBS 1.5 KG Air Consumption 30 CFM 0,85 M /Min Emission 015 CO/CO 015 CO/CO Distance of Jet Heater from Surface Temperature at Surface... -
Page 5: Parts Lists
Parts List Safety Trigger Filter Gas Trigger Orifice Gas Valve Sparkplug Igniter Flame holder Fuel Line Metric Fitting... -
Page 6: Start-Up/Operation
START-UP: After all connections and checks for leaks have been made the StreetHeat Portable Jet Heater is ready for use. Open the tank valve. Wait approximately 5 seconds to fully pressurize the hose or until the excess flow valve opens with an audible click. To start the Heater first press the safety trigger which prevents the gas handle from being accidentally opened. -
Page 7: Troubleshooting
Troubleshooting PROBLEM CAUSES REMEDIES Gas not on Check that the valve on the propane Jet heater will not fire tank is opened Handle not fully depressed Depress handle all the way until igniter fires with a "click" Handle activated too quickly Squeeze handle slowly to make sure mixture has entered combustor before firing... -
Page 8: Filter Cleaning
Assembly/Disassembly Filter Cleaning: Unscrew filter holder Pull out filter screen/spring assembly and clean with compressed air or replace. Spark plug replacement: Depress button and remove the Pull spark plug, flame holder and Unscrew spark plug. Note: when reinstalling combustor assembly. gause out using a pair of pliers. - Page 9 Assembly/Disassembly Igniter replacement (continued): Now the trigger assembly Pull out cable. Untie and remove the ground strap. can be removed Orifice cleaning or replacement: IMPORTANT NOTE: The orifice consists of 6 slender, thin walled tubes which can easily be bent or damaged if dropped or mishandled.
-
Page 10: Spare Parts List Pages
Spare Parts List... - Page 11 Spare Parts List Spark Wire Extension Asbly Kit 70-0-35194 Gas/Air Inlet Assembly Kit 70-0-35190 Contact Screw (upper) Filter Holder Contact Spring “O“ Ring Socket Filter (disc) Spark Plug Filter Spring Spark Bridge Orifice Assembly Spark Bridge Bolt/Cap Nut “O“ Ring Spark Wire Extension “O“...
-
Page 12: Warranty
IPC shall not in any event be liable for any special indirect or consequential damages resulting from the use of IPC equipment. Integrated Paving Concepts Inc. #102 – 17957 55th Ave., Surrey, BC V3S 6C4 CANADA Telephone (800) 688-5652...
