Haefely FP-COMB 32 User Manual

Three phases external cdn
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FP - COMB 32
THREE PHASES
EXTERNAL CDN
User Manual
4701030 | Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP-COMB 32 and is the answer not in the manual?

Questions and answers

Related Manuals for Haefely FP-COMB 32

Summary of Contents for Haefely FP-COMB 32

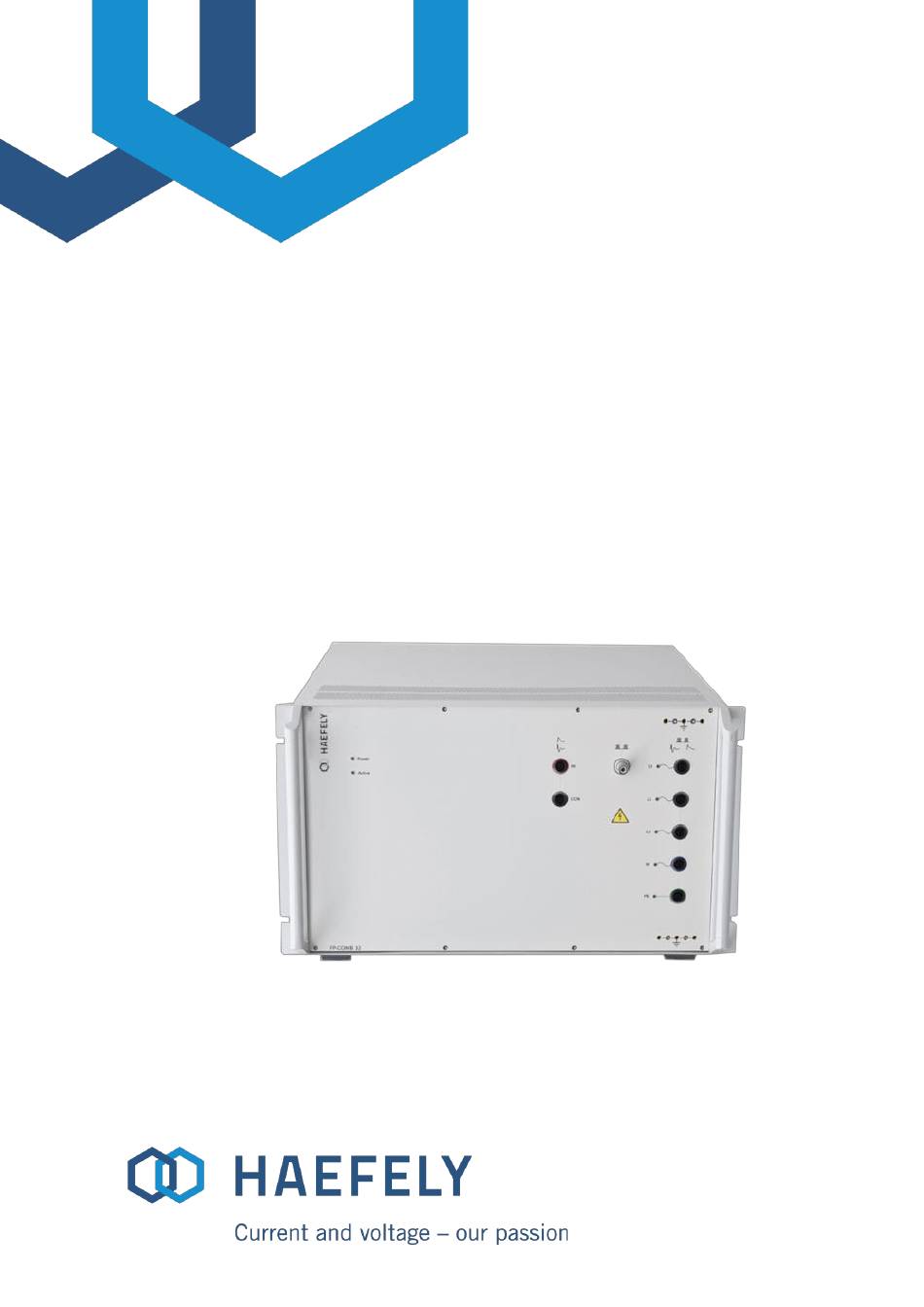

  • Page 1 FP - COMB 32 THREE PHASES EXTERNAL CDN User Manual 4701030 | Version 2.0...
  • Page 2 Revision History Version Date Author Remarks 08.03.2022 R.M.V New format, new logos, chapters adapted...
  • Page 3 Although all efforts are made to ensure that there are no errors in the manuals, HAEFELY accepts no responsibility for damage or loss that may result from errors within this manual. We retain the right to modify the functionality, specification or operation of the equipment without prior notice.

  • Page 4: Table Of Contents

    Surge ..................... 10 4.1.2 Ring Wave ..................... 11 4.1.3 Burst ....................... 12 Standards ......................12 Standards covered by FP-COMB 32 ..............12 General ......................13 Assembling and Installation Guide System Installation and Installation Area ............14 5.1.1 Visual check ................... 14 5.1.2...
  • Page 5 5.2.3 Connection to EUT ................16 Operating Instructions Device Front Panel .................... 17 Device back pannel ................... 18 Connections to AXOS or AXOS ..............19 Surge ......................... 20 6.4.1 General information ................20 6.4.2 SURGE Menu ..................20 Ring Wave ......................24 6.5.1 General Information ................
  • Page 6 Repair (RMA) ..................... 37 Support ......................38 Addresses / Webpage ..................39 9.8.1 Europe Office ..................39 9.8.2 China Office ................... 39 9.8.3 Webpage ....................39 Transport and Storage 10.1 Transport and Packaging ................... 40 10.2 Storage ......................40 Disposal, Recycling and Onward Transfers Conformity Notes Introduction...

  • Page 7: Introduction

    1 Introduction 1.1 General Thank you for choosing the Haefely FP-COMB 32. Please take a little time to read through this user manual and familiarize yourself with the instrument controls and some potential dangers. We hope you have many productive years of operation from the FP-COMB 32 3 Phases External CDN.

  • Page 8: Scope Of Supply

    1.2 Scope of Supply The following accessories are included with the basic version of the FP-COMB 32 : Description FP-COMB 32 AC mains cable EUT mains cable 32 A EUT mains adapter 32 A Surge cable to AXOS EFT/Burst cable to AXOS...
  • Page 9 Optional (for details see product data sheet on www.haefely.com) Article Description Part Number PDP 8000 HV differential Probe 1000:1 for Surge 2499911 CP 101 Current Probe Model for Surge 2499931 Calibration Accredited Calibration 2490926 Table 1-2: Article for FP-COMB 32...

  • Page 10: Glossary Of Terms And Abbreviations

    2 Glossary of Terms and Abbreviations In the manual, the following conventions are used: Indicates a hint or a matter of note - if it refers to a sequence of operations, failure to follow the instructions may result in measurement errors. Indicates hazards.

  • Page 11: Safety

    HAEFELY and its sales partners refuse to accept any responsibility for consequential or direct damage to persons and/ or goods due to none observance of instructions contained herein or due to incorrect use of the equipment.

  • Page 12: Ground Connections

    If the equipment has been opened, the calibration can be rendered invalid. HAEFELY and its sales partners accept no liability for loss, damage, injury or death caused by the incorrect or unsafe operation of this instrument.

  • Page 13: Health Notes

    Dangerous mains voltage or high voltages are present inside the FP-COMB 32. The earth connection on the rear panel of the FP-COMB 32 must be connected to a good earth. If FP-COMB 32 is connected to mains without connection to earth, electrical shock may occur! Remove all external connection cables before removing any covers.

  • Page 14: Training And Education

    If any part of the FP-COMB 32 is damaged or it is possible that damage has occurred, do not switch on the unit. Example: transportation damage. Before opening any units remove the mains power cord. Before changing the mains fuse, remove the mains power cord.
  • Page 15 Non-test related persons who are working in proximity to the area where testing is performed must be informed. Consistent visual and verbal signals should be agreed and followed. Operator: The person who makes the test, connections and operates the system. He must be able to have a clear view of the device under test and the area where the test is performed.

  • Page 16: Technical Data

    4 Technical Data 4.1 Device General Specifications Name Value Control Power 85V - 264V 50/60 Hz Dimensions 19" / 6U (W x H x D) (45 x 29 x 49 cm) Weight 45kg AUX Interface D-sub 37p for connection to AXOS BNC, 0V –...

  • Page 17: Ring Wave

    Table 4-2: Surge data 4.1.2 Ring Wave Note: this feature is only available when FP-COMB 32 operates with AXOS IEC / EN 61000-4-12 Edition 2 & ANSI/IEEE C62.41 Ring Wave 0.2 – 7.0kV ±10% Output Voltage Polarity...

  • Page 18: Burst

    480V DC / 32A Impulse Trigger automatic manual external trigger input Table 4-4: Burst data 4.2 Standards The FP-COMB 32 fulfils the requirements of IEC 61010-1. 4.3 Standards covered by FP-COMB 32 Standard Description Test equipment IEC/EN 61000-4-4 EFT/Burst AXOS...

  • Page 19: General

    Indeed, for many products the requirements will be described more detailed in the product norm. Note: Product norms will be partly fulfilled by the FP-COMB 32 as well. Please contact for further assistance your sales representative or HAEFELY directly.

  • Page 20: Assembling And Installation Guide

    Damage caused in transit must be reported to the shipping agent immediately. Persons with heart pacemakers must not be in the vicinity when the system is operating! If damage to FP-COMB 32 or its charging unit can be seen or is suspected, do not apply any voltage! 5.1.2...

  • Page 21: Eut Supply Input

    32A rated current and characteristic B or C. Inside the FP-COMB 32, there are filter capacitors connected between lines and earth (For example L1- PE) and neutral and earth N-PE, as required by the standard.

  • Page 22: Dc Eut Supply

    5.2.2 DC EUT Supply The "EUT Supply Input" is located on the rear panel of the FP-COMB32. The L1, N, PE connections are used to supply DC EUT Supply Input up to 480Vdc/32A. The warm point should be connected to L1 and the cold point should be connected to N. Earth remains connected on PE.

  • Page 23: Operating Instructions

    6 Operating Instructions 6.1 Device Front Panel The Figure 6-1: FP-COMB 32 front view shows the front view of the FP-COMB 32. In the Table 6-1: Description front view function is the detail description of every physical input and output.

  • Page 24: Device Back Pannel

    6.2 Device back pannel The rear view of the FP-COMB 32 is shown in Figure 5-2. A detailed description of every input and output is written in the Table 6-2: Description rear view below the graphic. Figure 6-2: FP-COMB 32 rear view Pos.

  • Page 25: Connections To Axos Or Axos

    Figure 6-4: connection to AXOS - Rear Pos. Function Description HI Surge/Ringwave (RED) Surge and Ringwave impulse link between AXOS and FP-COMB 32 using banana cables COM Surge/Ringwave (BLACK) (1m) Burst SHV connector Link for Burst impulses, SHV-SHV cable (1m) Link Sub-D 37...

  • Page 26: Surge

    In General waveforms are specified as open circuit voltage (OCV) and short circuit current (SCC). The Surge is applied directly from the AXOS surge outputs to FP-COMB 32’s HI and COM inputs. For a detailed description of this standard please read the topic “test instrumentation” in the IEC 61000-4-5 norm.
  • Page 27 The following table indicates the available coupling paths regarding the amount of phases selected: Coupling elements Synchronization Coupling Path Phases Mode HIGH Capacitor Resistor HIGH 18 uF 0 Ohm 9 uF 10 Ohm 9 uF 10 Ohm L1+N 9 uF 0 Ohm 1 Phase 18 uF...
  • Page 28 L1+L2+L3+N PE 9 uF 0 Ohm 18 uF 0 Ohm 18 uF 0 Ohm 18 uF 0 Ohm 9 uF 0 Ohm ANSI 9 uF 0 Ohm 9 uF 0 Ohm 9 uF 0 Ohm L1+L2+L3 9 uF 0 Ohm L1+L2+L3 9 uF 0 Ohm...
  • Page 29 • If the three-phase mode is selected FP-COMB 32 checks if the phases are connected in the right order and displays an error message if two phases are swapped. If this is the case swap any two phases at the “EUT supply input” on the rear panel and restart the test.

  • Page 30: Ring Wave

    The ringwave feature is only available with AXOS8 FP-COMB 32 is able to couple Ringwave impulses in accordance to the IEC 61000-4-12 ed.2 and ANSI C62.41 norms. Test level up to 7 kV is defined. It can be selected between an impedance of 12 Ohm and 30 Ohm on AXOS’...
  • Page 31 The following table indicates the available coupling paths regarding the amount of phases selected: Coupling elements Synchronization Coupling Path Phases Mode HIGH Capacitor Resistor HIGH 9 uF 0 Ohm 9 uF 0 Ohm 9 uF 0 Ohm L1+N 9 uF 0 Ohm 1 Phase 9 uF...
  • Page 32 L1+L2+L3+N PE 9 uF 0 Ohm 9 uF 0 Ohm 9 uF 0 Ohm 9 uF 0 Ohm 9 uF 0 Ohm ANSI 9 uF 0 Ohm 9 uF 0 Ohm 9 uF 0 Ohm L1+L2+L3 9 uF 0 Ohm L1+L2+L3 9 uF 0 Ohm...
  • Page 33 • If the three-phase mode is selected FP-COMB 32 checks if the phases are connected in the right order and displays an error message if two phases are swapped. If this is the case swap any two phases at the “EUT supply input” on the rear panel and restart the test.

  • Page 34: Electrical Fast Transient Burst

    In Burst testing mode every line signal gets tested against GND. In the “Output & Coupling Paths” menu the automatic 3 phase CDN FP-COMB 32 gets indicated automatically when connected. It can be then activated by selecting the appropriate radio button. The coupling is in accordance to the IEC/ANSI standard.
  • Page 35 The following table describes the available coupling paths regarding the amount of selected phases in the “Output & Coupling Paths” menu. Synchronization Coupling Phases Coupling Path Capacitor HIGH 33 nF 33 nF 33 nF 1 Phase L1+N 33 nF L1+PE 33 nF N+PE 33 nF...

  • Page 36: Properties Menu

    External condition (e.g. device or PLC signal), the position becomes 1 External (Pin11 on Aux) and causes an action (Ignore, Alarm, Test Stop or test stop & line off) Not available as long as FP-COMB 32 is selected in the “Output & Line Current Coupling Paths” menu.

  • Page 37: Line Synchronization Ac

    • If the three-phase mode is selected FP-COMB 32 checks if the phases are connected in the right order and displays an error message if two phases are swapped. If this is the case swap any two phases at the “EUT supply input” on the rear panel and restart the test.

  • Page 38: Troubleshooting

    FP-COMB 32. 8.3 Troubleshooting Alarm message Possible cause Action needed FP-COMB 32 is switched off Power FP-COMB 32 on Safety switch is open Check safety switch Swap two phases at the EUT supply Start test with wrong phase...

  • Page 39: Service, Maintenance And Contact Information

    In the next under captures are descriptions of our additional verification equipment for AXOS and FP-COMB 32. If further information required of any of the equipment, please either contact your sales representatives or the HAEFELY TEST AG technical support team directly.

  • Page 40: Waveform Scc (Surge)

    9.1.3 Electrical fast transient/Burst The HAEFELY EFT Verification Kit includes a 50 Ω and 1000 Ω attenuator as required in the IEC 61000-4-4 standard. The appropriate attenuator is fitted to the “Burst” coaxial output, and an oscilloscope is then connected to the output of the attenuator. For measuring the waveform at the output of the coupling filter, single phase and three phase adapters are available.

  • Page 41: Burst Verification Adapter

    9.1.4 Burst verification adapter Additionally, an EFT verification adapter is available for testing of every single phase (L, N, PE front view from AXOS8). It gets connected with the PE pin and every single phase (L1, L2, L3, N, PE Figure 5-1).The BNC output of the burst adapter is then connected to the oscilloscope. Do not connect “EUT Supply Input”...

  • Page 42: Liability For Defects In Material, Design And Workmanship

    Calibration period of the FP-COMB 32 has to be determined by the user, and depends on the intensity of use and end user requirements. However, it is recommended every 2 years. The FP- COMB 32 is factory calibrated before shipped and supplied with the calibration certificate in accordance to ISO 9001 management standard.

  • Page 43: Spare Parts

    9.5 Spare Parts Basically, only original replacement parts can be used. HAEFELY can obtain original or equivalent replacement parts. For an efficient work, the customer support needs the following system specific information: • Project number of the system • Client’s name •...

  • Page 44: Support

    9.7 Support Software Updates HAEFELY runs an Internet Update webpage where owners of our test instruments can download the latest firmware, software, manuals, related information etc. The HAEFELY update page can be reached after log in: http://www.haefely.com/ Technical Support If persistent problems or faulty operation should occur, please contact the Customer Support Department of HAEFELY or your local agent.

  • Page 45: Addresses / Webpage

    +41 61 373 4444 Service E-Mail emc-support@haefely.com 9.8.2 China Office Haefely AG Representative Beijing Office 8-1-602, Fortune Street | No. 67, Chaoyang Road, Chaoyang District | Beijing, China 100025 Phone + 86 10 8578 8099 + 86 10 8578 9908 Sales E-Mail sales@haefely.com.cn...

  • Page 46: Transport And Storage

    Transport and Storage 10.1 Transport and Packaging The packing of the equipment provides satisfactory protection for normal transport conditions. Nevertheless, care should be taken when transporting the equipment. If return of the equipment is necessary, and the original packing crate is no longer available, then packing of an equivalent standard or better should be used.

  • Page 47: Disposal, Recycling And Onward Transfers

    Disposal, Recycling and Onward Transfers When the equipment reaches the end of its working life it can, if required, be disassembled and recycled. No special instructions are necessary for dismantling. The instrument is constructed of metal parts (mostly aluminium) and synthetic materials. It might contain batteries (see the product specification).

  • Page 48: Conformity

    Conformity Conformity...
  • Page 49 Conformity...

  • Page 50: Notes

    Notes Notes...
  • Page 51 Notes...
  • Page 52 + 86 10 8578 8099   sales@haefely.com sales@haefely.com.cn This document has been drawn up with the utmost care. We cannot, however, guarantee that it is entirely complete, correct or up to © date. Copyright HAEFELY/ Subject to change without notice...
