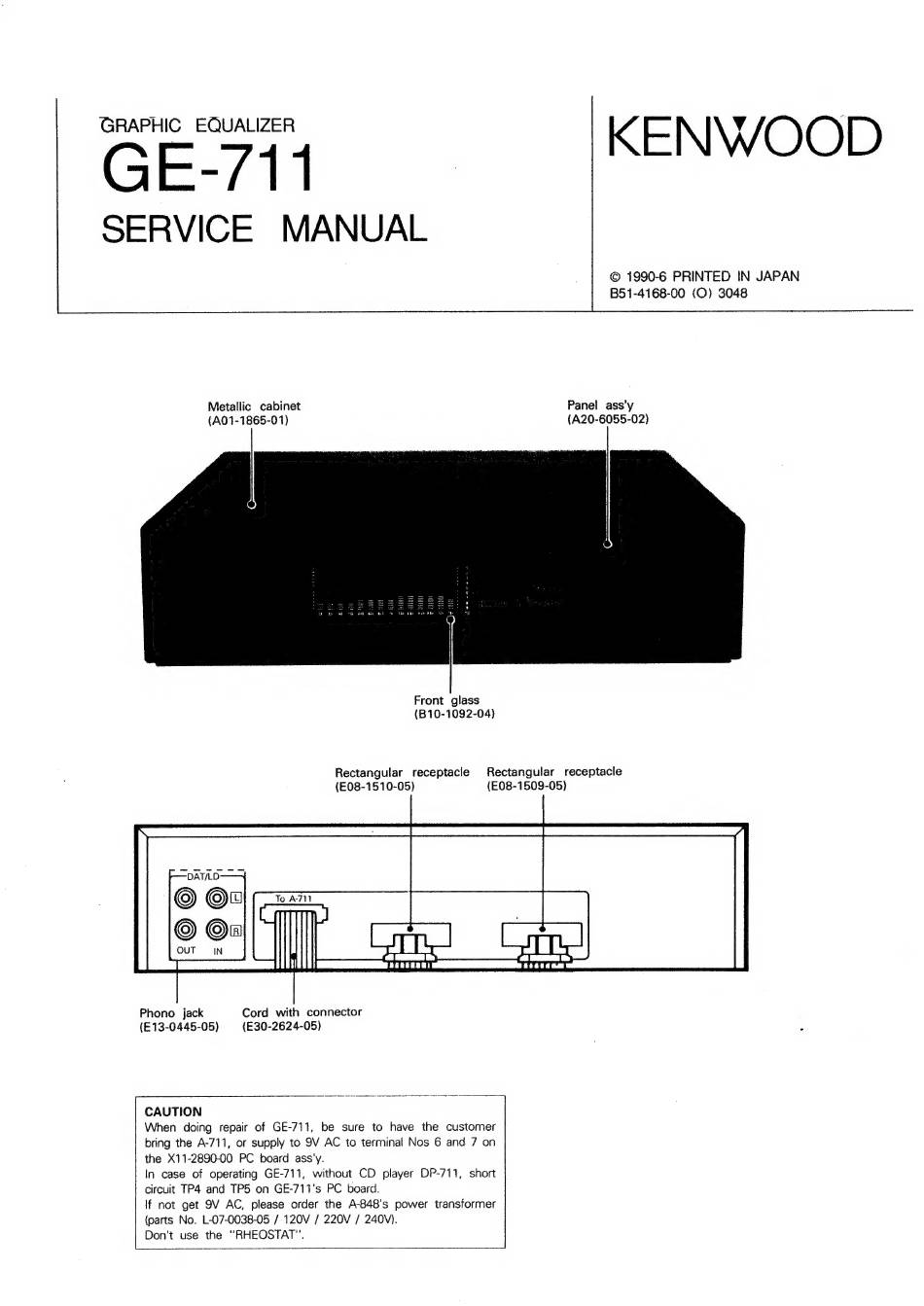

GE oT,
KENWOOD
SERVICE
MANUAL
© 1990-6 PRINTED IN JAPAN
B51-4168-00 (O) 3048
Metallic
cabinet
Panel ass'y
(A01-1865-01)
(A20-6055-02)
Front glass
(B10-1092-04)
Rectangular
receptacle
Rectangular
receptacle
(E08-1510-05)
(E08-1509-05)
Phono
jack
Cord with connector
(E13-0445-05)
(E30-2624-05)
CAUTION
When
doing repair of GE-711,
be sure to have the customer
bring the A-711, or supply to 9V AC to terminal Nos 6 and 7 on
the X11-2890-00 PC board ass'y.
In case of operating GE-711, without CD player DP-711,
short
circuit TP4 and TP5 on GE-711's PC board.
If not get 9V AC, please order the A-848's power transformer
(parts No. L-07-0038-05 / 120V / 220V / 240V).
Don't use the "RHEOSTAT".
