Summary of Contents for maxitrak 16mm MINI PLANET

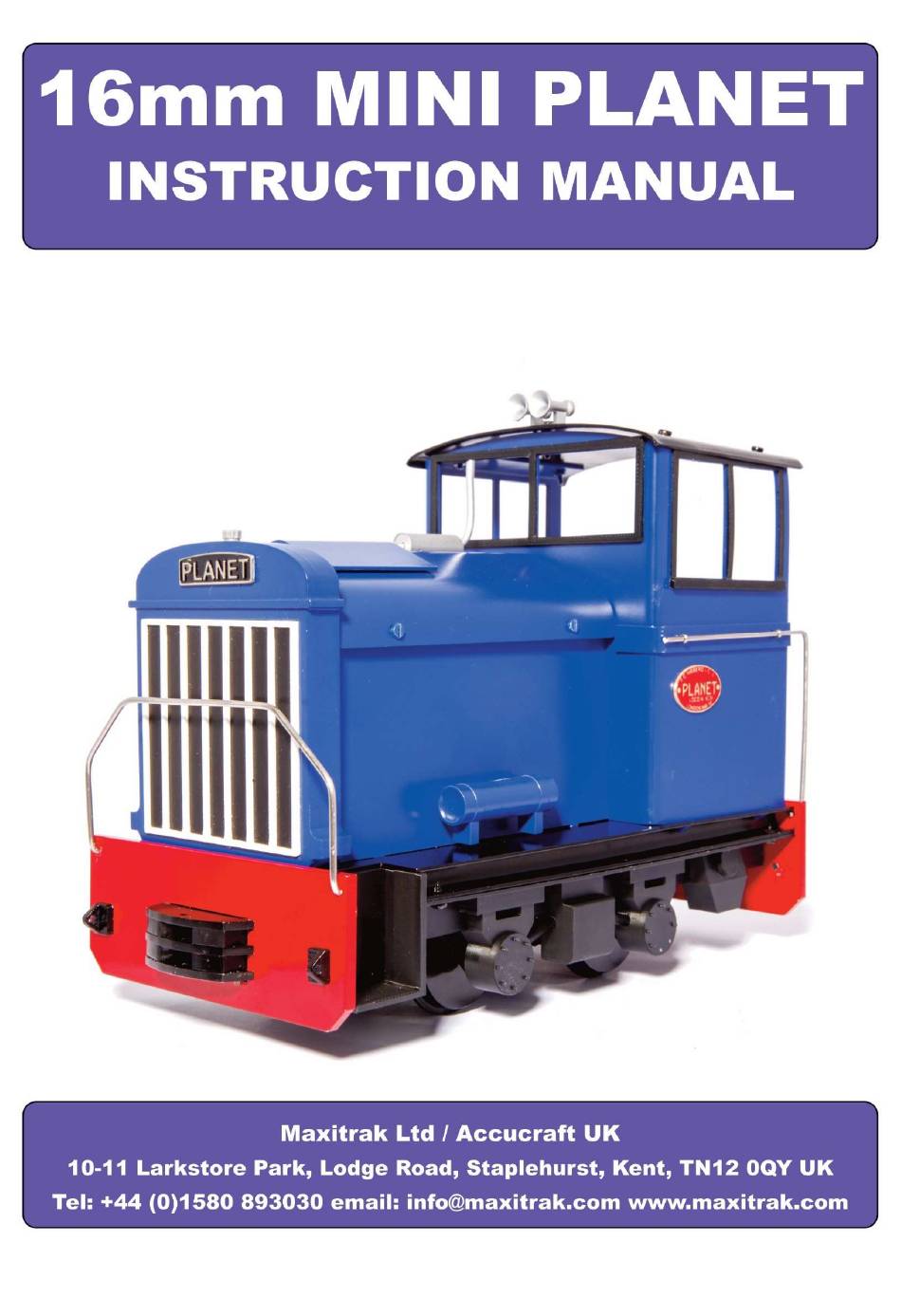

- Page 1 Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 2 Welcome to the Hobby of Model Engineering, from Maxitrak Ltd & Accucraft UK We thank you for selecting one of our models, which we trust will trust provide you with long-term enjoyment, in both its building and operation. This construction manual provides build instructions, and operational procedures for your model.
- Page 3 16mm MINI PLANET instructions To start, take one of the buffer beams, insert coupler outer from the front of the buffer beam (These are 2mm thick) Insert the coupler inner from the back of the buffer beams (These are 4mm thick). These plates can be assembled to make a standard two pocket coupler or a single pocket suitable for an Accucraft chopper coupler.
- Page 4 Fit the second E clip to retain the axle and wheels in place. This sounds more complicated than it is, check the photo’s for assembly sequence. See photo’s 8 & 9: Photo 8: Photo 9: Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 5 The bonnet sides need the front tabs bent in 90 degrees to match the radiator. They are bent left and right hand, do this before assembly getting the tab bent as tight as you can so the radiator butts up nicely against the bonnet side. See Photo 15 for reference. Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 6 90 degrees. Don't lever against the channel section as it will distort and damage the paint. See photo’s 12, 13 & 14. Photo 13: Photo 14: Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 7 The body accessories can now go in place, horn on the roof M2 screw, tool box and air tank on the bonnet sides, self tap screws. See photo 17 (for reference as some parts might already be fitted). Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 8 The radiator grill fits into the recess in the radiator front with a spot of glue. See photo’s 18 & 19 (for reference as some parts might already be fitted). Photo 18: Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 9 Try the fit of the switch panel, slotting into the floor of the cab, with a self tap screw at the top of the panel going into the cab front. You might need to remove paint from the bottom tabs. Maxitrak.com Copyright © 2025 Maxitrak ltd...
- Page 10 It’s easiest to fit the roof and horn after wiring, M2.5 nuts for the roof and M2 bolt and nut for the horn. Refer to Photo 19. For remote control follow the separate makers instructions; Fosworks or Loco Remote are the systems we offer. Maxitrak.com Copyright © 2025 Maxitrak ltd...
-
Page 11: Check List
Wheels with grub screws Bearings Sprockets E Clips Delrin Chain Bevel Gear Set with grub Screws Motor Body Check List Quantity Footplate Bonnet Side Bonnet Top Cab Roof Switch Panel Cab Side Strips Radiator Radiator Grill Maxitrak.com Copyright © 2025 Maxitrak ltd... - Page 12 Or Loco Remote Maxi remote control set Switch and charge socket Or Fosworks remote control set. (Delete as appropriate) In the event of any problems or questions please contact Maxitrak tel: 01580 893030 Maxitrak.com Copyright © 2025 Maxitrak ltd...
