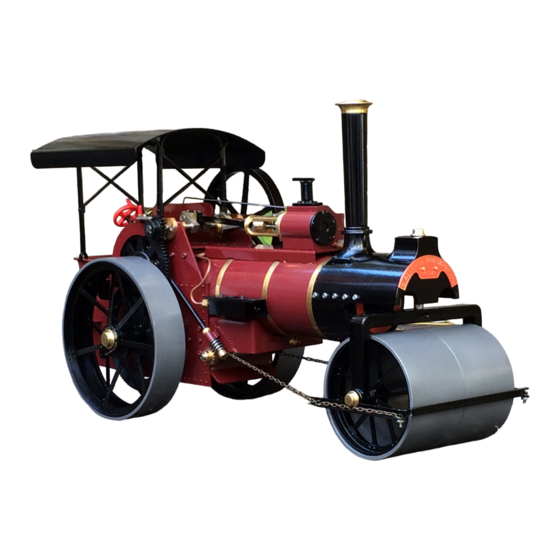

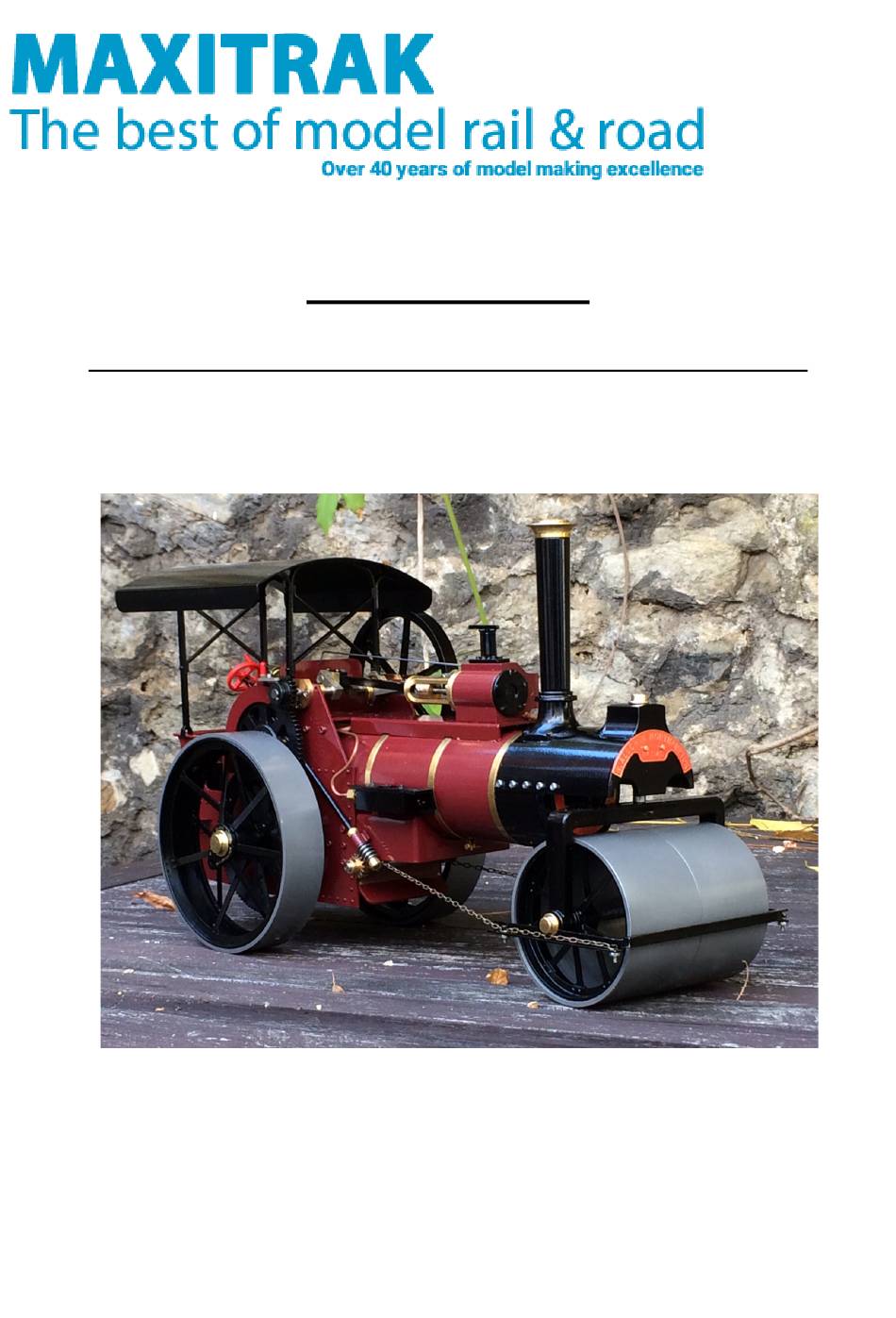

- Page 1 ¾” Scale Allchin Steam Roller Conversion Instruction Manual Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 2 The above information is also relevant should you have acquired your locomotive second- hand. Pleased be assured of our best and personal attention at all times. Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 3 Remove the smokebox door, it is a press fit so ease it off with a small screw driver in the slot under the smokebox. Undo the bolts holding the saddle to the bottom of the smokebox. Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 4 Unscrew the two front hub caps and remove the wheels, wrap masking tape round the hub caps and hold gently with pliers, so as not to damage them Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 5 Set the roll aside to harden. We recommend Araldite for this job but if you want to change back to the traction engine version use something less permanent. Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 6 Make sure the perch bracket is not twisted on the smokebox or the front rolls will not sit square. Make sure the holes are in the smokebox, not the boiler! Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 7 Work the steering a few times so the chain settles to a natural position. Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 8 Fit the canopy to the back of the engine, front canopy supports on the horn plates behind the main bearings, rear canopy supports on the tender. Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 9 Fit the belly tank under the boiler. It tucks behind the steering on the right side and is retained by a screw in the hornplate on the left side. Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
- Page 10 M2 hex (Perch bracket, steering) 14 off M2 nuts 8 off 1.8mm hex (Makers Plate) 2 off 1.6mm drill 1 off M2 tap 1 off Maxitrak Ltd 10-11 Larkstore Park, Lodge Road, Staplehurst, Kent, TN12 0QY Tel: 01580 893030 Email info@maxitrak.com...
