Nolek SniffIT X1 Operator's Manual

Hide thumbs Also See for SniffIT X1:
Table of Contents

Advertisement

Quick Links

Download this manual
SniffIT X1®
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SniffIT X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nolek SniffIT X1

Summary of Contents for Nolek SniffIT X1

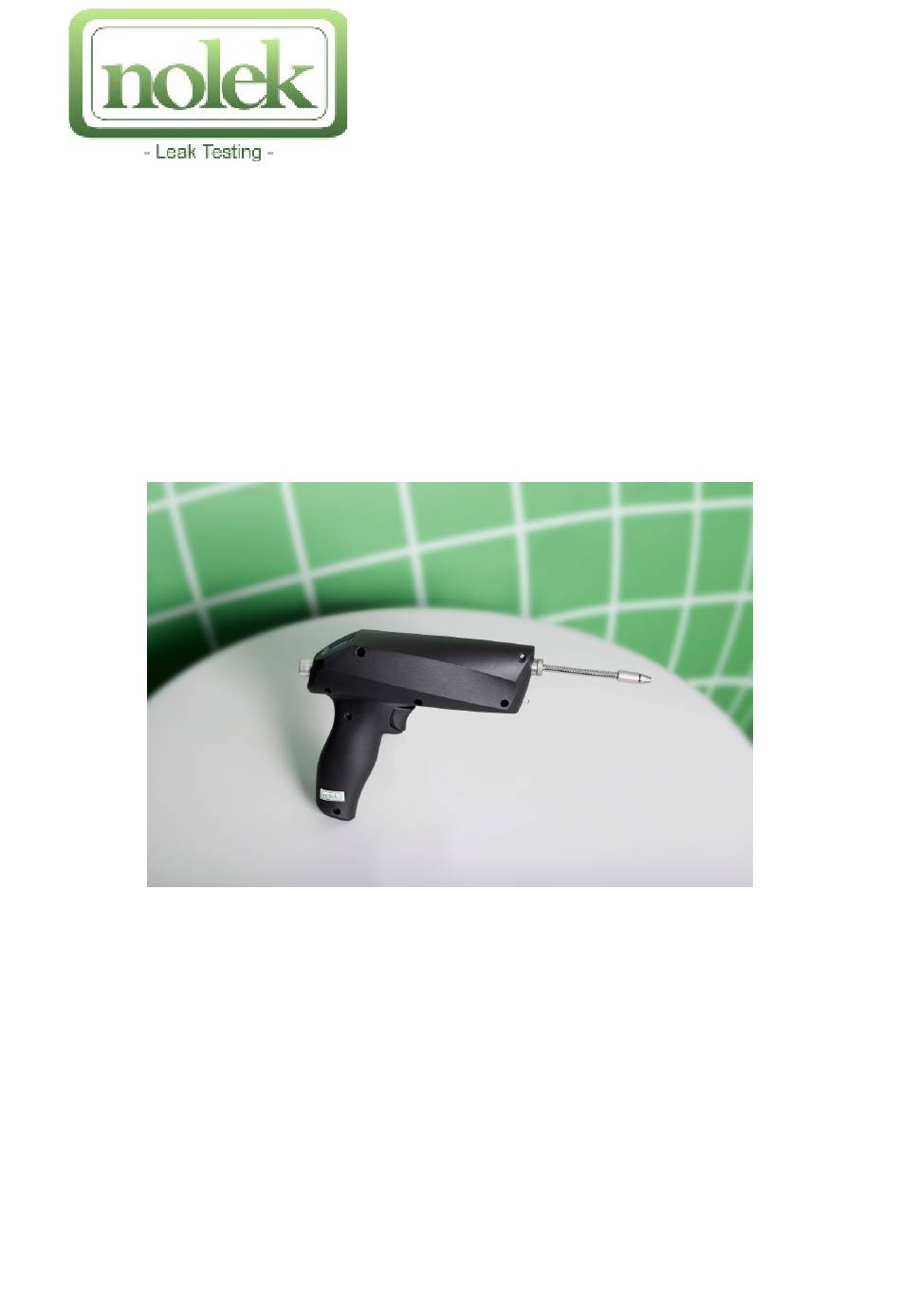

  • Page 1 SniffIT X1® OPERATOR’S MANUAL...
  • Page 2 SniffIT X1® 2015-08-13 Operator’s Manual Version: 141007 Due to our continuing program of product improvements specifications are subject to change without notice. ©Nolek AB 2015 Page 2 (15)

  • Page 3: Table Of Contents

    General Information ..........................4 Manufacturer ............................4 SniffIT X1 ® – Product Introduction ...................... 4 Technical Data ............................. 4 ® Operate the SniffIT X1 ........................... 6 SniffIT X1 ® at a glance ......................... 6 Screen menu button ........................6 Display ............................. 6 Multifunction button ........................

  • Page 4: General Information

    SniffIT X1 – Product Introduction ® SniffIT X1® is fully digitalized with a screen that shows both quantitative numeric measurement values as well as graphical leak indications. SniffIT X1® utilizes temperature, pressure and humidity sensors to ensure accurate measurements and a high level of sensitivity.
  • Page 5 SniffIT X1® 2015-08-13 Operator’s Manual Version: 141007 Logging possibilities Auto Zero Probe lenghts 50mm and 350mm Wrist strap USB Charger Two extra filter Language English, Swedish Package weather protected case included Calibration certificate Certificates CE, FCC Warranty 1-year Page 5 (15)

  • Page 6: Operate The Sniffit X1

    Micro-USB connection Screen menu button Press the screen menu button and hold to turn the SniffIT X1® on. In the menu “Shut down”, press the screen menu button and hold for 9 seconds to turn the SniffIT X1® off. To switch between the menus: turn the Screen menu button to choose menu and press on the button to enter the menu.

  • Page 7: Micro-Usb Connection

    Log - Connect the SniffIT X1® to a computer between measurements and export the compiled measurement data. The data is presented in txt-format, but is also Excel compatible. Note! Make sure that the “log” functions are deactivated when the SniffIT X1® is connected to the computer. ??? The Menus Table 1 below shows the menus for the SniffIT X1®...

  • Page 8: Menu: Shut Down

    SniffIT X1® To perform leak detection: Start the SniffIT X1® and let it adapt to the rooms ambient conditions for 10 minutes before sniffing. Choose the menu “Graphic” or “Numeric” mode in “Measure” menu.

  • Page 9: Menu: Settings

    Measure Log SniffIT X1® Digital Pro has a log function (Graphic and/or Numeric log) which stores the measuring data. The stored data can be collected from the USB memory by a connection between the SniffIT X1’s Micro USB connection and a computer.

  • Page 10: Rtc

    RTC stands for “Real-Time Clock”. This is for adjusting the time and date settings. USB Mode ”USB Disk” setting is selected by default. In this mode the SniffIT X1® acts as a mass storage device when connected to a computer. This way the user manual is accessible as it were stored on an internal USB memory.
  • Page 11 SniffIT X1® 2015-08-13 Operator’s Manual Version: 141007 3. Choose “Low_Min”. Enter the desired minimum value, for example 5∙10 , by turning the Screen menu button until 1.00e-04 is shown on the display. Press and hold the Screen menu button to store value and leave the submenu.

  • Page 12: Calib

    SniffIT X1® 2015-08-13 Operator’s Manual Version: 141007 The factory default settings are as follows: • Low Max: 5,0E-02 mbar∙l/s • Low Min: 1,0E-04 mbar∙l/s • High Max: 1,0E-04 mbar∙l/s • High Min: 1,0E-05 mbar∙l/s Calib Unavailable function. Leak unit In the menu “Leak unit”, the user chooses the desired unit. Supported units are: •...

  • Page 13: Auto Zero

    This menu is for Nolek service personnel only. Menu: Info On the first page information is available about the SniffIT X1® ’s current firmware version, serial number, pre-set date and time. Battery charge is displayed in volts. On the second page the tracer gas and the leak rate unit is displayed that was used to calibrate the unit in the factory.

  • Page 14: Software Update

    “Safely remove mass storage device” function to disconnect SniffIT X1® from the computer. Disconnect the USB cable and shut down your SniffIT X1® . Then, restart it while at the same time pressing the multifunction button. Select “update” on the menu screen of the SniffIT X1® . When the update procedure is completed press and hold the Screen menu button to return to the Update menu.

  • Page 15: Contact Nolek

    SniffIT X1® 2015-08-13 Operator’s Manual Version: 141007 Contact Nolek Sweden (Corporate Headquarters) Hungary (Central European Regional office) Nolek AB Nolek Central Europe Hantverkarvägen 11 Deák Ferenc utca 6, fszt.2 145 63 Norsborg, Sweden 2310 Szigetszentmiklós, Hungary Phone: +36 24 540 545...
