R
INSTRUCTION
MANUAL
MINI TALKING CUBE
20402

Advertisement

loading
Need help?

Need help?

Do you have a question about the snoezelen MINI TALKING CUBE 20402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rompa snoezelen MINI TALKING CUBE 20402

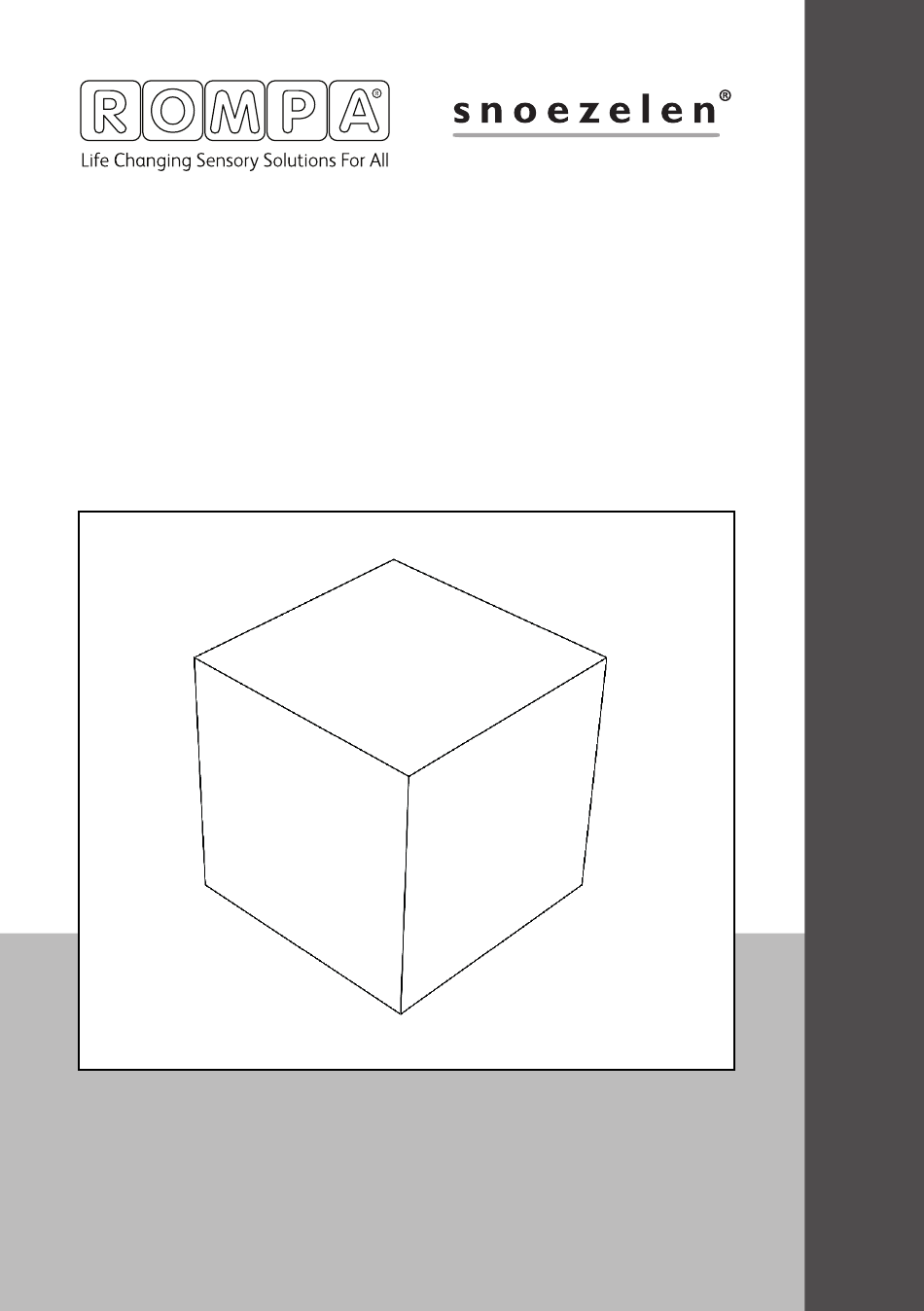

  • Page 1 INSTRUCTION MANUAL MINI TALKING CUBE 20402...
  • Page 2 CONTENTS...
  • Page 3: Table Of Contents

    CONTENTS ABOUT THE PRODUCT ������������������������������������������������������������������������������������ 4 Product Description ����������������������������������������������������������������������������������������������������������������������������������������������������5 User Benefits ����������������������������������������������������������������������������������������������������������������������������������������������������������������5 Product Compatibility ������������������������������������������������������������������������������������������������������������������������������������������������5 TECHNICAL SPECIFICATION ��������������������������������������������������������������������������� 7 Included Parts���������������������������������������������������������������������������������������������������������������������������������������������������������������8 Technical Specification ����������������������������������������������������������������������������������������������������������������������������������������������8 SAFETY AND CARE �����������������������������������������������������������������������������������������10 Product Safety and Care Instructions ���������������������������������������������������������������������������������������������������������������� 11 ASSEMBLY & INSTALLATION GUIDE Product Assembly Guide/Installation ����������������������������������������������������������������������������������������������������������������� 14 Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: About The Product

    ABOUT THE PRODUCT...
  • Page 5: Product Description

    Product Description Soft play cube that can be rolled to change the colour of various Rompa Wi-Fi compatible products. ® This wireless talking soft play cube has many therapeutic, learning and interactive play opportunities. User Benefits Stimulates: sight, sound and touch An alternative way to control rooms Can be thrown, rolled –...
  • Page 6 22875 Hip Hop Activity Box ™ 20287 Wi-Fi Starry Sky Panel 20878 Wi-Fi LED Spotlight 21002 Wi-Fi LED Strip Light System 20845 Wi-Fi Mood Lighting 18407 Illuminated Ballpool 18549 Vibro Tub 21001 Wi-Fi LED Cube 20943 Interactive Aroma Panel by Rompa ®...
  • Page 7: Technical Specification

    TECHNICAL SPECIFICATION...
  • Page 8: Included Parts

    Included Parts Cube: PVC: Colours may vary but typically orange, yellow, green, purple, blue, red 30cm x 30cm x 30cm Weight: approximately 1.6kg Power supply (black plug): Linear PRI: 230V~50Hz (110V available) SEC: 12V 300mA Double isolated: IP40 For indoor use only Hard-wired cable Control box (Receiver): Input: 12V DC 3.6W max...
  • Page 9 Weight: 270g Transmitter (box inside the cube): 9v DC 0.1W PP3 battery Works up to a distance of 100m from the receiver, including through obstacles Transmitter module compliant to ETSI 300-220 Frequency: Operates on 2.4GHz Transmit power: +0 dBm (roughly 0.001 Watts) 15cm (H)
  • Page 10: Safety And Care

    SAFETY AND CARE...
  • Page 11: Product Safety And Care Instructions

    Product Safety and Care Instructions • Always remove the battery after use to preserve battery life. • Change the 9v battery inside the cube as required. • Rechargeable batteries may be used. Remove battery from the unit before recharging. Gently lift the PVC flap around three sides of the cube to expose the zip. Open the zip.
  • Page 12 Warning - do not attempt to access the interior of this box other than the deliberately accessible battery compartment. Push the box back into the Talking Cube and close the zip. Make sure the box is put back in the correct way round – the letters indicate the correct orientation, e.g. “G” for “green” etc. Carefully put the flap back over the zip.
  • Page 13: Assembly & Installation Guide

    ASSEMBLY & INSTALLATION GUIDE...
  • Page 14: Product Assembly Guide/Installation

    Mini Talking Cub. Following these steps will help you address potential problems effectively. If you encounter any persistent issues beyond these troubleshooting steps, please contact Rompa Customer Services for further assistance at +44 (0) 1246 211 777�...
  • Page 15 Check the talking cube module is powered on • Then open the zip on the cube itself and ensure that the module inside is powered on via the switch on the module. • Now zip the cube back up with the module in and if you throw it on its side, it should say the name of the colour it has landed •...
  • Page 16 • Lift the battery out and disconnect the connector from the battery: • Connect the new replacement battery to the two contact points and place the battery back into the compartment. • Slide the cover over the battery. • Ensure that the module switch is in the on position and place the module back inside the talking cube.
  • Page 17 Serial number check Both the speaker and the module inside the cube should have the same serial number: If they do not, it means that the speaker has been paired with the incorrect module inside the cube, so will not play sounds when throwing the cube.
  • Page 18: User Guide

    USER GUIDE...
  • Page 19: User Guide

    User Guide Recording • Connect the round tip of the power supply to the round socket at the top of the white control box. Plug in at a mains wall socket. • Turn the control box ON – press down the volume knob until you hear a click (press it again to turn it OFF).
  • Page 20: Features

    FEATURES...
  • Page 22: Notes

    NOTES...
  • Page 24 Rompa Limited, Goyt Side Road, ® Chesterfield, S40 2PH customer.service@rompa.com 20402_200225 www.rompa.com...
