User Manual (Quick Set-up)

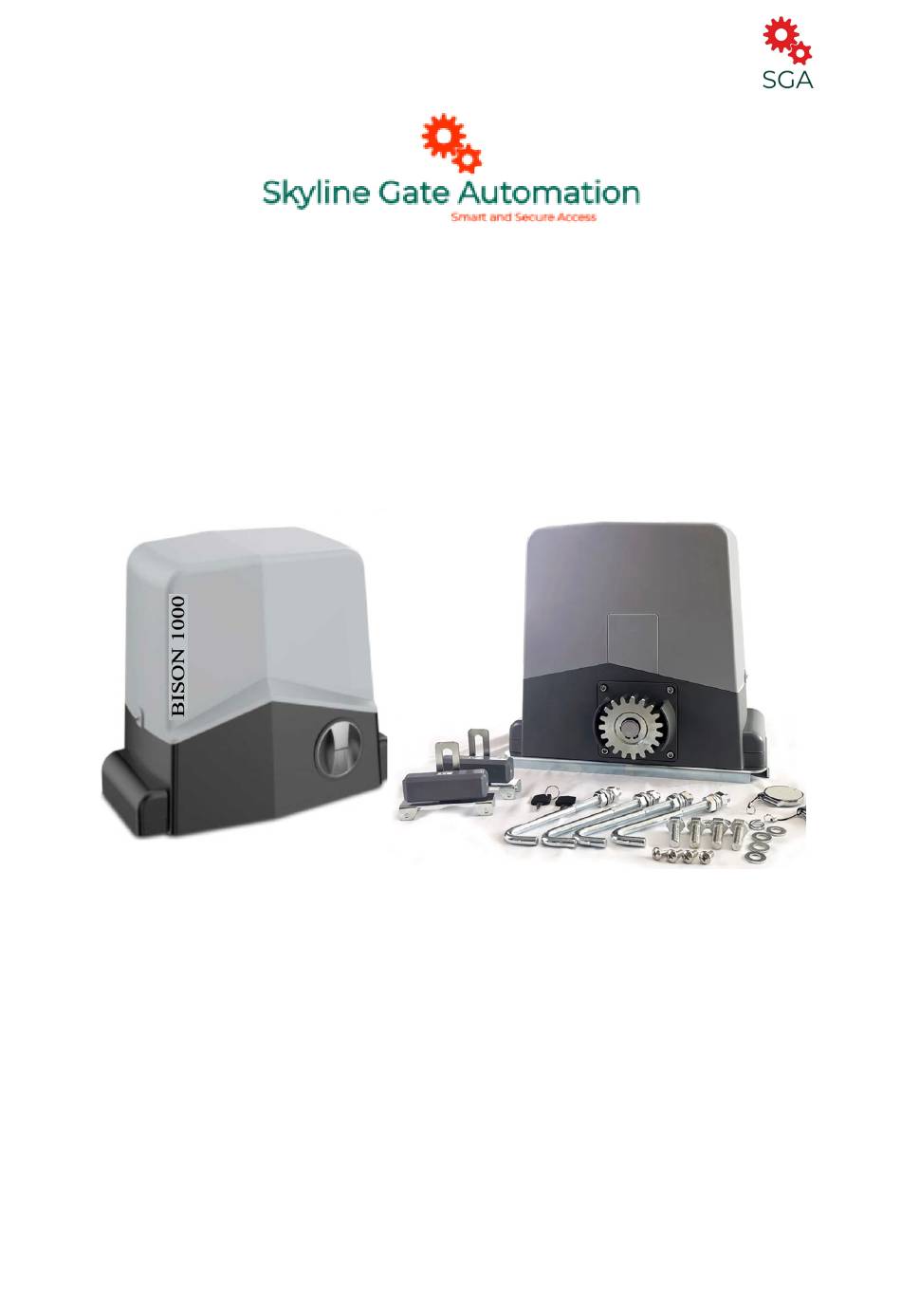

24V DC Sliding Gate Motor-V2
(SGA-BISON1000-24V)
W: skylinegateautomation.com.au
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SGA-BISON1000-24V and is the answer not in the manual?

Questions and answers

Summary of Contents for SGA SGA-BISON1000-24V

  • Page 1 User Manual (Quick Set-up) 24V DC Sliding Gate Motor-V2 (SGA-BISON1000-24V) W: skylinegateautomation.com.au...
  • Page 2: Specifications

    Specifications: Operating Voltage 24V AC/ DC Standby Consumption ~40mA Battery Backup Optional (2x 12V, 1.3Ah SLA Batteries) Solar & External Transformer Compatibility Yes Motor Limit Magnetic Switch Torque 27 NM Duty Cycle Light Output 12V DC, Courtesy Light Relay 1A Max / Traffic Light Relay 3A Max Accessories Voltage/ Ampere 12V DC (250mA) Safety Inputs...
  • Page 3: Manual Override

    Manual Override: Clutch Disengage (Manual Operation): 1. Slide the key lid Up. 2. Insert the key into the key cylinder (Key can fit just one way) and turn the key clockwise. 3. Then turn the knob clockwise, one full turn 360°. 4.
  • Page 4 Control Board Terminals: MODE/ OK/ ENTER Button Up Button. Down Button ANT GND - 12V for Constant Accessories Output + 12V for Constant Accessories Output & Limit Switch Red Wire COM: Limit Switch Black Common Wire SP/ EO: Open Edge Device, STOP Input LC: Limit Switch Close White Wire LO: Limit Switch Open Green Wire COM: COMMON to SP/EO &...
  • Page 5 W: skylinegateautomation.com.au...
  • Page 6 Control Board Specifications: W: skylinegateautomation.com.au...
  • Page 7 Control Board Programming: *During parameter adjustments If you want to cancel or go back to previous level then press UP & DOWN buttons together and momentarily. W: skylinegateautomation.com.au...
  • Page 8 W: skylinegateautomation.com.au...
  • Page 9 Main Menu Abbreviations: oL: Operation Logic St: Standard, Triggering inputs ST/ OP & PD/ CL works as ST (Start) & PD (Pedestrian) commands. At: Standard with Automatic Closing, (Set auto close time in SP, Set pause time (0-99 seconds)) (Remotes & other wired or wireless devices can override the auto close timer for early closing). cd: Complex mode with Automatic Closing, (Set auto close time in SP, Set pause time (0-99 seconds)) (Closing by auto close timer...
  • Page 10 SP: Set Pause Time (Automatic Closing Time, Default is 10 Seconds) Applicable when oL: Operation Logic is set to Automatic Closing From the standby screen, press MODE/ ENTER button once to go to (Operation Logic). 2. Scroll to then use UP/ DOWN buttons to set automatic closing time from 1 to 299 seconds.
  • Page 11 W: skylinegateautomation.com.au...
  • Page 12 W: skylinegateautomation.com.au...
  • Page 13 Advanced Menu Abbreviations: tn: Working Time Menu (Manual Adjustments for Fine Tuning of Parameters) t1: Complete Travel Time of Motor (1-299 seconds). tp: Pedestrian Travel Time of Motor (1-99 seconds). tc: Courtesy Light Time (in 10 multiplier eg. 01 = 10 seconds and 50 = 500 seconds) EH: Exit this Sub Menu or Push UP &...
