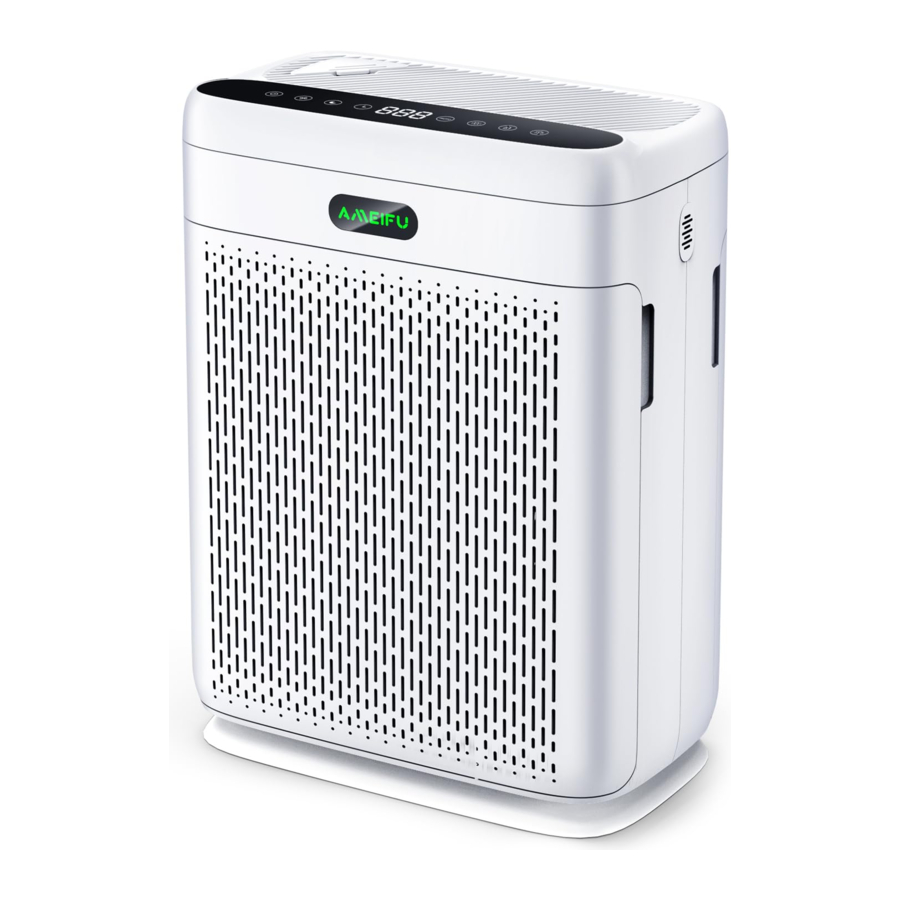

AMEIFU F1 Manual

PRODUCT OVERVIEW

3 STAGE FILTER

The filter consists of a pre-filter, HEPA, and activated carbon. The pre-filter filters large particulate solid pollutants to ensure the service life of HEPA. HEPA efficiently removes PM2.5, with a removal efficiency greater than 99.97%. The activated carbon layer effectively removes gaseous pollutants such as formaldehyde, benzene, VOC, and keeps the air clean

Air Cleaning System
Pre-filter: Filters out hairs, pet hairs and fibres.
True HEPA Filter: Filters bacteria, mold, pet dander, dust and keeps the virus away.
Active Carbon Filter: Filters smoke, pet odor, cooking smell and VOCs.

OPERATION INTRODUCTION

BEFORE OPERATING THE AIR PURIFIER:

1. Carefully remove your air purifier from box and plastic bag.
2. Select a firm, level, and flat location for the air purifier.
   *For proper air flow, locate the unit at least 1 foot from any wall or furniture.

3. Before using, remove the plastic bags covering the filters.
4. Plug the power cord into an AC 100-240V outlet.


OPERATION PANEL INTRODUCTION

Note:

1. The remote control is powered by a CR2035 battery.
2. Please pull out the insulation sheet at the bottom before using the remote control, and press "Power On" button of the remote control for 3 seconds within 10 seconds after the machine is connected to match it.

AROMATHERAPY FUNCTION

A replaceable aroma pad is included in the aroma tray on the top air outlet, where you can put a few drops of essential oil (not included). This allows you to breathe in fresh air and relax yourself!

How to add the essential oils?

1. Remove the aroma tray cover.
2. Add a few drops of an essential oil - more or less may be used depending on your preference of aroma strength.

3. Install the tray cover onto the unit.

Notice:

1. Please do not put essential oils directly into the HEPA filters, as it can damage the device and reduce filter efficiency.
2. The fragrance of the aromatherapy is determined by the concentration of essential oils.
3. Due to the small size of the aromatherapy sponge pads, it is recommended to use the aromatherapy function in smaller rooms to ensure the effectiveness of the aromatherapy.

OPERATING THE DEVICE

On/Off Button
Gently touch the power button to turn the device on and off. After turning it on, the air quality light will light up, and the wind speed is in low mode. Press the power button again to turn off the device.
Tips: After the machine is started, the air detector will preheat for 10 seconds to detect the surrounding air quality. At this time, the brand light will flash in green, blue, and red.

Auto Mode Button
Touch the "Auto" button, the device starts in auto mode, the auto mode icon on the display screen lights up, and the device automatically adjusts the air quality light color and operating wind speed according to the detected ambient air quality.

Ambient Air Quality	Air Quality Light Color	PM2.5	Display Screen
Preheat	light flashing	/
Good	light	≤ 75
Minor pollution	light	75-150
Severe pollution	light	≥ 150

Wind Speed Button
Touch the wind speed button to adjust the wind speed.

Timer Button
Touch the timer button to set the timer duration (2/4/6/8 hour).

Light Control Button
Press this button once, and the brand air quality light will light off, press this button twice, and the panel light will light off, press this button the third time, and the brand light and panel light will light on.

Child Lock Function
Long press the child lock button for 3-5 seconds, and the device will turn on the child lock. The child lock icon will light up to indicate that the child lock is activated. At this time, all buttons on the device will be inactive. To deactivate the child lock function, simply long press the child lock button again for 3-5 seconds. The child lock icon will turn off, and all buttons will return to their operable state.

INSTALLING & REMOVING FILTERS

Filter Replacement Indicator
The filter replacement icon on the display lights up indicates it is time to replace the filter.
Follow the instruction below to change filter and reset the program.

1. Open the filter cover and take out the dirty filter.

2. Remove the plastic bag of the new filter and install the filter correctly.
   (Make sure the black side faces the inside of the machine)

3. Cover the filter with the white filter cover.

4. Press the filter replace indicator & reset button for 3 seconds to reset the machine.


The operation of replacing the filter on the other side is the same.

1. Please clean it once a month using a soft brush or a vacuum cleaner to remove larger hair and dust particles from the surface of the filter. (Do not wash it)
2. The filter needs to be replaced every 3-6 months for better purification results.

CARE & MAINTENANCE

Please unplug the power cord before maintaining the machine.

• Wipe the body shell with a damp cloth and then dry it.
• If the outer shell is very dirty, neutral detergent can be used to dilute it before cleaning.
• Please do not use the items shown in the picture below for washing (otherwise it will easily cause deformation and discoloration of the body).


Cleaning Tips

1. Turn off and unplug the appliance if you are cleaning it or when it is not in use for a long time.
2. Refer to the filter cleaning and maintenance frequency: once a month.
3. Never use abrasive objects that could damage the appearance of your appliance.
4. Clean the appliance with a soft, dry cloth.
5. Never use abrasive cleaning agents, scourers, acetone, or petrol to clean the appliance.
6. Never immerse the motor base in water or place it under running water to avoid the risk of electric shock.
7. The filter is easily damaged and deformed. Please do not press or pull it forcefully during cleaning. If it is damaged, replace the filter with a new one.

Maintenance

1. Replace the filter every 3-6 months. The replacement cycle may vary depending on the area and ambient air quality. The filter replacement cycle may be reduced in heavily polluted areas, smoking areas, etc. When the filtering effect is poor, please replace the filter.
2. Cleaning: Wipe the outer surface, the air inlet, and outlet with a wrung soft cloth. Do not clean the surface with abrasive cleaning agents.
3. When not in use for a long period: unplug the power adapter, clean the outer surface and filter. Put it in a plastic bag and store it in an area with low humidity.

Warning

1. Do not wash or spill liquid on this product.
2. Keep your hands and fingers away from the high-speed wheel component rotating in the purifier. Avoid foreign objects entering the unit's air vent, as it may cause heat or damage to the unit.
3. Do not block the air inlets and outlets. There should be a certain space around the air purifier.
4. Children should not play with the air purifier. This appliance should be used by adults.
5. In order to improve the purification effect, close the doors and windows when using the unit (to avoid carbon monoxide poisoning, properly ventilate when using a combustion unit).
6. Please do not use any power adapter other than the one provided with the air purifier.
7. Do not use the appliance in wet, moist areas such as bathrooms, steamy kitchens, or near swimming pools and humidifiers, as it may cause an electric shock.

PACKAGE CONTENTS

TROUBLESHOOTING

Abnormal phenomenon	Inspection methods	Solutions
The unit does not work	Is the power cord plug plugged in properly?	Plug the power cord plug in correctly.
	Is the filter cover properly covered?	Recover the filter cover.
Difficult to remove odor	Is the odor of the usage environment particularly strong? Long term continuous purification is required	It is recommended to ventilate before starting the machine.
	Is plastic bag of the filter is removed?	Remove the plastic bag of the filter.
	Has the filter reached its use time?	Replace the filter.
The unit is noisy	Has the plastic bag of filter removed?	Take out the filter and remove the plastic bag.
	Has the filter reached its use time?	Replace the filter.
Can't feel the fragrance	Is the essential oil been added?	Add the essential oil
	Is the fragrance level of essential oil is low or low-quality?	Choose essential oils that are good quality and have a strong fragrance
	If far away from the air purifier?	Try positioning the air purifier closer to you for a stronger scent.
is still on after replacing the filter	Has the machine been reset by pressing the filter replace indicator and reset button after replacing the filter?	Reset the filter replace indicator and reset button for 3 seconds after replacing the filter.

If the problem cannot be solved after completing the above checks, please unplug the power cord and contact the agent for repair.

READ AND SAVE THESE INSTRUCTIONS

Please follow the instructions manual carefully to avoid personal injury or damage to the product.

WARNING/ATTENTION

Please read the important safeguards carefully before using this air purifier. ATTENTION It reminds us that misusing or mishandling may cause hurt.
FORBID The operation cannot be performed or forbidden.	FORCE A certain operation should be performed (mandatory).

Please supervise your children and prevent them from touching or using appliances.

Do not handle the plug with wet hands to avoid electric shock.

Do not disassemble, repair, or reconstruct the appliance to avoid an electric shock, fire, or injury. Contact the seller for item repairs.

Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance. Using a non-standard power cord may cause a fire due to overheating.

Unplug the power plug when cleaning; otherwise, the air purifier may start suddenly, causing injury or electric shock.

Please do not put foreign objects such as needles, iron wires, or metal objects into the air outlet and suction vent. It is easy to cause electric shock and injury.

Please do not damage, twist, stretch, or process the power cord and power plug in a way that causes excessive distortion. Additionally, do not place heavy objects on them or bundle them together.
Using damaged power cords and power plugs can easily result in electric shock, short circuit, fire, and other accidents. If you need maintenance for the power cord and power plug, please consult the store where you purchased it.

Make sure the power plug is inserted all the way to the socket. A plug that is not fully inserted can cause a fire due to electric shock and heat generation. Please do not use damaged plugs or loose sockets.

Please do not start this machine when using spray insecticide indoors. Otherwise, the chemical components will accumulate inside the machine and then be released from the air outlet, which is harmful to human health. After using pesticides, please allow for adequate indoor air circulation before using the machine.

Avoid inhaling flammable substances such as flammable cigarettes, incense, etc., as they can easily ignite and cause a fire.

Please do not use it in places with high temperature, humidity, or water, such as bathrooms. Otherwise, it is easy to cause electrical leakage, electric shock, fire, and other consequences.

When unplugging the power plug, please do not hold the power cord. You should hold the power cord plug before pulling it out. Otherwise, the power cord may be short-circuited or disconnected, resulting in a fire or electric shock.

Please do not wipe with alcohol or organic solvents, and do not spray insecticides. Otherwise, the product may break, short-circuit, or cause electric shock, resulting in injury or fire.

When using a gas appliance at the same time, please pay attention to ventilation; otherwise, it may cause carbon monoxide poisoning. Machines cannot remove carbon monoxide.

Unplug the product immediately if any of the following situations occur:

• Any switch does not operate.
• The circuit is shorted.
• The power cord or plug is abnormally hot, there is a burning smell, or there are abnormal sounds and vibrations.
• There are any other abnormal phenomena or malfunctions.

If the power cord is broken, you must contact the product agent, maintenance service center, or qualified technicians to replace and repair it to prevent any danger.

CUSTOMER SERVICE
Our customer service team is always ready to assist you if you have any issues or concerns.
Filter need be replaced within 3-6 months. About filter and more surprise, please scan above and contact!
support@myameifu.com
1-833-638-3838
www.myameifu.com
