AMEIFU FXAP2W Manual

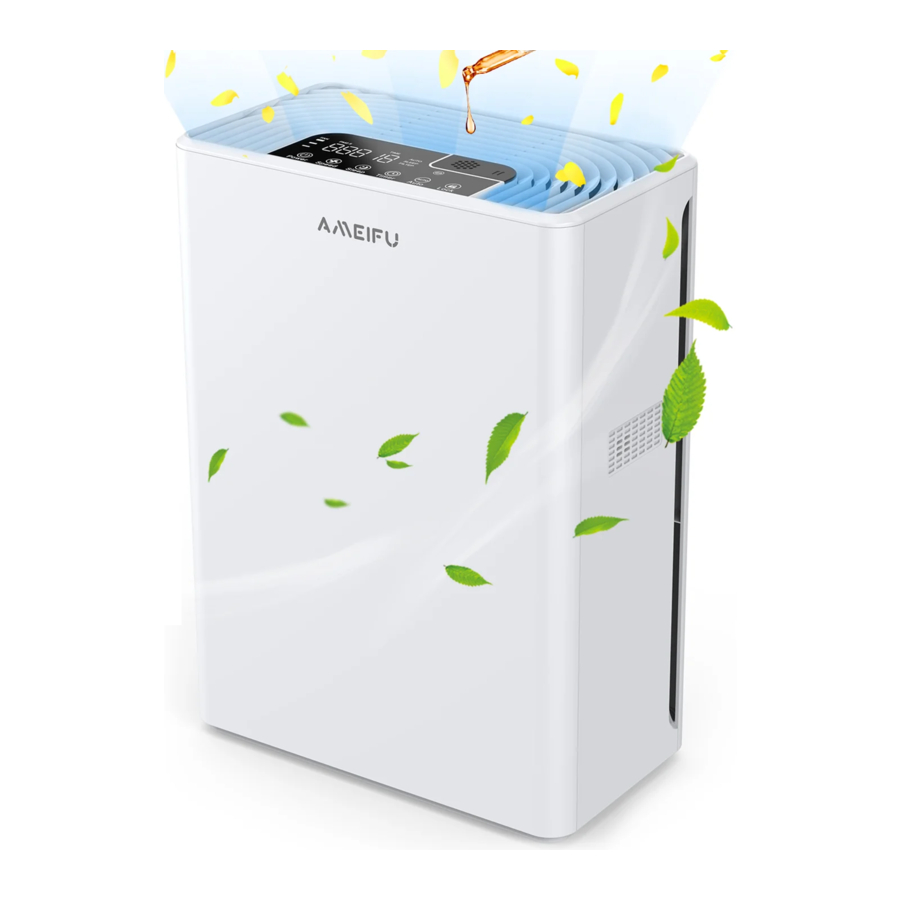

PRODUCT INTRODUCTION

This product is stand air purifier for living rooms, bedrooms, kitchens or office. The unique appearance design provides users with an aesthetic experience. Air circulation and purification are improved by having all sides' air intake and an air output on the top surface. The unit is compact enough to fit most home styles in America and has no negative impact on the workplace. It absorbs, dissolves, or converts various air pollutants, thus improving air quality. AMEIFU air purifier provides consumers with clean and safe air. Small yet powerful!

PRODUCT OVERVIEW

PRODUCT OVERVIEW

Parameter:

Product name: Air purifier Product model: FXAP2W
Product size: 11.6x6.5x 16.3in Operation mode: Touch key
Rated power: 50W (±10%)
(MAX)		 Input voltage: 120V AC 60Hz
Net weight: 3 75KG Working voltage of purifier: 120V
Gross weight: 4.2KG Noise: ≤58dB (A)
Filter replacement time: 1800h (±10%) CADR: 200m3(±10%)

Be careful before use

  1. Open the package.
  2. Take out the unit and the filter.
  3. Remove the new filter protective bag before installation.
  4. Align the filter locking notches and tighten the filter buckle in the right direction
  5. Do not block the air inlet and outlet, e.g. Placing items on the air outlet or near the air inlets closer than 20cm.
  6. Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance.
  7. Please insert the plug into the power socket firmly. After switching the power on, the indicator light will flash.

Control Panel uses

Control Panel uses

warning Note: Filter replacement reminder lights up only when the filter should be changed. After the filter is changed, long Press for 3 seconds to reset and the lights turn off.

How to use the button

  1. ON/OFF Button:
    Plugin and tap to turn on the air purifier, the display will light up. The fan will start on auto mode (usually on mode I or II )
  2. Manual Mode: Click button to adjust speed manually from speed 1 (Low speed), speed 2 (Medium Speed), speed 3 (High Speed)
  3. Sleeping Mode: Click button to enter sleeping mode.
  4. Timer Function: Click to active timer function. Machine will turn off automatically according to your setting (2,4,6,8,10,12 hours), and countdown timer will be displayed. In additional, The Filter Indicator lights up when the filter should be changed (after 1200 hours' use). Long press for 3 seconds to reset the filter after changing a new filter.
  5. Auto Mode: Click to enter auto mode. Fan speeds will be selected automatically according to the air quality tested by sensor.
  6. Child Lock Button: Click to active Child Lock to prevent current settings from being changed. Press and hold for 3 seconds to end the lock function.

Product teardown diagram

Product teardown diagram
Composite filter element

How to replace Filter

  1. Turn off the power and remove the air inlet cover on the back.
  2. Remove the plastic packaging of the Filter before installing.
  3. Make sure filters are installed correctly, the activated carbon (black) side facing the fan, the white side facing you, lock filters in place to secure them.
  4. Put filter into air purifier and install the air inlet cover.

CARE AND MAINTENANCE

Clean

  • Switch off and unplug the appliance if you are cleaning the appliance or when it is not in use for a long time.
  • Reference for the filter cleaning and maintenance frequency: ~ once a month.
    Never use abrasive objects which could damage your appliance's appearance.
  • Clean the appliance with a soft, dry cloth.
  • Never use abrasive cleaning agents, scourers, acetone or petrol to clean the appliance.
  • Switch off the appliance and unplug it from the wall outlet before cleaning
  • Never immerse the motor base in water or place it under running water to avoid the risk of electric shock.
  • The filter is easily damaged and deformed. Please do not press or pull it forcefully during cleaning
  • If it is damaged, replace the filter with a new one.

Maintenance

  1. Replace the filter every 3-6 months. It varies depending on the area and ambient air quality. The filter replacement cycle may be reduced in heavily polluted areas, smoking areas, and etc. When the filtering effect is poor, please replace the filter.
  2. Cleaning: Wipe the outer surface, the air inlet and outlet with a wrung soft cloth.
    Do not clean the surface with abrasive cleaning agents
  3. When not in use for a long period: unplug the power adapter, clean the outer surface and filter. Put it in a plastic bag and store in a low humidity level area.

TROUBLESHOOTING

PROBLEM POSSIBLE REASON AND SOLUTIONS
The air purifier produces a strange smell
  1. The filter is too dirty and has not been replaced for a long time-replace the filter.
  2. Water has entered the filter or the machine has been used in a humid environment-replace the filter.
  3. Reuse after sealed for a period of time-clean the filter, if it cannot be solved replace the filter.
  4. If there is a burning smell-stop using it immediately, unplug the power supply and contact customer support team.
No airflow out of air purifier The motor is not running-check the power supply, replace the power adapter or contact the customer support team.
Can't feel the effect
  1. The filter packaging bag is not removed. Please remove the filter packaging bag
  2. Make sure the filters are installed in the proper order and positioned correctly in the unit
  3. Filters are worn out, please replace all the filters

CUSTOMER SERVICE

Our customer service team is always ready to assist you if you have any issues or concerns.

Filter need be replaced within 3 6 months. About filter and more surprise, please scan below and contact!

24/7 LIVE CHAT SUPPORT

1-833-638-3838

support@myameifu.com

www.myameifu.com

IMPORTANT SAFETY PRECAUTIONS

Please follow the further recommendations to avoid personal injury or product damage.


Please read the important safeguards carefully before using this appliance.

warning ATTENTION
It reminds us that misusing or mishandling may cause hurt.

  • Please supervise your children and avoid them from touching or using appliances.
  • Do not handle the plug with wet hands.lt may cause electrical shock.
  • Do not disassemble, repair, or reconstruct the appliance. It may cause an electric shock, fire hazard, or getting an injury. Contact the authorized retailer for item repairing.
  • Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect the appliance. Other electric appliances used simultaneously may cause the socket to be hot or cause the fire.

  1. Do not wash or spill this product with liquid
  2. Keep your hands and fingers away from the high-speed wheel component rotating in the purifier. Avoid foreign objects entering the unit air vent, it may cause heat or damage to the unit.
  3. Do not block the air inlets and outlets. There should be a certain space around the air purifier.
  4. Children shall not play with the air purifier. This appliance can be used by children
  5. In order to improve the purification effect, close the doors and windows when using the unit (to avoid carbon monoxide poisoning, properly ventilate when using a combustion unit)
  6. Please do not use any other power adapter than the one provided with the air purifier.
  7. Do not use the appliance in wet, moist areas such as bathrooms, steamy kitchens, or near swimming pools, otherwise, it may cause an electric shock.
