Sealey PH30.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. SAFETY
The user shall work in accordance with the instruction handbook.
9
Keep crane, lifting slings, support and beams in good working order and condition. Follow the inspection requirements as
9
described in Section 6, Maintenance. Take immediate action to repair or replace damaged parts by contacting your supplier.
Ensure that all accessory lifting devices are suitably certified. If crane is damaged, remove from service immediately.
9
Ensure the surface on which the crane is used is level, firm and capable of supporting the weight of the crane with
9
maximum load - we recommend concrete. Never use the crane on tarmacadam or other soft surfaces, as the crane may sink in.
Keep children and unauthorised persons away from the working area.
9
Keep working area clean and tidy, free from unrelated materials and ensure that there is adequate lighting.
9
Only suitably qualified and experienced persons should attempt to perform maintenance on the unit.
9
Ensure that load does not exceed the maximum lifting capacity of the crane. Overloading the crane is dangerous. Where
9
appropriate, use only the lifting points recommended by the manufacturer of the item to be lifted, e.g. vehicle engine.
Before lifting the load ensure that the crane jib is in the lowest practical position, that there are no obstacles which may snag
9
the load whilst it is being lifted and that the area above the jib is clear.
To avoid injury, be fully aware of your own and other persons locations in relation to the lifting, and lowering, of the load.
9
Keep a sound footing and balance, and ensure the floor is not slippery, and wear non-slip footwear.
9
Ensure jib extension locking pin and 'R' pin are in position before lifting.
9
Ensure the centre of gravity always remains inside the crane base.
9
DO NOT harness the load at an angle or use any attachments not verified as fit for purpose.
8
DO NOT attempt to lift persons.
8
DO NOT allow the load to swing during lifting.
8
DO NOT allow the load to drop suddenly. Lower load with care, ensuring that you are fully aware of the condition of the surface onto
8
which the load is to be placed.
DO NOT load crane beyond its rated capacity for each specified jib extension position as indicated in Section 3. The capacity of the
8
crane reduces as the jib is extended.
DO NOT position any part of your body beneath the load.
8
DO NOT use the crane to move or transport a load other than for repositioning. The crane is a lifting device only.
8
DO NOT apply any sideways pressure to any part of the crane during lifting or when a load is suspended.
8
DO NOT attempt to adjust the safety valve, which has been set and sealed by the manufacturer.
8
DO NOT use this crane to perform a task for which it is not designed.
8
DO NOT use whilst under the influence of drugs, alcohol or intoxicating medication.
8
DO NOT climb on the crane.
8
DO NOT attempt to modify the crane as this may make it unsafe and will invalidate your warranty.
8
When not in use store in a safe, dry, childproof area.
8
This crane is designed for lifting within a garage or workshop environment.
9
WARNING! Failure to heed safety and warning instructions may result in damage and/or personal injury and will invalidate the warranty.
‰
It is necessary that the operator can watch the lifting device and the load during all movements.
9
It is not allowed to work under the raised load until it is secured by suitable means.
8
The operator shall be provided with all necessary information about training and about pumping and translating forces.
9
If more than 400N (41kg.) of effort is required in lifting, the efforts shall be lowered by an additional person.
9
The owner and/or operator must be aware that repair of this equipment will require specialised knowledge and facilities. It is
9
recommended that an annual examination of the workshop crane is made by an authorised service agent. Unauthorised parts may be
dangerous and will invalidate the warranty.
Take extra care when operating under extreme weather conditions i.e cold weather or heatwave.
9
No modifications shall be carried out which adversely affect the compliance of the jack with this standard.
9
In the event of a fire, refer to MSDS for guidance.
9
2. INTRODUCTION
Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability,
particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension
of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for
reduced freight cost. Some self-assembly required.
© Jack Sealey Limited

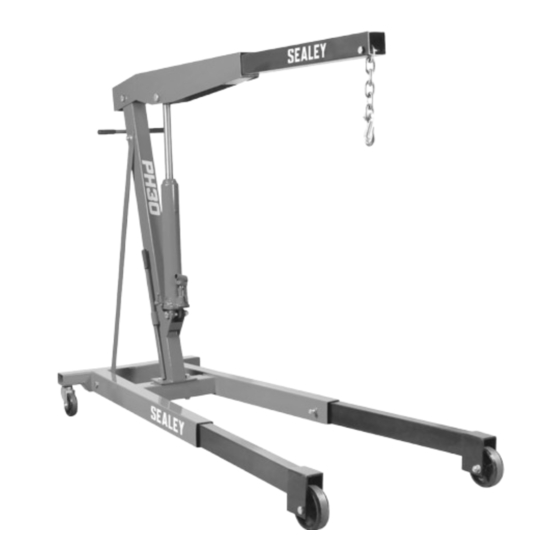

3TONNE FIXED FRAME ENGINE CRANE WITH
EXTENDABLE LEGS
PH30.V2
MODEL NO:
Wear safety
footwear
Original Language Version PH30.V2 Issue 2 21/11/24
