Sealey PH20.v3 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PleaSe read tHeSe inStrUctionS carefUlly. note tHe Safe oPerational reQUireMentS, WarningS and caUtionS.
USe tHe ProdUct correctly and WitH care for tHe PUrPoSe for WHicH it iS intended. failUre to do So May caUSe
daMage and/or PerSonal inJUry and Will invalidate tHe Warranty. PleaSe keeP inStrUctionS Safe for fUtUre USe.
1. contentS
section 2. General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 2.1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 2.2. technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 3. safety/operational Instructions. . . . . . . . . . . . . . . . . . .2.
section 4. Maintenance/Examination/Inspection. . . . . . . . . . . . . .2.
section 5. Assembly and storage. . . . . . . . . . . . . . . . . . . . . . . . . .3.
section 6. owner's & operator's responsibilities . . . . . . . . . . . . .3.
section 7. Declaration of conformity. . . . . . . . . . . . . . . . . . . . . . .4.
section 8. Parts List/Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.
2. general
2.1 identification
supplier: sealey Power Products,
Kempson Way,
suffolk Business Park,
Bury st Edmunds,
suffolk, IP32 7Ar.
Model no: PH20.V3

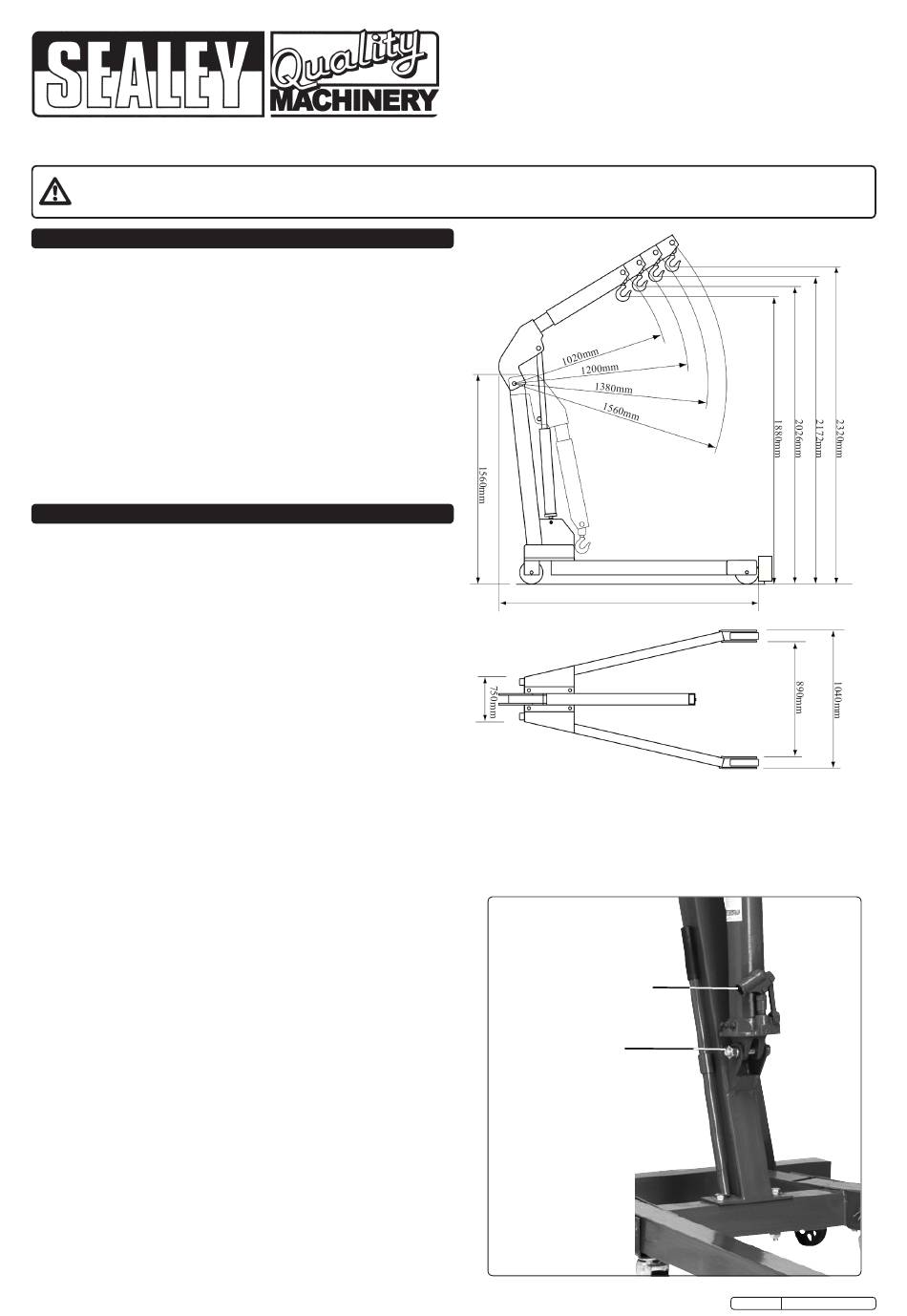

2.2 technical data
rated capacity
safe Working Load (sWL) 10t (tested to 50% overload).
Working Load Limit (WLL) 10t (tested to 50% overload).
Max. lift @ min. jib extension: . . . . . . . . . . . . . . . . . . 1880mm
Max. lift @ max. jib extension: . . . . . . . . . . . . . . . . . . 2320mm
Max. height of frame legs: . . . . . . . . . . . . . . . . . . . . . . 190mm
Max. length of frame: . . . . . . . . . . . . . . . . . . . . . . . . . 1740mm
Max. width of frame legs: . . . . . . . . . . . . . . . . . . . . . . 1040mm
overall height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1560mm
Width (max) inside frame legs:. . . . . . . . . . . . . . . . . . . 890mm
Distance between rear wheel centres: . . . . . . . . . . . . . 750mm
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83kg
a) Design capability: test Load 50% overload.
b) for a description of in-service and out-of-service conditions see
section 3 safety, section 4 Maintenance and section 6.
c) the crane is fitted with a bypass valve that will prevent the ram
from over extending.
d) for applications see section 3 safety.
e) for control system, see fig.1 for release valve and pump handle
assy. usage is explained in section 3.2 operation.
f) for ground condition requirements, see section 3 safety.
g) for information on parts and materials requiring specialised
repair techniques see section 4 Maintenance.
InstructIons for:
1.8ton yankee folding crane
MoDEL no:
Page no.
Lifting capacity:
Position 1: 1800kg
Position 2: 1350kg
Position 3: 900kg
Position 4: 450kg
fig.1
PuMP HAnDLE AssY.
rELEAsE VALVE
page 1
Original Language Version
PH20.v3
1350kg Max.
1800kg Max.
1740mm
Length of jib:
Position 1: 1020mm
Position 2: 1200mm
Position 3: 1380mm
Position 4: 1560mm
450kg Max.
900kg Max.
PH20.V3 Issue: 2 - 12/10/09
