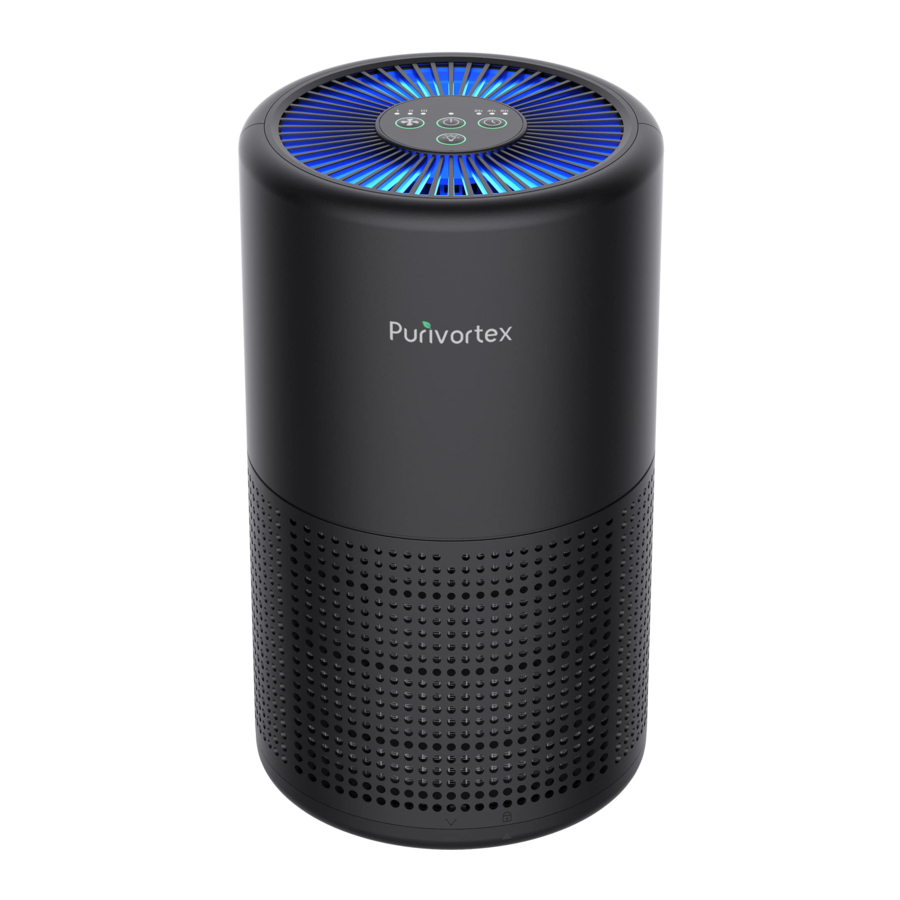

Purivortex AC201B Manual

Before Operating the Appliance

1. Carefully remove your air purifier from the packaging box and plastic bag.
2. Place it on a firm, level and flat area.
   • For proper air flow, locate the unit at least 1 foot / 30 cm away from any wall or furniture.
   • Make sure none of the grilles are blocked.
3. Plug the power adapter into an appropriate voltage AC outlet.

Cleaning and Maintenance

Warranty and Service
Clean the purifier at least once every month with a clean, dry, soft cloth. Morefrequent cleaning may be required depending on environmental conditions.

Note:

• Do NOT stick any foreign objects or your fingers inside of the unit.
• Do NOT use gasoline, benzene, and other abrasive or harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.
• NEVER use alcohol or other solvents.

Maintaining the Filters
The True HEPA filter should be cleaned once each month by a vacuum cleaner.
Note:

• Filter should be replaced at least once each 3 to 6 months. More frequent cleaning and replacing may be required depending on environmental conditions.
• The air purifier works the best in a closed environment. Its performance may be compromised in a well-ventilated room.
• Air the filters under the sun for an hour before using it again if the purifier has not been used for a long time.

Package Contents

1 x HEPA Air Purifier
1 x True HEPA 3-Stage Filter (Pre-Installed)
1 x User Manual
1 x After-sale Card

Specifications

Getting to Know Your Product

1. On/Off button
2. Indicator light during operation
3. LED light (under key)
4. Timer button
5. Fan button
6. Decorative lamp button
7. Air outlet
8. DC Power socket
9. Wind inlet
10. Activated carbon
11. HEPA filter
12. Bottom cover
13. DC power jack
14. AC/DC switching mode power supply
15. AC power jack
16. Handle/Bracket

Controller

1. On/Off Button
   • Turns the air purifier on/off.
2. Fan Speed Button
   • Cycles through fan speed: I (low), II (medium), and III (high)
3. Timer Button
   • Cycles through timer options.
4. Light Button
   • When the purifier is on, the night light will automatically light up.
   • Click the light bulb button to turn off, then click to turn on the night light.

Featured Function

1. Two-in-one air purifier & fan
   Specially customized fan requirement design, suitable for various places such as working desks/writing desks/bedside cabinets. You can buckle the bracket and place the air purifier at an angle, so that fresh air is continuously delivered to your side.

2. Portable
   Specially customized portable demand plan, suitable for sensitive people or people who need outside air sources, etc. You can store the charging cable and use the handle to bring clean air by your side anytime and anywhere. You can take it to travel, or to a business trip in hotel, let it protect your breathing health.


Filter core decomposition graph

1. 3-ln-1 True HEPA Filter
   Improve your indoor air quality with our new Air Cleaning System. Multiple levels of cleaning include a combination of Pre-filter that traps big particles, Activated Carbon Filter that reduces odour, and True HEPA filter that captures micro particles.

   1. The Pre-filter filters out abrasive substances as a defence for the True HEPA filter.
   2. The Activated Carbon Filter removes large dust particles, pet dander, and household odor.
   3. True HEPA Filter eliminates 99.97% of polutants as small as 0.3 pm or larger pollen and dust mites and filters air pollution of PM 2.5.
2. Before Operating the Air Purifier
   1. Carefully remove your air purifier from the packaging box and plastic bag.
   2. PIace it on a firm, level and flat area.
      • For proper air flow, locate the unit at least 1 foot / 30 cm away from any wall or furniture.
      • Make sure none of the grilles are blocked.

How to operate the machine

1. First connect the DC plug (13) of the switched power supply to the dc socket (8) of the machine, Then connect the AC plug (15) to a power outlet of 100 to 240V/50-60Hz.
2. Press the power button (1) lightly, the machine starts to work, the running indicator light (2) and decorative light (3) are on at the same time, and the fan runs at low speed by default. The timing is always running, and the air flow will be discharged from the air outlet (7). (Figure 1)

3. After power on, the fan defaults to low speed, press the fan button (5) once for medium speed, press again for high speed, press again for low speed, and the corresponding indicator light is on.
4. After booting, the time runs by default. Press the timer button (4) for 2 hours customization, 2 times for 4 hours, 3 times for 8 hours, 4 times for 10 hours, 5 times 12 hours customization, and the corresponding indicator lights up, press again it returns to running all the time, and the indicator light goes out.
5. After power on, the decorative light is on by default. If you need to turn it off, press the decorative light button (6), press it off (Figure 2), and press it again to turn it on. When shutting down, please lightly press the power button (1). The machine will stop working. Please unplug the AC power plug (13,15) when it is not used for a long time.

6. This machine is equipped with a filter screen accumulative running timing function. When the accumulative work of the whole machine reaches the theoretical value of 3 months, Wind speed in the power on state I II III indicator light is always blue, prompting the user to replace the filter element. At time, press and hold the power button for 5 seconds back to normal
7. Please turn off the machine before replacing the filter, unscrew the knob from the bottom of the machine, open the bottom cover (12),take out the filter (11), put the new filter back to the correct position in the machine, and screw on the bottom cover. (Figure 3)

8. If you need to continue purification, just restart the machine.

Clean and maintain the machine and replace the filter

Product daily cleaning and maintenance

1. Make sure that the power cord is disconnected while the appliance is cleaned and maintained.
2. Wipe the fuselage with a soft cloth that is moderately moist and clean, and then dry with a dry cloth, please do not wet the machine directly with water, keep the machine dry during cleaning to avoid causing electricity source failure.
3. The filter must be replaced at least every 4 to 6 months.
4. Use a brush to clean the air inand of the machine.
5. If not in use for a long time, store the machine in a dry and ventilated place.

Warnings

This product should be used only in accordance with the specifications outlined in this User Guide. Usage other than what has been specified here may result in serious injury. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
•
  To avod fire or shock hazard, plug the appliance directly into a right AC electrical outlet.
•
  Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves, or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Always unplug the air purifier before moving it, opening the grille, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug not the cord
• NEVER drop or insert any objects into any openings.
• DO NOT run the cord under carpeting.
• DO NOT cover the cord with throw rugs or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from traffic area and where it will not be tripped over.
•
  DO NOT operate any appliance with a damaged cord or plug, if the motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Send to Custo intended household purposes as described in this manual. Any other use is not recommended that may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of the unit.
• NEVER block the air openings, grille / outlets or place the unit on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air inlet or outlet.
• DO NOT attempt to repair or adjust any electrical or mechanica functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
•
  To reduce the risk of fire or electric shock, do not use this purifier with any solid state speed control device.

Register your product at https://purivortex.com/warranty to extend your 1-year warranty by an additional year.

We will reply your message within 24hours.
support@purivortex.com
@Purivortex
(626)489-7424
