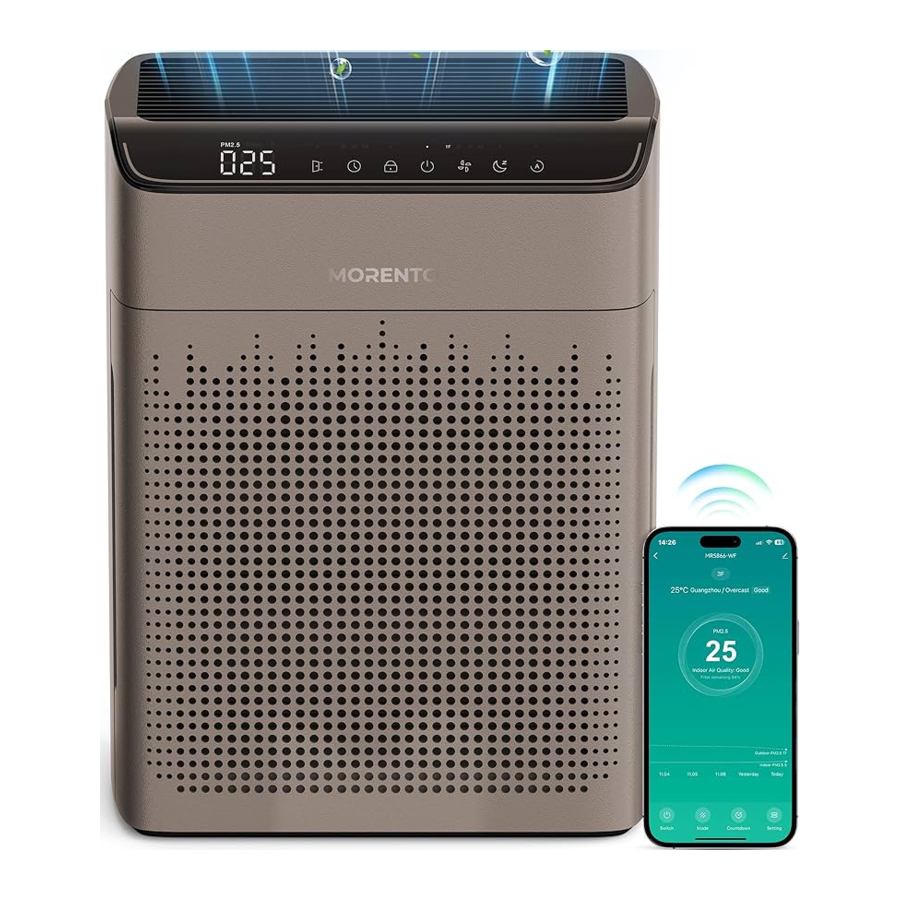

MORENTO MR5866 Manual

PACKAGE CONTENTS

1 x Smart Air Purifier
2 x True HEPA / Activated Carbon Filters
1 x User Manua
1 x Quick Start Guide
1 x Power Adapter

SPECIFICATIONS

GETTING TO KNOW YOUR AIR PURIFIER

1. WiFi Indicator
2. Filter Reset Indicator
3. Timer Indicators
4. Child Lock Indicator
5. On / Off Indicator
6. Fan Speed indicators
7. Sleep Mode Indicator
8. Auto Mode Indicator
9. Air Quality Indicator (Green, Yellow\/, Red Light)

16. Sleep Mode Button
17. Auto Mode Button
18. Front Covers
19. True HEPA / Activated Carbon Filter
20. Handle
21. PM 2.5 sensor
22. Power Adapter Input
23. Power Adapter

CONTROLS & DISPLAY

Auto Mode Button

• Automatically adjust the wind speed according to the detected air quality.

Sleep Mode Button

• Under sleep mode, the air purifier will work at the quietest, wind speed and minimized light. When the screen is activated again, it will exit sleep mode.

Fan Speed Button & Indicators

• Tap to change wind speed to 1F, 2F, 3F.
• Tapping while the air purifier is in Auto Mode or Sleep Mode (when the display is lit up) will exit that mode.

Timer Button

• Cycles through timer options: 2 hours, 5 hours, and 8 hours.

On / Off Button

• Turns the air purifier on / off.
• Press the power button for about 5 seconds until you hear a "beep" sound, the reset of the Wi—Fi connection will be completed.

Child Lock Button

• Prevents current settings from being changed. Press and hold for 3 seconds to lock and unlock the display.
• The Display Lock Indicator will light up when the display is locked and blink when any other button is tapped to indicate the display is locked.

Filter Reset Button

• In the power—on state, the filter timing starts to consume, and the initial time is 2000 hours. Touch to display the filter life percentage on the screen in real time, and the initial value is F99. When F99 is used, the screen displays the filter life from constant on to flashing and the filter key light a so flashes.
• When the percentage reaches F00, flashes, after replacing the filter, press and hold this key for 5 seconds until you hear three beeps, the screen displays F99, the filter life changes from flashing to steady light, stops flashing, Reset completed (Users can rep ace the filter in advance according to the usage environment and reset the filter in this way).

WiFi Indicator

• Not connected: The "pattern" will breathe slowly.
• Connecting to WiFi: The "pattern" will blink rapidly.
• Successfully connected and online: The "pattern" will remain lit.
• Connected but offline: The "pattern" will be off.

Note:

• Turn on the device, press and hold the power button for about 5 seconds, until the device makes a "beep beep beep" sound. W Fl pairing turned on.
• Turn off Wi-Fi: After Reset Wi-Fi, Wait 10 seconds in pairing mode, Disconnect product power, the Wi-Fi will turn Off. After the machine is reconnected to the if need re-enter pairing mode, press the Power button for 5 seconds. The Wi—Fi pairing will turn on again.

Air Quality Indicator Chart

Air Quality Indicator Color	Air quality	Auto mode fan speed	PM 2.5 range
Green	Good	1F	PM 2.5 75
Orange	Moderate	2F	75 < PM 2.5 150
Red	Bad	3F	PM 2.5 > 150

GETTING STARTED

Note: The power adapter is at the bottom of the air purifier, Make sure to remove the protective bag before first use. The Air purifier adopts double-sided air intakes. Appropriate clearance should be maintained when placed against a wall.

1. Place the air purifier on a flat, stable surface such as the floor.
2. Open the purifier covers from the notches on both sides and remove the filters. [Figure 1.1]

3. Remove the protective plastic bag, turn the side printed with "front" outward and place the filter into the air purifier. [Figure 1.2]


4. Align the tabs on the cover with the slots on the bottom of the air purifier and reset the covers. [Figure 1.3]

5. Insert the power adapter plug into air purifier, plug in it and turn on air purifier. [Figure 1.4]
   Note: The power inlet is located at the lower right of the product.

6. When using the air purifier, allow at least 15 inches / 38 cm of clearance from the front of the air purifier. Keep away from anything that would block air flow, such as curtains. [Figure 1.5]


HOW TO DOWNLOAD THE APP AND CONNECT THE AIR PURIFIER

2. Open the "Havaworks" App. og in or sign up.
   Note: You must create your own "Havaworks" account to use third party services and products.
   These will not work with a guest account. With a "Havaworks" account, you can also al ow your family and friends to control your smart air purifier.
3. Follow the in-app instructions to set up your smart air purifier.
   Note: Your phone must have Location turned on while your phone is connecting to your smart air purifier. This is required to establish the Bluetooth@ connection. You can turn Location off after your smart air purifier is finished connecting to the "Havaworks" App.

Wifi Connection

• To disconnect Wi-Fi, press and hold the power button for about 5seconds, until the device makes a "beep beep beep" sound. This will restore the smart air purifier's default settings and disconnect it from the "Havaworks" App.
• To reconnect, please fol ow the instructions in the "Havaworks" App for adding a device.

• Or scan the QR code to add a device


Havaworks App Troubleshooting

My smart air purifier isn't connecting to the "Havaworks" app.

• During the setup process, you must be on a secure 2.4 GHz Wi-Fi network. Confirm that the network is working correctly.
• Make sure the Wi—Fi password you entered is correct.
• There should be no spaces at the beginning or end of the password.
• Test the password by connecting a different electronic device to the router. If you're manually typing in the SSID and password, double check that both are entered correctly.
• Try moving your air purifier closer to the router. Your phone should be as close as possible to your air purifier.
• Your router may need to be at a higher location, away from obstructions.
• Make sure your air purifier and router are away from appliances (such as microwave ovens, refrigerators, electronic devices, etc.) to avoid signal interference.
• If you're using a VPN, make sure it's turned off while setting up your air purifier.
• Disable portal authentication for your Wi-Fi network. If portal authentication is enabled, the air purifier will not be able to access your Wi—Fi network, and setup will fail.

Note. Portal authentication means that you need to sign in to your network through a web page before you can use the Internet.

My air purifier is offline

• Make sure the air purifier is plugged in and has power, then refresh the menu by swiping down on the screen.
• Make sure your router is connected to the internet and your phone's network connection is working.
• Delete the offline air purifier from the "Havaworks" app. Swipe eft (iOS) or tap and hold (Android), then tap Delete. Reconfigure the air purifier with the "Havaworks" app.

Note: Power outages, internet outages, or changing Wi-Fi routers may cause the air purifier to go offline. If your problem is not listed, please contact Customer Support.

ABOUT THE FILTER

Note: Unlike the standard filter element, the outer layer of the enhanced filter element is covered with a layer of electrostatic cotton.

1. Electrostatic Cotton Filter
   • Captures large particles such as dust, lint, fibers, hair, and pet fur.
   • Maximizes the filter's life by protecting it.
   • After the electrostatic cotton is covered with dust, it can be removed or washed to increase filtering efficiency.

2. True HEPA Filter
   • Traps at least 99.97% of airborne particles 0.3 microns in size.
   • Filters small particles such as fine dust, smoke particles, and allergens such as pollen and pet dander.

3. High-Efficiency Activated Carbon Filter
   • Physically adsorbs smoke, odors, and fumes.
   • Filters compounds such as formaldehyde, benzene, ammonia, hydrogen su fide, and volatile organic compounds (VOCs).

Clean Air Delivery Rate

• This air purifier has a Clean Air Delivery Rate of 177 cubic feet per minute (CFM), or 300 m3/ h
• Clean Air Delivery Rate (CADR) measures the efficiency of an air purifier by indicating the volume of clean air that an air purifier produces per minute. This is based on removal of dust, pol en, and smoke, which are the 3 most common indoor air pollutants. The higher the CADR, the more particles the air purifier will remove and the larger the area it can clean. The rating is measured at the air purifier's highest speed.

Air Change Per Hour

• The air change rate is how many times all of the air in a room can be purified (or "changed") by the air purifier in 1 hour. Air changes per hour are calculated on the recommended room size assuming 8 ft / 2.4 m ceilings. For smaller rooms, the air change per hour will increase.

This air purifier can change air 5 times per hour at the max speed in a sing e, closed room up to 219 ft2 / 20 m2
This is measured at ACH 5. The air purifier is effective for larger rooms, but air purification will take longer, with fewer air changes per hour. For example, the air purifier's effective range is 538 ft2 / 50 m2 based on 2 ACH, or purifying the air in the room 2 times per hour.

Humidity

• Moisture may damage the filter. This air purifier should be used in an area with a humidity level 85% RH or below. If you use the air purifier in excessively humid areas, the surface of the filter may become moldy.

Note: Water or moisture will allow mold to grow. To solve a mold problem, get rid of the source of the moisture and clean up the mold.

Essential Oils
Do not add essential oils to the air purifier or filter. The filter will become damaged by the oil and will eventualy release an unpleasant smell. Do not use diffuses near the air purifier.

PRECAUTIONS

1. Non—professional maintenance personnel are prohibited from dismantling and refitting the air purifier.
2. Prohibit the use of power beyond the specification.
3. Do not get the air purifier wet.
4. Do not wipe the air purifier with alcohol or organic solvent.
5. Avoid suing the unit around heavy, oily smoke.
6. Do not spray insecticides in or on the unit.
7. Do not run the unit if the power cord is damaged.
8. It is forbidden to use different types of power adapters
9. Tip: Don't block the PM 2.5 sensor

1. Please pay attention to ventilation when using the air purifier and gas appliances at caveat the same time.

1. Close doors and windows to effectively and quickly purify indoor air.
2. Inspect the power plug regularly for any damage.

NOTE
If any of the following happens, unplug the power immediately.

• No button are working.
• Short circuit.
• The power cord or plug becomes abnormally hot.
• There is a burning smell or unusual sound and vibration.
• Other abnormal phenomena or malfunctions.

Problem checking
No Power

• Check power cord plug is completely plugged into the unit.
• Ensure the wall outlet has power.

No wind coming from the unit

• Ensure the unit has power and try increasing the fan speed.
• Make sure nothing is blocking the air intake.
• Ensure nothing has fallen into the unit from the top panel to prevent the fan from being stuck.

Indoor odor is difficult to be removed

• The effectiveness Of the filter may have been run out. Please replace the filter.
  If the air purifier still doesn't work, please unplug the unit and contact our support team.

TROUBLESHOOTING

When abnormal condition happens, please check the following before sending the air purifier to repair.

Problem	Possible Solution
Air purifier will not turn on or respond to button controls	Plug in the air purifier. Check to see if the power cord is damaged. If it is, stop using the air purifier and contact Customer Support. Plug the air purifier into a different outlet. The air purifier may be malfunctioning. Contact Customer Support.
Airflow is significantly reduced or no wind	Make sure the filter is removed from its packaging and properly in place. Tap to increase the fan speed. Make sure no objects are blocking the front, sides, or top of the air purifier (the inlet or outlet) Leave 15 inches / 38 cm of clearance from the front of the air purifier. The filter may be clogged by large particles, such as hair or lint, blocking airflow. Pease replace the fl ter
Air purifier makes an unusual noise while the fan is on	Make sure the filter is properly in place with plastic packaging removed Make sure the air purifier is operating on a hard, flat, level surface. Replace the filter. The air purifier may be damaged, or a foreign object may be inside. Stop using the air purifier and contact Customer Support Do not try to repair the air purifier.
Poor air purification quality or odor is difficult to remove	Tap to increase the fan speed. Make sure no objects are blocking the front, sides, or top of the air purifier (the inlet or outlet). Make sure the filter is removed from its packaging and properly in place. Close doors and windows while using the air purifier. If the room is larger than 219 ft2 / 20 rn2, air purification will take longer. Check that whether the filter adsorbed too many pollutants to capture, if yes, replace the filter.
Strange smell coming from the air purifier	Clean the filter, or replace it. Make sure not to use your air purifier in an area with high humidity or while diffusing essential oils. Contact Customer Support.
Air Quality Indicator light a ways stays green, even when the air quality is poor	Make sure no objects are blocking the PM 2 5 sensor of the air purifier. Leave 15 inches / 38 cm of clearance from the front of the air purifier. Keep away from anything that would block air flow, such as curtains. The PM 2.5 sensor detects airborne particles, but it cannot detect gas. Make sure there aren't gasses polluting the air.
Air Quality indicator a ways stays red	Clean the PM 2.5 sensor outlet. If you are using an ultrasonic humidifier near the air purifier, the mist may affect the accuracy of the PM 2.5 sensor. The PM 2.5 sensor will detect the large mist particles, and the Air Quality indicator may turn red. Avoid using an ultrasonic humidifier near the air purifier, or avoid using Auto Mode.
Numerically display PM 2.5 index a ways stays 000	Make sure no objects are blocking the PM 2.5 sensor of the air purifier. Contact Customer Support.
is still flashing after replacing the filter	Reset and check filter indicator. Press and hold for 5 seconds until you hear three beeps, the screen displays F99, will stops flashing and reset completed.
Air purifier randomly turns off	Air purifier is malfunctioning. Stop using the air purifier and contact Customer Support.

After checking the above items, if the air purifier still doesn't work, please unplug the power and contact the agent for repair.
Note:
If not using the air purifier for an extended period of time, wrap both the air purifier and the filter in plastic packaging and store in a dry place to avoid moisture damage.

CARE & MAINTENANCE

The unit needs regu ar maintenance to ensure that the air purifier is at optimal performance.
Regularly wipe the air inlet and outlet with a soft, damp cloth. Allow unit to dry completely before turning back on.

Cleaning the Air Purifier

• Unplug before cleaning.
• Wipe the outside of the air purifier with a soft, dry cloth. If necessary, wipe the housing with a damp cloth, then immediately dry.
• Vacuum the inside of the air purifier.
• Do not clean with abrasive chemicals or flammable cleaning agents.

Check Filter Indicator
will light up as a reminder to check the filter. Depending on how often you use the air purifier, the indicator should turn on after about 3—6 months. You may not need to change your filter yet, but you should check it when lights up.

Reset Filter Indicator
When the filter needs to be replaced, the filter indicator light will flash to remind you.

1. Turn off the device and unplug the power cord from the left side of the device.
2. Open the purifier cover from the notches on both sides and remove the filter.
3. Install the new filter (remove the protective plastic bag) and reset the cover.
4. Press and hold the filter button for 5 seconds until you hear 3 beeps to complete the reset of the filter indicator.

Instructions of cleaning filter:

1. Turn off the device and unplug the power cord from the left side of the device.
2. Open the purifier cover from the notches on both sides and remove thefilter.
3. nstall the new filter (remove the protective plastic bag) and reset the cover.
4. Press and hold the filter button for 5 seconds until you hear 3 beeps to comp ete the reset of the filter indicator
5. Recommend you to replace the filter every 3 6 months.

When Should I Replace the Filter?
The True HEPA / Activated Carbon Filter should be replaced every 3-6 months. You may need to replace your filter earlier or later depending on how often you use your air purifier. Using your air purifier in an environment with relatively high pol ution may mean you will need to replace the filter more often, even if the Check Filter Indicator is off.

You may need to replace your filter if you notice:

• The air purifier does not effectively fllter certain odors anymore
• Increased noise when the air purifier is on
• Decreased airflow from the top of the air purifier
• Unusual odors
• The HEPA filter is visibly dusty or discolored after removing the pre-filter

Note:

• To maintain the performance of your air purifier, only use official MORENTO fllters. For more information, contact Customer Support
• Remember to reset the Check Filter Indicator after replacing the filter

Replace the Filter

1. Unplug the air purifier, then pul the front and rear covers to remove it (see Getting Started).
2. Remove the old filter from the air purifier.
3. Clean out any remaining dust or hair inside the air purifier using a vacuum hose.
4. Remove the plastic packaging from the new filter and place the filters inside the air purifier (see Getting Started, )

5. Reset the front and rear covers.

6. Plug in and turn on the air purifier. Reset the Check Filter Indicator

Note: Do not use water or liquids to clean the air purifier

Cleaning the PM 2.5 Sensor
It is recommended to clean the PM 2.5 sensor lens every 2—3 months to help maintain the efficiency of the sensor. If the Air Quality ndicator is red (indicating "Bad" air quality) more than usual, you may need to clean your PM 2.5 sensor.
Note
How often you clean the PM 2.5 sensor will depend on the air quality of your environment. your air is often polluted with dust, dander, smoke, and other particles, you may need to clean your PM 2.5 sensor more often.

1. Unplug the air purifier.
2. Use a cotton swab dipped in water to clean the PM 2.5 sensor lens.


3. Wipe the lens dry with a dry cotton swab.

Storage
If not using the air purifier for an extended period of time, wrap both the air purifier and the filter in plastic packaging and store in a dry place to avoid moisture damage.

CUSTOMER SUPPORT

If you have any questions or concerns about your new product p ease contact our helpful Customer Support Team.
Please have your order invoice and order ID ready before contacting Customer Support.
We are proud of our exquisite customer support service, treating everyone like they're part of our family.
For more information, please visit our website Contact us anytime!

SAFETY INFORMATION
