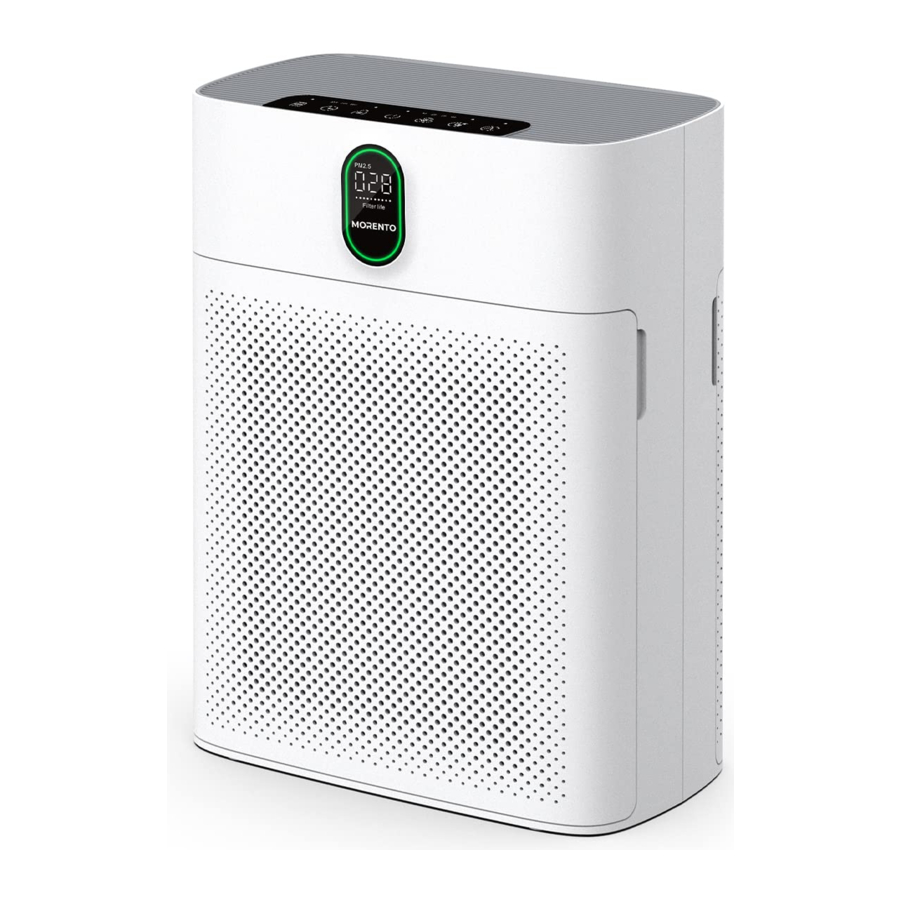

MORENTO HY4866 Manual

Principles of Air Purification

HEPA filter can effectively filter most airborne particulate pollutants larger than 0.3µm in diameter, such as PM2.5, dust particles, pet dander, pollen, cigarette smoke and odor, etc., so as to achieve the purpose of air purification.

Air Purifiers and Accessories

Packing list:

  • Air Purifier
  • HEPA Filter*2
  • Power Adapter
  • User Manual

warning Note: The hepa filter is protected with packing bag, unpack the filter before using.

Specifications

Power supply 24V/2A
Power 3.2-4M
Noise <55dB (Minimal noise: 24dB)
Main material ABS
Net weight 3.2 KG
7.1 1B
CADR 300 m3/h (MAX)

Various Wind Power

Sleep mode 3.2W
1 speed 7.5W
2 speed 14.5W
3 speed 27W
4 speed 48W

Use your air purifier

warning Note: The power adapter is at the bottom of the air purifier, Make sure to remove the protective bag before first use. The Air purifier adopts double -sided air intakes. Appropriate clearance should be maintained when placed against a wall.

warning Note: The power inlet is located at the lower left of the product.

  1. Connect the power adapter to the side port of the air purifier and connect the socket. When the air purifier beeps and the power button flashes, the air purifier is ready
    Use your air purifier
  2. Tap to turn on the purifier.

LCD Screen and Control Panel

LCD Screen and Control Panel

How to operate the unit

  1. Tap to change wind speed to 1F, 2F, 3F, 4F.
  2. Under sleep mode, the air purifier will work at the quietest wind speed and minimized light. When the screen is activated again, it will exit sleep mode.
  3. Automatically adjust the wind speed according to the detected air quality
  4. Can cycle between 2h, 5h, 8h.
  5. Press and hold for three seconds to lock/unlock the air purifier
  6. In the power-on state, the filter timing starts to consume, and the initial time is 2000 hours. Touch to display the filter life percentage on the screen in real time, and the initial value is F99. When F00 is used, the screen displays the filter life from constant on to flashing and the filter key light also flashes.
  7. When the percentage reaches F00, flashes, after replacing the filter, press and hold this key for 5 seconds until you hear three beeps, the screen displays F99, the filter life changes from flashing to steady light, stops flashing, Reset completed (Users can replace the filter in advance according to the usage environment and reset the filter in this way)

Problem Shooting

No Power

  • Check power cord plug is completely plugged into the unit.
  • Ensure the wall outlet has power.

No wind coming from the unit

  • Ensure the unit has power and try increasing the fan speed.
  • Make sure nothing is blocking the air intake.
  • Ensure nothing has fallen into the unit from the top panel to prevent the fan from being stuck

Indoor odor is difficult to be removed

  • The effectiveness of the filter may have been run out. Please replace the filter.

If the air purifier still doesn't work, please unplug the unit and contact our support team.

Maintenance

The unit needs regular maintenance to ensure that the air purifier is at optimal performance. Regularly wipe the air inlet and outlet with a soft, damp cloth. Allow unit to dry completely before turning back on.

Instructions of cleaning filter

  1. Turn off the unit and unplug the power cord.
  2. open the filter cover and remove the filter.
  3. use a soft brush or vacuum cleaner to clean the filter.
  4. information Tip: you can place the filter in direct sunlight for 1-3 hours.
    Do not allow the filter to get wet.

warningNote: Above actions only help to maintain filters' performance.

Reset Filter Indicator

When the filter needs to be replaced, the filter indicator light will flash to remind you.

  1. Turn off the device and unplug the power cord from the left side of the device.
  2. Open the purifier cover from the notches on both sides and remove the filter.
  3. Install the new filter (remove the protective plastic bag) and reset the cover.
  4. Press and hold the filter button for 5 seconds until you hear 3 beeps to complete the reset of the filter indicator


Maintenance - Reset Filter Indicator - Step 1

information Tip: PM2.5 sensor (don't block the sensor)
Maintenance - Reset Filter Indicator - Step 2

Contact us: support@morento.net

Precautions

  1. Non-professional maintenance personnel are prohibited from dismantling and refitting the air purifier.
  2. Prohibit the use of power beyond the specification.
  3. Do not get the air purifier wet.
  4. Do not wipe the air purifier with alcohol or organic solvent.
  5. Avoid suing the unit around heavy, oily smoke.
  6. Do not spray insecticides in or on the unit.
  7. Do not run the unit if the power cord is damaged.
  8. It is forbidden to use different types of power adapters
  9. Tip: Don't block the PM2.5 sensor

warning
caveat

  1. Please pay attention to ventilation when using the air purifier caveat and gas appliances at the same time.
  2. Close doors and windows to effectively and quickly purify indoor air.
  3. Inspect the power plug regularly for any damage.

warning NOTE
If any of the following happens, unplug the power immediately.

  • No button are working.
  • Short circuit.
  • The power cord or plug becomes abnormally hot.
  • There is a burning smell or unusual sound and vibration.
  • Other abnormal phenomena or malfunctions.
