Systembuild Evolution 9900706COM Assembly Instructions Manual

Open shelf tower
Hide thumbs

Advertisement

Quick Links

Download this manual
9900706COM
Open Shelf Tower
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Secure Your Furniture
Keep your home and family safe
with the wall anchor kit that is
included with the product.
Serious or fatal crushing injuries can
occur from tipping furniture.
WARNING: Manufacturer assumes no liability
for improper installation or excessive loads
placed on screws or bracket. This wall anchor
is not a substitute for proper adult supervision.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-866-452-4081 (toll free)
Visit: www.systembuild.com
Easy
Assembly Difficulty Meter
For the latest information on SystemBuild products
follow us at Ameriwood Home
B349900706COM0
Tough
You
Tube

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9900706COM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Systembuild Evolution 9900706COM

Summary of Contents for Systembuild Evolution 9900706COM

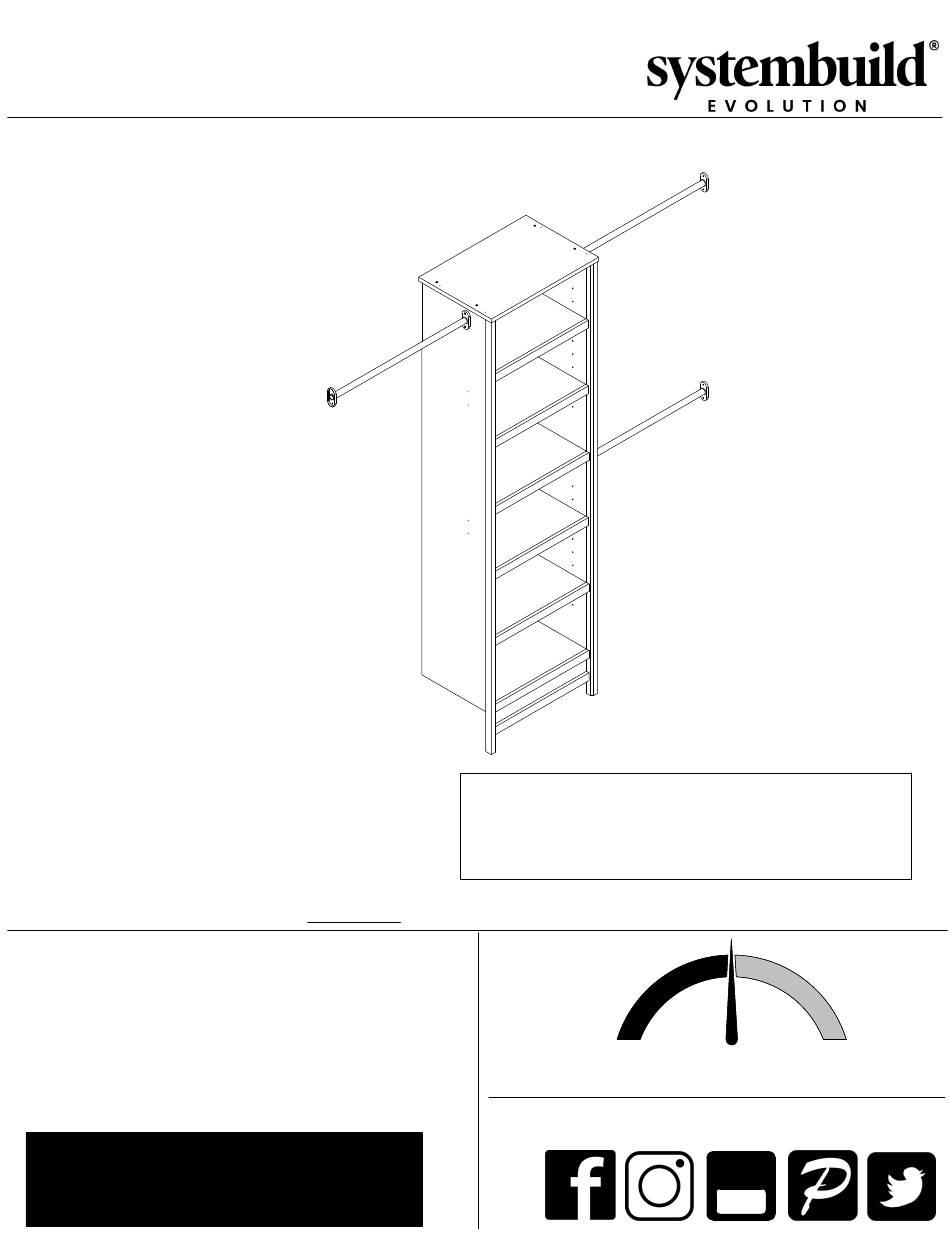

  • Page 1 9900706COM Open Shelf Tower B349900706COM0 Date of Purchase ___ / ___ / ___ Lot Number: Do Not Return This Product! Contact our customer service team for help first. Call: 1-866-452-4081 (toll free) Visit: www.systembuild.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
