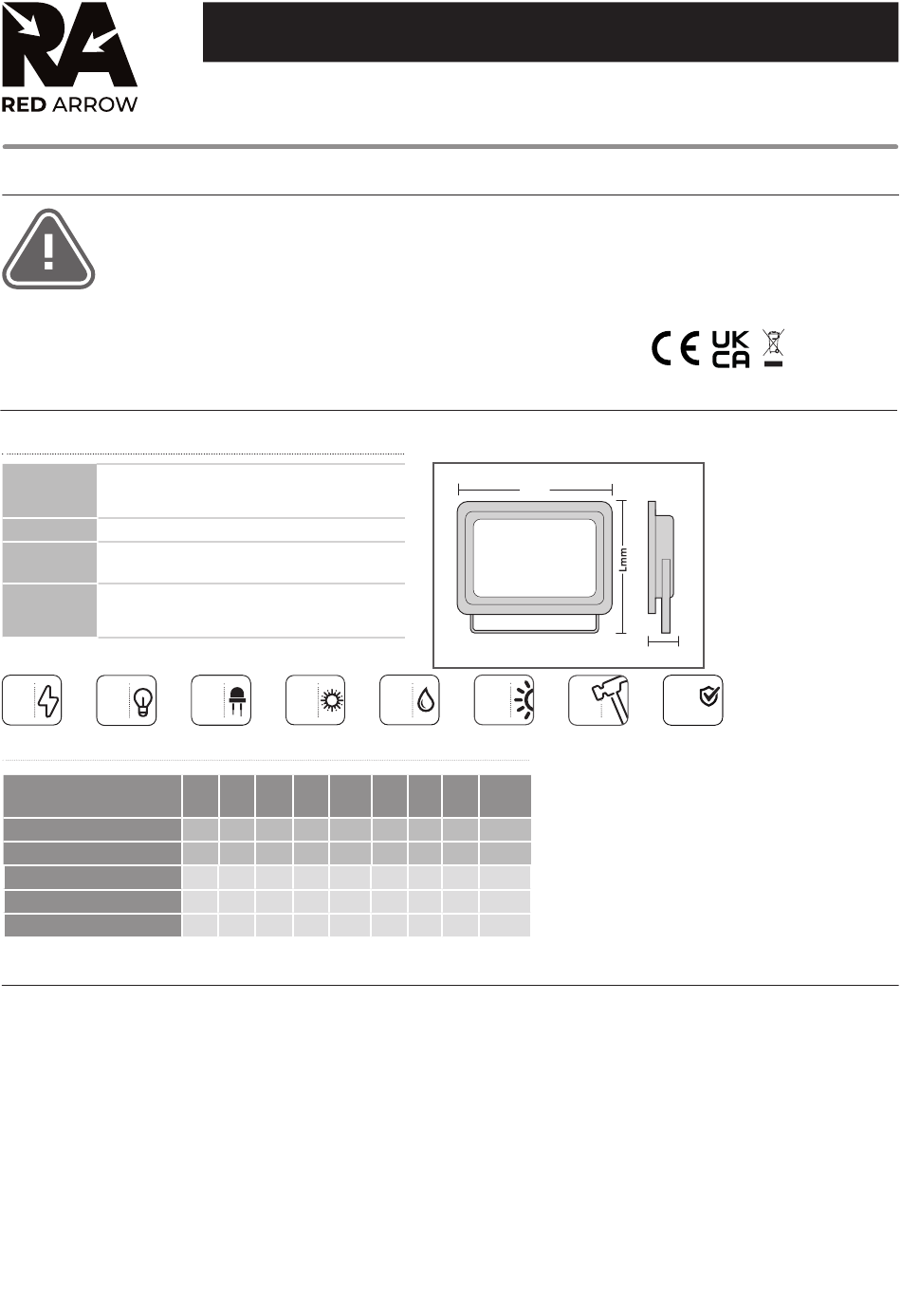

RA MET100PC-60 Installation Instructions

Safety Warning
•
The installation should be carried out
by a qualified electrician in compliance
with the current edition of the IEE
Wiring Regulations.
•
Prior to installation, carry out the
necessary risk assessment considering
the people who could be at risk,
the level of risk and the precautions
required to control the risk
•
Ensure that the circuit supply is
isolated either by the circuit supply
fuse being removed or the applicable
Specification
Box Contents -
1 x Meteor Floodlight with Photocell
MET100PC-60: L: 242 x W: 291 x D: 19mm
Dimensions: MET150PC-60: L: 305 x W: 353 x D: 24mm
MET200PC-60: L: 336 x W: 403 x D: 25mm
Material:
Body - Die-cast Aluminium, Lens - Polycarbonate
Working
Standard: -20°C - 45°C
Temperature:
Integral Photocell Sensor
Included: 1m Pre-wired Cable
Steel Mounting Bracket
100-
180-
200
240V
WATT
Maximum Fittings Per Circuit
Automatic Circuit Breaker Type:
Rated Current:
Cable (mm):
MET100PC-60
MET150PC-60
MET200PC-60
Installation Instructions
1.
Ensure there is adequate free air circulation of at least 100mm around the fitting. All fittings run hot. It is the installer's responsibility to consider any fire risk
and take appropriate precautions.
2. The nearest illuminated surface must be at least 0.5m from the front of the fitting.
3. Check for concealed cables before drilling any fixing holes.
4.
Fix the bracket to a wall or similar hard surface.
5.
Connect the cable to the power supply.
Photocell Notes
•
Do not install in areas of shadow or where the lens will become dirty.
•
Do not allow an artificial light source to activate the photocell, as the light may flash on and off.
Test
•
To test the fitting, check that the power is on and cover the photocell sensor with a dark coloured item. The fitting should light when the photocell is
covered, and switch off when the cover is removed.
INSTALLATION INSTRUCTIONS
Meteor Floodlights with Photocell
Product Codes: MET100PC-60, MET150PC-60, MET200PC-60
LED
6000K
B6 B10 B13 B16 B20
6A 10A 13A 16A 20A
1.5 1.5 1.5 1.5 2.5
15 25 32 40 50
10 17 22 26 33
7 11 14 18 22
circuit breaker being turned off before
installation or any maintenance.
•
Check the total load on the circuit
ensuring the luminaire does not exceed
the rating of the circuit cable, fuse or
circuit breaker.
•
Long-term use and voltage fluctuations
can reduce the life span of the fitting.
•
If the fitting incorporates control gear,
ensure careful sizing to avoid instances
of nuisance tripping of the protective
device used in the installation.
Wmm
9400-
IP65
19,600LM
C10 C13 C16 C20
10A 13A 16A 20A
1.5 1.5 1.5 2.5
25 32 40 50
17 22 26 33
11 14 18 22
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
Dmm
2
IK07
YRS
GUARANTEE
