RA FLMSMD50B-1 Installation Instructions

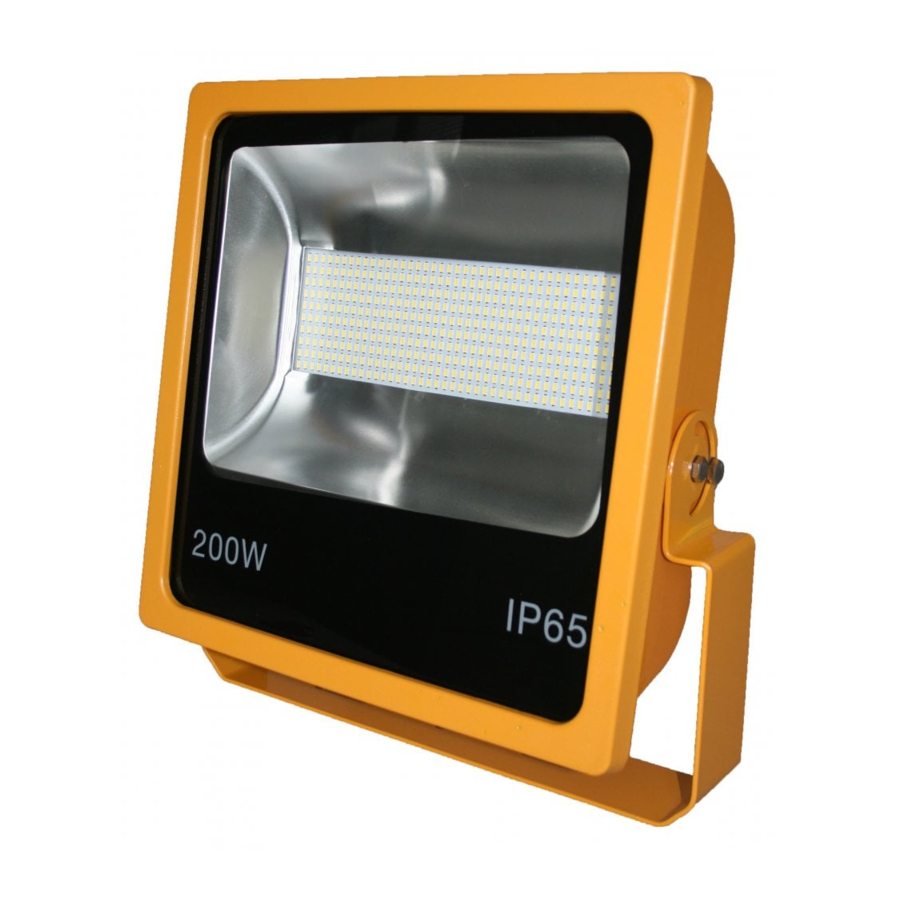

PRODUCT: LED SMD FLOODLIGHTS /
LED SMD FLOODLIGHTS WITH PHOTOCELL
PRODUCT CODES: FLMSMD50B-1, FLSMD70B-1, FLSMD100B-1,
FLSMD150B-1, FLSMD200B-1, FLSMD50BPC-1,
FLSMD100BPC-1, FLSMD150PC-1 & FLSMD200BPC-1
BOX CONTENTS -
1x LED SMD Floodlight
SPECIFICATION
50-
86-
200
264V
WATT
4000-
IP65
16000lm
50W: L: 315 x W: 310 x D: 65mm
70W & 100W: L: 325 x W: 320 x D: 90mm
Dimensions:
150W: L: 360 x W: 365 x D: 95mm
200W: L: 425 x W: 403 x D: 115mm
Material: Metal
Working
-20 C - 40 C
0 0
Temperature:
SAFETY WARNING
•
The installation should be carried out
by a qualified electrician in compliance
with the current edition of the IEE
Wiring Regulations.
•
Prior to installation, carry out the
necessary risk assessment considering
the people who could be at risk, the
level of risk and the precautions
required to control the risk
•
Ensure that the circuit supply is
PAGE 1 ( FRONT PAGE )
INSTALLATION INSTRUCTIONS
LED
6500K
3
IK07
YRS
GUARANTEE
isolated either by the circuit supply
fuse being removed or the applicable
circuit breaker being turned off before
installation or any maintenance.
•
Check the total load on the circuit
ensuring the luminaire does not exceed
the rating of the circuit cable, fuse or
circuit breaker.
•
Long-term use and voltage fluctuations
can reduce the life span of the fitting.
Red Arrow Electrical Distribution
Cortonwood Drive, Brampton,
Barnsley, S73 0UF
MAXIMUM FITTINGS PER CIRCUIT
Automatic Circuit
B10 B13
Breaker Type
Rated Current 6A 10A
Installation
1.5 1.5
FLSMD50B-1/PC-1
21 31
FLSMD70B-1
15 22
FLSMD100B-1/PC-1
10 15
FLSMD150B-1/PC-1
7 10
FLSMD200B-1/PC-1
5 8
T: 0800 195 0006
sales@redarrowelectrical.co.uk
B16 B20 C10 C13 C16
13A 16A 20A 10A 13A
1.5 1.5 2.5 1.5 1.5
42 48 27 42 55
30 34 19 30 39
20 24 13 21 27
14 16 9 14 18
10 12 7 10 13
•
If the fitting incorporates control gear,
ensure careful sizing to avoid instances
of nuisance tripping of the protective
device used in the installation.
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
redarrowelectrical.co.uk
C20
16A
1.5
70
50
34
23
17
