Equipment Description

Read this manual carefully and become familiar
with your product . Know its applications, its
limitations, and any hazards involved . Save these
original instructions for future reference .
To aid in outdoor cleaning projects, this engine-driven,
high-pressure cleaning machine uses a variety of spray tips
and detergent .
Know how to stop the product and reduce pressure quickly .
Keep operating area clear and do not allow children to
operate pressure washer .

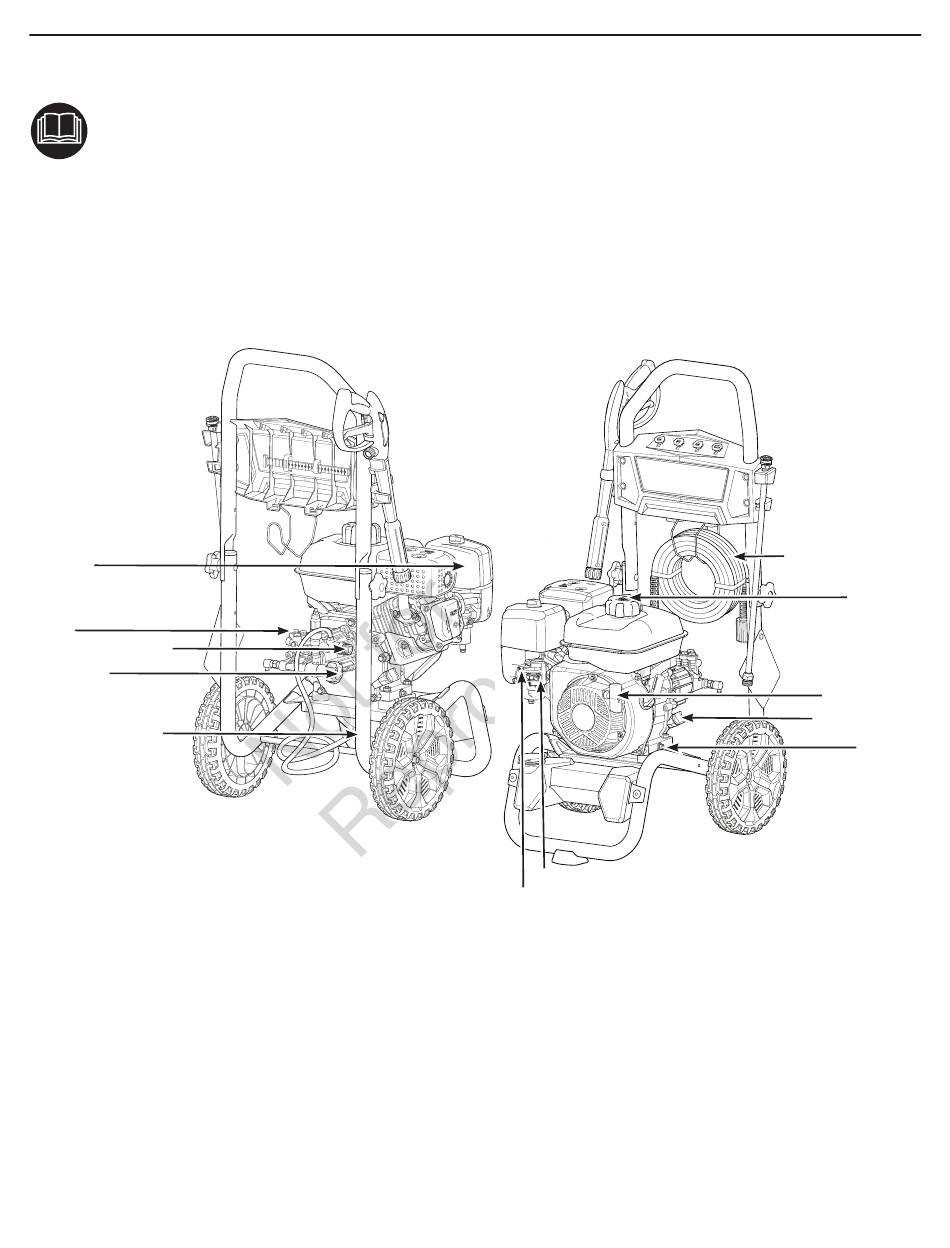

Air Filter
Pump
High Pressure Outlet
Water Inlet
Identification Label
Air Filter — Filters engine intake air .
Choke Lever — Prepares a cold engine for starting .
Fuel Cap — Add unleaded fuel here .
Fuel Shut-off Lever— Used to turn fuel supply on and off
to engine .
High Pressure Hose — Connect one end to water pump
and the other end to spray gun .
High Pressure Outlet — Connection for high pressure hose .
Stay alert—watch what you are doing . Do not operate
pressure washer when fatigued or under the influence of
alcohol or drugs .
Every effort has been made to ensure that information in
this manual is accurate and current . However, we reserve
the right to change, alter, or otherwise improve the product
and this document at any time without prior notice .
NOTICE If you have questions about intended use, contact
an authorized service dealer . This equipment is designed to
be used with Briggs & Stratton ® authorized parts only .
Fuel Shut-off Lever
Choke Lever
Identification Label — Provides model and serial number
of pressure washer .
Oil Drain Plug — Drain engine oil here .
Oil Fill /Dipstick — Check and fill oil here .
Pump — Stainless steel piston, axial cam pump that
develops high pressure .
Recoil Starter — Used to start the engine .
Water Inlet — Connection for garden hose .
Equipment Description
High Pressure Hose
Fuel Cap
Recoil Starter
Oil Fill/Dipstick
Oil Drain
