Download Print this page

Ultraflow MANIFOLD Installation Manual

Advertisement

Quick Links

ULTRAFLOW MANIFOLD GUIDE

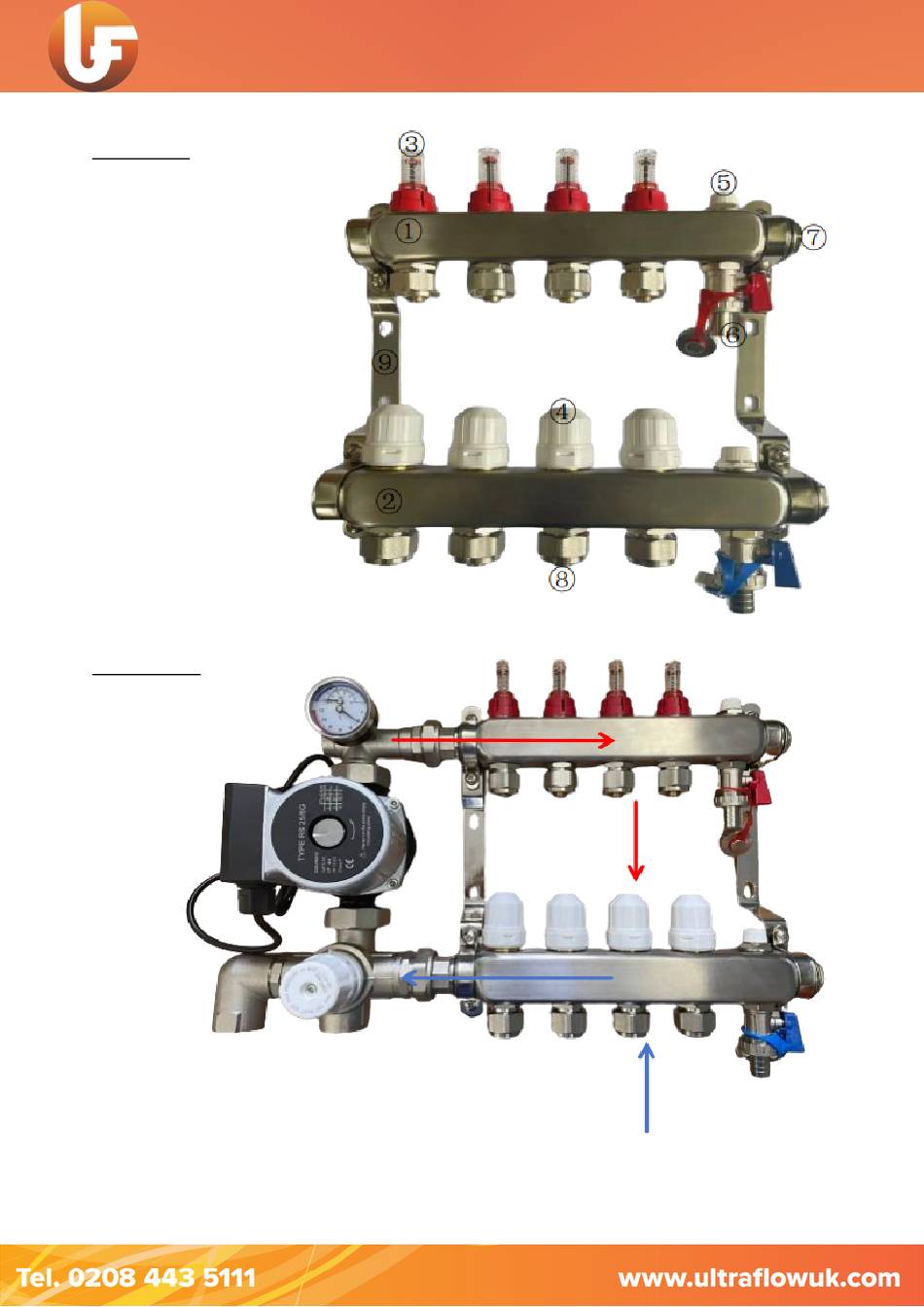

Contents:
1. Flow Bar
2. Return Bar
3. Flow Meter
4. Auto Valve Handwheel
5. Air Vent
6. Drain-off
7. End Stop
8. Euro cones
9. Bracket
Workflow:

Advertisement

loading
Need help?

Need help?

Do you have a question about the MANIFOLD and is the answer not in the manual?

Questions and answers

Summary of Contents for Ultraflow MANIFOLD

  • Page 1 ULTRAFLOW MANIFOLD GUIDE Contents: 1. Flow Bar 2. Return Bar 3. Flow Meter 4. Auto Valve Handwheel 5. Air Vent 6. Drain-off 7. End Stop 8. Euro cones 9. Bracket Workflow:...
  • Page 2 A. Fix the manifold on the wall B. Cut the pipe C. Choose the according size reamer D. Ream the pipe E. Choose the according size euro cone F-H. Insert the pipe into the manifold and tight it by spanner...
  • Page 3 ULTRAFLOW MANIFOLD GUIDE Flow Rate & Flow Temperature setting IMPORTANT: Adjust the flow rate manually using only the red adjustment key. Avoid forcing the flow gauge beyond its fully open position, as this could damage the flow meter. Do not use pliers or grips to adjust or overtighten the flow gauges.
  • Page 4 12mm pipe: 60m per circuit Understanding the Manifold & Pumpset Functionality Warm water is pumped from the heat source to the manifold and pumpset assembly. If the system needs additional heated water, the temperature control valve allows more warm water into the floor heating system through a one-way valve or releases cooled water back to the heat source for reheating.
  • Page 5 Fill Each Loop Individually Briefly open the drain tap, then re-close it. Start at the pump side of the manifold. Reassemble the Manifold Open the first flow gauge using the correct Remove the pressure gauge and re-fit the flow gauge adjusting tool.
  • Page 6 ULTRAFLOW MANIFOLD GUIDE Standard Actuators - Manual flow rate setting Flow Gauge Adjustment Instructions Important Precautions: Adjust by Hand Only: Do not use pliers or grips, as this may damage the flow gauges. Avoid Over-Tightening: Do not force adjustments beyond two full turns from shut, as this can cause damage to the flow meter.
  • Page 7 Additional Checks Confirm the red dot on the mixer valve is connected to the flow. Verify that your feed and return pipe sizes match the manifold requirements. Ensure all isolation valves are fully open. Pump Speed Selector...
  • Page 8 Mixed Floor Solutions When serving mixed floor solutions from the same manifold, always use a floor probe for the floor with the lower maximum supply temperature. This ensures that temperatures in these areas are controlled, preventing damage to both the floor system and the floor finish.
