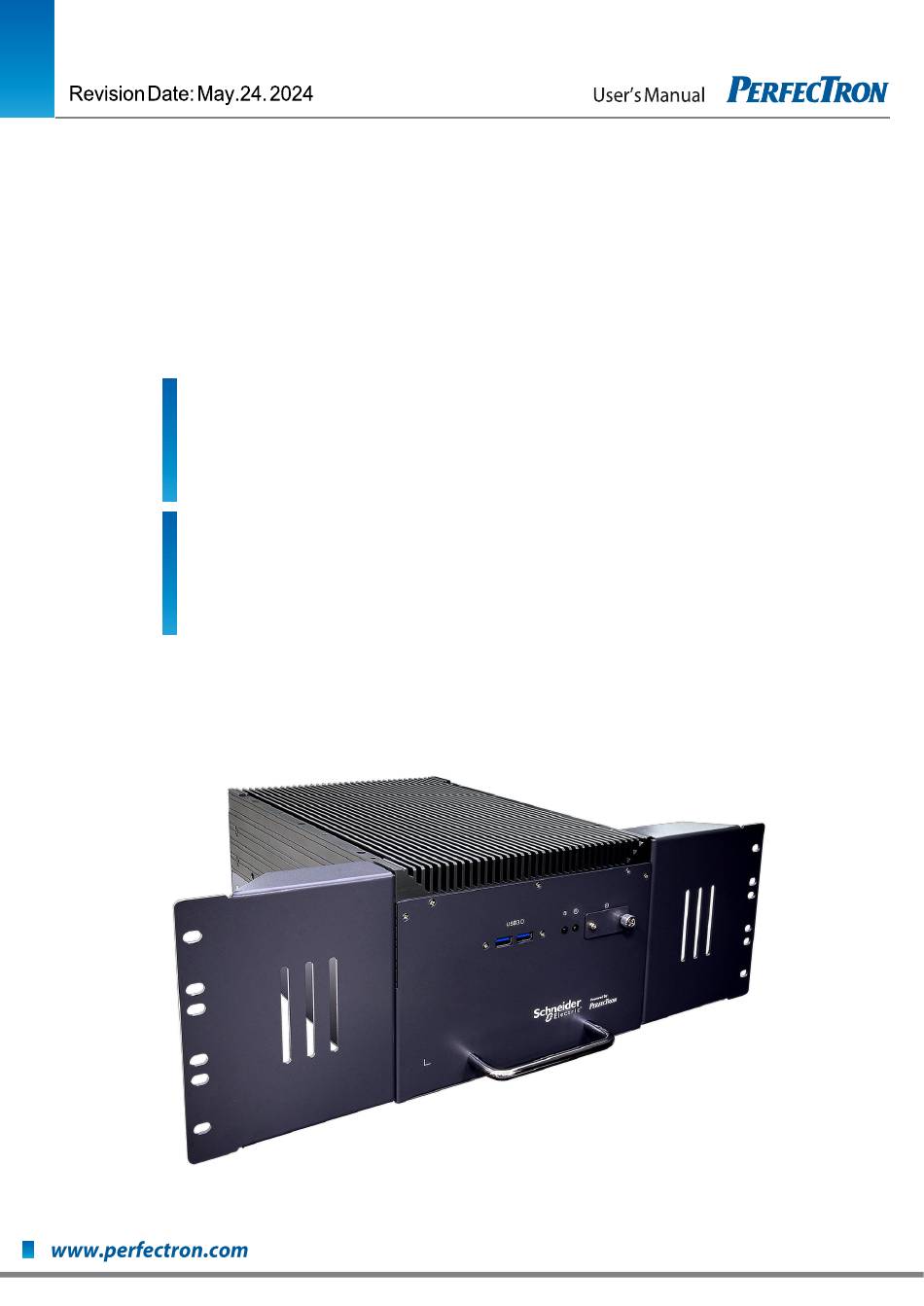

- Page 1 Version 1.1 SCH3X2-DC SCH3X2-RDC Smart Energy Intel 13/12th Processor Fanless Computer...
-
Page 2: Safety Information
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
V1.1 2024/05/24 Change 2.5G to 1G for IEC-61850- Packing list Item Description Q’ty SCH3X2-DC/RDC Smart Energy Intel 13/12th CPU Fanless Computer Driver CD SSD Tray Key (Option)Accessories Kit for SCH3X2/SCH4X2 Single Machine 1 set Rackmount Bracket (Option) Accessories Kit for SCH3X2/SCH4X2 Dual Machine... -
Page 4: Rohs Compliance
Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment. In order to meet the RoHS compliant directives, Perfectron has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard Perfectron... -
Page 5: Table Of Contents
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Table of Contents Safety Information ..........................1 Electrical safety ..........................1 Operation safety ..........................1 Statement ............................1 Revision History ..........................2 Packing list ............................2 Ordering information ........................... 2 RoHS Compliance ..........................3 Chapter 1 : Product Introduction ....................... 6 1.1 Specifications .......................... - Page 6 SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.9 S5 RTC Wake Settings ....................... 29 4.4.10 Network Stack Configuration ..................30 4.4.11 NVMe Configuration ....................31 4.5 Security Page ..........................32 4.5.1 HDD Security configuation ....................33 4.5.2 Secure Boot........................... 34 4.5.3 Key Management ........................35 4.5.4 BIOS Update .........................
-
Page 7: Chapter 1 : Product Introduction
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Chapter 1 : Product Introduction 1.1 Specifications System 13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S LGA1700 Socket Processor / Core i9/i7/i5/i3 Processor up to TDP 65W Memory Capacity DDR4 SO-DIMM 3200 MHz up to 64G Chipset... -
Page 8: Mechanical And Environmental
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Ubuntu 22.04 / Linux (support by request) Mechanical and Environmental Dimension 220 x 315 x167 mm ( W x D x H ) Operating Temp. -20°C to 60°C Storage Temp. -40°C to 85°C Relative Humidity... -
Page 9: Sch3X2-D7 Rear Panel I/O Placement
SCH3X2-DC / SCH3X2-RDC Manual V1.1 1.3 SCH3X2-D7 Rear Panel I/O Placement 1.4 SCH3X2-RD7 Front Panel I/O Placement www.perfectron.com... -
Page 10: Sch3X2-Rd7 Rear Panel I/O Placement
SCH3X2-DC / SCH3X2-RDC Manual V1.1 1.5 SCH3X2-RD7 Rear Panel I/O Placement 1.6 SCH3X2-D7 Mechanical Dimensions Single System : Dual System : www.perfectron.com... -
Page 11: Sch3X2-Rd7 Mechanical Dimensions
SCH3X2-DC / SCH3X2-RDC Manual V1.1 1.7 SCH3X2-RD7 Mechanical Dimensions Single System : Dual System : www.perfectron.com... -
Page 12: Chapter 2 : Rear I/O Port
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Chapter 2 : Rear I/O Port www.perfectron.com... -
Page 13: Lan Port Led Indications
SCH3X2-DC / SCH3X2-RDC Manual V1.1 2.1 LAN port LED Indications 1G LAN : Chapter 3: System Setup www.perfectron.com... -
Page 14: Easy Swap Ssd Installation
SCH3X2-DC / SCH3X2-RDC Manual V1.1 This chapter provides more detailed information and let you know how to install components into the SCH3X2-D7/RD7 series embedded system. Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage. - Page 15 SCH3X2-DC / SCH3X2-RDC Manual V1.1 • Remove the BKT-1 screw of the cover • Remove the BKT-2 screws of the cover www.perfectron.com...
- Page 16 SCH3X2-DC / SCH3X2-RDC Manual V1.1 • 2*PCIex8 Slot www.perfectron.com...
- Page 17 SCH3X2-DC / SCH3X2-RDC Manual V1.1 • Install PCIe Card • Lock BKT-2 screw www.perfectron.com...
- Page 18 SCH3X2-DC / SCH3X2-RDC Manual V1.1 • Lock BKT-1 screw • Lock back cover screws www.perfectron.com...
- Page 19 SCH3X2-DC / SCH3X2-RDC Manual V1.1 www.perfectron.com...
-
Page 20: Chapter 4: Ami Bios Utility
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ... -
Page 21: Main Page
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.3 Main Page BIOS Information It displays BIOS related information. ME FW Version ME Firmware Version. Processor Information Display the installed CPU brand. Memory Information This displays the installed memory size, installed memory size of Slot 1 &... -
Page 22: Advance Page
SCH3X2-DC / SCH3X2-RDC Manual V1.1 mm: 0-59 ss: 0-59 4.4 Advance Page Onboard Device Onboard Device Configuration CPU Configuration CPU Configuration Parameters VMD setup menu VMD Configuration setting Trusted Computing Trusted Computing Settings NCT6126D Super IO Configuration System Super IO Chip Parameters. -
Page 23: Onboard Device
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Network Stack Settings. NVMe Configuration NVMe Device Options Settings 4.4.1 Onboard Device Turbo Mode Enable/Disable processor Turbo Mode (requires Intel Speed Step or Intel Speed Shift to be available and enabled. Disabled / Enabled State After G3 Specify what state to go to when power is re-applied after a power failure (G3 state). -
Page 24: Chassis Intrusion
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Enabled HD Audio Control Detection of the HD-Audio device. Disabled: HDA will be unconditionally disabled. Enabled: HDA will be unconditionally enabled. Disabled / Enabled Chassis Intrusion Configure Chassis Intrusion. Disabled / Enabled / Reset 4.4.2 CPU Configuration... - Page 25 SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.3 VMD setup menu Enable VMD controller Enable/Disable to VMD controller. Disabled / Enabled 4.4.4 Trusted Computing www.perfectron.com...
-
Page 26: Serial Port 1 Configuration
SCH3X2-DC / SCH3X2-RDC Manual V1.1 Security Device Support Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Disabled / Enabled Pending operation Schedule an Operation for the ecurity Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device. -
Page 27: Serial Port 1 Configuration
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.6 Serial Port 1 Configuration Serial Port Enable or Disable Serial Port (COM). Disabled / Enabled Device Settings Device Super IO COM1 Address and IRQ.Read only Change Settings Select an optimal setting for Super IO Device. -
Page 28: Serial Port 2 Configuration
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.7 Serial Port 2 Configuration Serial Port Enable or Disable Serial Port (COM). Disabled / Enabled Device Settings Device Super IO COM2 Address and IRQ.Read only Change Settings Select an optimal setting for Super IO Device. -
Page 29: Hardware Monitor
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.8 Hardware Monitor Hardware Monitor Alert Enable [Disabled If Enabled, POST monitors voltage, temperature, and fan status. If these values are out of range, BIOS display warning message and turn on beep sound. Disabled / Enabled]... -
Page 30: S5 Rtc Wake Settings
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.9 S5 RTC Wake Settings Wake system from S5 Enable or disable System wake on alarm event. Select Fixed Time, system will wake on the hr:min:sec specified. Disabled / Fixed Time Wake up hour(Show when Wake system from S5 set to Fixed Time) Select 0-23. -
Page 31: Network Stack Configuration
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.10 Network Stack Configuration Network stack Enable/Disable UEFI Network Stack. Disabled / Enabled Ipv4 PXE Support (Available when Network stack Enabled) Enable/Disable Ipv4 PXE Boot Support. If disabled IPV4 PXE boot option will not be created. Disabled / Enabled Ipv6 PXE Support (Available when Network stack Enabled) Enable/Disable Ipv6 PXE Boot Support. -
Page 32: Nvme Configuration
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.4.11 NVMe Configuration (Device) Here shows the Device Name you installed. A sample screenshot shows below. www.perfectron.com... -
Page 33: Security Page
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.5 Security Page Administrator Password Set Administrator Password User Password Set User Password. HDD Security drive HDD Security Configuration for selected drive Press Enter when selected to go into the associated Sub-Menu. Secure Boot Set User Password. -
Page 34: Hdd Security Configuation
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.5.1 HDD Security configuation (Device) Read only www.perfectron.com... -
Page 35: Secure Boot
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.5.2 Secure Boot Secure Boot Secure Boot feature is Active if Secure Boot is Enabled. Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset. Disabled / Enabled Secure Boot Mode Secure Boot mode options: Standard or Custom. - Page 36 SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.5.3 Key Management Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Disabled / Enabled Restore Factory Keys Force System to User Mode. Install factory default Secure Boot key...
- Page 37 SCH3X2-DC / SCH3X2-RDC Manual V1.1 b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Authorized Signatures Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256)
-
Page 38: Bios Update
SCH3X2-DC / SCH3X2-RDC Manual V1.1 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Export Secure Boot variables Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device Enroll Efi Image Allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of a PE image into Authorized Signature Database (db) 4.5.4 BIOS Update... -
Page 39: Boot Page
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.6 Boot Page Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. On / Off Boot Option #1 ~ Boot Option #8 [Sets the system boot order. -
Page 40: List Boot Device Type) Drive Bbs Priorities
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.6.1 (List Boot Device Type) Drive BBS Priorities Boot Option #1 Sets the system boot order. Boot Device Name #1 of this type / Disabled www.perfectron.com... -
Page 41: Save & Exit Page
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.7 Save & Exit Page Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Restore Defaults Restore/Load Default values for all the setup options. -
Page 42: Event Logs
SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.8 Event Logs Change Smbios Event Log Settings Press <Enter> to change the Smbios Event Log configuration. View Smbios Event Log Press <Enter> to change the Smbios Event Log records. www.perfectron.com... - Page 43 SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.8.1 Change Smbios Event Log Setting Smbios Event Log Change this to enable or disable all feature of Smbios Event Logging during boot. Disabled / Enabled Erase Event Log Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset.
- Page 44 SCH3X2-DC / SCH3X2-RDC Manual V1.1 4.8.2 ViewSmbios Event Log DATE / TIME / ERROR CODE / SEVERITY / COUNT Description: Log Area Reset and Count is applicable only for Multi- Events. By Events. MM/DD/YY HH:MM:SS Smbios 0x16 N/A N/A www.perfectron.com...
