JAKCOM R5 Manual

Product introduction

JAKCOM R5 is a multifunctional smart ring that can replace 6 proximity cards simultaneously,
Interact with mobile phones to realize special functions of "Social Sharing", "Wireless USB Flash Disk", "Smart Home Trigger" and so on.
Built-in 2 health energy stones to improve human EMFs, and has scratch-resistant, waterproof, dustproof hardware characteristics.

Packing list

Specification Parameters

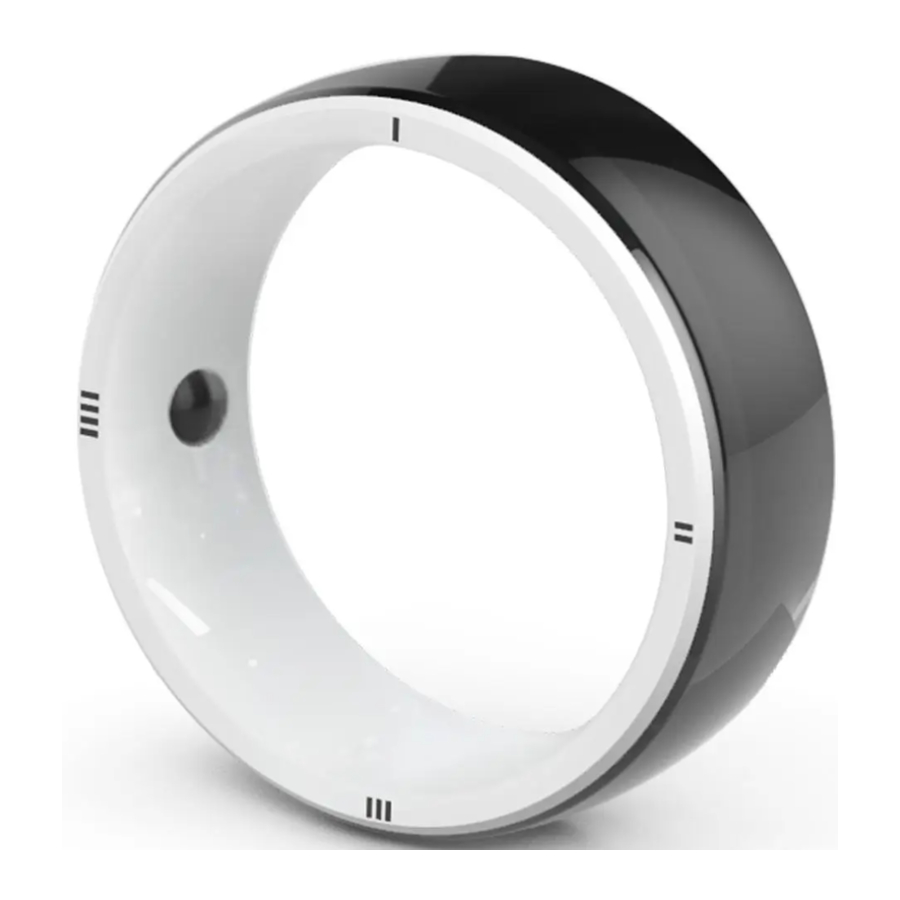

Structure and Sensing Range

1. The area engraved with "I" is No.1 IC card
2. The area engraved with "II" is No.1 NFC card
3. The area engraved with "III" is No.2 IC card
4. The area engraved with "IIII" is No.2 NFC card
5. The white side area is No.1 ID card
6. The black side area is No.2 ID card
7. Health energy stone 1

8. Health energy stone 2

Reading method of IC and ID module

The reading method of any IC or ID module is the same as an ordinary card,
Close to the card reader according to the sensing range shown in the figure above.

Sketch Map

Use No. 1 IC card

Use No. 2 IC card

Use No. 1 ID card

Use No. 2 ID card

Tip: The antenna of each module shall be close to the card reader, The closer the distance, the more sensitive the reader will be.

Setting method of IC and ID module

Any IC or ID module can be regarded as a new blank card, and the setting method is the same as an ordinary card,
At the original card issuer, add the IC or ID module as a new authorized card;
If you want to replicate the original card directly into the ring, please use the "JAKCOM CDS Replicator". Scan the following QR code to view "JAKCOM CDS Replicator".

The default passwords of ID modules are:
ID1 = 5469616E
ID2 = 51243648
If your replicator supports the setting of encryption ID card editing, please enter the above password to edit.

Settings of NFC module function

1. Open the Facebook APP;
2. Search "JAKCOM.com" and follow this Page;

3. Enter theJAKCOM.com Page;
4. Click the "Sign Up" button;

   lf you can't use Facebook You can also scan the QR code above to set it up.
   https://nfc.jakcom.com

5. Click the "Add Device" button;

6. Input the activation code of back of the box;

   The activation code of No.1 NFC module:
   The activation code of No.2 NFC module:
7. Click your device name in the list to enter function setting;


Different function services can be respectively set for these two NFC modules;
After a new function is set for corresponding module, the old functions will be automatically closed.

NFC function description

Social Sharing:
Quickly share your social account information to other phones;

Personal Functions:
Quickly start each personal functions by Ring's NFC module;

Wireless Disk:
Quickly share your files to other phones.

Startup of NFC module function

1. Before use, please enable the NFC function of the phone. If the phone is not equipped with the NFC function, it cannot be used;
   Sketch Map
   Android

   iPhone
   Some versions of the iPhone doesn't have this switch, Enabled by default.

2. Use the well set NFC module to touch the NFC sensing area of the phone, according to the sensing position shown above (B and D);
   Example

   1. The NFC sensing area is different for different brands of mobile phone. Please refer to the original instructions manual of the phone;
   2. Generally, the NFC function of the phone can only be enabled after the screen is unlocked;
   3. Some phone shells may affect NFC signal. If the phone cannot sense it, please remove the phone shell and try again.
      Sketch Map

3. After successful sensing, if it is prompted to select the app to open, please select the "web browser".


Third-party NFC application

Any NFC module of the ring can be regarded as a standard NFC tag, and used in any third-party NFC application, such as "Pon Pon Tile of MIJIA", " Apple Shortcuts ", "Huawei Share ", "Nintendo Amiibo", etc..

Reset NFC default data

If the third-party app rewrites the default data of the ring's NFC module, the default functions of the ring will be lost.
The default data can be reset in the following method;

1. Use an Android phone which has NFC function to download and install "NFC RESET" through the following link;
   http://www.jakcom.com/app/nfc/nfc_reset.apk
   For iPhone, please search "NFC-RESET" in the app store


2. Open it and enter your e-mail address;

3. Move the NFC module of the ring which is to be reset, close to the NFC sensing area of the phone, and the reset can be finished within a few seconds.


Contact details

1. Website: http://www.JAKCOM.com
2. Email: service@JAKCOM.com
3. Service Phone: +86 400 806 7311
   +86 0351-4383818
4. Online Service: https://www.facebook.com/JakcomLtd
