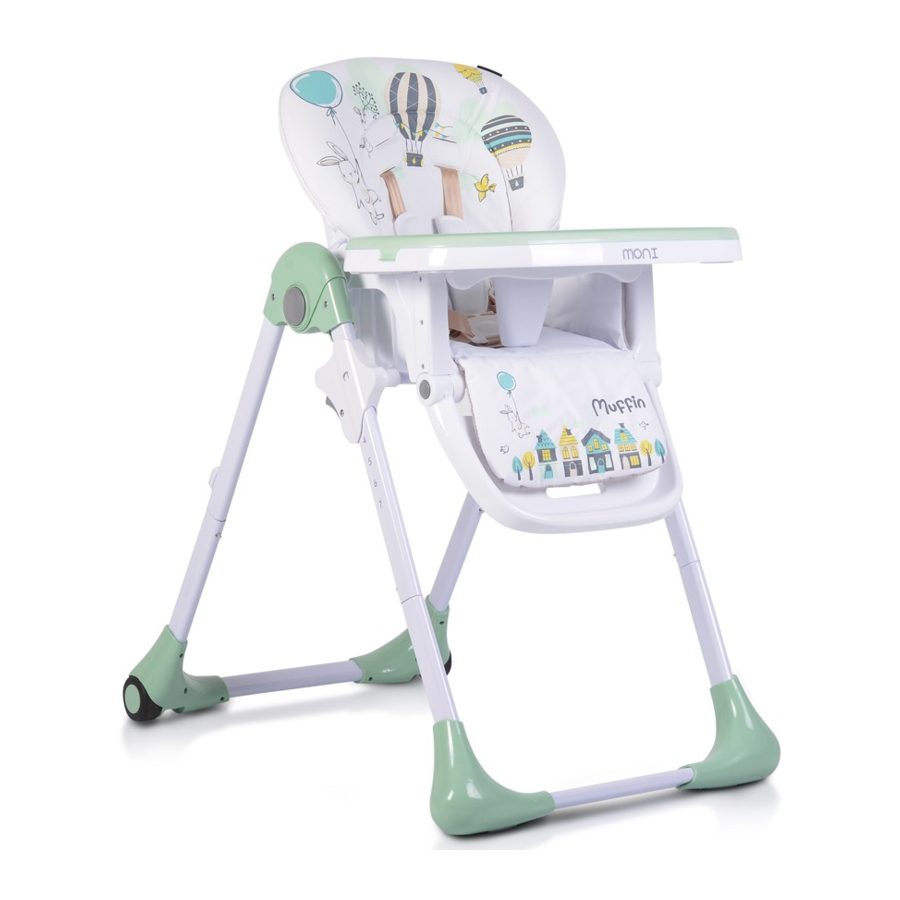

Moni MUFFIN, B-005, 108685, 108684 Manual

ASSEMBLY AND EXPLOITATION

The diagrams and figures in this instruction are illustrative and indicative only. Check the securing of the fixation after each operation.

ASSEMBLY PARTS – ILLUSTRATION A

1. Seat – 1 pcs;
2. Two layers food tray – 1 pcs;
3. Support tubes– 2 pcs. (front and rare);
4. Legs upper part of the frame) – 2 pcs. (left and right);
5. Backrest – 1 pcs;
6. Upholstery of the seat– 1 pcs;
7. Iron bar– 1 pcs;
8. Parts, helping the assembly: Cover and screws

ASSEMBLY AND EXPLOITATION

1. ATTACHING THE SUPPORTING TUBES - Look figure 1:
   Take the left or right supporting tube and press the red button on the back. Unfold the leg itself and release the red button.
   Take the other tube and repeat the procedure. Look at figure 1 and assemble the legs to the seat, as shown on the figure.

2. ASSEMBLING THE BASIS: – Look Figure 2:
   Turn back the highchair. Please, note that each of the four legs is equipped with spring buttons. Align one tube with spring button with the basis, on which the button fixing opening is located. Press down well, until the spring button is fixed on its place in the basis opening. Repeat this action for the other legs too.

3. PLACING THE SEAT PAD– Look figure 3:
   Slide the seat pad over the backrest. Secure the sides by wrapping them around the frame and fastening press studs (а) at each side of the seat.

4. PLACING THE FOOD TRAY– Look Figure 4:

   • Pull the lever (а), located under the food tray and then slide the tray in the slots sideway of the armrests. Release the lever and move lightly the food tray, until it locks on its place. The food tray has 3 positions, which are located on the armrests. Align the food tray with the desired position and after this release the lever to fix on position. If the tray does not fix automatically, move it slightly until you hear sound "click", signaling its locking.
     ATTENTION! NEVER use the food tray if it is placed in position that the warning signs are visible. To take down the upper part of the tray, pull the clips c, d, and it is from the inner sides, after this lift the upper part and separate it. For placing it again on its place, put it over the basis and press down over the clips, until they click on their place and fix.
   • The food tray can hang on the rare part of the legs with for storage. Align the opening of the rare part of the tray with small pins of the legs and hang it.
5. USING OF THE 5 – POINT HARNESS BELT– Look Figure 5: Five-point safety harness is provided to secure your child's safety and it always must be placed.

   • To unlock the belt, press the button on the buckle (a) and pull the lockers.
   • To lock the belt, place the lockers on the waist straps (b) in the openings of the buckle and press until the lock.
   • Sliding regulators are assembled over the shoulder straps and waist belt (c). The straps must be carefully adjusted, as you conform with child's comfort.
   • To adjust the height of the shoulder strap or for taking down the belts, look from the back side of the backrest. You will see that the ends of the shoulder straps ends with stoppers. Align the stopper (e) and insert it through the openings of the seat (d).
   • For placing back the straps, align again the stopper (e) and insert it through the slits of the seat and fix it.
6. ADJUSTING THE HEIGHT AND RECLINE OF THE BACKREST – Look Figure 6:
   ATTENTION! Do not adjust the height of the seat if the child is placed in the high chair;.

   • To adjust the position of the seat, press the buttons (a) at the same time and move the seat up and down. Release the buttons, as you reach the desired height. You will hear sound "click", showing the fixing of the seat in the desired position (7 positions).
   • To adjust the reclining angle of the seat, lift up the plastic button (b), located on the edge of the seat and place the seat in the desired position. Release the button to fix the seat on its place. You will hear sound "click" when fixed.

     If the height adjustment of the seat become hard after some period of usage, DO NOT use any lubricants, but just wipe the product after each usage.
7. ADJUSTING THE FOOTREST– Look Figure 7:

   • Press both buttons (А) from both sides of the footrest and lift it up or down until the desired position.
8. FOLDING THE HIGH CHAIR– Look figure 8:


• For more compact when folding – remove the food tray and attach it to the rare legs.
• To fold the high chair, press both buttons (a) and take down the high chair seat down to the lower position (position 7).
• Press buttons (b) from both sides of the chair and slide the rare legs forward.
• Ensure that the high chair is correctly folded and locked before standing it.

INSTRUCTIONS FOR MAINTENANCE AND CLEANING

Clean only with a soft, slightly damp cloth.
Regularly check fixed and moving parts for looseness, damage or breakage. Do not repair the product yourself, but contact an authorized service center or the sales agent from whom you purchased the product. Otherwise, your warranty will be void. Periodically clean the product. Do not leave the product to the harmful effects of external factors - direct sunlight, rain, snow or wind. This can damage metal and plastic parts and bleach upholstery. Store the product in a dry and ventilated place, not in dusty, damp rooms with very low or very high room temperatures.

Manufactured for MONI in PRC
Manufacturer and Importer: Moni Trade Ltd.
Address: Bulgaria, Sofia, Trebich, 1 Dolo Str.,
Phone number: 003592/936 07 90, Website: www.moni.bg

Safety Information

This product is manufactured in accordance with the requirements of the Directive 2001/95 / EC "General Product Safety", of the European Standards EN 14988: 2017+A1:2020 "Children's high chairs – Requirements and test methods " and the National Consumer Protection Act.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• Never leave the child unattended.
• Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted.
• Be aware of the risk of open fire and other sources of strong heat in the vicinity of the product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Do not use the product until the child can sit up unaided.
• Do not use the product if any part is broken, torn or missing.
• Keep children away when unfolding and folding the product to avoid injury.
• The product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15 kg.
• Any additional harness other than the one provided by the manufacturer, shall comply with EN 13210.
• Always use the product on a stable, level surface.
• For high chairs equipped with more than two wheels on the legs, the parking device must always be activated when the product is used.
• Assembling, unfolding and folding the product must ONLY be done by an adult. Children should not be present during assembly, unfolding and folding of the product.
• Do not use the high chair without the tray and always make sure it is firmly mounted.
