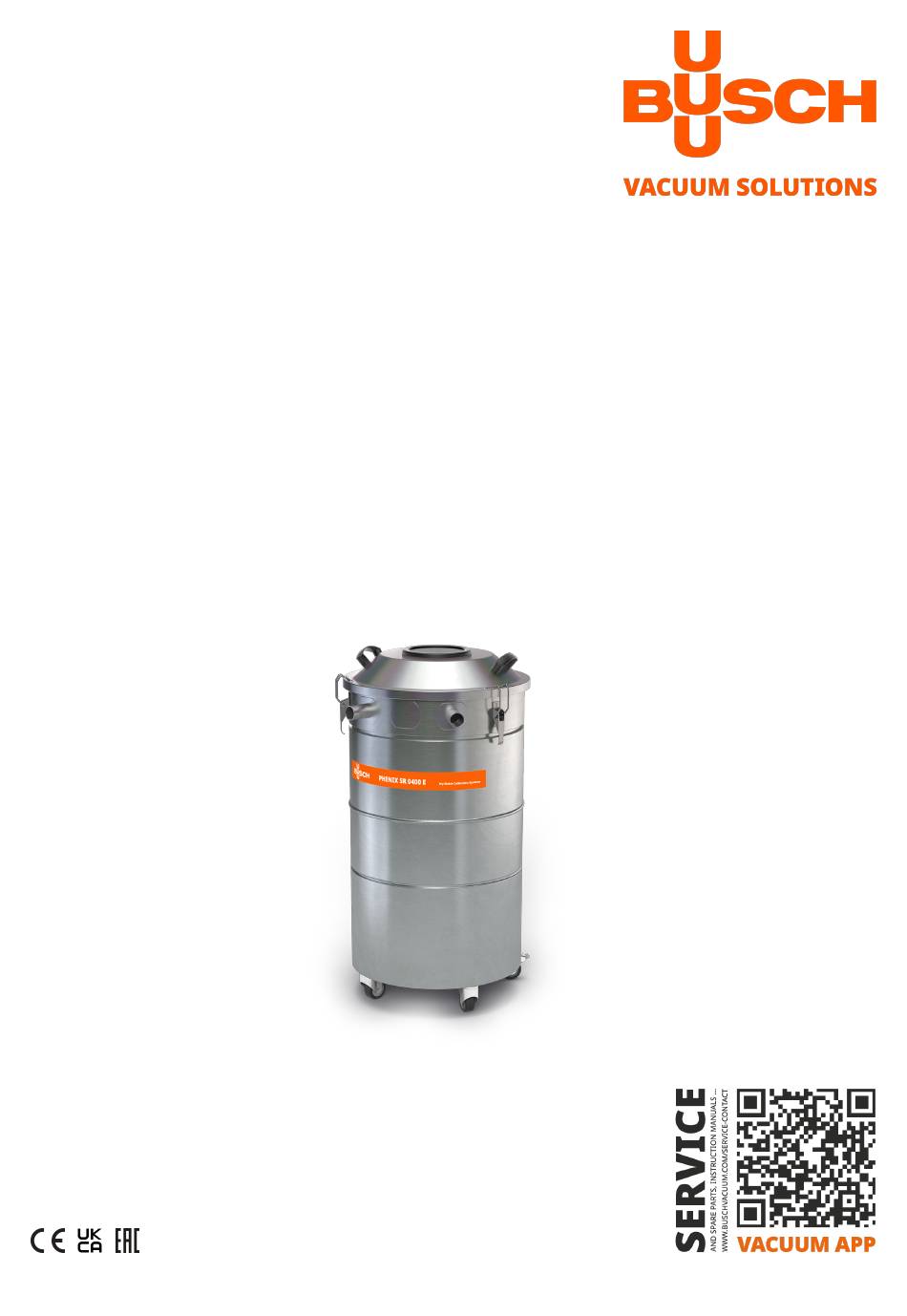

- Page 1 PHENIX Dry Waste Collector SR 0400 E Vacuum Cleaner - Pneumatic Conveyor - Centralized System Instruction Manual 0870244750 | -0002_en-US | Original instructions 2024/12/05...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety ..................................Instructions................................Attached Documentation ........................... Identification Data (Nameplate) ........................Assistance................................Spare Parts................................Testing and Guaranty ............................2.5.1 Guarantee Conditions.......................... 2.5.2 Exclusion of responsibility........................Glossary ................................General Description of the Working Modes ....................Applicable Directives and Standards ........................ Product Description ............................. -
Page 3: Safety
Safety | 1 Safety We thank you for the choice and the trust placed in. Busch Vacuum Solutions is sure that this prod- uct will satisfy all your needs and expectations. © Valid documentation for machines manufactured from 01/01/2021. Before using the machine, please read carefully and understand the instructions stated in this manual. -
Page 4: Instructions
Manufacturing year Marks of conformity Technical data Model and Type The instructions for use are to be applied for the following model(s). Vacuum cleaner: PHENIX SR 0400 E Manufacturer Busch Výroba CZ s.r.o Svárovská 620 CZ 460 01, Liberec 11 www.buschvacuum.com... -
Page 5: Assistance
12 (twelve) months from the date of the shipment by the side of the manufacturer to the Customer. If the Customer does not want to lose the right of guarantee, he shall notify immediately Busch Vac- uum Solutions about the damage mentioning serial number of the machine. Busch Vacuum Solu- tions will decide under its unquestionable judgement to repair the faulty part or to ask the Customer to send the faulty part back for technical inspections and/or eventual reparation. -
Page 6: Exclusion Of Responsibility
2 | Instructions 2.5.2 Exclusion of responsibility The machine was delivered to the user according to the conditions that were valid at the time of pur- chase. NOTICE For no reason shall the user be authorized to tamper with the machine. Contact your nearest After-Sales Service Center in the event of faults. -
Page 7: General Description Of The Working Modes
General Description of the Working Modes The vacuum cleaners of Busch Vacuum Solutions collect the products by means of a strong airflow created by a suction unit integrated into themselves. The product is vacuumed into the vacuum cleaner where the filter element separates the product from the airflow that comes out from the filter self;... -
Page 8: Product Description
3 | Product Description Product Description Description Primary filter Motor Inspection hole Cover Hook Inlet Secondary filter Container Magnetothermal switch Wheels 8 | 32 Instruction Manual PHENIX SR 0400 E_EN_en... -
Page 9: Operating Principle
Product Description | 3 Operating Principle The vacuum cleaners of Busch Vacuum Solutions collect the products by means of a strong airflow created by an suction unit assembled on them. The product is sucked inside the vacuum cleaner and deposits on the primary filter. -
Page 10: Residual Hazards
3 | Product Description Residual Hazards The accurate evaluation of the risks developed by the Manufacturer and filed in the technical supple- ment, has given the opportunity to eliminate the most part of the risks related to the conditions of use of the vacuum cleaner. - Page 11 Should this manual be lost or damaged, please ask to Busch Vacuum Solutions an equivalent copy. After 10 years of use, it is advisable to ask to have your vacuum cleaner serviced by Busch Vacuum Solutions.
-
Page 12: Transport
4 | Transport Transport WARNING Always use lifting devices with suitable loading capacity for the weight to lift up. Risk of injuries! Handling the vacuum cleaner Use a lift truck to lift and transport the vacuum cleaner. Proceed as indicated. –... - Page 13 Transport | 4 Unpacking the machine The vacuum cleaner travels into wooden case or on pallets. In case the vacuum cleaner has been packed on pallet: ● Take away the cardboard protection, ● Remove the fixing straps and finally take the vacuum cleaner out. NOTE Separate the packing materials according to their nature and dispose them in compliance with the laws in force.
-
Page 14: Installation
5 | Installation Installation Shipment checking The vacuum cleaner has been properly packed by the manufacturer so that to protect it from crash- es during transportation. When unpacking the vacuum cleaner, check the integrity of all its compo- nents and handle the vacuum cleaner as per the recommended instructions written on the package self. -
Page 15: Electrical Connection
Electrical Connection | 6 Electrical Connection DANGER Only authorized personnel must be allowed to work on the electrical parts of the vacuum cleaner WARNING Only authorized personnel must be allowed to work on the electrical parts of the vacuum cleaner. Description of controls Start and stop ●... - Page 16 ● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation.
-
Page 17: Inspections Prior To Starting
Electrical Connection | 6 Inspections Prior to Starting Prior to starting, check that: ● The electrical cable is in perfect condition, ● The filters do not present any sign of damage, ● The vacuum hose has been correctly fitted into the inlet, ●... - Page 18 6 | Electrical Connection NOTE After connecting the electrical supply, verify that the blower is rotating in the correct direc- tion, ensuring that the PHENIX unit is drawing air into the system. 18 | 32 Instruction Manual PHENIX SR 0400 E_EN_en...
-
Page 19: Maintenance
Maintenance | 7 Maintenance The correct use and servicing are essential if the efficiency and safety are to be guaranteed. NOTE The non-observation of the maintenance services described in this manual automatically voids all types of guaranty. WARNING Switch off the vacuum cleaner and disconnect it from its power source before cleaning and servicing;... -
Page 20: How To Replace The Primary Filter
7 | Maintenance How to Replace the Primary Filter Check the primary filter condition and if necessary, replace it as follows: ● Switch off and disconnect the vacuum cleaner from the electrical mains ● Remove the fixing hooks (G) ● Lift the lid (Q) ●... -
Page 21: Options And Accessories
Options and Accessories | 8 Options and Accessories Please find in the following table all possible options and accessories that can be fitted to the differ- ent models of vacuum cleaners. For their installation, use and servicing, please refer to the instruc- tions which come along with the supplied options and accessories. -
Page 22: Troubleshooting
9 | Troubleshooting Troubleshooting The indications described in the table have got the aim to help the users in finding out possible trou- bleshooting. Problem Possible causes Possible remedies Reduced vacuuming capacity The waste bin is full ● Empty the container Broken seals or worn out ●... -
Page 23: Technical Data
Technical Data | 10 Technical Data The table represents the technical data and the vacuum cleaner performances. Description (50 Hz) (60 Hz) Nominal motor rating Nominal motor speed min⁻¹ 2905 3505 Nominal pumping speed m³/h Max. differential pressure hPa (mbar) Sound pressure level (ISO 3744), 1 meter dB(A) distance... -
Page 24: Exploded View And Overall Dimensions
11 | Exploded View and Overall Dimensions Exploded View and Overall Dimensions 24 | 32 Instruction Manual PHENIX SR 0400 E_EN_en... - Page 25 Exploded View and Overall Dimensions | 11 Position Part number Description Qty. 0568246205 Pivoting wheel - brake supports 0713246232 Porthole 0563246180 Hat Closing Hook 0568246203 Pivoting wheel 0910246201 Blower 0482246233 Gasket for porthole 0648246198 Housing for SM1P 0640246200 Main switch – Low Voltage 2000210503 Main switch –...
- Page 26 11 | Exploded View and Overall Dimensions Overall dimensions and weight: IN: Inlet connection 2x DN40 OUT: Discharge Motor rating (kW) 1.5 / 1.7 Rated motor speed (min 2905 / 3505 Frequency (Hz) 50 / 60 Container filling capacity (L) Pump approx.
-
Page 27: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 28: Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 29 N otes Notes Instruction Manual PHENIX SR 0400 E_EN_en 29 | 32...
- Page 30 Notes 30 | 32 Instruction Manual PHENIX SR 0400 E_EN_en...
- Page 31 Notes Instruction Manual PHENIX SR 0400 E_EN_en 31 | 32...
- Page 32 BUSCH GROUP The Busch Group is one of the world’s largest manufacturers of vacuum pumps, vacuum systems, blowers, compressors and gas abatement systems. Under its umbrella, the group houses three well-known brands: Busch Vacuum Solutions, Pfeiffer Vacuum and centrotherm clean solutions. Together, they offer solutions to a wide range of industries.
