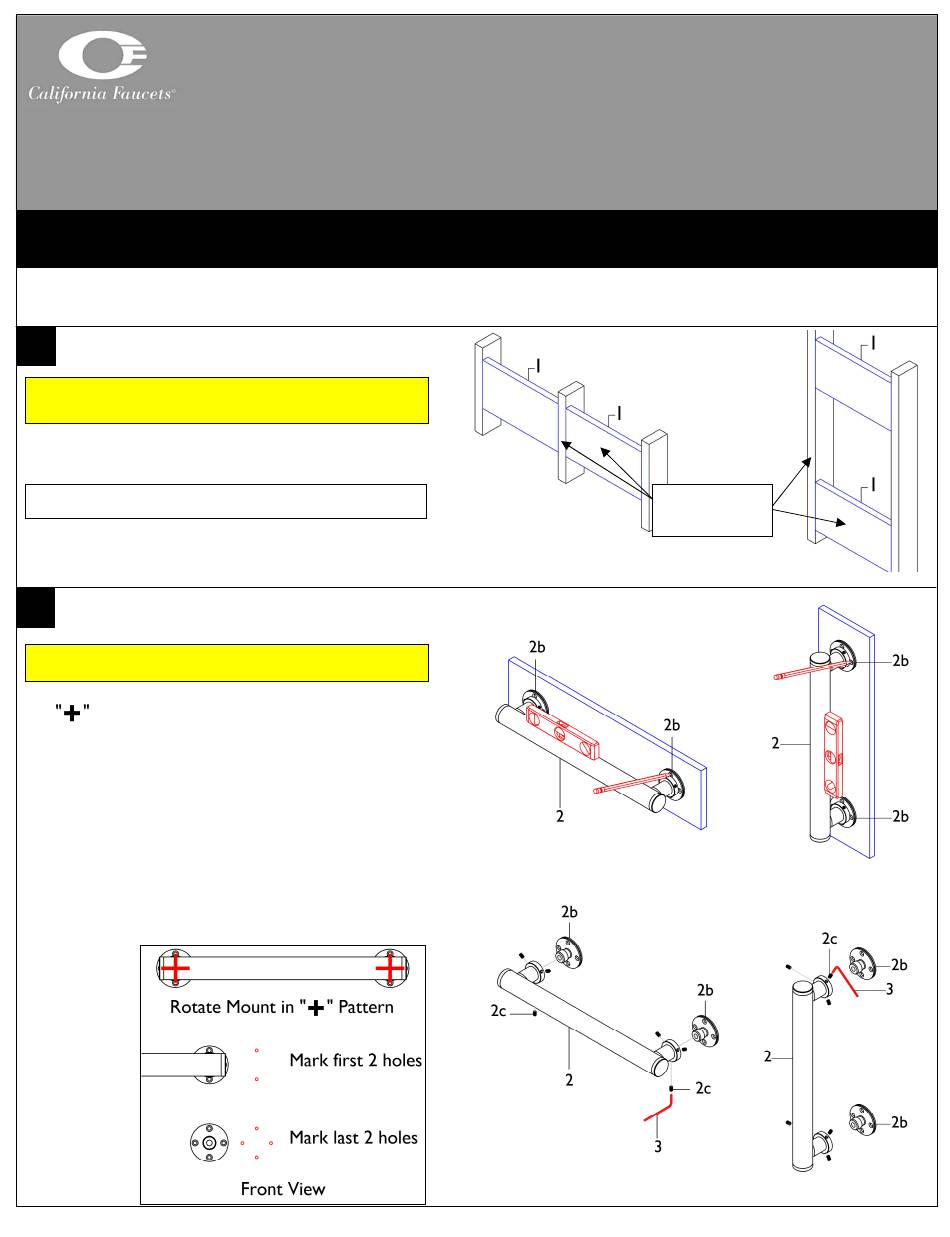

California Faucets 94 D Series Installation Instructions

CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
1
PREPARING WALL FOR GRAB BAR
IMPORTANT: It is the RESPONSIBILITY of the INSTALLER to
provide a proper cross BRACE (1) to provide adequate support for the grab
bar.

Securely mount a suitable cross BRACE (1) with the front
surface flush between studs in wall to provide proper
support for grab bar
NOTE: Mount BRACE (1) depending on horizontal or vertical installation
of grab bar as shown.

Take note of where the BRACE (1) is mounted once the
tile or drywall are in place
2
POSITIONING GRAB BAR
IMPORTANT: Grab BAR (2) must be installed on finished wall (e.g. tile
or drywall).

Wall MOUNT (2b) holes must be rotated in plus pattern
" " on grab BAR (2)

Ensure grab BAR (2) is positioned over cross BRACE (1)
or studs

Place the grab BAR (2) to its desired location on the
finished wall, using a level as necessary

Mark the first 2 visible holes when viewing from the front

Use the hex KEY (3) and loosen the SETSCREW (2c) to
remove the wall MOUNT (2b) from the grab BAR (2)

Line up the first 2 marked holes for each wall MOUNT
(2b) and mark the last 2 holes
94XXD_ii_230804
94XXD- / 94XXS-
Decorative Grab Bar &
Grab Bar with Slide
Installation Instructions
BY A LICENSED PROFESSIONAL
9412D-65 Shown Below
Horizontal
grab bar
These surfaces
shall be flush
Vertical
grab bar
Pg 1
