California Faucets SH-1320W Series Installation Instructions

CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
Operating Specifications:
Recommended Supply Pressure: 20 to 70 psi
If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (PRV).
†
1

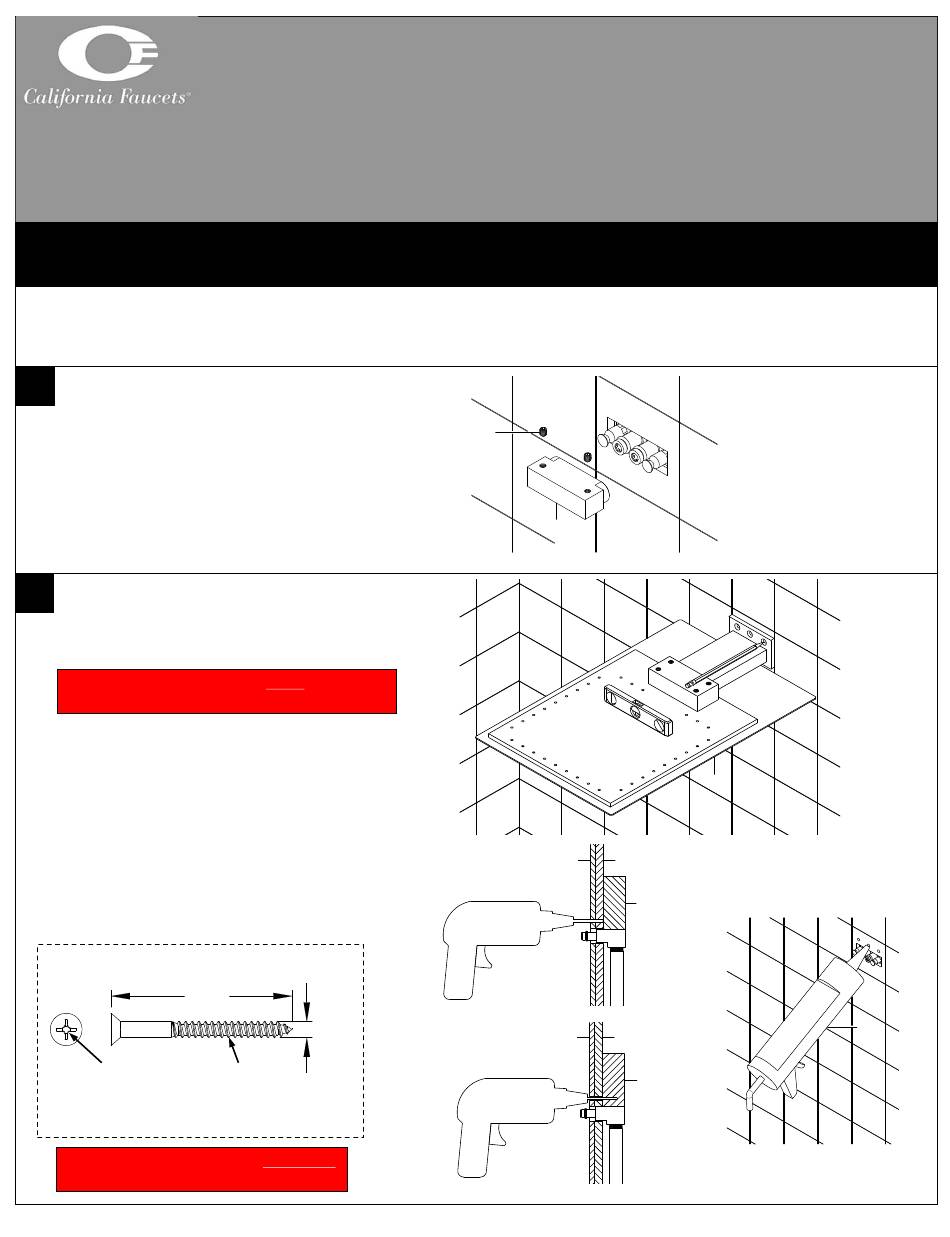

REMOVING MUDGUARD

IMPORTANT: SHOWERHEAD (3) must be installed on finished wall
•
Loosen SETSCREW (2a) and remove MUDGUARD
(2b)
2
v

DRILLING HOLES IN TILE

•
Place SHOWERHEAD (3) onto ROUGH
VALVE (2) and confirm that it is level
WARNING: SHOWERHEAD (3) MUST be supported
while on ROUGH VALVE (2)
•
Mark hole locations on finished wall
•
Remove SHOWERHEAD (3) from ROUGH
VALVE (2)
•
Using a ¼" drill bit, drill through TILE (4) and
BACKERBOARD (5)
IMPORTANT: Do not drill into BRACE (1) with ¼" drill bit
•
Using a 7/64" drill bit, drill into BRACE (1)
•
Apply SILICONE SEALANT (6) into drilled
holes and around ROUGH VALVE (2)
Mounting Screw
2-1/2"
No. 3
Drive Size
7/64 Drill Bit Size
WARNING: Finished wall thickness MUST NOT
exceed 1-1/4"
SH-1320W_ii_190813
Showerhead
Shower & Waterfall Showerhead
Installation Instructions
BY A LICENSED PROFESSIONAL
*†
0.216"
No. 12
Screw Size
SH-1320W-ZZ
2a
2b
4
1/4" Drill Bit
4
7/64" Drill Bit
3
5
1
5
1
6
