USER'S MANUAL
F08A JUSTICE LEAGUE
MANUAL VERSION:F80A-HAR-E-VA1.0
ISSUE DATE:2016.11.14
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUSTICE LEAGUE F08A and is the answer not in the manual?

Questions and answers

Summary of Contents for FEILOLI JUSTICE LEAGUE F08A

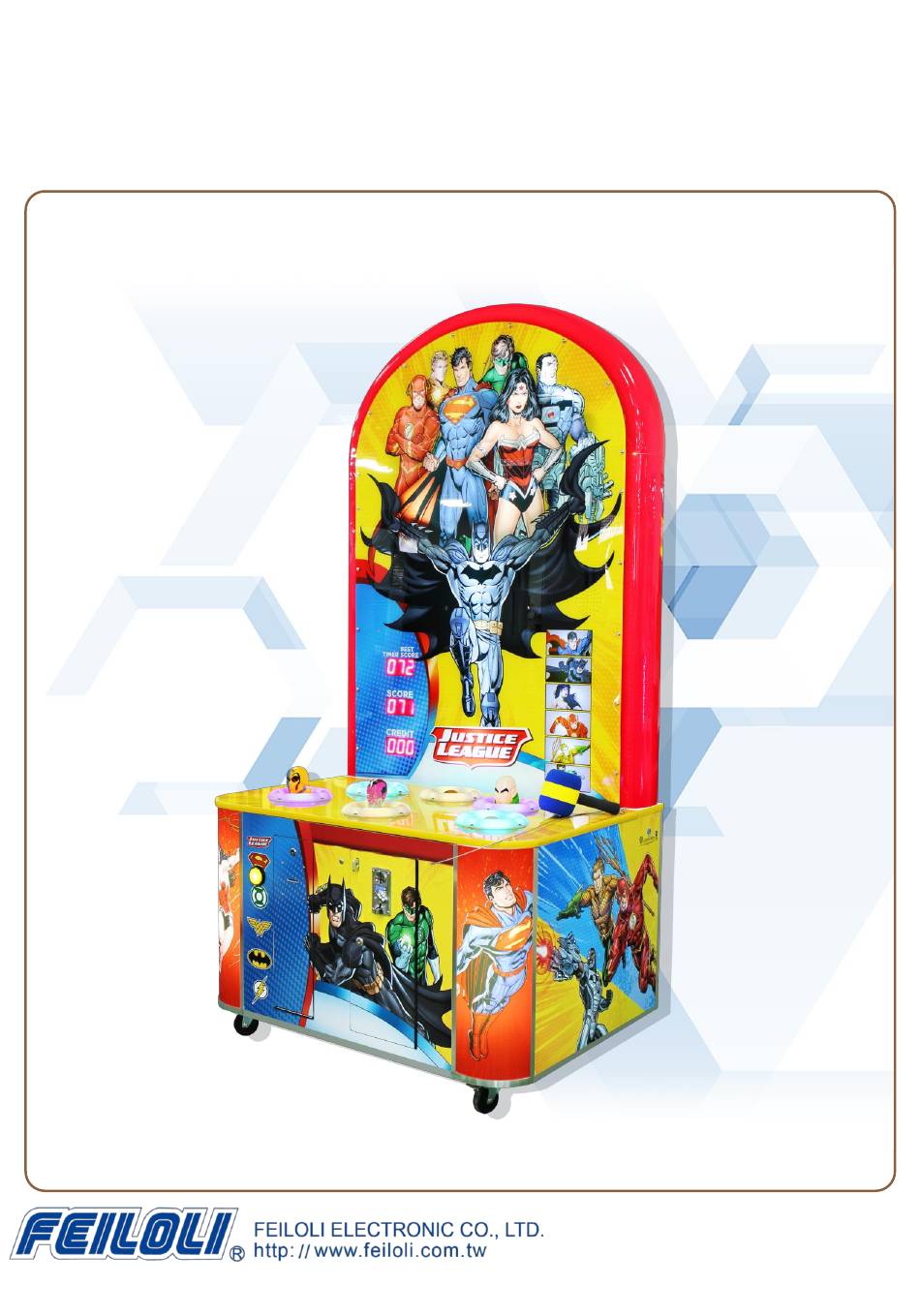

  • Page 1 USER'S MANUAL F08A JUSTICE LEAGUE MANUAL VERSION:F80A-HAR-E-VA1.0 ISSUE DATE:2016.11.14...
  • Page 2: Table Of Contents

    CONTENTS ▲SAFETY NOTICE ................... 1 1 SAFETY NOTICE ......................1 2 TRANSPORTATION AND MOVING ................1 3 POWER NOTICE ......................1 4 ORDER IN POWER ON ....................1 5 ORDER IN POWER OFF ..................... 1  COMPONENT....................2 1 LIST OF COMPONENTS ..................... 2 ...
  • Page 3: Safety Notice

    ▲SAFETY NOTICE 1 SAFETY NOTICE a. Please read carefully with enclosure of “Warranty”. b. Please read carefully with enclosure of “Maintenance”. c. Please check and maintain the machine regularly, DO NOT use any synthetic detergents to clean the machine. d. Places where the ground is sloping, uneven or there is strong vibration. e.
  • Page 4: Component

     COMPONENT 1 LIST OF COMPONENTS ITEM DESCRIPTION PICTURE QT’Y:2 a. KEY REMARK:2735 x 2 QT’Y:1 b. Power line REMARK: Plug form according area. Manual QT’Y:1 pc c. Manual REMARK: COMPONENT...
  • Page 5: About The Machine

     ABOUT THE MACHINE 1 SPECIFICATION Voltage:100V、110V、220V、240V Voltage & (Refer to Specification Label) Frequency Frequency:50 / 60HZ (W)1122 x (D) 807 x (H)2217 mm Dimension 1 person User Weather Protected Environment Environment 0°C~40°C Temperature 10%~70% Humidity Power Maximum:660W Consumption 2 DIMENSION ABOUT THE MACHINE...
  • Page 6: Game Introduction

     GAME INTRODUCTION 1 HOW TO PLAY a. Game Instruction: (1) Hit rising figures to score (2) The game provides 2 stages. Reach setting scores in stage 1 to enter stage 2. (3) Game time and score for stage 2 are adjustable by DIPSW. 2 SYSTEM SETTING ...
  • Page 7: How To Clear Score, Coin And Ticket Record

    3 HOW TO CLEAR SCORE, COIN AND TICKET RECORD (1) Keep pressing TEST button and turn on the machine. Release the button when it shows “222” on display and it will show “001” for reset item 1. (2) Press TEST button to reset and it will alarm once. (3) Press FREE PLAY button to enter next item.
  • Page 8 5 FIGURE MECHANISM COIL SENSOR:Obstruct->MCU induct the signal in LO (1) Press down or pull the doll when game proceeding will be not cause any breakdown. (2) Malfunction by 1 or 2 of the doll won't effect others. (3) Test progress: Test button on the counter base. Press "TEST"...
  • Page 9: Dip Switch Setting

    6 DIP SWITCH SETTING DIP SW 1 1=ON 0=OFF FUNCTION / DIP 1 COIN 1 CREDIT 1 COIN 2 CREDITS COIN 1 1 COIN 4 CREDITS 1 COIN 5 CREDITS 1 COIN 1 CREDIT 1 COIN 2 CREDITS COIN 2 1 COIN 4 CREDITS 1 COIN 5 CREDITS 1 CREDIT...
  • Page 10 DIP SW 2 1=ON 0=OFF FUNCTION / DIP 5 POINTS 1 TICKET 10 POINTS 1 TICKET 20 POINTS 1 TICKET 30 POINTS 1 TICKET TICKET PAYOUT 40 POINTS 1 TICKET 50 POINTS 1 TICKET 60 POINTS 1 TICKET 70 POINTS 1 TICKET 0 TICKET MERCY TICKET 1 TICKET...
  • Page 11 DIP SW 3 1=ON 0=OFF FUNCTION / DIP 30 SECONDS 40 SECONDS GAME TIME FOR STAGE 1 50 SECONDS 60 SECONDS 10 SECONDS GAME TIME FOR STAGE 2 20 SECONDS FREE PLAY MODE PASS SCORE FOR STAGE 1 SLAVE LINKING GAME SETTING MASTER AUTO RUN REMARK:REBOOT THE MACHINE IF THE DIP SW SETTING CHANGED...
  • Page 12: Wiring Diagram

     WIRING DIAGRAM 1 DIAGRAM OF MAIN BOARD SOUND IC ( U9 ) JP15 JP16 JP14 JP13 JP11 JP10 MAIN PROGRAM IC SOUND IC JP12 2 4 6… 16 2 4 6… SW 2 SW 3 1 3 5… 15 1 3 5…...
  • Page 13 JP6 (No Use) JP7 (Ticket Dispenser) JP8 (In/Out Counter) No Use 2.GND 1. Ticket Dispenser 1. (Black)Free Play GND 4.GND (Tecway) 2. (Brown)Free Play 3.No Use 6.GND 2. (Blue)Ticket Detector 3. (Black)Test SW GND 5.No Use 8.GND 3. Ticket Dispenser 4.
  • Page 14: Electronic Meter Diagram

    2 ELECTRONIC METER DIAGRAM Button S1:FREE PLAY Button Button S2:TEST Button Button S3:NO USE Button S4:NO USE Meter 1(A) Meter 2(A) Output Meter(C) WIRING DIAGRAM...
  • Page 15: System Wiring Diagram

    3 SYSTEM WIRING DIAGRAM COIL TIME / BEST SCORE DISPLAY COIL PCB Cover LED Drive ports AC DRIVER BOARD SCORE DISPLAY Level Light DISPLAY DISPLAY HEAD DRIVER JP15 JP16 JP14 JP13 JP11 JP10 RECORD DISPLAY DISPLAY BUTTON / Electronic Counter VOLUME ADJUST TICKET DISPENSER...
  • Page 16: Troubleshooting

     TROUBLESHOOTING 1 ERROR CODE ERROR ITEM SOLUTION Coin Meter 1 (1)Check wire. (2)Replace the Meter. Coin Meter 2 (1)Check wire. (2)Replace the Meter. (1)Check wire. (2)Replace the Meter. Ticket Meter (1)Check wire. (2)Replace the selector. Coin Selector 1 (1)Check wire. (2)Replace the selector. Coin Selector 2 Memory Card Replace PCB.
  • Page 17: Enclosure

    Please note: (1) Major Mechanism and Kit request to return for repair or replacement. (2) Damage through transportation will be cover by Feiloli after issue has been confirmed. (3) The warranty of replacement will be warranted as same as machines or no longer than 90 days since replaced.
  • Page 18 © FEILOLI Co. Ltd.. All Rights Reserved...
