SCRIB3D Advanced Manual

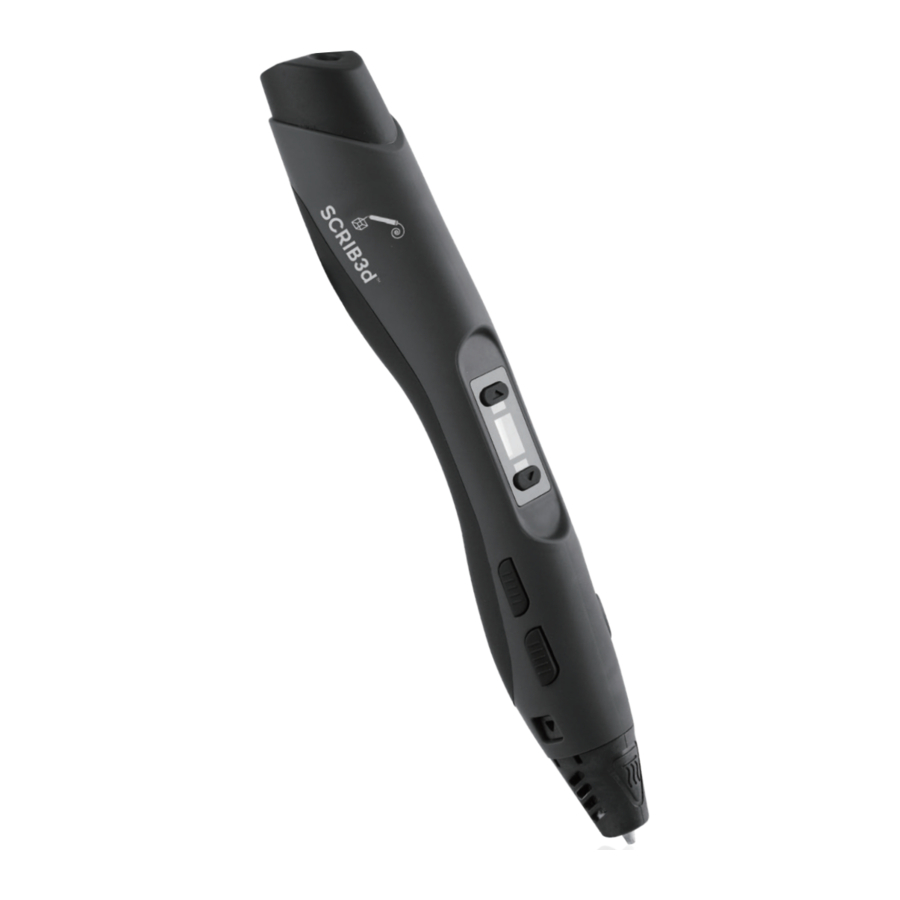

Product Overview

Getting Started

1. Connect the AC Adapter to an outlet. Plug the USB Power cord into the AC Adapter. Plug the barrel end into the Power socket of the pen.
   (Note: this 3D Pen can be used with a 3rd party power bank with at least 2 Amps output)

2. "ABS" or "PLA" will show on the LCD SCREEN, you can use the temperature ADJUSTER buttons to select a mode. Choose a mode that corresponds the type of plastic you are using.
   (Note: Using the wrong plastic will make for a poor experience and possibly damage your pen)

   The Display will flash either ABS or PLA until the Forward Button is pressed to chose a mode, Then the screen will show desired temperature and current temperature. The temp LED will remain red while the pen is heating up. Once it has reached temp it will change to Green. Then you can draw. You can adjust the temperature at any time but to change from ABS to PLA un-plug the pen and plug it back in.
3. Press the FORWARD button to activate the selected mode. You can use the TEMPERATURE ADJUSTER buttons to fine tune the temperature depending on need and desired usage. The temperature ranges are ABS: 200-230°C and PLA: 160-210°C.
4. Once the desired temperature has been reached the LED on the pen will turn green. You can click the FORWARD button. Straighten the end of the filament you wish to use and load it into the FILAMENT LOADER while the pen is running. Once plastic starts extruding you are ready to start creating in 3D!

   Once the temperature indicator Light has changed from red to green you can load filament into the 3D pen. Straighten the filament at the end. Press and hold the Feed Button. Push the filament into the pen until you can feel it pulling it into the pen.

When using your Scrib3D Advanced 3D Pen you will find the best results for drawing flat object and on surface from holding the pen at an angle of 65 dagrees or higher.

Snip those tips! when you change plastic or before you insert a new strand make sure the filament has a flat surface so it can push the previous filament. Failure to cut the end off the plastic can result in jams or pens not extruding. Check out tips on how to solve such issue.

• We recommend only using the Reverse button when removing and changing filament. If only partially withdrawn, filament can swell in the pen and create jams. If this happens, fully withdraw the filament and cut the swollen part off.
• Filament quality varies greatly. We always recommend using Scrib3D filament, and storing it in a sealed and dry location.
• Plastic may continue to ooze slightly after the pen stops.

  This is more pronounced with PLA. This is a common Phenomenon (i.e. glue guns and 3D printers). If you see this happening, slightly decrease the temperature.

Temperature Tuning

1. If when using the pen you see the plastic bubbling or you hear a crackling noise coming from the plastic your temperature might be too high. Try lowering it 5~10°C and see if that helps.
2. Filament should come out smooth and with out much bubbling but it is normal to have some small bubbling.
3. While some plastics like PLA are more prone to oozing, if you find that your oozing a lot of plastic you can turn the temperature down on the pen to help mitigate this. Also check that you are using the correct filament setting
4. If the filament color looks dim and dark and you can hear the motor struggling. This means the temperature is too low increase the temperature by 5~10°C.

For more help getting started, tips and tricks, trouble shooting and to learn more check out our website www.Scrib3dPen.com or our youtube channel (scan the QR code).

Troubleshooting

Here are some common problems and possible solutions to these issue. If you can't resolve the issue please reach out to our customer service by email us at help@Scrib3Dpen.com

NOTE: Your pen will go into sleep mode after being inactive for 5 minutes (as a safety feature). Click any button to wake it up and restart the heating sequence.

• The Nozzle of the Scrib3D Advanced can become hot. DO NOT touch the Nozzle, or you may be burned!
• DO NOT allow the Nozzle near or in contact with flammable materials
• Inform others in the area that the Pen is hot and should not be touched

Unplug and set the Control Switch to OFF when not in use or before storing.
Allow the Nozzle to cool completely before storing.
DO NOT use the Scrib3D Advanced near bathtubs, showers, basins or other vessels containing water. This could result in death due to electric shock.

The Scrib3d Advanced should only be used with ABS, PLA filament approved by Scrib3d. Misuse of your Scrib3d Advanced, setting your pen to the wrong heating temperature, and/or use of non-approved plastics or other materials may result in damage to your pen or injury to you, and will void your warranty. Injuries to the user may include, but are not limited to, harm sustained from inhaling substances that are not suitable for heating; or burns from flammable materials used in the Scrib3d Advanced.
This 3D Printing Device - when used with a styrene filament (ABS/HIPS/or PC-ABS) - can expose you and others in the same room to styrene, which is a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. ALWAYS OPERATE YOUR 3D PRINTING DEVICE IN A WELL-VENTILATED AREA.

CARE & MAINTENANCE
For care and maintenance information, and more advice on how to use your Scrib3d Advanced, please refer to our website: Scrib3dpen.com
To troubleshoot, please visit: Scrib3dpen.com/troubleshooting

SPECIFICATION OF POWER ADAPTER
Input: 100-240V AC, 0.5A MAX, 50-60HZ
Output: +5V DC, 2A

LIMITED WARRANTY
For more details on your limited warranty, please visit: scrib3dpen.com/warranty
For Scrib3D Terms and Conditions and other notices refer to our website: scrib3dpen.com/terms-and-conditions

Need more help? Contact us
help@SCRIB3dPen.com
