Ourten PoE-2Wire-PRO Quick Installation Manual

PoE-2Wire-PRO
Quick Installation Guide

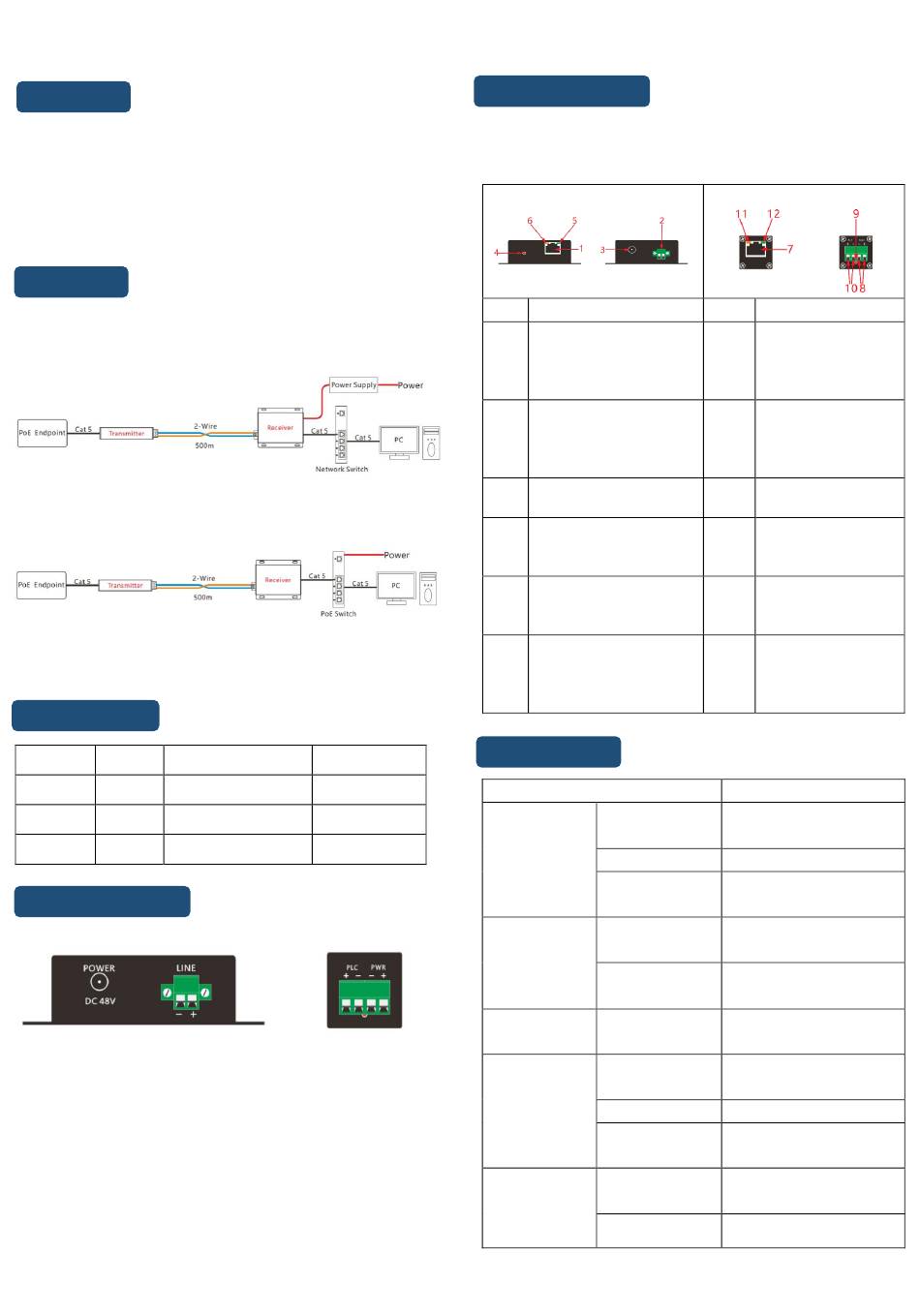

Overview
PoE-2Wire-PRO PoE Extender is a high speed Ethernet transmission
device. It transmits Ethernet and PoE signal over single pair
2-wire cable. This device supports both PoC and PoE function.
This device contains one Receiver unit and one Transmitter unit, and can be
connected to the existing cabling infrastructure for IoT devices including IP
phones, cameras, access control, speakers and etc.
Connection
The product supports two power supply methods: PoE and power adapter.
1. When the Receiver unit is powered by 48～56VDC, the Transmitter unit
and PoE devices can be powered without external power supply.
2. When the Receiver unit is powered by PoE switch, the Transmitter unit
and PoE devices can be powered without external power supply.
Note: The product does not support simultaneous input of PoE power and
48~56VDC power.
LED Indicators
Category Color
Power Red
Line Green Steady on or flashing
Network Yellow
Power Connection


The LINE port of the receiver outputs DC power and is connected to the
PLCport of the transmitter product. Please pay attention to the polarity,
reversing the polarity won't supply power and communicate.

The power port of the transmitter is to remain idle, please do not
connect to power.
S
Normal Fault condition
Steady on Off or flashing
Off
Flashing Off
Installation Steps
Confirm the installation location based on the product information on the
label. Install receiver at one end of the machine room and
transmitter at the front-end network device.
Receiver
Step Installation Instruction
Connect PoE power supply
1 equipment to RJ45 terminal
of Receiver unit (1)
Positive and negative
2 connection terminal of 2-
wire cable (2)
Spare terminal for external
3
power adaptor (3)
Power indicator is always
4
on (4)
Line indicator is flashing
5 after successful connection
(5)
Network data indicator
6 quickly blinks when data is
normal (6)
Specifications
Specifications
Category
RJ45/PoE Input
Power Input
DC Port Input
(Receiver)
Power
Consumption
RJ45/PoE Output
Power Output
(Transmitter)
Power
Consumption
IEEE 802.3,
Ethernet
IEEE802. 3u
Dimension
(L × W × H)
Physical
Material
Characteristic
Net Weight
Working
Operating
Temperature
Environment
Working Humidity
Transmitter
Step Installation Instruction
Connect network
equipment
7
to RJ45 port of
Transmitter unit (7)
This port is idle and it
is strictly prohibited to
8
connect to the power
supply (8)
Power indicator is
9
always on (9)
Positive and negative
10 connection terminal of
2-wire cable (10)
Network data indicator
11 quickly blinks when
data is normal (11)
Line indicator is
flashing after
12
successful connection
(12)
Description
Standard48～56VDC;
IEEE802.3af/at/bt
48～56VDC
≤1.5W / PC
Standard48VDC;
IEEE802.3af/at
≤1.5W / PC
Full duplex 10/100Mbps
Receiver: 98×86.5×25mm
Transmitter: 123×26×26mm
Aluminum Alloy
Receiver: 160g
Transmitter: 105g
-20℃～60℃
＜95% (Non-condensation)
