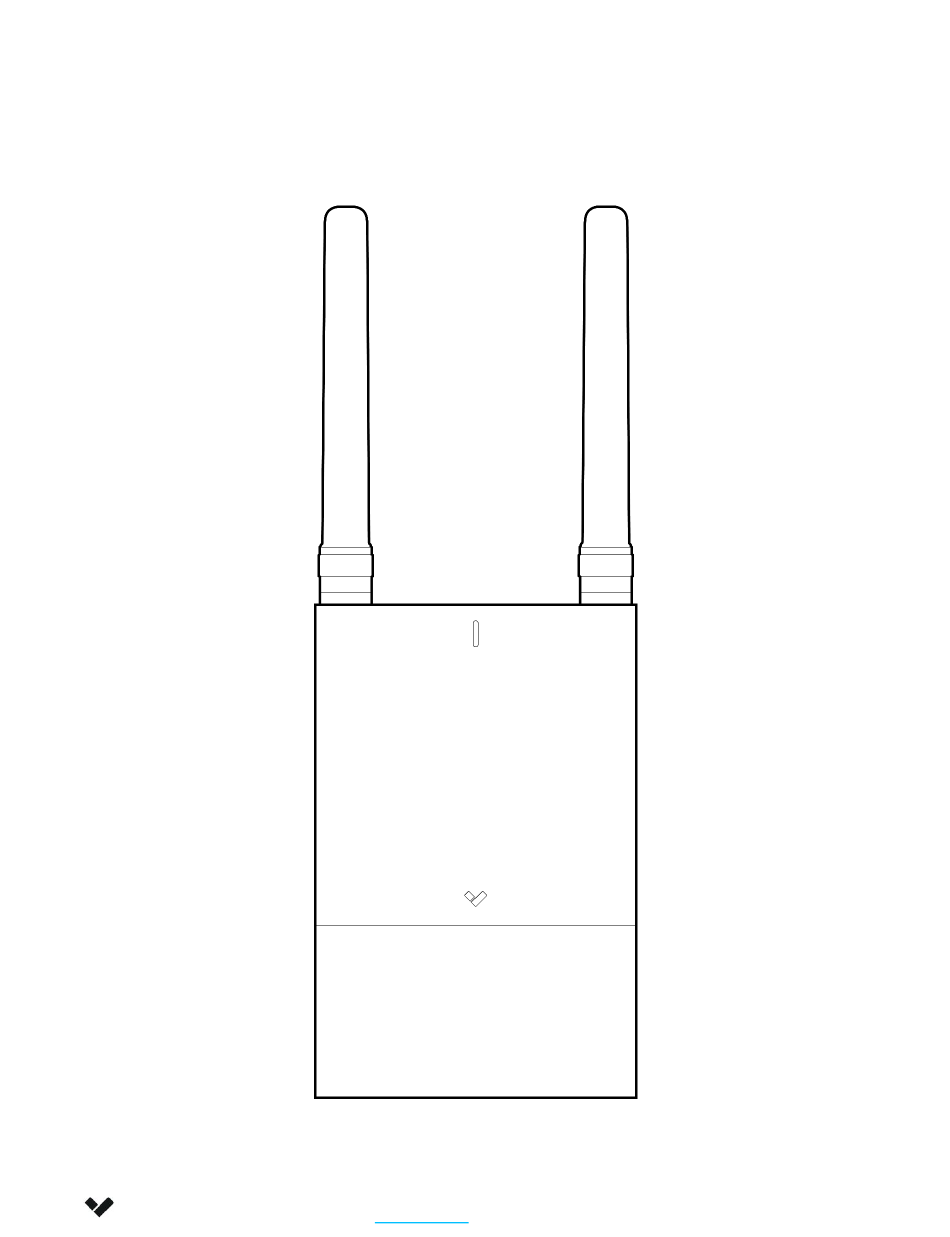

- Page 1 Install Guide GW31-E Outdoor Wi-Fi Gateway Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
-
Page 2: Document Details
Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. - Page 3 Drive: Philips Screwdriver 7-9 mm Cable T10 Security Torx Grommets (4 pcs) Screwdriver Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
- Page 4 A Cat5 or Cat6 Ethernet cable with a ● 0.2-0.25 inch diameter (5-6.5mm) Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
- Page 5 PoE Out 1 & 2 DC In E European Junction Box (power adapter) PoE In Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
-
Page 6: Regular Operation
Solid Blue Gateway is running and online. Flash Blue Gateway is running and offline. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved. - Page 7 Gateway, using the provided T10 Security Torx Screwdriver. Slide the bottom cap off of the Gateway enclosure. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
- Page 8 Slide the mount plate down and out to separate the GW31-E Gateway and the mount plate. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
-
Page 9: Wall Mounting
To secure the Gateway to the mount plate, tighten the captive security screw, using the T10 Security Torx screwdriver. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved. - Page 10 Phillips head screwdriver. An electrical drill is recommended to achieve a tighter grip on the pole. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
-
Page 11: Pole Mounting
Captive screw needs to be pushed in before tightening. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved. -
Page 12: Power Options
Installation Power Options The GW31-E Outdoor Wi-Fi Gateway can be powered in three different ways. Select Note the appropriate power option for your install scenario. PoE Power Using Ethernet Cable Power Adapter (DC) Using Power Cable Terminal Block Power (DC) Bare wire, +/-/AUX Verkada Inc. - Page 13 Inspect the cable grommet to make sure that it is properly sealed, with no gaps. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
- Page 14 Inspect the cable grommet to make sure that it is properly sealed, with no gaps. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
- Page 15 Inspect the cable grommet to make sure that it is properly sealed, with no gaps. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
- Page 16 Inspect the cable grommet to make sure that it is properly sealed, with no gaps. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved.
-
Page 17: Final Assembly
Gateway, using the provided T10 Security Torx Screwdriver. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © 2024 Verkada Inc. All rights reserved. - Page 18 Attach the other terminal of a grounding cable directly to a circuit breaker, ground rod or earth ground. Grounding Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com Copyright © Verkada Inc. All rights reserved.
- Page 19 You may need to change the gateway’s subnet on this page to avoid IP conflicts with an upstream DHCP server. Once connected, you can set up and manage the Gateway through Verkada Command. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com...
- Page 20 IC RSS-102 définies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com...
- Page 21 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401 All specifications are subject to change without notice sales@verkada.com...
