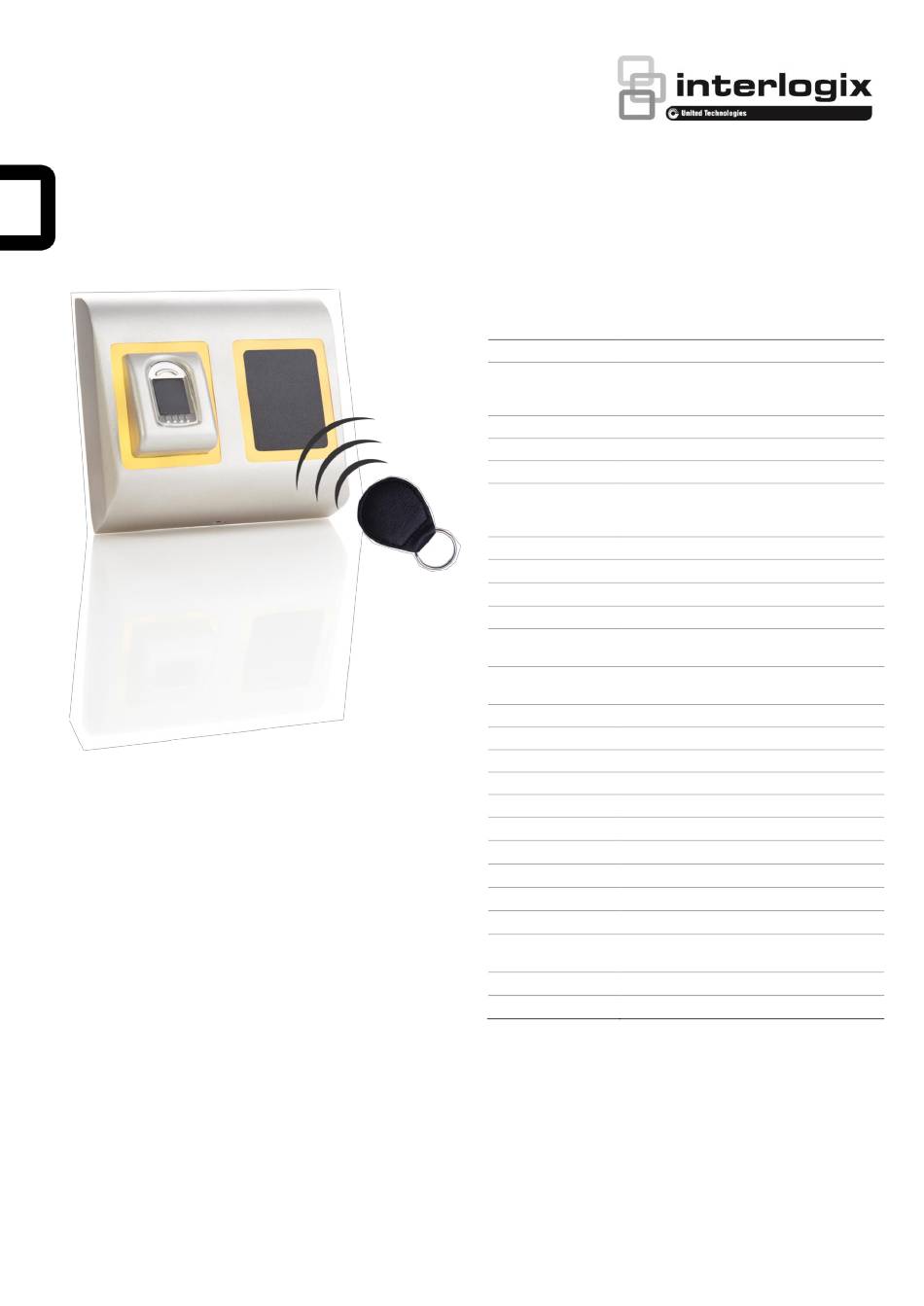

ACL800SUW-BCPX - Biometric Touch
capacitive Proximity Reader - Installation Manual
Description / Operation
The ACL800SUW-BCMF is a Wiegand biometric and Proximity
(125kHz) reader for access control applications with
programmable wiegand output. It offers storage of up to 100
fingerprints, it reads EM, HID and Casi Rusco cards/tags and
has a programmable Wiegand output (24 to 80 bits).
Configuration of the readers and fingerprint enrollment is done
through the ACL800 BioManager software.
Connection between the biometric readers is via RS485 and it
is used for fingerprint transfer and configuration.
The connection between the biometric readers and the PC is
done through ACL800FL-CONV-W converter (RS485 to
TCP/IP). Only one converter is needed per system and
supports up to 31 biometric readers.
The tamper switch output can trigger the alarm system, if an
attempt is made to open or remove the unit from the wall.
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Specifications
Fingerprint capacity
Up to 100 fingerprints
Biometry and Mifare (13,56 Mhz, Mifare
Technology
Classic 1K & 4K, Ultralight, Desfire , selectable
by dipswitch)
Use
Indoors
Authentication
Finger, card, finger or/and card, finger on card
Fingerprints per user
1-10 fingerprints
- EM Proximity Cards 125kHz
Proximity reading type
- HID Prox
- Casi Prox
Reading distance
Casi-Rusco, HID up to 4 cm, EM up to 6 cm
Interface
Wiegand 24 to 80 bits; Default: Wiegand 26bit
Protocol programming
By ACL800 BioManager software
Cable distance
50 m
Fingerprint Sensor
Touch Capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrolment
On the reader or from the USB desktop reader
Panel Connection
Cable, 1 m
Green and Red LED
Externally controlled
Orange LED
Idle mode
Buzzer ON/OFF
Yes
Yes, by software setting
Backlight ON/OFF
Yes
Tamper
160 mA
Consumption
65
IP Rating
9 to 14 VDC
Power supply
Operating
-20° to +50°C noncondensing
Temperature
100 x 94 x 30 mm
Dimensions
Moulded aluminium
Housing
P/N 1073504A• REV 00.00 • ISS 4JUL18
Advertisement
Table of Contents
Related Manuals for United Technologies interlogix ACL800SUW-BCPX
Summary of Contents for United Technologies interlogix ACL800SUW-BCPX
- Page 1 P/N 1073504A• REV 00.00 • ISS 4JUL18 © 2018 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
- Page 2 Mounting Dipswitch Figure 1: Mounting instructions 1. not used 2. not used 3. not used If the biometric reader is installed and used outdoor, the reader 4.Enable HID (ON_OFF) MUST be fitted with cover available in our accessories in order to protect the sensor from direct rainfall.
- Page 3 RS485 tuning Note: The portal can be added automatically with the “search” function. Figure 4: RS485 tuning Add Reader • Terminate both ends of the line with 120 Ohm resistor • • If the communication is not established and stable, use the Right-click on the portal connected to the reader and select “Add reader”...
-
Page 4: Delete Reader
Delete reader Right-click on the reader and select “Delete” reader If reader is online, new line is added on top of the event table If reader is not online, following line is added on top of the event table ... -
Page 5: Deleting Fingerprints
3. Right click on the fingertip and select enroll. Note: If more fingerprints are added for one user, all fingerprints will send the same Wiegand code to the controller, the one written in the field User ID (card Number). Note: Users can be imported from Excel file or from TruPortal 4. -
Page 6: Safety Precautions
Note: Use this feature when you change or add a reader, if pending tasks are deleted in the software or if there are doubts that fingerprints in the reader memory are not synchronized with the software database. In normal usage, the fingerprints are sent automatically and this feature is not used. -
Page 7: Regulatory Information
Regulatory information Trademarks and The trade names used in this document may be patents trademarks or registered trademarks of the manufacturers or vendors of the respective products. Manufacturer Interlogix. 2955 Red Hill Avenue, Costa Mesa, CA 92626 5923, USA Authorized EU manufacturing representative: UTC Fire &...
