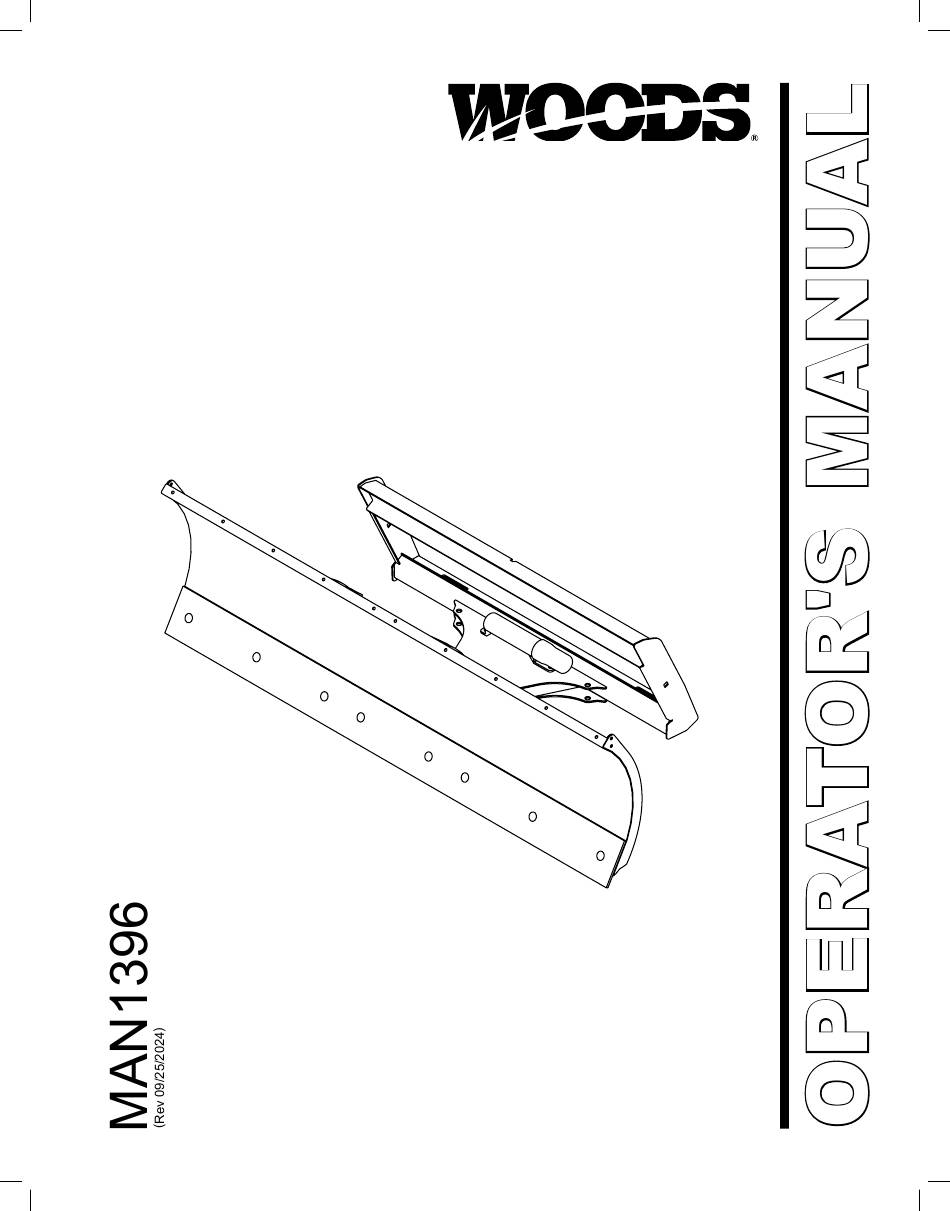

- Page 1 FRONT BLADE LOADER MOUNTED LFB60.20 LFB72.20 MAN1396_2024-09.indd 1 MAN1396_2024-09.indd 1 9/26/24 11:37 AM 9/26/24 11:37 AM...
-
Page 2: Introduction
TO THE OWNER: Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become acquainted with all adjustment and operating procedures before attempting to operate. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..........2 WARRANTY INFORMATION . -
Page 4: Specifications
SPECIFICATIONS Model LFB60.20 LFB72.20 Configuration Mechanical Angle Hydraulic Angle Mechanical Angle Hydraulic Angle Cutting Width 59.6" 71.6" Moldboard Height Moldboard Thickness 12 GA Overall Depth 26.5" Weight 199 lbs 216 lbs 223 lbs 242 lbs Ship Weight 233 lbs 260 lbs Cutting Edge 1/4"... -
Page 5: Safety Rules
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! PREPARATION Safety is a primary concern in the design and man- ■ Air in hydraulic systems can cause erratic opera- ufacture of our products. Unfortunately, our efforts tion and allows loads or equipment components to provide safe equipment can be wiped out by an to drop unexpectedly. -
Page 6: Operation
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! ■ Be sure attachment is properly secured, adjust- ■ Operate only in daylight or good artificial light. ed, and in good operating condition. Coupler ■ Keep hands, feet, hair, and clothing away from lockpins must be fully extended and properly equipment while engine is running. -
Page 7: Transportation
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! ■ For manual adjustment blades, always secure • Service work does not require going under- angle lock pin to one side to prevent lock pin neath implement. from bumping out of the positioning holes. •... -
Page 8: Safety Decals
Replace safety decals if they are missing or illegible. Replacement safety decals can be ordered free from your Woods dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in the United States and Canada call 1-800-319-6637. -
Page 9: Operation 9
OPERATION The operator is responsible for the safe operation of CAUTION this equipment. Operators must be instructed in and be capable of the safe operation of the equipment, its attachments and all controls. Do not allow anyone to ■ Always wear relatively tight and belted clothing operate this equipment without proper instructions. -
Page 10: Pre-Operation Checklist
PRE-OPERATION CHECKLIST Roll the loader coupler into the Loader Front Blade flange so the coupler handles can be engaged. (OWNER’S RESPONSIBILITY) Check that all hardware is properly installed and secured. Do not allow riders. ATTACHMENT FLANGE Review and follow all safety rules and safety decal instructions on page 5 through page 8. -
Page 11: Adjustment
Hydraulic Angle Kit (if equipped) ADJUSTMENT (See Figure 5) WARNING Connecting Hydraulic Hoses ■ Before manually changing positions of blade 1. Lower Front Blade to the ground. angle or skid shoes: 2. Relieve pressure in the 3rd function auxiliary circuit. •... -
Page 12: Operating
6. To lower blade height, remove spacers (as neces- CD9447 sary) from the spacer stack (3). Re-install skid shoe in support bracket and place all removed spacers under lock pin for storage (4). Re-install lock pin. 7. To raise blade height, remove spacers (as nec- essary) from storage under lock pin and place in spacer stack. -
Page 13: Transportation
TRANSPORTATION OPTIONAL EQUIPMENT Moldboard Lock Rubber Deflector 1044511 (LFB60.20) or 645174 (LFB72.20) (See Figure 8) (See Figure 9) The Front Blade comes equipped with moldboard lock pins to secure the moldboard during transportation. 1. Assemble rubber deflector (1) between deflector Both moldboard lock pins should be engaged for trans- bars (2) and moldboard (3). - Page 14 Urethane Cutting Edge Urethane Skid Shoes 1044514 1044513 (LFB60.20) or 639995 (LFB72.20) (See Figure 12) (See Figure 11) 1. Remove factory installed steel skid shoes. 1. Remove factory installed steel cutting edge and 2. Install urethane skid shoes using original spacers to hardware.
- Page 15 Hydraulic Angle Kit 639994 (See Figure 13) 1. Remove factory installed lock pin (1, Figure 3) 2. Install hydraulic angle cylinders (4) with supplied pins (5, 6) securing with washers (7) and cotter pins (8). 3. Install 90 elbows (9) to cylinders. 4.
-
Page 16: 16 Owner Service
OWNER SERVICE BLADE CUTTING EDGE REPLACEMENT WARNING To reverse the cutting edge: ■ Keep hands and body away from pressurized lines. Use paper or cardboard, not hands or 1. Remove the 1/2" carriage bolts. other body parts to check for leaks. Wear safe- 2. -
Page 17: Bolts & Pins
BOLTS & PINS TRIP SPRINGS (See Figure 15) 1. Check bolts and pins periodically to be sure they are tight. Two springs are installed on each Front Blade. These 2. Replace as necessary. springs hold the blade in operating position and allow the blade to “trip”... -
Page 18: Dealer Pre-Delivery Checklist
DEALER CHECKLISTS DEALER PRE-DELIVERY CHECKLIST DEALER DELIVERY CHECKLIST (DEALER’S RESPONSIBILITY) (DEALER’S RESPONSIBILITY) Show customer the safe and proper procedures Inspect the equipment thoroughly after assembly to to be used when mounting, dismounting and be certain it is set up properly before delivering it to storing equipment. -
Page 19: Parts
PARTS INDEX Loader Front Blade LFB60.20 LFB72.20 FRONT BLADE ASSEMBLY ......20 RUBBER DEFLECTOR KIT (OPTIONAL) . - Page 20 FRONT BLADE ASSEMBLY CD9440 PART QTY DESCRIPTION PART QTY DESCRIPTION 645763RP WA, QA MOUNT SCREW, BTN HD 78285 5/16 NC X 3/4 ZP 645798RP WA, MOLDBOARD 72 1020279 PIN 1.25 X 4.88 C-DRILL 645802RP WA, MOLDBOARD 60 1026530 MANUAL TUBE 645810RP WA, ANGLE FRAME HYD 1044235...
- Page 21 RUBBER DEFLECTOR KIT 1044511 (LFB60.20) OR 645174 (LFB72.20) (OPTIONAL) PART QTY DESCRIPTION 645830 DEFLECTOR, RUBBER 72 1044232 DEFLECTOR, RUBBER 60 645831RP BAR, DEFLECTOR 72 1044245 BAR, DEFLECTOR 60 OBTAIN LOCALLY 14139 10 NUT, HFN 5/16 NC, LOCK, GR G 24409 10 BOLT CRG 5/16NC X 1 ZP...
- Page 22 URETHANE CUTTING EDGE KIT 1044513 (LFB60.20) OR 639995 (LFB72.20) (OPTIONAL) PART QTY DESCRIPTION 645825 EDGE, URETHANE CUTTING 72 645827RP BAR, SOFT CUTTING EDGE 72 1044556 BAR, SOFT CUTTING EDGE 60 1044563 EDGE, URETHANE CUTTING 60 OBTAIN LOCALLY 10284 BOLT CRG 1/2 NC X 2...
- Page 23 HYDRAULIC ANGLE KIT 639994 (OPTIONAL) CD9442 PART QTY DESCRIPTION 3443 HYD HOSE HOLDER 26124 1/2 QUICK DISCONNECT CPLR 632958 HOSE, .25ID X 1/4NPT X 65 64462 COTTER PIN 5/32 X 1-1/4 ELBOW, STREET 90 313041 DEG 1/4 NPT OBTAIN LOCALLY PART QTY DESCRIPTION 2615 BOLT CRG 1/2 NC X 1-1/4 GR5...
-
Page 24: Appendix
BOLT TORQUE CHART Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware. Make sure fastener threads are clean and you start thread engagement properly. -
Page 25: Bolt Size Chart & Abbreviations
BOLT SIZE CHART NOTICE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts. SAE BOLT THREAD SIZES 5/16 10mm 12mm 14mm 16mm 18mm METRIC BOLT THREAD SIZES ABBREVIATIONS AG ....Agriculture HT . - Page 26 Woods logo are trademarks of Woods Equipment Company. All other ® trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are the property of their respec tive companies or mark holders. Specifications subject to change without notice.
