Airtec 89AXM202-1001 Operation Manual

Dual sensor truck scales bluetooth system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

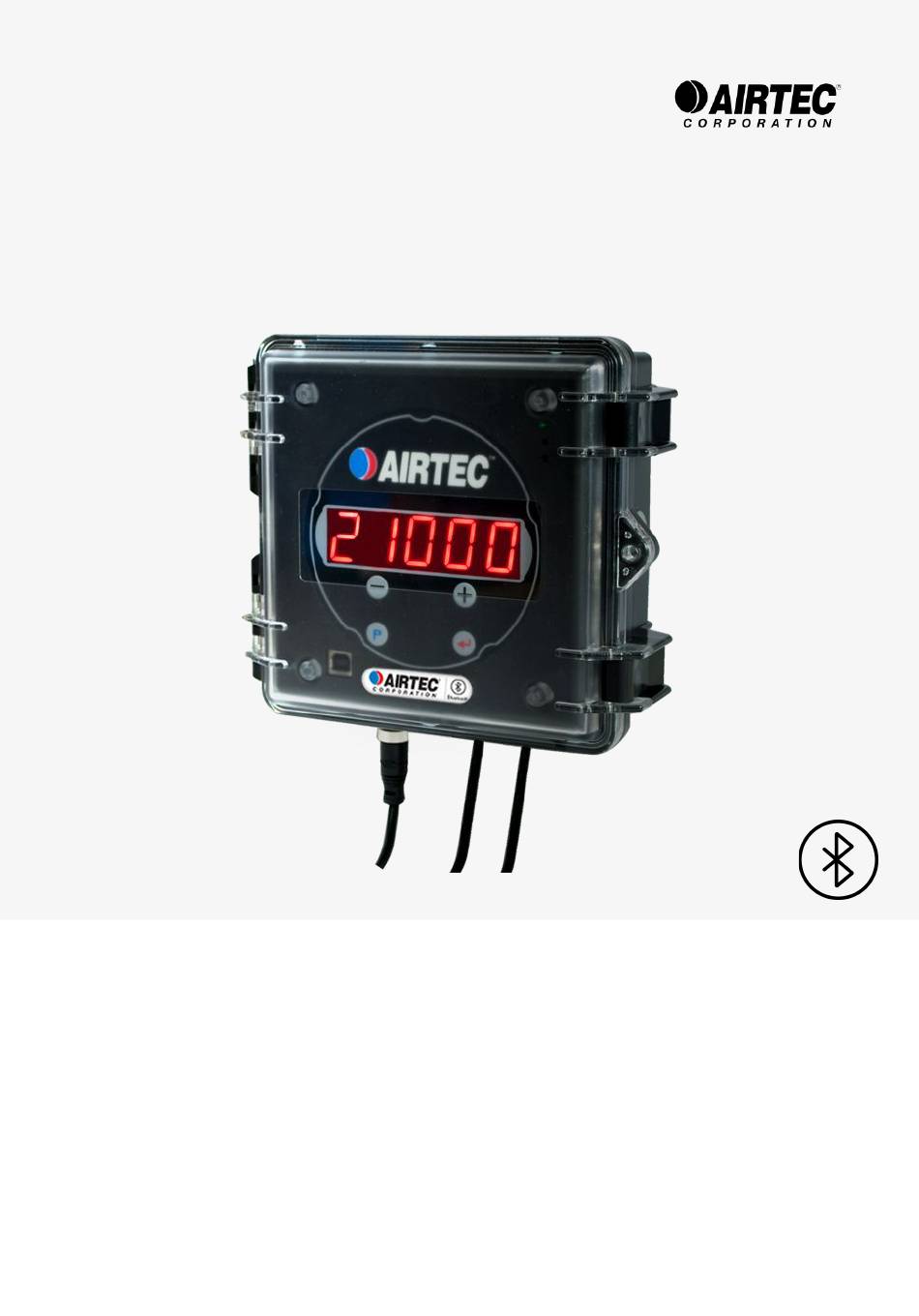

OPERATION MANUAL
89AXM202-1001
y
z
x
89AXM202-1001
Dual Sensor Truck Scales
Bluetooth System
© OPM-89AXM202-1001-AU-004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 89AXM202-1001 and is the answer not in the manual?

Questions and answers

Related Manuals for Airtec 89AXM202-1001

Summary of Contents for Airtec 89AXM202-1001

  • Page 1 OPERATION MANUAL 89AXM202-1001 89AXM202-1001 Dual Sensor Truck Scales Bluetooth System © OPM-89AXM202-1001-AU-004...

  • Page 2: Table Of Contents

    Chapter 3: Important Information Chapter 4: Standard Operations Chapter 5: Program Modes Chapter 6: Troubleshooting Warranty Appendix Certificate of Conformance CAUTION This equipment must always be used by trained personnel. Read and understand this operation manual before use. © OPM-89AXM202-1001-AU-004...

  • Page 3: Package Content

    It also has Bluetooth connection, allowing you to check your weights from your smartphone and save them for later reference*. The AXM202 is also compatible with the Airtec’s AXM Remote Display, allowing you to check your weights from inside the cab (optional).

  • Page 4: Chapter 1: Assembling

    WARNING CAUTION Please consult authorised dealer or Ensure that the product is connected specialist to install, repair, remove and to the correct poser and air supply, reinstall the unit. refer to rating label and general specifications. © OPM-89AXM202-1001-AU-004...
  • Page 5 Dog Trailer Side View Truck Top View AXM202 AXM202 Dual Sensor Dual Sensor 12-24 Vdc Power 12-24 Vdc Power Rear Axle Group Airline Front Axle Group Airline Airbags Axle 2 Truck Dual Height Dual Height Controls Control Valve © OPM-89AXM202-1001-AU-004...

  • Page 6: Chapter 2: Getting Started

    Button Remote Connection [ + ] Increases the value (for additional accessory) Power Input - 12-24 Vdc For factory use Airline Input - ¼ “ OD Green LED Airline Input - ¼ “ OD Red LED Power button © OPM-89AXM202-1001-AU-004...
  • Page 7 Store Program Button. This button stores and enters the value selected in the Program Mode. Remote Display Connection (Optional). Contact Airtec Corporation to purchase an AXM Remote Power Input - 12-24Vdc. Air Line Input - ¼ “ OD Air Line Input - ¼ “ OD Power button ⌽...

  • Page 8: Chapter 3: Important Information

    % Combined Channel: displays the weight value of a combined axle group. For example, used for prime movers with two ride height control valves. Note: For more information on pre-programmed options contact Airtec Corporation. | To turn ON/OFF your AXM202 Axle Load Indicator just press the Power Button ⌽.

  • Page 9: Chapter 4: Standard Operations

    | Exhaust the air from the suspension and re-inflate the air bag suspension to the correct ride height. | Your will know you have the correct calibration when the weight shown on the AXM202 unit is the same as the weighbridge value. Note consider a 0.2% of margin or error between values. © OPM-89AXM202-1001-AU-004...
  • Page 10 4 | Standard Operations Wireless AXM/AXL400 Gauge System Guide Before you set up your AXM it is recommended you meet the requirements listed below. | Ensure the Airtec AXM/AXL400 gauges are installed and have been calibrated correctly. In Cab Display Master Gauge...

  • Page 11: Standard Operation

    4 | Standard Operation © OPM-89AXM202-1001-AU-004...
  • Page 12 | To view total weight press the Power Button ⌽ again until ‘Total’ appears in the screen. The weight data corresponding to the total will flash after a few seconds e.g. ‘25910’. Important: Your AXM202 needs to be calibrated before you use it for the first time. Follow the instructions on page 13 for calibration. © OPM-89AXM202-1001-AU-004...
  • Page 13 4 | Standard Operation © OPM-89AXM202-1001-AU-004...

  • Page 14: Chapter 5: Program Modes

    To store value and go to the next Mode. Press P Press {P} To go to the next Mode without Press - or + to storing value. set HI value Press⌽ To exit Program Mode. Note: Only store HI value when vehicle loaded © OPM-89AXM202-1001-AU-004...
  • Page 15 To go to the next Mode without storing value. Press - or + to set the minutes for Press⌽ To exit Program Mode. dSPLY to turn Off. Note: Factory Default - display turns OFF after 5 minutes. Zero - display always ON. © OPM-89AXM202-1001-AU-004...
  • Page 16 Press ↵ to Press P to adjust store value Press P for 2 Press - or + to set LO Press ⌽ to seconds to enter Press P twice value exit Program Program Mode to display LO Mode © OPM-89AXM202-1001-AU-004...
  • Page 17 | Press {P} button 4 times to display the HI, press once to adjust value. | Adjust display value with {-} and {+} until reading is the same as the weighbridge docket | Press the ↲ to store | Press ⌽ button to exit Program Mode © OPM-89AXM202-1001-AU-004...
  • Page 18 It activates an internal switch (with close circuit for Blue/ White wires), used to activate external light or buzzer. Note: The LED indicator is purchased separately. Contact Airtec Corporation for more information. Setting Alarm 2 Press P to Press ↵...
  • Page 19 | Press {P} button 10 times to display “dSPLY”, press once to adjust value. | Use {-} or {+} to enter the display timeout (The “dSPLY’ value is set to “0”, the display will remain permanently ON).). | Press the ↲ to store | Press ⌽ button to exit Program Mode © OPM-89AXM202-1001-AU-004...

  • Page 20: Chapter 6: Troubleshooting

    6 | Troubleshooting The following chart has been prepared to assist with diagnosis of faults for the further information please contact Airtec Corporation. PROBLEM POSSIBLE CAUSE SOLUTION Caused by “LO” and “HI” Recalibrated “LO” value at values set at the same time unladen/empty weight and either empty or full.
  • Page 21 There’s power, but I cannot Check if mobile device Disconnect the power supply get connected to the Bluetooth is turned ON. to perform a full reboot of the TruckAXM application via unit. Bluetooth. Check if MCU unit has Bluetooth enabled. © OPM-89AXM202-1001-AU-004...

  • Page 22: Warranty

    Note: All faulty PCBs that are within the warranty period are to be returned to Airtec Corporation for assessment and repairs. PCBs which are found to be burnt due to water damage will not be covered under any warranty.

  • Page 23: Appendix

    Nett Weight: The weight of the goods carried may be determined by the subtracting the Gross weight from the Tare weight. High dECPt Decimal Point dSPLY Display Auto Off Timer Alarm Value 1 rFOFF Wireless inactive Alarm Value 2 rFON Wireless active © OPM-89AXM202-1001-AU-004...

  • Page 24: Certificate Of Conformance

    Manufactured by: Airtec Corporation (Asia) Pte Ltd 67 Ubi Crescent #01-02 Singapore 408560 Airtec Corporation RCM Number is E8292 This product displays the Regulatory Compliance Mark (RCM) to show that it complies with relevant Australian and New Zealand Standards © OPM-89AXM202-1001-AU-004...
  • Page 25 No part of his manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Airtec Corporation.
  • Page 26 © OPM-89AXM202-1001-AU-004...
