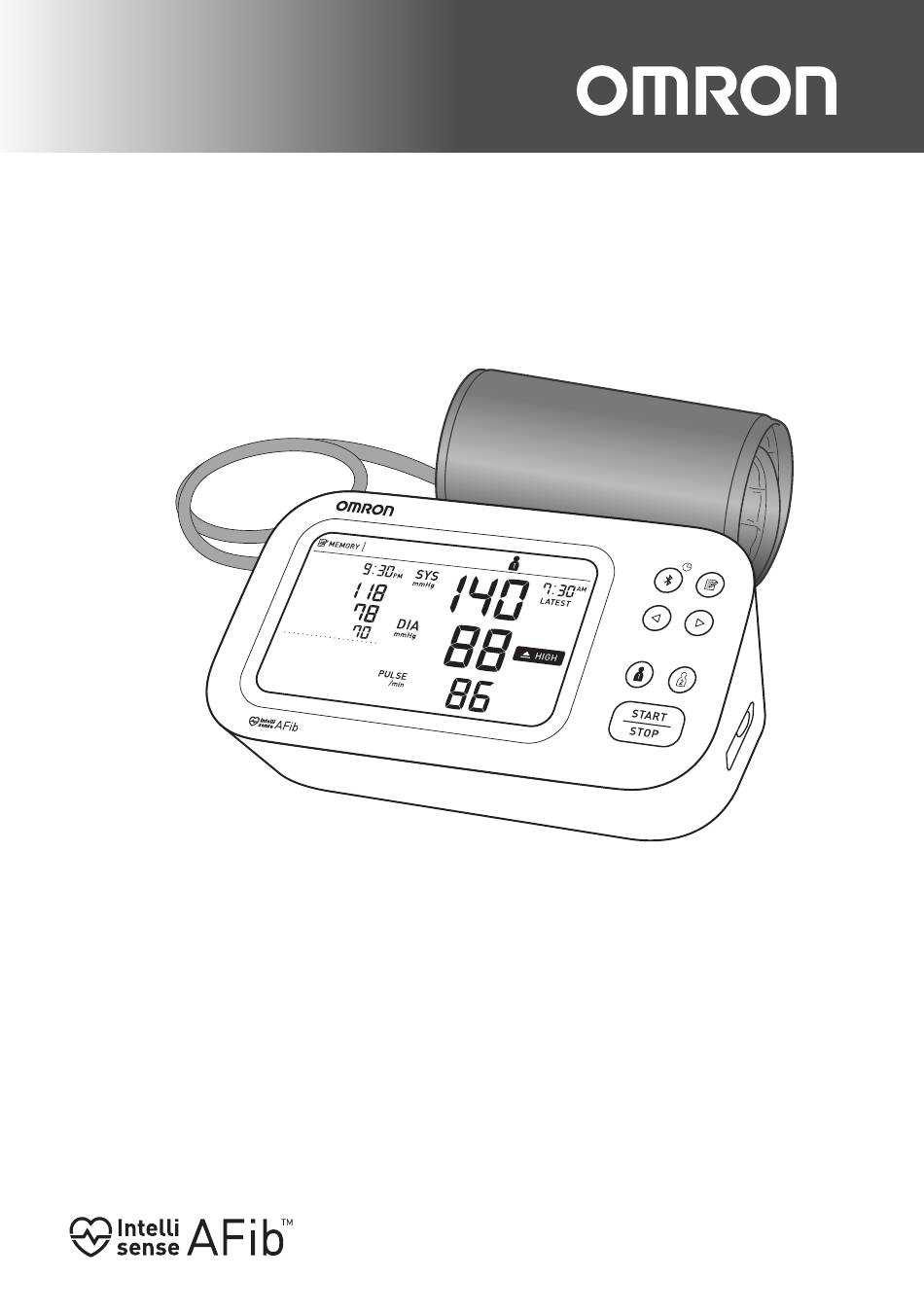

- Page 1 10 Series Upper Arm Blood Pressure Monitor Model BP7465 Instruction Manual 3146827-7D...
-
Page 2: Table Of Contents
Table of Contents Introduction .............2 8. Maintenance ..........47 Safety Instructions ..........2 8.1 Maintenance .......... 47 Intended Use ............2 8.2 Storage ............ 47 Receiving and Inspection ....... 3 8.3 Wiping the Monitor ......47 Symbols Glossary ..........3 8.4 Disposal ........... -
Page 3: Introduction
Introduction Thank you for purchasing the OMRON BP7465 Upper Arm Blood Pressure Monitor. This monitor can be used by multiple users. This blood pressure monitor uses the oscillometric method of blood pressure measurement. This means this monitor detects your blood movement through your brachial artery and converts the movements into a digital reading. -
Page 4: Receiving And Inspection
Introduction Receiving and Inspection Remove this monitor and other components from the packaging and inspect for damage. If this monitor or any other components is damaged, DO NOT USE and contact 1-800-634-4350. Symbols Glossary For symbol information, visit: OmronHealthcare.com/symbols-glossary... -
Page 5: Important Safety Information
Important Safety Information Read the Important Safety Information in this instruction manual before using this monitor. Follow this instruction manual thoroughly for your safety. Keep for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN. ... - Page 6 Important Safety Information • The possible AFib detection feature evaluates for a possibility of AFib ONLY. It will NOT detect other potentially life-threatening arrhythmias or diseases, such as a possibility of other cardiac arrhythmias or heart attack. • This monitor is not intended for the diagnosis, treatment, or management of AFib. Data Transmission •...
- Page 7 Important Safety Information • Rest for at least 5 minutes before taking a measurement. • Remove tight-fitting or thick clothing from your arm while taking a measurement. • Remain still and DO NOT talk while taking a measurement. • ONLY use the arm cuff on persons whose arm circumference is within the specified range of the cuff.
- Page 8 Important Safety Information • ONLY use the AC adapter, arm cuff, batteries and accessories specified for this monitor. Use of unsupported AC adapters, arm cuffs and batteries may damage and/or may be hazardous to this monitor. • ONLY use the approved arm cuff for this monitor. Use of other arm cuffs may result in incorrect readings.
-
Page 9: Know Your Monitor
1. Know Your Monitor Contents/Product Includes Monitor, Easy-Wrap ComFit Cuff, AC adapter (HEM-ADPTW5), 4 “AA” batteries, instruction manual, quick start guide Monitor and Arm Cuff Front of the monitor Display [Connection] button (Date/Time) [Memory] button [Forward]/[Backward] buttons [User ID 1]/[User ID 2] buttons [START/STOP] button... - Page 10 1. Know Your Monitor Left and right side of the monitor Air jack AC adapter jack Bottom of the monitor Battery compartment Arm cuff (Upper arm circumference: 9" - 17" (22 - 42 cm)) Air plug Air tube...
-
Page 11: Display And Symbols
1. Know Your Monitor Display and Symbols Average value symbol Date / Time display / Consecutive measurement Memory symbol number for TruRead Comparison display TruRead symbol Pulse display / Memory number Systolic blood pressure reading Heartbeat symbol Diastolic blood pressure Pulse level reading / AF Possible AFib detector symbol... - Page 12 1. Know Your Monitor Average value symbol Flashes when viewing the average of the latest 2 or 3 readings taken within the most recent 10 minute timeframe. Memory symbol Appears when viewing readings stored in the memory. Comparison display Displays past readings. Refer to section 5 for more information. Pulse display / Memory number •...
- Page 13 1. Know Your Monitor User ID (1 or 2) symbol The user ID number appears when selecting the user with the [User ID 1] or [User ID 2] button. User ID Guest symbol The user ID “G” appears when your monitor is in the guest mode.
- Page 14 1. Know Your Monitor TruRead symbol Appears when a measurement is taken if the TruRead mode is enabled. The TruRead mode automatically takes 3 consecutive readings at intervals you can customize and displays the average. To set the interval of the TruRead mode, refer to sub-section 2.4.
- Page 15 1. Know Your Monitor Irregular heartbeat symbol • Appears when irregular rhythm is detected 2 or more times during a measurement. • This symbol will not appear when viewing the average readings (except for the TruRead mode). • This symbol may be displayed when the monitor detects arm movements while taking a measurement.
-
Page 16: Classification Of Bp (Blood Pressure)
1. Know Your Monitor Classification of BP (Blood Pressure) ACC/AHA 2017 Hypertension guidelines define categories of BP in adults as below. Categories of BP in Adults* BP Category Systolic BP Diastolic BP < 120 mmHg and < 80 mmHg Normal 120 - 129 mmHg and <... -
Page 17: Preparation
2. Preparation Installing Batteries 1. Remove the battery cover. 2. Insert 4 “AA” batteries as indicated in the battery compartment. 3. Close the battery cover. As soon as the batteries are correctly installed, the year flashes on the display. Refer to sub-section 2.3 to set the date and time manually, or refer to sub-section 4.1 to pair your monitor with a smart device to set the date and time automatically. -
Page 18: Using The Ac Adapter
2. Preparation Using the AC Adapter Note • Make sure not to place your monitor in a location where it is difficult to plug and unplug the AC adapter. • It is recommended that you keep the batteries in your monitor at all times, even if you choose to use the AC adapter. -
Page 19: Setting The Date And Time
• The date and time will automatically be set when the monitor is paired with the compatible OMRON app. Refer to sub-section 4.1. • As soon as the batteries are correctly installed, the year flashes on the display of your monitor. - Page 20 2. Preparation 3. Press the button to confirm the year, then the month will flash. Repeat the same steps to adjust the month, day, hour, and minute. 4. Press the button to store the setting. TruRead mode setting is displayed 3 seconds after the minutes have been set in this sequence.
-
Page 21: Setting The Interval Of The Truread Mode
2. Preparation Setting the Interval of the TruRead Mode The TruRead mode takes 3 consecutive measurements. The monitor will take a measurement 3 times, separated by a short interval between each measurement. 1. Set or bypass the date and time settings. Follow the steps in sub-section 2.3 and set or bypass the date and time settings. -
Page 22: Blood Pressure Measurement Tips
2. Preparation 4. Press the button to confirm. Your monitor will automatically turn off in a second. To take a measurement in TruRead mode, refer to “Using the TruRead Mode” in sub-section 3.2. Blood Pressure Measurement Tips To help ensure an accurate reading, follow these directions: •... -
Page 23: Applying The Arm Cuff
2. Preparation Applying the Arm Cuff Note • The following steps are for applying the arm cuff to your left arm. • To take a measurement on your right arm, follow the cuff and tube placement instructions for use on your right arm mentioned under “To take a measurement on your right arm”... - Page 24 2. Preparation 2. Apply the arm cuff to your left upper arm. Note • The bottom edge of the arm cuff should be 0.5 inch (1 to 2 cm) above the inside elbow. The air tube is on the inside of your arm (palm facing up) and aligned with your middle finger.
-
Page 25: Sitting Correctly
2. Preparation To take a measurement on your right arm When you take a measurement on your right arm, the air tube should run along the side of your elbow, along the bottom of your arm. Be careful not to rest your arm on the air tube. ... -
Page 26: Using Your Monitor Without A Smart Device
3. Using Your Monitor without a Smart Device Taking a Measurement You can use your monitor without pairing to a smart device. To pair your monitor with a smart device, refer to sub-section 4.1. Your monitor is designed to take measurements and store the readings in the memory for 2 people. - Page 27 3. Using Your Monitor without a Smart Device 3. Remain still and do not talk until the entire measurement process is complete. The “ ” symbol flashes at every heartbeat. The pulse level moves along with the pulse strength detected while deflating.
- Page 28 3. Using Your Monitor without a Smart Device If the monitor detects a possibility of AFib... The “ ” symbol flashes on the display. Generally, blood pressure and pulse rate measured during AFib cannot be reliable. Therefore, the readings are not displayed when a possibility of AFib is detected.
-
Page 29: Using The Truread Mode
3. Using Your Monitor without a Smart Device Using the TruRead Mode 1. Press the button to select your user ID. 2. Press and hold the [START/STOP] button for more than 2 seconds. 3. Release the [START/STOP] button when the “... - Page 30 3. Using Your Monitor without a Smart Device After the third measurement is complete, the average for the 3 measurements appears on the display. If the monitor detects a possibility of AFib during a measurement in TruRead mode, the “ ”...
-
Page 31: Using The Guest Mode
3. Using Your Monitor without a Smart Device Using the Guest Mode Your monitor stores readings for 2 users in the memory. The guest mode can be used to take a single measurement for another user. Note • No readings are stored in the memory, and the TruRead mode is not available when the guest mode is selected. - Page 32 3. Using Your Monitor without a Smart Device If your systolic pressure is more than 210 mmHg If your systolic pressure is more than 210 mmHg, take a measurement manually. After the arm cuff starts to inflate, press and hold the [START/STOP] button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.
-
Page 33: Device
3. Download and install the compatible OMRON app onto your smart device. If you already have the compatible OMRON app and have created your account, open the app and add your new monitor. 4. Open the app and follow the pairing instructions shown on your smart device. - Page 34 • If the “Err” appears, follow the instructions in the app. • Your monitor automatically turns off after 10 seconds. • Be aware that OMRON will not be responsible for the loss of data and/or information in the app. • Only compatible OMRON apps should be used with this monitor to help ensure correct data transfer.
-
Page 35: Taking A Measurement
4. Using Your Monitor with a Smart Device Taking a Measurement Refer to sub-section 3.1 to start a measurement. Open the app on your smart device and follow the instructions. Caution • During measurement, make sure that no mobile device or any other electrical device that emits electromagnetic fields is within 12 inches (30 cm) of this monitor. - Page 36 4. Using Your Monitor with a Smart Device 2. Press the [START/STOP] button to turn your monitor off. Note • To enable Bluetooth, press and hold the button for more than 2 seconds. “on” appears on the display. • Your monitor automatically turns off 10 seconds after the completion.
-
Page 37: Using Memory Function
5. Using Memory Function This monitor can store readings for up to 2 users, and automatically stores up to 100 readings per user. Note • Make sure you remember which user ID stores your own readings. Viewing the Readings Stored in Memory 1. - Page 38 5. Using Memory Function Note • If the reading was high (refer to sub-section 1.4), the “ ” symbol appears. • If a possibility of AFib was detected during a measurement, the “ ” symbol flashes on the display. Generally, blood pressure and pulse rate measured during AFib cannot be reliable.
- Page 39 5. Using Memory Function If a possibility of AFib was detected during a measurement in TruRead mode, the “ ” symbol flashes on the average reading display. Generally, blood pressure and pulse rate measured during AFib cannot be reliable. Therefore, the readings are not displayed when a possibility of AFib is detected.
-
Page 40: Viewing The Average Reading
5. Using Memory Function Viewing the Average Reading Your monitor can calculate an average reading based on the latest 2 or 3 readings taken within the most recent 10 minute timeframe. Note • Set your monitor to the correct date and time before taking a measurement to view the average readings. -
Page 41: Other Settings
6. Other Settings Deleting All Readings Stored in Memory 1. Press the button to select your user ID. 2. Press the button. After a memory number appears, the latest reading will appear. 3. While holding the button down, press and hold the [START/STOP] button for more than 3 seconds. -
Page 42: Restoring Your Monitor To The Default Settings
6. Other Settings Restoring Your Monitor to the Default Settings To delete all the information stored in your monitor, follow the instructions below. Make sure that your monitor is turned off. 1. While holding the button down, press and hold the [START/STOP] button for more than 3 seconds. -
Page 43: Error Messages And Troubleshooting
7. Error Messages and Troubleshooting If any of the below problems occur during measurement, check to make sure that no other electrical device is within 12 inches (30 cm) of the monitor. If the problem persists, refer to the table below. Display/ Possible Cause Solution... - Page 44 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem Moving or talking during a measurement results in Remain still and do not talk vibrations that disrupt the during a measurement. appears measurement. Apply the arm cuff correctly, then take another measurement.
- Page 45 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem Apply the arm cuff Irregular correctly, then take another heartbeat measurement. Refer to symbol appears sub-section 2.6. Remain still and sit correctly during a The pulse rate is not measurement. detected correctly.
- Page 46 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem There are more than 80 readings in memory to be transferred. Pair or transfer your flashes readings to the app so you The date and time are not can keep them in memory set.
- Page 47 7. Error Messages and Troubleshooting Display/ Possible Cause Solution Problem Follow the instructions shown in the smart device, or Any other visit the “Help” section in the app for further help. If the communication problem still persists, contact customer service. Refer issue occurs.
-
Page 48: Maintenance
8. Maintenance Maintenance To protect your monitor from damage, follow the directions below: • Changes or modifications not approved by the manufacturer will void the user warranty. Caution • DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading. -
Page 49: Fcc Statement
9. FCC Statement FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 50: Limited Warranty
10. Limited Warranty Your BP7465 Blood Pressure Monitor, excluding the arm cuff, AC adapter and batteries, is warranted to be free from defects in materials and workmanship appearing within 5 years from the date of purchase, when used in accordance with the instructions provided with the monitor. The... - Page 51 10. Limited Warranty This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you. FOR CUSTOMER SERVICE Visit our web site at: OmronHealthcare.com Call toll free:...
-
Page 52: Declaration
BP7465 on the website. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co., Ltd. is under license. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. -
Page 53: What Is Possible Afib
12. What is Possible AFib? What is Blood Pressure? Blood pressure is a measure of the force of blood flowing against the walls of the arteries. Arterial blood pressure is constantly changing during the course of the heart’s cycle. The highest pressure in the cycle is called the Systolic Blood Pressure; the lowest is the Diastolic Blood Pressure. - Page 54 12. What is Possible AFib? The possible AFib detection feature ONLY evaluates for a possibility of AFib after taking a measurement. It does NOT continuously monitor your heart and therefore cannot alert you if AFib happens at any other time. This monitor cannot detect all forms of AFib.
- Page 55 12. What is Possible AFib? What is the difference between the possible AFib detection feature and EKG? The possible AFib detection feature uses pulse wave detection to detect a possibility of AFib. EKG measures the electrical activity of the heart and can be used by a physician to diagnose AFib.
- Page 56 12. What is Possible AFib? Is the blood pressure reading reliable when the “ ” symbol flashes or the irregular heartbeat symbol “ ” appears? AFib or an irregular heartbeat can influence your blood pressure measurements and make it difficult to get an accurate reading. Therefore, the readings are not displayed when a possibility of AFib is detected.
-
Page 57: Optional Accessories
13. Optional Accessories Easy-Wrap ComFit Cuff Arm circumference 9" - 17" (22 - 42 cm) Model: HEM-FL31-B HEM-FL31-BZ Note • Do not throw the air plug away. The air plug can be applicable to the optional cuff. AC Adapter Model: HEM-ADPTW5 For further information, visit our website at OmronHealthcare.com... -
Page 58: Specifications
14. Specifications Model BP7465 HEM-7381T1-AZ Display LCD digital display Cuff pressure range 0 to 299 mmHg Blood pressure SYS: 60 to 260 mmHg measurement range DIA: 40 to 215 mmHg Pulse measurement 40 to 180 beats / min. range Pressure: ±3 mmHg Accuracy Pulse: ±5 % of display reading... - Page 59 14. Specifications Monitor: Approximately 15.9 oz. (450 g) not Weight including batteries Arm cuff: Approximately 5.8 oz. (163 g) Monitor: Approximately 7.5" (w) × 3.3" (h) × 4.6" (l) (191 mm × 85 mm × 117 mm) Dimensions Arm cuff: Approximately 5.7" × 20.9" (air tube: 29.5") (145 mm ×...
- Page 60 14. Specifications Note • These specifications are subject to change without notice. • This monitor is clinically investigated according to the requirements of ISO 81060-2:2013 and complies with ISO 81060-2:2013 and ISO 81060-2:2018+A1:2020. In the clinical validation study, K5 was used on 85 subjects in general population for determination of diastolic blood pressure.
- Page 61 14. Specifications About a wireless communication interference The Bluetooth option in the product is used to connect to dedicated apps on mobile devices to synchronize date/time data from mobile device to the product, and to synchronize measurement data from the product to mobile device.
- Page 62 OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN Distributed by: OMRON HEALTHCARE, INC. 2895 Greenspoint Pkwy. Hoffman Estates, IL 60169 USA OmronHealthcare.com © 2024 OMRON HEALTHCARE, INC. Made in Vietnam...
