Summary of Contents for OLG Klass 90 Workstation

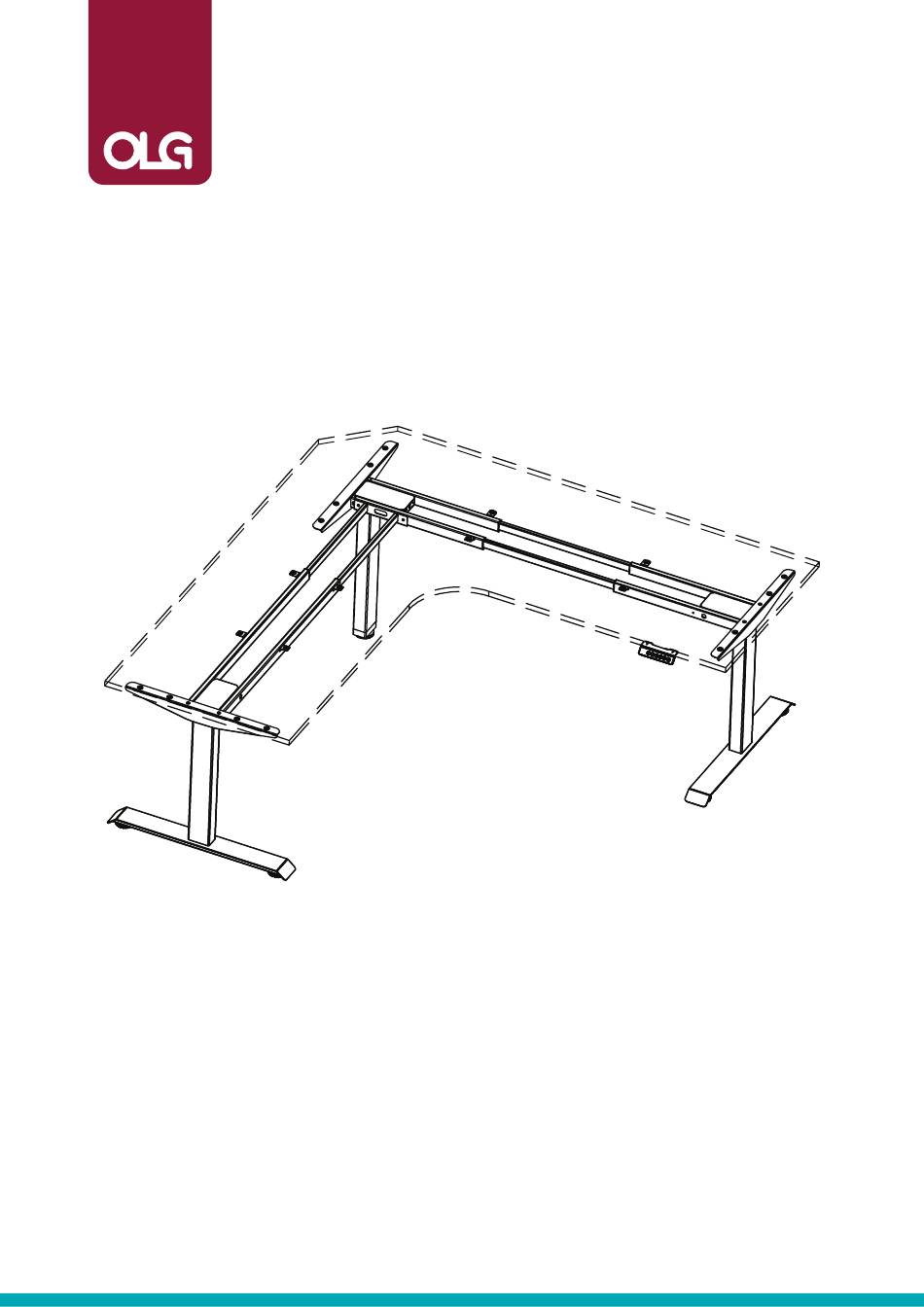

- Page 1 Klass 90° Workstation. Assembly Instructions...
-
Page 2: Components List
Klass 90° Workstation Components List 2 x Inside Bracket 2 x Column 1 x Outside Bracket 1 x Column w/ Leveling Pad 2 x Telescopic Frame 1 x Short Girder 2 x Rail 2 x Foot 1 x Switch 1 x Control Box 1 x Power 1 x Extension 8 x M6x16 Screw... - Page 3 Klass 90° Workstation Assembly Instructions STEP 1: 2 x Column 2 x Telescopic Frame Loosen (M6x8) screws and pull apart 8 x M6x10 Helpful Tips: 1 x M5 Allen Key Install the column with levelling pad in the middle leg. STEP 2: 1 x Short Girder 2 x Rail...
- Page 4 Klass 90° Workstation Assembly Instructions STEP 3: 1 x Column w/ Leveling Pad 8 x M6x10 1 x M5 Allen Key STEP 4: 2 x Inside Bracket 1 x Outside Bracket 2 x M6x10 4 x M6x8 Helpful Tips: Fix the side bracket with M6x8 screws, then put the 1 x M5 Allen Key washers beside M6x8 screws.
- Page 5 Klass 90° Workstation Assembly Instructions STEP 5: 2 x Foot 8 x M6x16 Helpful Tips: If you are installing a Klass Cable Tray on the workstation, you may need to swap the foot plate on the corner leg for a foot to get the configuration 1 x M5 Allen Key shown, and the lugs facing out from the main desk.
- Page 6 Klass 90° Workstation Assembly Instructions STEP 7: 20 x ST4.8x16 Screw Screwdriver (not included) STEP 8: 1 x Control Box 1 x Switch 2 x ST4.8x16 2 x ST3.5x16 1 x M5 Allen Key Klass 90° Workstation - Assembly Instructions...
-
Page 7: Cable Connection
Klass 90° Workstation Cable Connection STEP 9: 1 x Extension Cable 6 x Cable Clip 1 x Power Cord olgoffice.com | myolg.online... -
Page 8: Direction For Use
Klass 90° Workstation Direction for Use It is necessary to be reset manually after MANUAL RESET the initial installation and power off. • Keep pressing down key until the desktop until display shows “E-1” and “rES” alternately and release the key. •... -
Page 9: Maximum Height
Klass 90° Workstation Direction for Use SET MINIMUM AND Do not enable this function only when MAXIMUM HEIGHT you are really need in some situation. • Keep pressing the key “M” for 3 seconds until the display shows “S--” to enter setup menu. -
Page 10: Reset To Factory Setting
Klass 90° Workstation Direction for Use The function can detect whether the CHANGE THE DISPLAY UNIT(cm/inch) motors are collected normally. • Once the display shows “E-3” and “rES”, it reminds you check whether any E-3 rES motors fail connected with control unit. Please connect the main cable again, wait at least 5 seconds. -
Page 11: Troubleshooting
Klass 90° Workstation Direction for Use TROUBLE SHOOTING Code Operating E-4 / The height between two Stop the operation and reset, refer to Manual reset legs exceed 1 inch Check the cables and ensure they are well connected, and the height-adjustable desk can be used normally after manual reset TECHNICAL DATA Item... - Page 12 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
