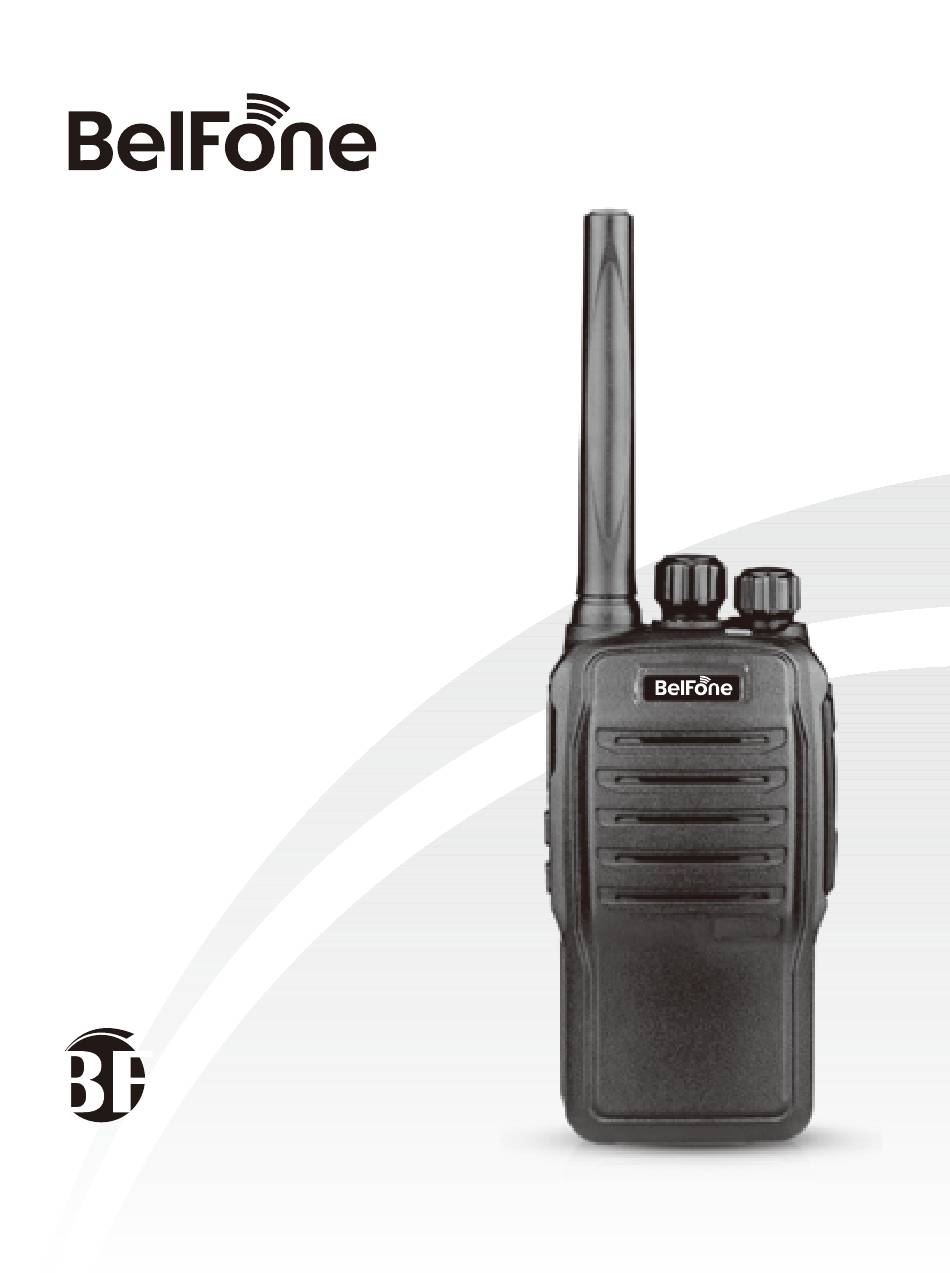

- Page 1 BF-S50 －Ｓ５０ ＦＭ ＴＲＡＮＳＣＥＩＶＥＲ...
-
Page 3: Notice To The User
We are grateful you choose BelFone series professional radio communications products! Since 1989, BelFone has been always engaging in research and exploration of radio communications technologies, In order to lead intelligent technologies in the industry. We still make every effort to research and... - Page 4 ◆ If you want to use the machine for secondary development, please contact with BelFone’s technical engineer or dealer for technical assistance; ◆ Please keep the surface of radio is clean and dry, clean the radio using a...
-
Page 5: Supplied Accessories
Supplied accessories Notes: The accessories listed below are covered by BelFone dealer, authorized BelFone agents or factories. After carefully unpacking the transceiver, identify the items listed in the table below. If any items are missing or have been damaged during shipment please contact with dealer immediately. -
Page 6: Installation Of Accessories
Installation of Accessories Ａｔｔａｃｈｉｎｇ／Ｒｅｍｏｖｉｎｇ ｔｈｅ ｂｅｌｔ ｃｌｉｐ Attach the belt clip using the two supplied 3*4mm binding screws. Ａｔｔａｃｈｉｎｇ／Ｒｅｍｏｖｉｎｇ ｔｈｅ Ｓｔｒａｐ Thread the hand strap to the loop back of your radio. -
Page 7: Attaching/Removing The Battery
Attaching/Removing the Battery Warning！ Don’t short-circuit the battery, it may cause the battery damaged or burst into flame; Never attempt to remove the casing from battery, that avoid to short the battery terminal; Battery is flammable objects, don’t throw it into fire or don’t use it on dangerous area. Match the guides of the battery with the two corresponding grooves on the bottom of the radio, press the battery... - Page 8 Features for li-ion battery The capacity will be reduced after repeat charging and discharging The capacity will also have burn-in phenomenon(battery capacity will be reduced). The battery will be charged at highest capacity when it is charged at shady and cool place(lower them 25℃）...
- Page 9 Warning ● Please don’t charge battery excessively Please stop charging if the battery still can not be full charged within regular time(4-6 hours),or battery will be overheating and smoke explosion or burst into flames. ● Please don’t put batter into Microwave lamp and high pressure vessel Battery will be overheating and smoke explosion or burst into flames.
-
Page 10: Buttons And Functions
Buttons and Functions ① Channel Selector Knob Turn the knob to select channel 1-16 and it will have relative voice indicator ② Power switch/volume adjust keys Turn clockwise to switch the radio power on, when the radio is turned on, rotate clockwise to increased volume, counter- clockwise to decrease the volume. -
Page 11: Adjusting The Volume
The function introduction and operation Turning the power on /off Rotate the power switch/volume adjusting keys clockwise to turn the power on. Rotate the power switch/volume adjusting keys anti-clockwise to turn the power off. Adjusting the volume After the radio is power on, you can rotate the power switch/volume adjust keys to adjust the volume level, rotate the knob clockwise to increase the volume, or rotate the knob anti-clockwise to decrease the volume. -
Page 12: Optional Features
● If our radio is programmed with QT/DQT,you can only hear the calling with has the same QT/DQT. You can not hear other callings. Programming Please use the specific programming cable, connect radio with PC, open program software BF-S50. The function introduction and programming Optional Features Open program software,from“edit”choose“optional features”... - Page 13 Squelch Level:0-9 Squelch function is used when your radio dose not receive signal,it can make speaker silence.when you close squelch,you will hear the background noise.when open squelch, you will not hear the background noise. Squelch can set as 10 levels,0 level will close squelch function, the default setting is 3 level.
-
Page 14: Voice Prompts
Notice:when adjust VOX level,MIC recognize voice,LED shows red, radio dose not transmit. Voice Prompts Voice Prompts is used when you turn channel knob, radio will announce channel number, you can choose None,Chinese, English from program software. Language You can choose Chinese or Engilsh from program software.Please make the setting Option-Language to choose the language you want. -
Page 15: High/Low Power Switch
● During scanning(no signal received),press MONI,you can receive last time’s scan channel signal ● During scanning(no signal received),press PTT, you transmit last time’s scan channel frequency ● If scan with signal, press PTT,transmit current scan’s channel frequency. High/Low power switch This radio enable high/low power switch, high power is 4w, low power is 0.5w.You can swich high/low power from sidekey button. - Page 16 relieve BCL. When choose QT/DQT,if carrier is occupied and use same QT/DQT, it will go to BCL, if carrier is free, it will relieve BCL. When press PTT,if this channel is using, your radio will make alarm and you can not make transmitting.
- Page 17 CTCSS/DCS Standard Frequency Table Freq Freq Freq Freq [Hz] [Hz] [Hz] [Hz] 67.0 94.8 131.8 186.2 69.3 97.4 136.5 192.8 71.9 100.0 141.3 203.5 74.4 103.5 146.2 210.7 77.0 107.2 151.4 218.1 79.7 110.9 156.7 225.7 82.5 114.8 162.2 233.6 85.4 118.8 167.9...
-
Page 18: Specifications
Specifications General Frequency range UHF:400-480MHz Channel capacity Channel spacing 25 KHz /12.5 KHz Working temperature -20℃～+60℃ Antenna impedance 50Ω Power voltage DC 7.5V(±20%) Battery capacity 2500mAh Frequency stability ≤±2.5 ppm Dimension 193*60*36mm Weight 253g(with battery) Transmitter RF Output Power High:4W Low:1W Modulation 16K0F3E(Wide)/8K50F3E(Narrow) Spurious and harmonics... - Page 19 Statement Our Company endeavors to achieve the accuracy and completeness of this manual, if you have any question, you can contact with us, we will make a detailed answer to you in time. All the above specifications and design are subject to change without prior notice due to continuous development.
