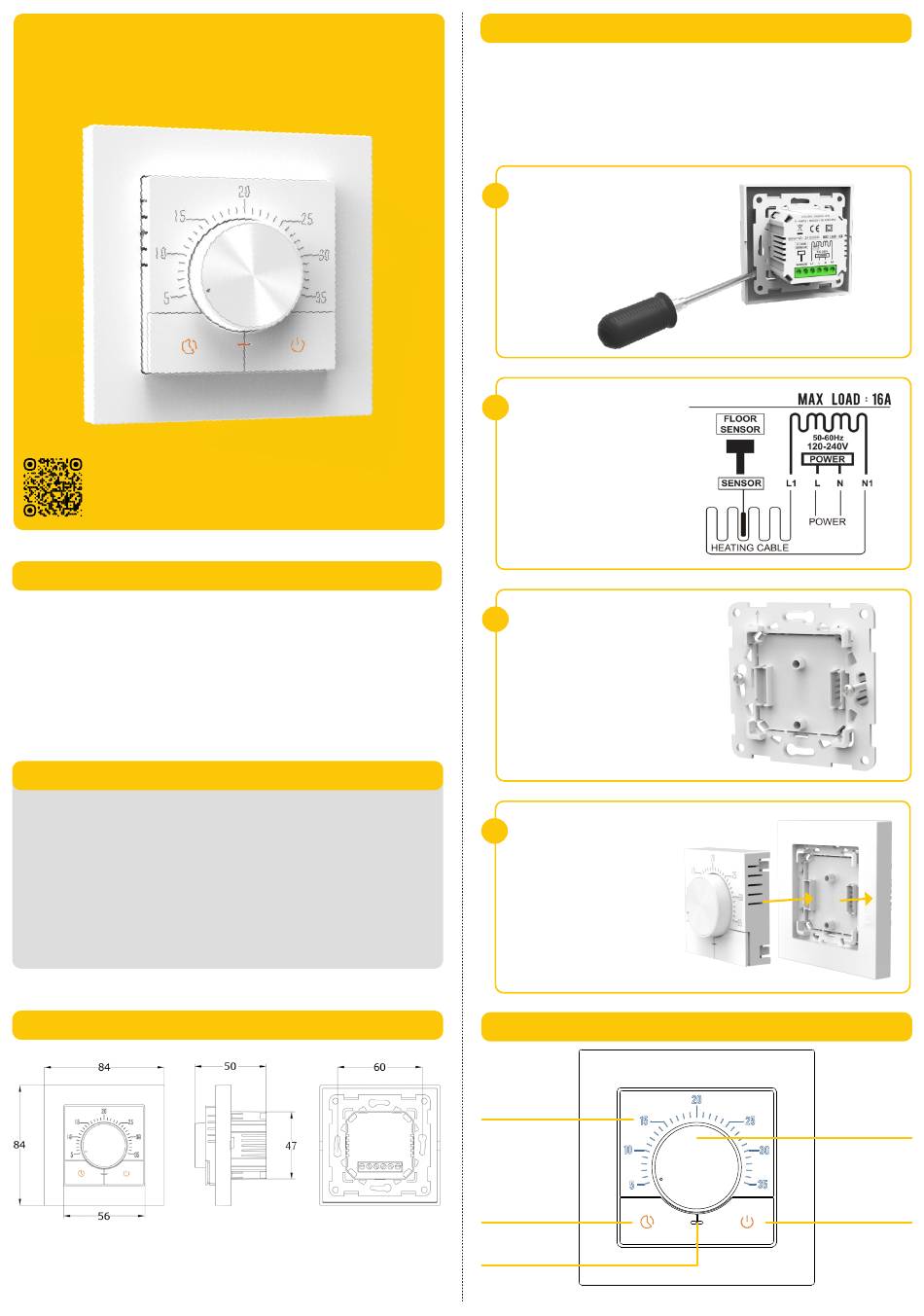

Magnum S-Control Installation And User Manual

MAGNUM S-Control
Manual On/Off thermostat
INSTALLATION AND
USER MANUAL
1. INTRODUCTION
Read this manual carefully and keep it with other warranty docu-
ments. Connection must be carried out by a qualified installer in
accordance with local regulations. Before installing or disassem-
bling the thermostat and display, always switch off the electricity
in the meter cupboard. This thermostat can be installed in a single
fush-mounting box 50 mm deep, according to standard DIN formats.
2. TECHNICAL SPECIFICATIONS
Supply voltage : 230VAC 50/60 Hz
Max. Load : 16 A (resistive load)
Standby power: : < 1W
Temperature range : 5-35°C
Floor temp. limit protection : 30°C
Floor sensor type : 12k
Cover : IP31
Approvals : CE/UKCA
Warranty : 2 years
Manufacturer : MHG BV, The Netherlands
3. DIMENSIONS
4. INSTALLATION
WARNING:
Disconnect the main power supply before wiring. Installation needs to be
done by a qualified electrician in accordance with all current wiring and buil-
ding regulations. The electric floor heating cable/ mat must be in accordance
with the supply voltage. The terminals are designed to handle a cross-section
of wire measuring 12-22AWG.
Make sure the power is
1
turned off. Remove the
display frame by gently
pulling it.
Connection schedule:
2
L/N:
Mains power connection
HEATING N1+ L1:
Heating cable (Max. 16A)
FLOOR SENSOR:
Floor sensor (order does
not apply)
Use the mounting screws
3
to fix the thermostat in the
mounting box.
Position the thermostat and
4
click into position.
5. SYMBOLS
Temperature
scale
Setback switch
LED indicator*:
Red/Blue/Green
* RED: Heating / BLUE: Setback / GREEN: Standby / RED blinking: Sensor fault
Control disc
Power switch
