Summary of Contents for GiRAFFE TOOLS G30B

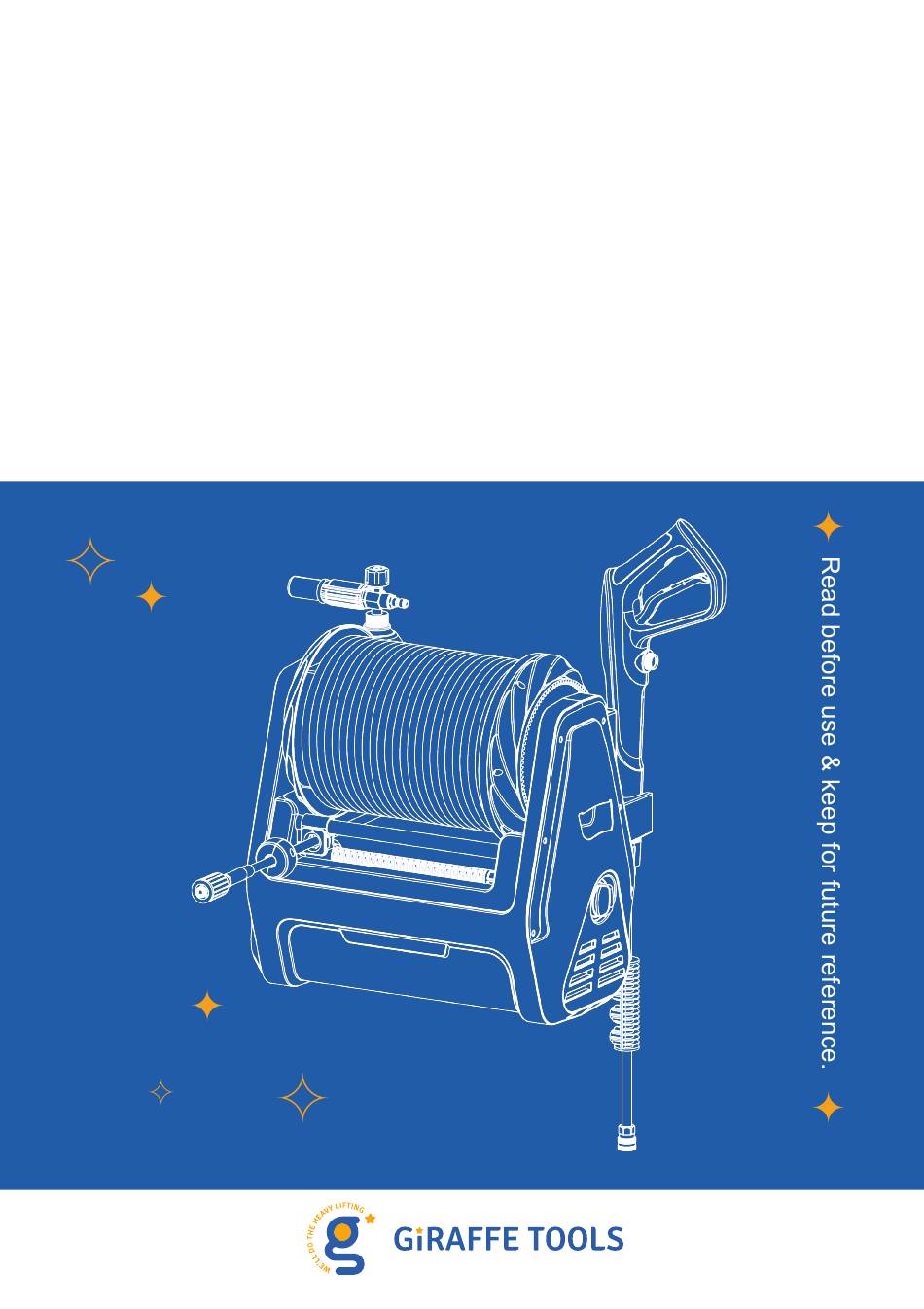

- Page 1 GRANDFALLS PRESSURE WASHER G30B MODEL HP135-G30B For more information visit giraffetools.com or contact our customer service by sending an email to service@giraffetools.com...
-
Page 2: Table Of Contents
MANUAL CONTENTS Important Safety Instructions Assembly ------------------------------ Product Description Replace High Pressure Hoses ------------- ------ Product Information After Use Tips ------------ ------------------------- What’s Included Problems Solution ------------------ ------------------- Open-Box Check Warranty ---------------- ------------------------------- Tools Requirement Recommended Products -------------- ----------- Fix Wall Base ----------------------... -
Page 3: Important Safety Instructions
If you find any, do not start up your machine. Contact Giraffe Tools via service@giraffetools.com or call the Giraffe Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST). WARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. - Page 4 Contact Giraffe Tools via service@giraffetools.com or call the Giraffe Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST).
- Page 5 WARNING! Do not use this appliance without reading this instruction manual. WARNING! The use of other incorrect cleaning agents or chemicals may adversely affect the safety of the appliance. WARNING! Do not use the appliance within range of persons unless they are wearing protective clothing.
-
Page 6: Electrical Safety
Power cord connections should be kept dry and off the ground. ● If the power cord is damaged, do not use the appliance. Contact Giraffe Tools via service@giraffetools.com or call the Giraffe Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST). -
Page 7: Safety Devices
WARNING! Electrical Shock Hazard – Before starting up, please check it carefully for any defects. If you find any, do not start up your machine and contact Giraffe Tools. The following should be observed when connecting the pressure washer to the electric supply: ●... -
Page 8: Risk Of Electrocution
WARNING Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings: ● Do not allow any part of the electric pressure washer to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting. -
Page 9: Additional Safety Instructions
Additional Safety Instructions ● High-pressure: keep clear of nozzle. ● Injection hazard: equipment can cause serious injury if the spray penetrates the skin. ● Do not point the gun at anyone or any part of the body. ● In case of skin penetration, seek medical aid immediately. ●... -
Page 10: Production Information
PRODUCTION INFORMATION Thanks for choosing Giraffe Tools. Before using the pressure washer, please read the owner’s manual and safety instructions carefully. Compare the illustration below to the electric pressure washer to familiarize yourself with the installation data for this product. -
Page 11: What's Included
WHAT’S INCLUDED Electric Pressure Washer Four (4) Quick-Connect Nozzles 100ft Replaceable Pressure Hoses (Black) (0°, 15°, 25°, 40° ) Metal Foam Pot Trigger Gun Four (4) M8-60 Expansion Bolts, M8-70 Hexagon Spray Wand Socket Self-tapping Screws Hub Pin Wall Fixed Base 1 1. -
Page 12: Open-Box Check
If your product is missing parts or has visible damage upon receipt, please contact the Giraffe Tools customer service team via service@giraffetools.com or call the Giraffe Tools customer service center at +1 (833)583-0881 (9 am - 5 pm EST). Note: If you notice an initial aroma upon opening your package, this is due to the sealed environment in which the package traveled overseas. - Page 13 Use a 1/2" or 12mm diameter drill bit to drill the 4 marked holes. Hole depth is important. You may choose to measure a 2.6in depth on the drill bit itself and mark it with a small piece of tape so you know when you’ve drilled the appropriate depth into the wall.
-
Page 14: Replace High Pressure Hoses
REPLACE HIGH PRESSURE HOSES Step 1: Preparation 1.1 Turn off the water faucet and turn off the power switch. 1.2 Trigger the gun to release pressure inside the item. Disconnect the high pressure hose and the high pressure gun, and place the pressure gun in the storage of the pressure washer. - Page 15 Step 3: Replace the High Pressure Hose 3.1 Use two wrenches to disconnect the high pressure hose in the opposite direction. Refer to arrow 3.1. 3.2 Insert the new high pressure hose through the pressure hose holder. 3.3 Connect the new high-pressure hose to the shorter pipe fitting of the machine. 3.4 Use a screwdriver to tighten the pressure hose hoop.
- Page 16 ASSEMBLY ATTENTION: During the use of the machine, please do not work continuously for more than one hour to avoid the situation that the pump temperature is too high and causes the machine not to work. If the machine does not work, please turn the machine off cool down, and turn it on again, if you can not solve it, please send a video to service@ giraffetools.com, we will reply and solve your problem ASAP.
- Page 17 Connect the water inlet hose (end with filter) to the water inlet end of the pressure washer by hand and tighten it by hand (Please make sure that there is no debris blockage on the filter side of the water inlet hose) (Fig. 7). Fig.
-
Page 18: After Use Tips
AFTER USE TIPS How to Retract In order to enhance your experience with Giraffe Tools and extend the life of the pressure washer. First, when the cleaning task is done, please turn to the state of “OFF”, and then turn off the water supply. - Page 19 Remove the plug from the socket. Discharge the residual pressure from the gun until all the water has come out of the nozzle, and clean the nozzle with a needle clean-out tool. Drain and wash out at the end of the working session. Engage the gun safety catch.
-
Page 20: Problems Solution
● No water supply. ● Connect inlet water. comes out ● Nozzle blocked. ● Clean the nozzle. ● Please contact Giraffe Tools customer service team via ● Pump/spray gun is leaking. Machine often service@giraffetools.com or ● Trigger mechanism is... -
Page 21: Warranty
0881 (9 am - 5 pm EST). WARRANTY At Giraffe Tools, we conduct rigorous testing on every machine before it leaves the factory and perform a lifetime test on every thousand machines to ensure they will withstand many years of use beyond the warranty period. - Page 22 It may be necessary to return an item for quality inspection. ● For defective items that Giraffe Tools needs to have returned, warrantion those replacements are voided if the wrong item is returned to Giraffe Tools or if the defective item is not returned. Valid proof of purchase: ●...
-
Page 23: Recommended Products
Hybrid Hose with Customized Garden 150-250ft Swivel Grip 2.5-100ft Hose 6-100ft Scan code to visit Giraffe Tools Scan code to visit giraffetools.com Scan code to join our store on Amazon.com facebook group If you are interested in the above products, you can visit giraffetools.com or search for... - Page 24 WE WILL DO THE HEAVY LIFTING To purchase Giraffe Tools products and more, visit giraffetools.com or search for Giraffe Tools on Amazon.com. Complete your registration online for a 100 DAYS WARRANTY EXTENSION giraffetools.com service@giraffetools.com +1 (833)583-0881 (9am - 5pm EST)
