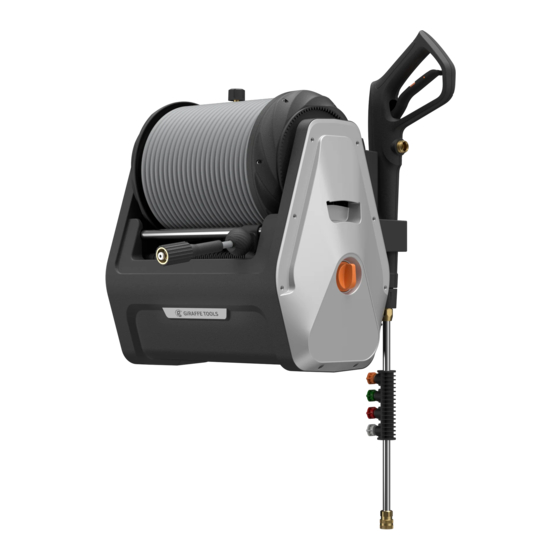

GRANDFALLS
PRESSURE WASHER
Model P106
For more information visit giraffetools.com or contact our customer service by sending an email to service@giraffetools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRANDFALLS P106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GiRAFFE TOOLS GRANDFALLS P106

  • Page 1 GRANDFALLS PRESSURE WASHER Model P106 For more information visit giraffetools.com or contact our customer service by sending an email to service@giraffetools.com...
  • Page 2: Table Of Contents

    MANUAL CONTENTS Product Information Using Steps ----------- ----------------------- What’s Included After Use Tips ------------------ --------------------- Open-Box Check Problems Solution ---------------- --------------- Safety Rules Warranty ----------------------- -------------------------- Tools Requirement Recommended Products -------------- -------...
  • Page 3: Product Information

    PRODUCT INFORMATION Thank you for choosing Giraffe Tools pressure hose reel. Before using the pressure hose reel, please read the following installation instructions and refer to them when necessary. Pressure Hoses length 1/2 inch ×100ft Drill Size 12mm Temperature Range 0°F- 104°F...
  • Page 4: What's Included

    WHAT’S INCLUDED 4 x Self Tapping Screws: Φ8x70 1 x Pressure Hose Reel with 100ft Hose 4 x Expansion Anchor Bolts: Φ12x60 1 x High Pressure Gun 1 x Wall Fixed Base 1 x Owner’s Manual 1 x Bubble Spray Bottle 4 Quick-Connect nozzles(0°, 15°, 25°, 40°...
  • Page 5: Open-Box Check

    Check for any scratches or damage done to the product. If your product is missing parts or has visible damage upon receipt, please contact the Giraffe Tools customer service team. Note: If you notice an initial aroma upon opening your package,this is due to the sealed environment in which the package traveled overseas.
  • Page 6 SHOCK HAZARD DO NOT jam the trigger in the opening position. ACCIDENT HAZARD Check the data plate attached to the appliance. If not available, please contact the dealer. Do Not use the appliance without data plate because it’s not sure safe or dangerous.
  • Page 7 Connecting or replace plug and electrical cable MUST be carried out by qualified staff; DO NOT pull fiercely when discharging the plug; Electrical cable should be far away from fire and sharp object; Cut the power supply immediately in case of breakdown or stop and find out the reason before re-start the appliance;...
  • Page 8 CONTAMINATION HAZARD Maintenance and/or repair of electrical components MUST be carried out by qualified staff. ACCIDENT HAZARD Shut down the appliance, cut power supply and water supply. Then, discharge the residual pressure by triggering the gun before disconnecting the unit hose. INJURY HAZARD Before using the appliance, CHECK every time that the screws are fully tightened and that there are no broken or worn parts.
  • Page 9: Tools Requirement

    SAFETY “MUSTS” Caution – Danger! Do not tamper with or adjust the safety valve setting. Safety valve and/or pressure limiting valve. The safety valve is also a pressure limiting valve. When the gun trigger is released, the valve opens and the water recirculates through the pump inlet or is discharged onto the ground.
  • Page 10 Note: Please install the machine at a height of approximately 24-32in above the ground to maximize the function of auto-retract. Use a 1/2" or 12mm diameter drill bit to drill the 4 marked holes. Hole depth is important. You may choose to measure a 1.96in depth on the drill bit itself and mark it with a small piece of tape so you know when you’ve drilled the appropriate depth into the wall.
  • Page 11 Way to Use Fixing the matching end of the hose firmly into the gun handle. See figure 2 and 3. Tighten the connector by hand only. Loosen the high pressure hose to avoid twist. Figure 2&3: Pressure Hose Connect Connect the lance to pressure gun. See figure 4. Figure 4: Lance Connect Push the trigger lock button, ensure the trigger in the “OFF”...
  • Page 12 Connect the water inlet hose (end with filter) to the water inlet end of the pressure washer by hand and tighten it by hand (Please make sure that there is no debris blockage on the filter side of the water inlet hose). See figure 7. Figure 7: Water Inlet Hose Connect CAUTION: Please do not use tools such as wrenchs to tighten it.
  • Page 13: After Use Tips

    AFTER USE TIPS How to Retract In order to enhance your experience with Giraffe Tools and extend the life of the pressure hose reel. First, when the cleaning task is done, please turn to the state of “OFF”, and then turn off the water supply.
  • Page 14 Third, after releasing the pressure, please hold the pressure gun and pull the pressure hose a little out, and then, retracting the pressure hose to the whole reel. Figure B for your reference. Last, store your pressure gun. Storage During Winter Switch to the state of “OFF”...
  • Page 15: Problems Solution

    PROBLEMS SOLUTUION PROBLEM PROBABLE CAUSE SOLUTION Water intake from external Connect appliance to the tank mains water supply Intake water too hot Reduce temperature Pressure drops Nozzle clogged Clean nozzle during use Replace the broken O-ring to one-way valve broken component Intake filter dirty Clean filter...
  • Page 16: Warranty

    WARRANTY At Giraffe Tools, we conduct rigorous testing on every machine before it leaves the factory and perform a lifetime test on every thousand machines to ensure they will withstand many years of use beyond the warranty period.
  • Page 17 It may be necessary to return an item for quality inspection. ● For defective items that Giraffe Tools needs to have returned, warrantion those replacements are voided if the wrong item is returned to Giraffe Tools or if the defective item is not returned. Valid proof of purchase: ●...
  • Page 18: Recommended Products

    Hybrid Hose with Customized Garden 150-250ft Swivel Grip 2.5-100ft Hose 6-100ft Scan code to visit Giraffe Tools Scan code to visit giraffetools.com Scan code to join our store on Amazon.com facebook group If you are interested in the above products, you can visit giraffetools.com or search for...
  • Page 19 WE WILL DO THE HEAVY LIFTING To purchase Giraffe Tools products and more, visit giraffetools.com or search for Giraffe Tools on Amazon.com. Complete your registration online for a 100 DAYS WARRANTY EXTENSION giraffetools.com service@giraffetools.com +1 (833)583-0881 (9am - 5pm EST)
