Summary of Contents for MDF Italia Minima 3.0 cabinets Extra

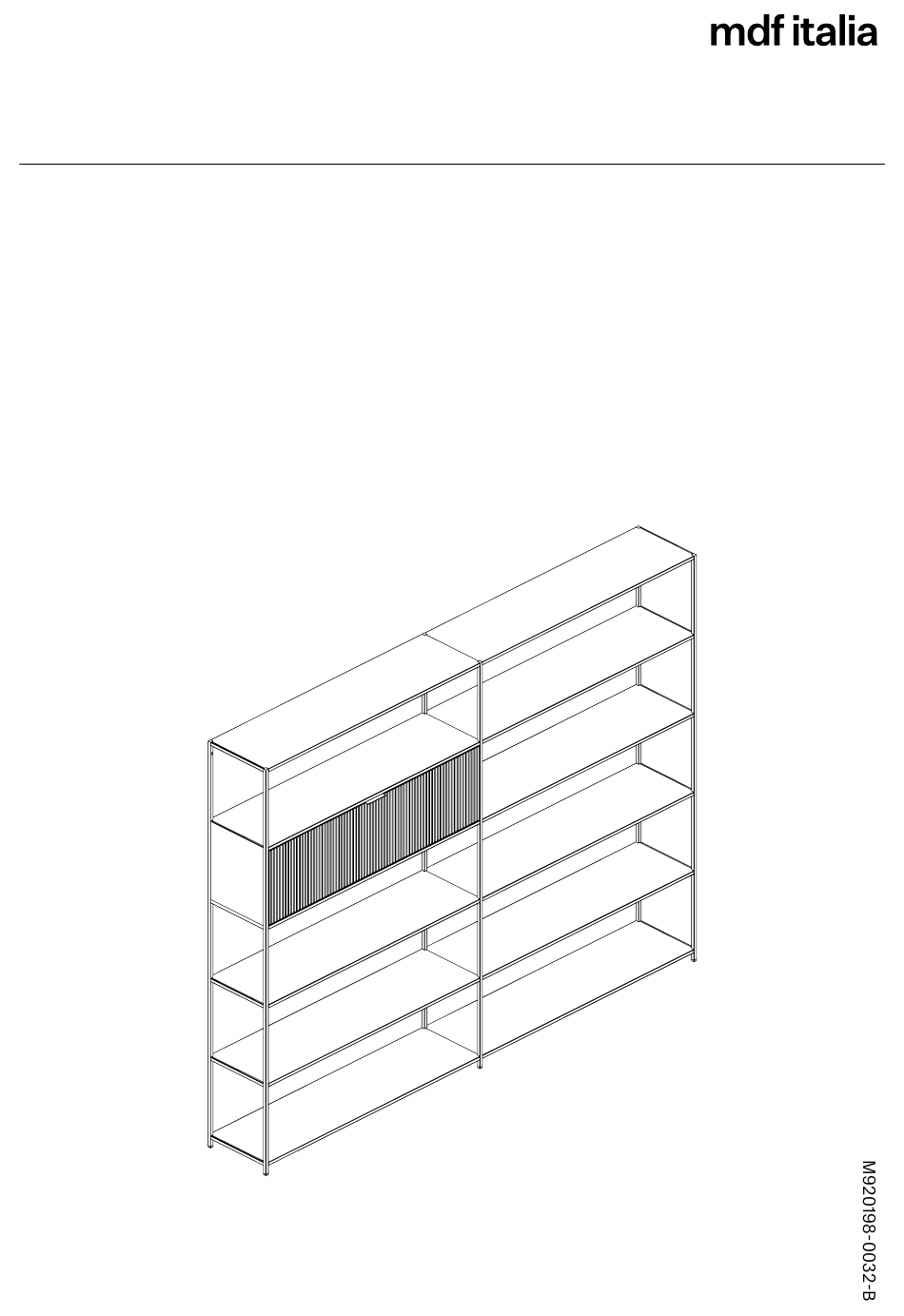

- Page 1 Minima 3.0 cabinets Extra Istruzioni di montaggio 11.2024 Assembly Instructions Montageanleitungen Instructions de montage Instrucciones de montaje by Metrica design Bruno Fattorini...
- Page 2 Minima 3.0 Kit ferramenta Hardware kit 4x rubber pads Hardware-kit Kit de matériel Kit de hardware 4x M4x20 6x adhesive cover caps...
- Page 3 Minima 3.0 cabinets Extra A x4...
- Page 4 Minima 3.0 cabinets Extra...
- Page 5 Minima 3.0 cabinets Extra B x2...
- Page 6 Minima 3.0 cabinets Extra C x3...
-
Page 7: Door Adjustment
Door adjustment Spring strenght adjustment. Door height adjustment ± 2 mm. Lateral movement adjustment of the Door tilt adjustment +3°. door ± 1.2 mm. - Page 8 Minima 3.0 cabinets Extra Once the adjustment is complete, close the cover paying attention to the position of the tab. For cleaning and maintenance, please see the information on the website www.mdfitalia.it...
