Introduction
The IQ200 panel mount process indicator is a precision digital indicator for interfacing to and measuring most process
variables. The IQ200 is capable of measuring and processing variables such as mA, Volts, Potentiometers, Frequency,
Counting and also has built in functions such as an Event Timer, Real Time Clock (RTC option required) and a manual
analog output station (Analog out option required). The IQ200 also includes a multiple output excitation voltage selection
for sensor excitation of 2 or 3 wire transmitters, encoders, potentiometers and many more.
Calibration of the analog process variables is simply done by either entering in the display range selection or by direct
sensor injection calibration.
The high bright 6-digit 14 segment LED displays make for easy setup and readability. A simple menu system with built in
help hints allows for easy configuration of display and sensor settings.
A universal mains switch mode power supply (85-264VAC) is provided as standard but an optional low voltage (10-
30VDC) isolated power supply or a high voltage (25-70VDC) isolated power supply can be installed.
RS232 communications is supplied as standard with the MODBUS™ RTU and MODBUS™ ASCII protocol. A simple
ASCII out protocol is also provided for serial printing and communicating to large displays. A second communication
RS485 interface can be added in conjunction with the standard RS232 interface.
The IQ200 also has an analog out or an isolated analog out option to generate a precision 0/4-20mA and 0-10V analog
output signal.
The IQ200 also includes advanced features such as user input linearisation, max/min recording, programmable front
push buttons, programmable digital inputs, security menu lockout, advanced digital filtering, plus many more to provide a
truly universal process indicator.

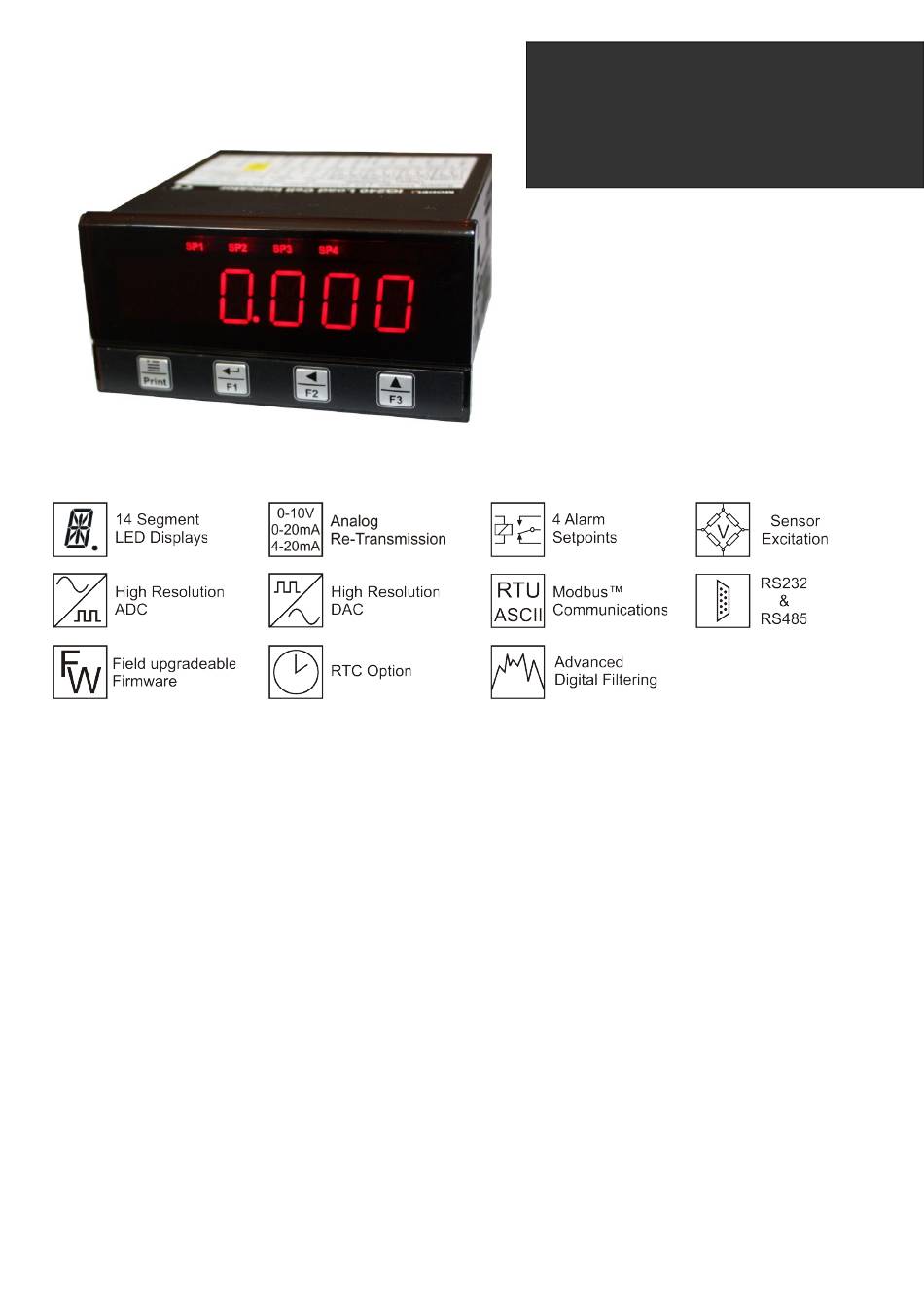

IQ200
Panel Mount Process Indicator
Operating Manual – English 1.01
mA
Volts
Millivolts
Frequency
Counting
Potentiometer
Event Timer
Real Time Clock
Manual Analog Out Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for INSTROTECH IQ200

  • Page 1 ASCII out protocol is also provided for serial printing and communicating to large displays. A second communication RS485 interface can be added in conjunction with the standard RS232 interface. The IQ200 also has an analog out or an isolated analog out option to generate a precision 0/4-20mA and 0-10V analog output signal.
  • Page 2 IQ200 Panel Mount Process Indicator Page 2 1 Features  High bright 6-digit 14 segment LED displays for easy setup and calibration  Inputs for mA, Volts, Potentiometer, Frequency and Counting  Built in functions such as an Event Timer, Real Time Clock (RTC option required), manual setpoint station (Analog output option required) ...
  • Page 3 IQ200 Panel Mount Process Indicator Page 3 This instrument is marked with the international hazard symbol. It is important to read this manual before installing or commissioning your panel meter as it contains important information relating to safety and Electromagnetic Compatibility EMC.
  • Page 4: Specifications

    IQ200 Panel Mount Process Indicator Page 4 2 Specifications General: Display 6-Digit, 13.8mm (0.543”) 14 segment high brightness red LED Display range -199999 to +999999 Status LEDS 5 LEDs (SP1 to SP4 & Totaliser) Digital Inputs 2 Programmable digital inputs Built in hysteresis, filter and input over voltage protection Maximum input voltage <30VDC...
  • Page 5 IQ200 Panel Mount Process Indicator Page 5 Filter Moving average digital filter with programmable input step detection Conversion rate 10 updates/second Increment size 1, 2, 5, 10, 20, 50, 100, 200 Lineariser 16 Point Voltage Input: Measurement ranges +-23V (Bi-polar)
  • Page 6 IQ200 Panel Mount Process Indicator Page 6 SSSSS.S SSSS.SS Reset / Preset / Start / Stop Via an external digital input Manual Analog Output Station: (Optional with analog out option) Decimal Point Programmable on all digits Sensor Excitation Voltage: (Jumper selectable) Excitation Voltage +2.048V, Max 2mA...
  • Page 7: Installation

    IQ200 Panel Mount Process Indicator Page 7 3 Installation 3.1 Dimensions & Front panel layout Alarm Status Indication 6-Digit 14 segment high brightness LED display Normal Display Mode: F1 Function key Normal Display Mode: Programming Mode: Print key / Press for 3 seconds Enter key.
  • Page 8: Panel Cutout

    Page 8 3.2 Panel Cutout A rectangular cutout measuring 92x45mm (3.62”x1.77”) must be made in the mounting enclosure. The IQ200 instrument should preferably be mounted in a grounded metal enclosure. The supplied o-ring must be attached to the front cover to provide sealing between the indicator and the mounting enclosure.
  • Page 9 IQ200 Panel Mount Process Indicator Page 9 3.3 Hardware Connection (Lower Terminals)
  • Page 10 IQ200 Panel Mount Process Indicator Page 10 3.4 Hardware Connection (Upper Terminals – Option PCB)
  • Page 11: Opening The Unit

    IQ200 Panel Mount Process Indicator Page 11 3.5 Opening the Unit Make sure power and all connectors have been removed before opening the unit. To open the unit simply remove all the connectors from the rear and unscrew the 2 or 4 (Depending if an option board has been installed) screws and simply slide out the instrument from the enclosure.
  • Page 12: Power Supply Wiring

    3.8 Fuse Replacement The IQ200 contains a built in fuse. The fuse is a slow blow 2A Wickmann part number 3721200000. The fuse can also be purchased from RS Components part number 226-6599. The diagram below illustrates the position of the fuse on the...
  • Page 13: Input Signal Connection

    3.91 Current Input The IQ200 can accept a bi-polar mA signal between -20mA to +20mA. The IQ200 can also be used with 2 or 3 wire transmitters. An internal 24V excitation voltage can be used to power up an external sensor (Excitation voltage is jumper selectable, default setting is +24V).
  • Page 14: Voltage Input

    3.92 Voltage Input The IQ200 can accept a bi-polar voltage signal between -20V to +20V. An internal excitation voltage can be used to power up an external sensor (Excitation voltage is jumper selectable, default setting is +24V). Software ranges of the voltage signal are 0-2V, 0-5V, 1-5V, 0-10V, 2-10V, 0-15V, 3-15V, 0-20V or a user defined range.
  • Page 15: Potentiometer Input

    Page 15 3.94 Potentiometer Input The IQ200 can read a potentiometer with a minimum resistance of 1K ohm. The potentiometer software has a programmable zero, span, decimal point, filter, calibration mode and 16 point lineariser. The internal excitation voltage jumper must be set to VREF. The VREF excitation voltage is a precision 2.048V with a maximum current of 2mA.
  • Page 16: Digital Input Connection

    3.10 Digital Input connection The IQ200 comes with 2 programmable digital inputs. The digital inputs can be used with either potential free contacts such as relay contacts, switches, transistor outputs or can be voltage driven. The inputs are not isolated from the instruments input circuitry.
  • Page 17 The RS485 protocol allows for a wired connection to be established as far as 4000ft (1200m). RS232 only allows for a wired connection up to 100ft (30.5m). The IQ200 includes an on-board termination resistor which can be selected by linking J1 on the option circuit board inside the IQ200. The termination resistor is 120 Ohms.
  • Page 18 IQ200 Panel Mount Process Indicator Page 18 3.13 Mechanical Relays (Optional) Up to 4 mechanical relays can be added as an option. Interposing relays are recommended for heavy duty applications. A R-C Snubber network or MOV maybe required for switching AC loads and a freewheeling diode or MOV maybe required for switching DC loads.
  • Page 19 3.15 Analog Out / Isolated Analog Out (Optional) Analog out or an Isolated analog out option can be fitted to the IQ200. The Analog out uses a high precision 16 bit DAC (Digital to Analog converter) to provide analog ranges of 0-20mA, 4-20mA and 0-10V. The current output is source, not sink and can drive a maximum of 500Ω.
  • Page 20: Engineering Units

    3.16 RTC Battery Replacement (Optional) The internal battery will have to be replaced if the IQ200 looses its time when the instrument is switched off and on. The battery is of type CR2032. The battery is located on the underside of the option circuit board. The diagram below shows the location of the battery.
  • Page 21: Menu System

    4.2 Built in Help Feature The IQ200 includes a menu help feature which gives a better explanation of the menu option. If navigating the menu system and no keys are pressed within 10 seconds, then a help hint will be scrolled across the screen.
  • Page 22 IQ200 Panel Mount Process Indicator Page 22 Press the “Enter” key to see the setpoint 1 value. Press the “Up” key to increment the digit. Press the “Left” key to edited the next digit. Continue until the value has been set to the desired value.
  • Page 23 IQ200 Panel Mount Process Indicator Page 23 4.4 Main Menu The main menu is entered by pressing and holding down the menu key for 3 seconds. The following will be displayed. Use the Up, Left, Enter and Menu keys to navigate the menu system.
  • Page 24: Setpoint Values

    IQ200 Panel Mount Process Indicator Page 24 RS485 communications setup menu (Only shown if the RS485 option has been ordered) Function key setup menu Digital input setup menu Miscellaneous items setup menu Exit menu. Settings are saved on menu exit and the instrument will return to the normal display mode Back to the start of the main menu.
  • Page 25: Input Configuration Menu

    IQ200 Panel Mount Process Indicator Page 25 4.6 Input Configuration Menu This menu selects and configures the input signal. Current Input Voltage input Frequency input Counter input Potentiometer input Event Timer Real Time clock (RTC option required) Manual analog output station. (Analog output option required)
  • Page 26 Select the display decimal point. Use the up arrow to select the decimal point. The IQ200 can be configured by using data either from the mA sensor datasheet (“0-20mA” or “4-20mA” selected) or by using direct mA signal injection (“mA CAL” selected).
  • Page 27 IQ200 Panel Mount Process Indicator Page 27 The following 3 menu items are only shown if “mA CAL” has been selected for the “RANGE” setting. Enter the value in mA that corresponds to the low display value (“DISP L”). Use the front panel push buttons to enter the low mA value.
  • Page 28 IQ200 Panel Mount Process Indicator Page 28 The IQ200 instrument contains an advanced digital filter algorithm. The filter works by filtering small changes between measurements but will react instantaneously to a large step response. There are 2 settings that are used to setup the digital filter, namely the filter band and the filter time.
  • Page 29 IQ200 Panel Mount Process Indicator Page 29 Lineariser Sub-Menu For non-linear processes, up to 16 scaling points may be used to provide a piece-wise linear approximation. The greater the number of points the greater the accuracy. Each point has a real value and a corresponding display value. The real value is the actual value of the input as it would be with the lineariser feature turned off, the display value is the desired value.
  • Page 30 For best results the system should be given a warm up time of a minimum of 15 minutes before calibration takes place and the 2 known signals should be as different from each other as possible to allow the IQ200 to try and obtain the greatest resolution.
  • Page 31 Select the display decimal point. Use the up arrow to select the decimal point. The IQ200 can be configured by using data either from the Volts sensor datasheet or by using direct Volts signal injection (“V CAL” selected). Enter the display value of the system that corresponds to the low value of the “RANGE”...
  • Page 32 IQ200 Panel Mount Process Indicator Page 32 Enter the display value of the system that corresponds to the high value of the “RANGE” selection. E.G. if 2-10V is selected for “RANGE” then enter a value that corresponds to 10V. If “V CAL” has been selected for “RANGE” then enter the display value of the system that corresponds to the “HIGH V”...
  • Page 33 IQ200 Panel Mount Process Indicator Page 33 The IQ200 instrument contains an advanced digital filter algorithm. The filter works by filtering small changes between measurements but will react instantaneously to a large step response. There are 2 settings that are used to setup the digital filter, namely the filter band and the filter time.
  • Page 34 IQ200 Panel Mount Process Indicator Page 34 Lineariser Sub-Menu For non-linear processes, up to 16 scaling points may be used to provide a piece-wise linear approximation. The greater the number of points the greater the accuracy. Each point has a real value and a corresponding display value. The real value is the actual value of the input as it would be with the lineariser feature turned off, the display value is the desired value.
  • Page 35 For best results the system should be given a warm up time of a minimum of 15 minutes before calibration takes place and the 2 known signals should be as different from each other as possible to allow the IQ200 to try and obtain the greatest resolution.
  • Page 36 Use the up arrow to select the decimal point. The IQ200 caters for a wide range of applications. The display value can be adapted to these applications using the factor and scale variables. Display Value = Input x Factor x Scale.
  • Page 37 IQ200 Panel Mount Process Indicator Page 37 Select the filter gate time. The frequency will be measured over this interval. 0.5 Seconds gate time 1 Second gate time 5 Seconds gate time Back to the start of the Frequency setup menu.
  • Page 38 Use the up arrow to select the decimal point. The IQ200 caters for a wide range of applications. The display value can be adapted to these applications using the factor and scale variables. Display Value = Input x Factor x Scale.
  • Page 39 IQ200 Panel Mount Process Indicator Page 39 Enter the reset / preset value of the Counter. Use the front panel push buttons to enter the reset preset value. Back to the start of the Counter setup menu.
  • Page 40 Apply the low calibration signal to the instrument and then press enter. The IQ200 will start to average and calculate the value that corresponds to the low calibration signal. Done! The low calibration signal can now be removed. The low...
  • Page 41 The IQ200 instrument contains an advanced digital filter algorithm. The filter works by filtering small changes between measurements but will react instantaneously to a large step response. There are 2 settings that are used to setup the digital filter, namely the filter band and the filter time.
  • Page 42 IQ200 Panel Mount Process Indicator Page 42 See the paragraph above for an explanation of the filter band. Use the front panel push buttons to enter the filter band. Select the filter time. See the paragraph above for an explanation of the filter time.
  • Page 43 IQ200 Panel Mount Process Indicator Page 43 Note: If the measured value is above the last actual point then the lineariser will use the last 2 points to calculate the slope and similarly is the measured value is below the first actual point then it will use the first 2 points to calculate the slope.
  • Page 44 IQ200 Panel Mount Process Indicator Page 44 4.6.6 Event Timer Configuration menu This menu option allows the user to set the Event Timer settings. Select the mode of the Event Timer. Event Timer counts down Event Timer counts up Select the Event Timer time format Seconds only (0.01 second resolution)
  • Page 45 IQ200 Panel Mount Process Indicator Page 45 4.6.7 Real Time Clock setup menu. (RTC option required) This menu option allows the user to set the RTC (Real Time Clock). This menu option is only displayed if the RTC option has been ordered.
  • Page 46: Alarm Configuration Menu

    IQ200 Panel Mount Process Indicator Page 46 4.7 Alarm Configuration Menu This menu configures the alarm parameters. This menu is only shown if any of the alarm options have been ordered. The below setup menu is identical for each of the alarms.
  • Page 47 IQ200 Panel Mount Process Indicator Page 47 Enter the deviation high value. The high value of the band is the set point plus the deviation high value. This menu option is only shown if the alarm mode is set to deviation.
  • Page 48 IQ200 Panel Mount Process Indicator Page 48 The above diagram illustrates the use of a high alarm with hysteresis and on/off delay. 4.8 Analog Out Configuration Menu This menu configures the analog output parameters. This menu is only shown if the analog output option has been ordered.
  • Page 49 IQ200 Panel Mount Process Indicator Page 49 Select the analog out type. The Analog output is disabled. The analog output will be set to 0 to 20mA The analog output will be set to 4 to 20mA The analog output will be set to 0 to 10V Enter the analog output low value.
  • Page 50 This menu configures the RS232 and RS485 serial port parameters. The RS232 communication port is standard on the IQ200 but the RS485 menu will only be shown if the RS485 option has been ordered. The IQ200 has 3 built in communication protocols: 1) MODBUS™...
  • Page 51 IQ200 Panel Mount Process Indicator Page 51 4800 Baud. 9600 Baud. 19200 Baud. 38.4k Baud. 57.6k Baud. 115.2k Baud. Select the communication data bits 7 data bits. 8 data bits. Select the communication parity. No parity. Even parity. Odd parity.
  • Page 52 IQ200 Panel Mount Process Indicator Page 52 Minimum value recorded Maximum value recorded This menu option is only shown if the ASCII Out mode is selected. Print on demand by either pressing the front push button or by a digital input.
  • Page 53: The Modbus Protocol

    IQ200 Panel Mount Process Indicator Page 53 4.9.2 The Modbus Protocol The IQ series instruments modbus implementation is based on the following documents: “MODBUS over Serial Line Specification and Implementation Guide V1.02” from Modbus-IDA.ORG. “MODBUS Application Protocol Specification V1.1b” from Modbus-IDA.ORG.
  • Page 54 IQ200 Panel Mount Process Indicator Page 54 Address Data Type Operation Description 32 bit unsigned Serial Number High Word 32 bit unsigned Serial Number Low Word 8 bit unsigned Model Number 16 bit unsigned Firmware Version 32 bit signed ADC Zero mA calibration constant High word...
  • Page 55 IQ200 Panel Mount Process Indicator Page 55 8 bit unsigned Alarm 2 Assignment 0: Input Selection 1: Min 2: Max 8 bit unsigned Alarm 2 Mode 0: Off 1: Low 2: High 8 bit unsigned Alarm 2 logic 0: Normal...
  • Page 56 IQ200 Panel Mount Process Indicator Page 56 0: Off 1: Low 2: High 8 bit unsigned Alarm 4 logic 0: Normal 1: Inverted 16 bit unsigned Alarm 4 Hysteresis 16 bit unsigned Alarm 4 Deviation low 16 bit unsigned Alarm 4 Deviation High...
  • Page 57 IQ200 Panel Mount Process Indicator Page 57 0: 1200 1: 2400 2: 4800 3: 9600 4: 19200 5: 38400 6: 57600 7: 115200 8 bit unsigned COM 1 (RS232) Data Bits 0: 7 Bits 1: 8 Bits 8 bit unsigned...
  • Page 58 IQ200 Panel Mount Process Indicator Page 58 8 bit unsigned F1 Key Assignment 0: None 1: Min/Max Toggle 2: Min/Max Value Reset 3: Latch Reset 4: Zero 5: Edit SP1 6: Edit SP2 7: Edit SP3 8: Edit SP4 9: Display Hold...
  • Page 59 IQ200 Panel Mount Process Indicator Page 59 1: Min/Max Toggle 2: Min/Max Value Reset 3: Latch Reset 4: Zero 5: Display Hold 6: Print 7: Counter Reset/Preset 8: Event timer start 9: Event timer stop 10: Event timer start/stop 11: Event timer reset...
  • Page 60 IQ200 Panel Mount Process Indicator Page 60 32 bit signed Lineariser Display Point 5 Low Word 32 bit signed Lineariser Real Point 6 High Word 32 bit signed Lineariser Real Point 6 Low Word 32 bit signed Lineariser Display Point 6 High Word...
  • Page 61 IQ200 Panel Mount Process Indicator Page 61 32 bit signed Lineariser Real Point 16 High Word 32 bit signed Lineariser Real Point 16 Low Word 32 bit signed Lineariser Display Point 16 High Word 32 bit signed Lineariser Display Point 16 Low Word...
  • Page 62 IQ200 Panel Mount Process Indicator Page 62 8 bit unsigned Counter mode 8 bit unsigned Counter Decimal Point 32 bit signed Counter Factor High Word 32 bit signed Counter Factor Low Word 8 bit unsigned Counter Scale 32 bit signed...
  • Page 63 IQ200 Panel Mount Process Indicator Page 63 FC05: Write Single Coil Referenced to 0XXXX. A value of 0xFF00 for the data will execute the function. An Echo of the original message will be returned. Address Action Command Instrument Reset Load Default Settings...
  • Page 64 IQ200 Panel Mount Process Indicator Page 64 4.10 Function Key Configuration Menu This menu configures the front panel function key push buttons. Three of the front panel push buttons can be user configured for specific functions as listed below. Certain options will be only be shown depending on the input type selected.
  • Page 65 IQ200 Panel Mount Process Indicator Page 65 4.11 Digital Input Configuration Menu This menu configures the two digital inputs. The digital inputs can be configured for specific functions as listed below. Certain options will be only be shown depending on the input type selected.
  • Page 66: Miscellaneous Configuration Menu

    IQ200 Panel Mount Process Indicator Page 66 4.12 Miscellaneous Configuration Menu This menu configures the miscellaneous functions of the instrument. Select this option if you want to password protect the menu system. Select “NONE” for no menu protection, “FULL” for all menu options to be password protected, or “ALM.VAL”...
  • Page 67: Error Messages

    IQ200 Panel Mount Process Indicator Page 67 This menu option allows access to technical functions such as input signal and analog output calibration. These functions are accessed by the factory during the calibration of the instrument. Please consult the factory for more information.
  • Page 68: Other Error Messages

    IQ200 Panel Mount Process Indicator Page 68 Other Error Messages: Unit settings CRC error. Load default settings to restore to factory defaults. If the error message still persists then it could possibly be a non-volatile memory failure in which case the instrument will then have to be returned to the factory.
  • Page 69: Firmware Upgrading

    7 Firmware Upgrading The IQ200 process indicator can be upgraded in the field by connecting the RS232 port to a PC and running the firmware update program. Note that only the RS232 port can be used to upgrade the firmware.
  • Page 70: Ordering Information

    10 Ordering Information Add option codes to suffix of model number separated by hyphens. Example: (IQ200 Process indicator with 2 mechanical relays, analog output and an additional RS485 interface) IQ200-711-730-740 Option part numbers: 700 - Low voltage 10-30VDC isolated power supply...
  • Page 71: Warranty

    IQ200 Panel Mount Process Indicator Page 71 11 Notice Specifications of the products displayed herein are subject to change without notice. Infiniteq cc, or anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies. Information contained herein is intended to provide a product description only. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document.
